AK02100108

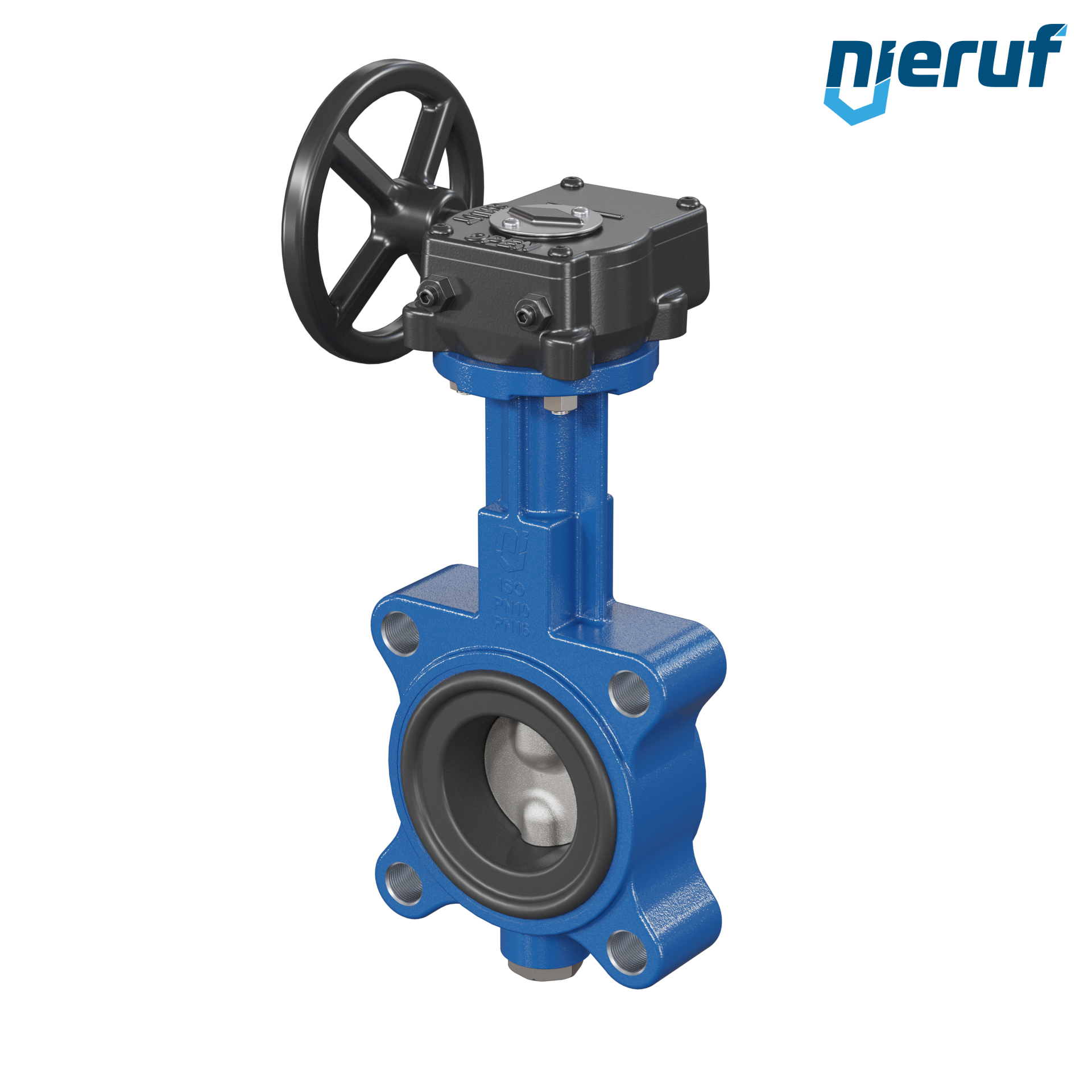

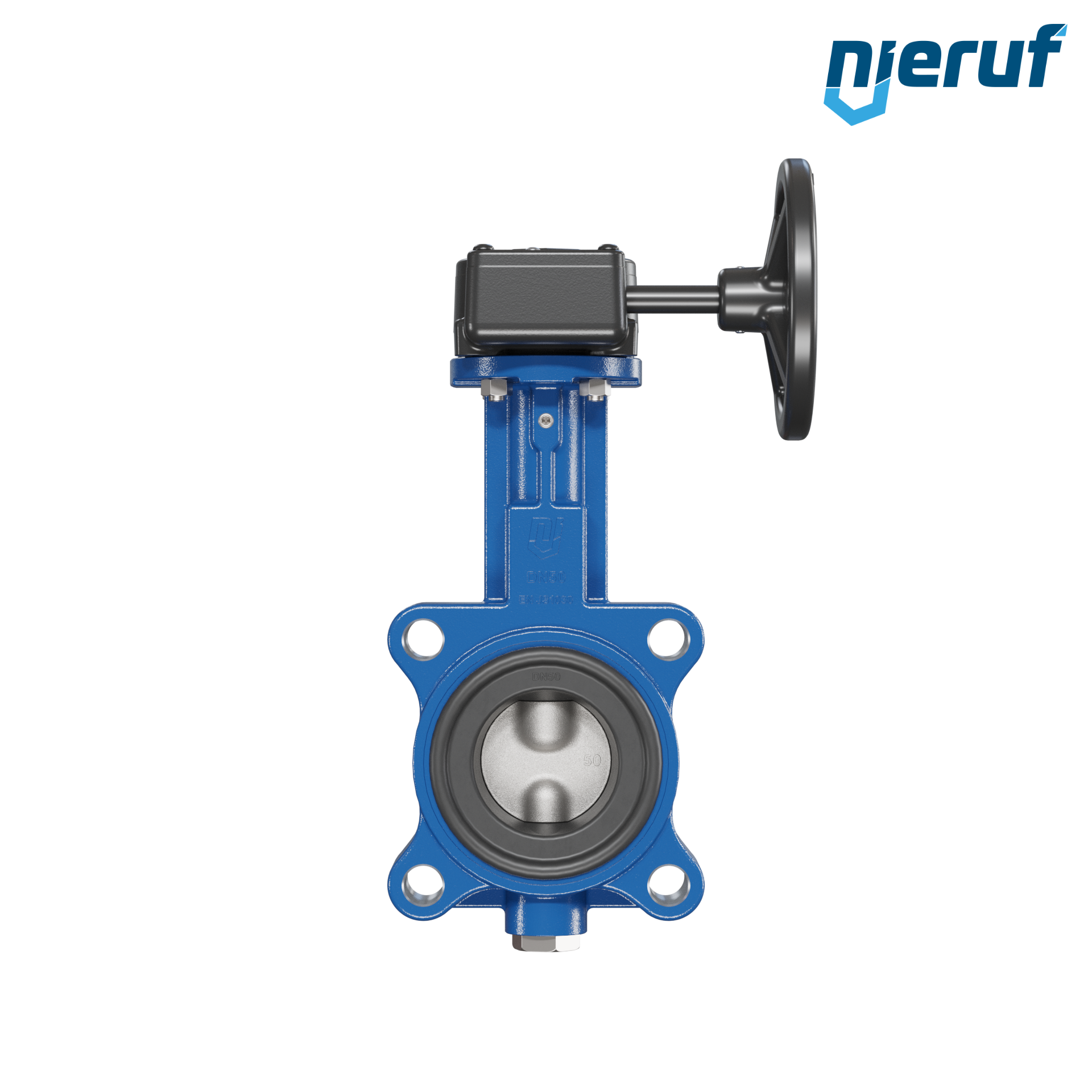

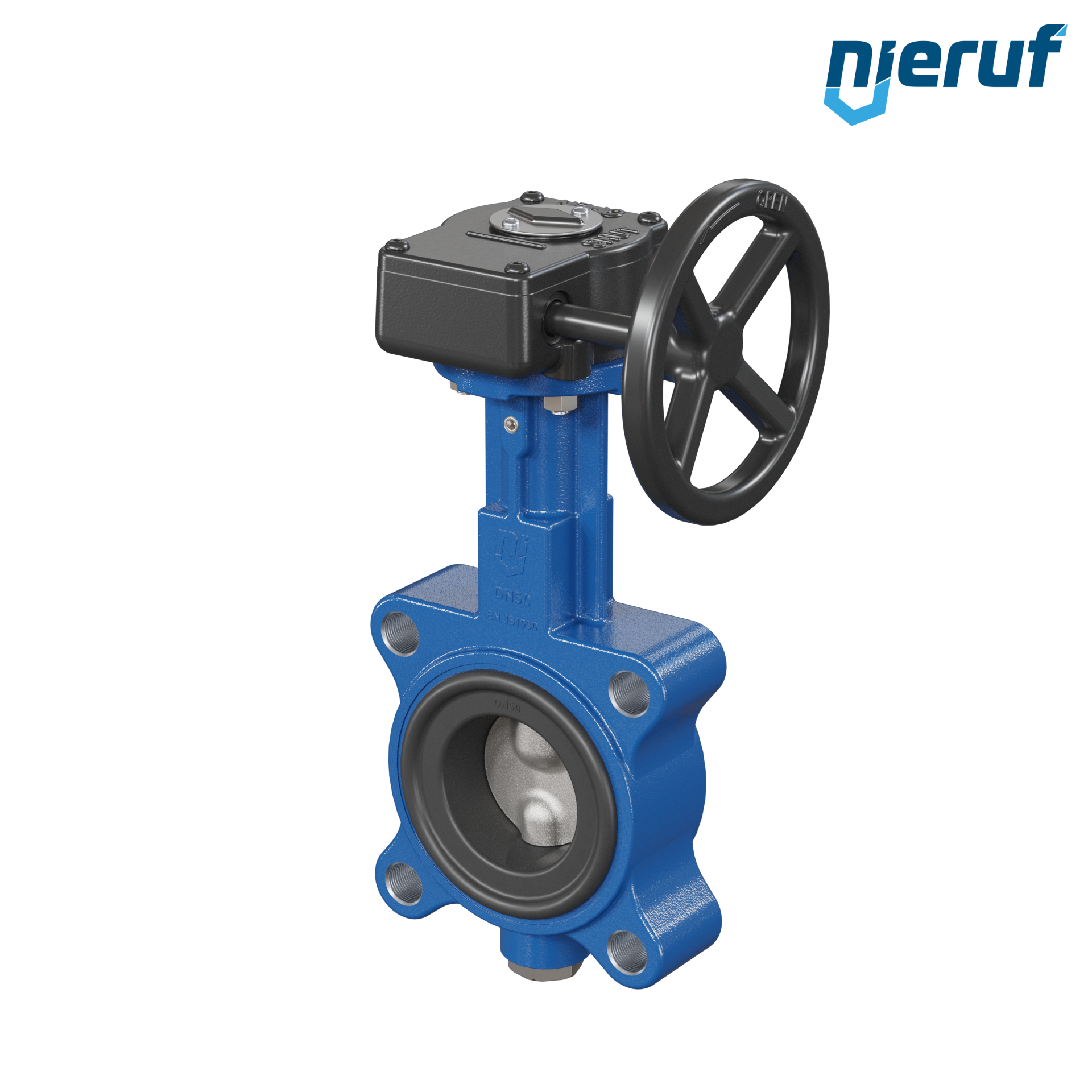

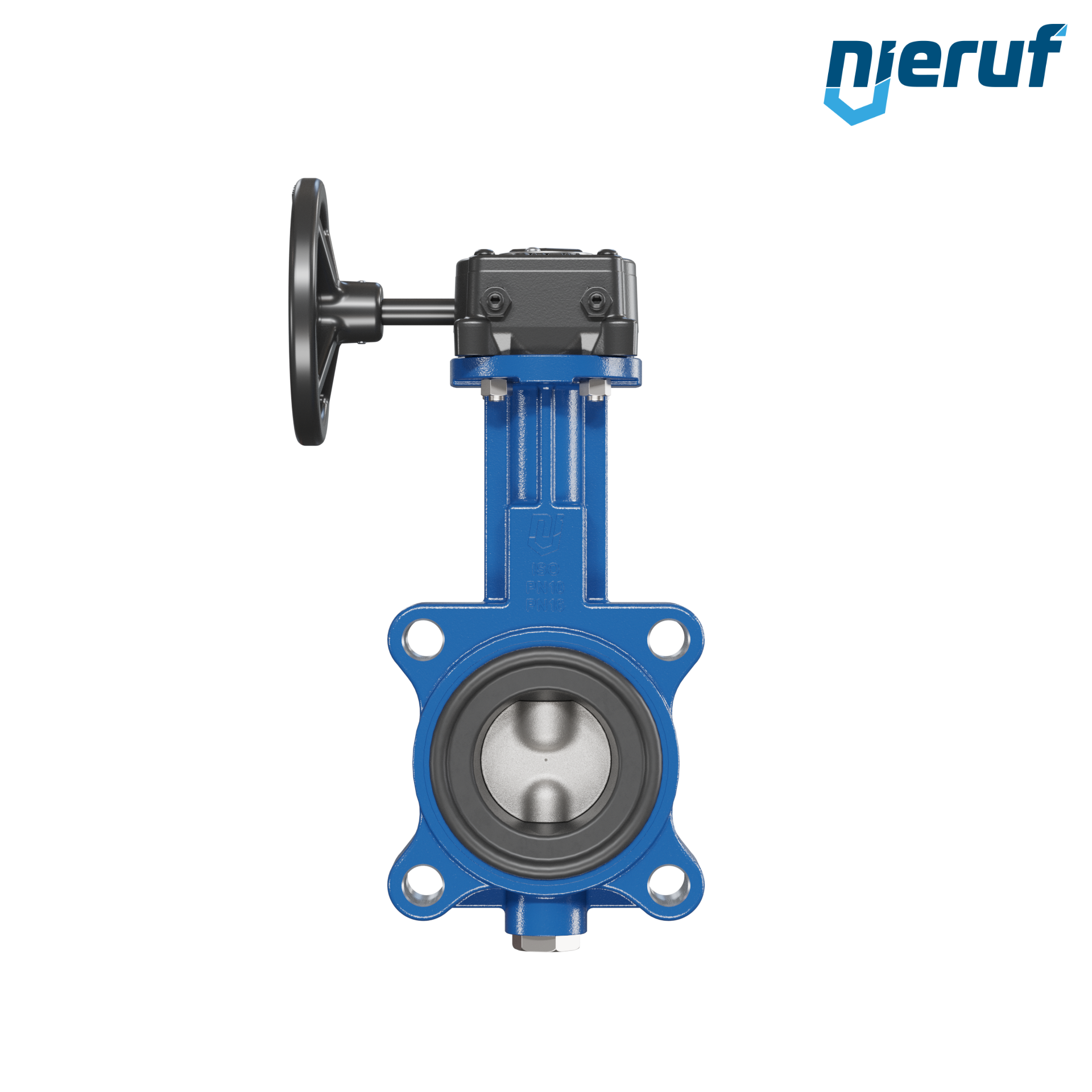

Butterfly valve AK02 DN 50 PN10-PN16 DVGW-water Worm gear

€171.00*

€203.49 VAT included.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Monday, 13. October

Guaranteed delivery until Tuesday, 14. October, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

FL01020108

Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€18.80*

€22.37 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02100108
Butterfly valve AK02 DN 50 PN10-PN16 DVGW-water Worm gear

Butterfly valve DN 50 PN10-PN16 Lug type GGG40 with Worm gear EPDM DVGW drinking water, WRAS, ACS, W270

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 50
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 50 PN10-PN16 DVGW-water Worm gear

Article no. : AK02100108
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 50
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
