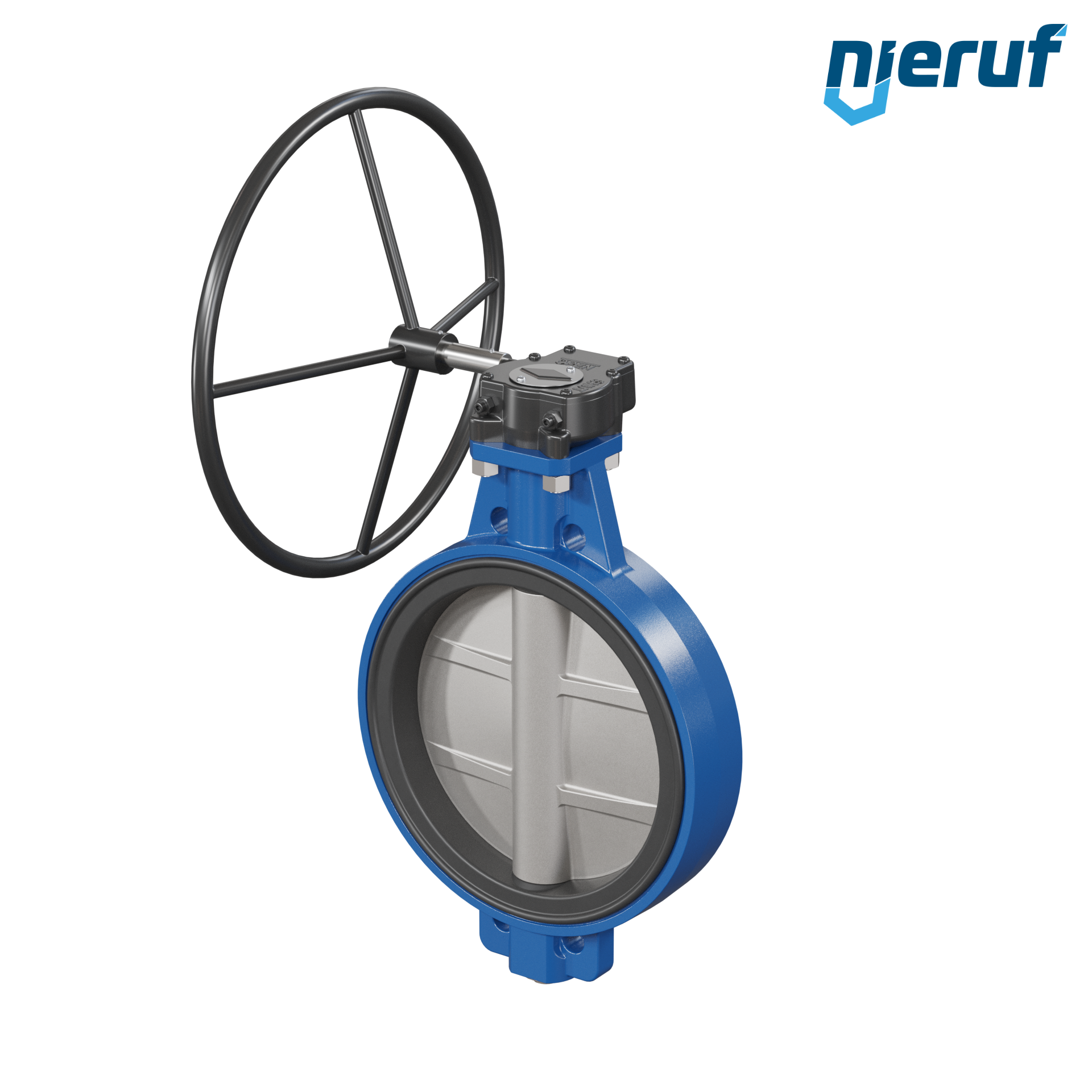

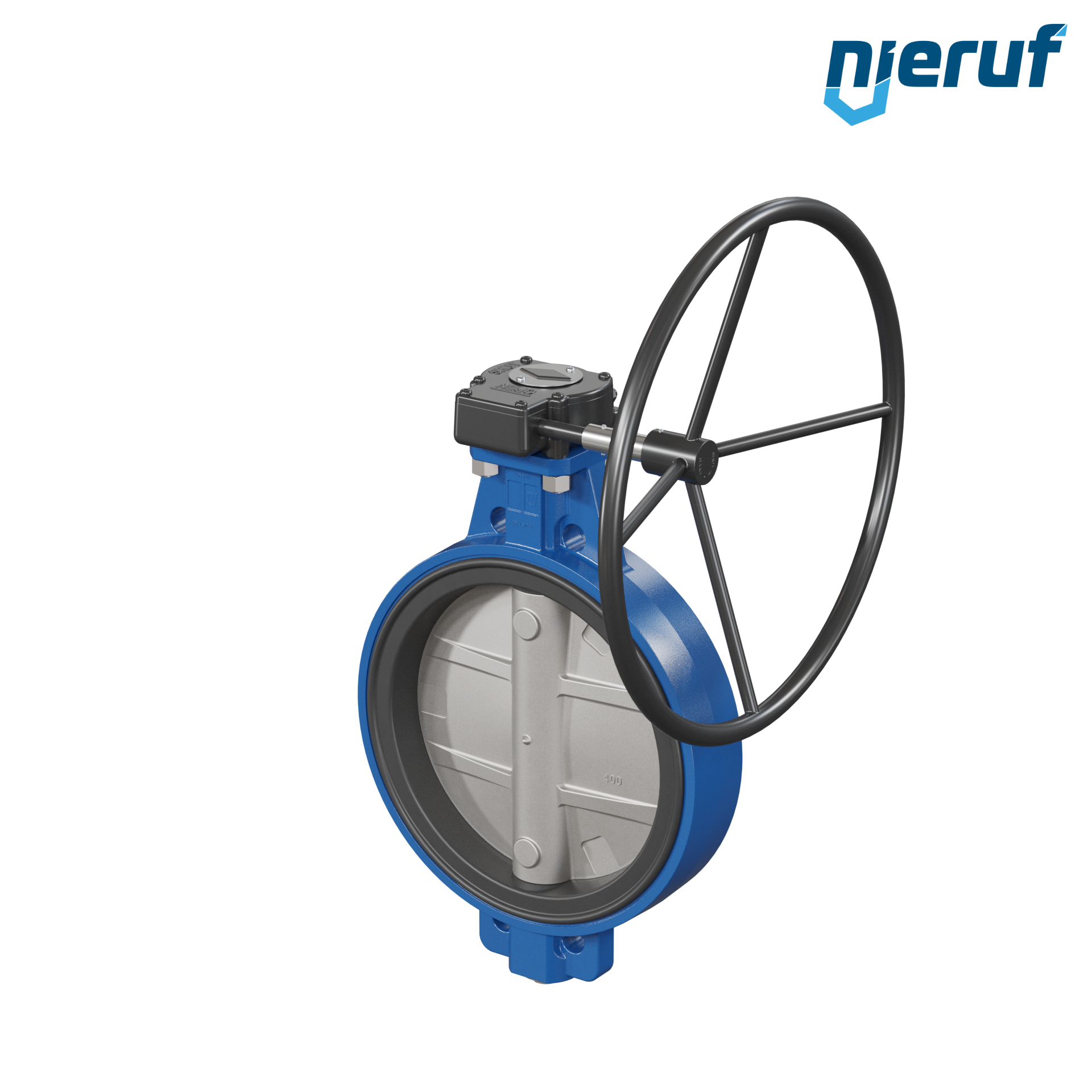

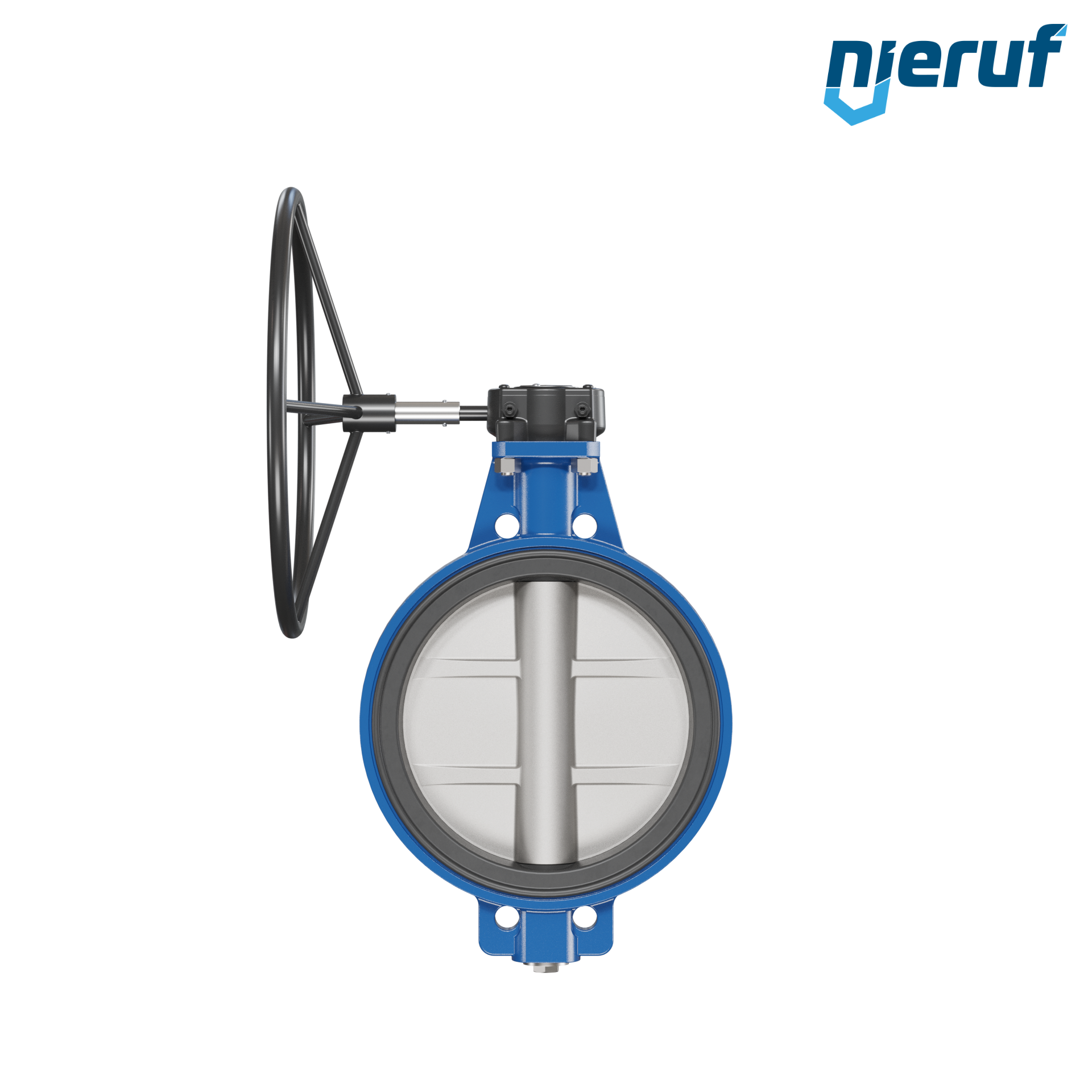

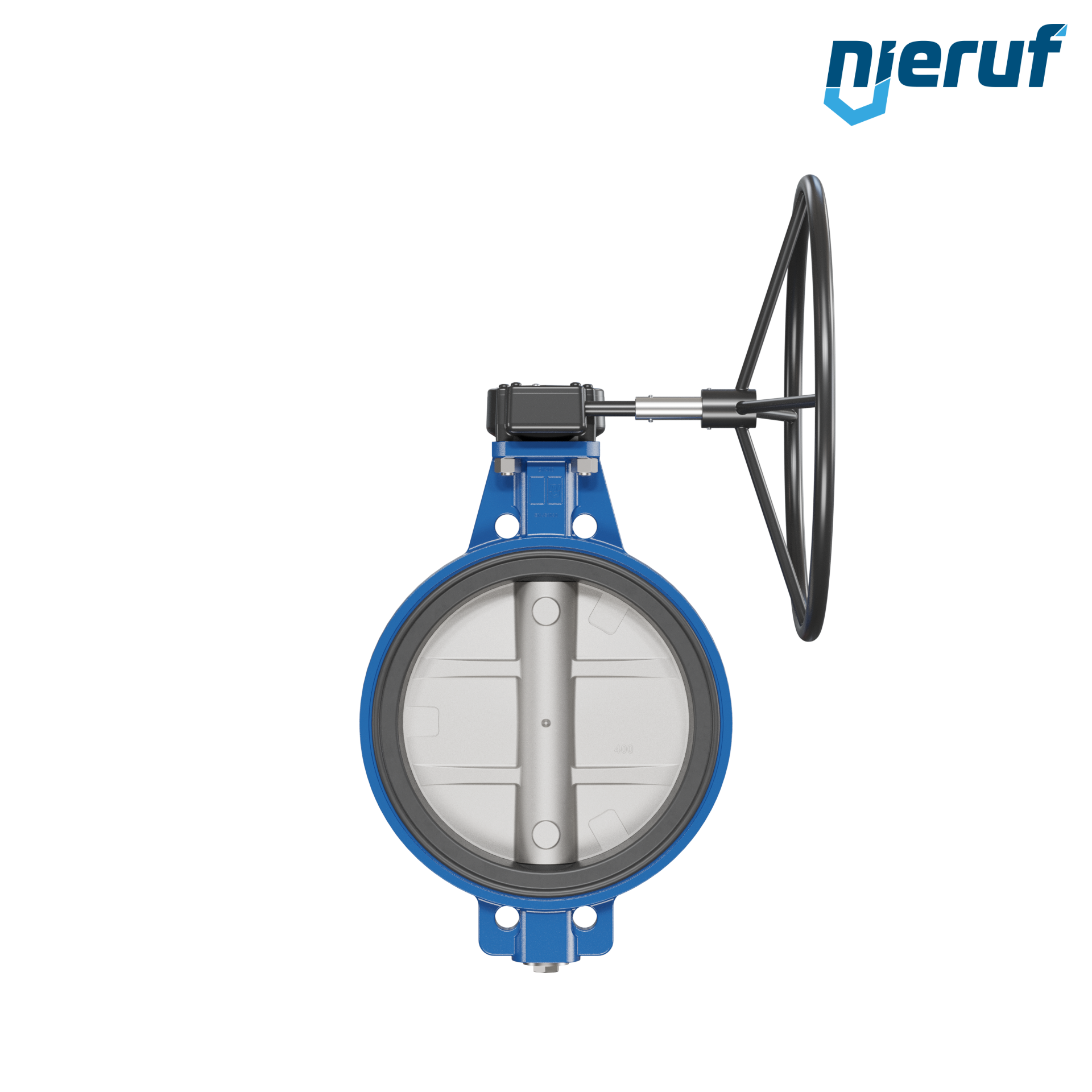

Butterfly valve DN 400 PN10-PN16 Wafer type GGG40 with Worm gear NBR-70-black DVGW gas
|sleeves:||NBR-70-black DVGW gas|
|media:||liquid and gaseous media|
|temperature:||-10°C up to +60°C|
|body material:||SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm|
|disc:||stainless steel 1.4408|
|approval:||NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)|
|installation position:||shaft preferably horizontal|
|product feature:||Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 400 PN10-PN16 DVGW-gas Worm gear
product: Butterfly valve
diameter: DN 400
nominal pressure: PN10-PN16
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408

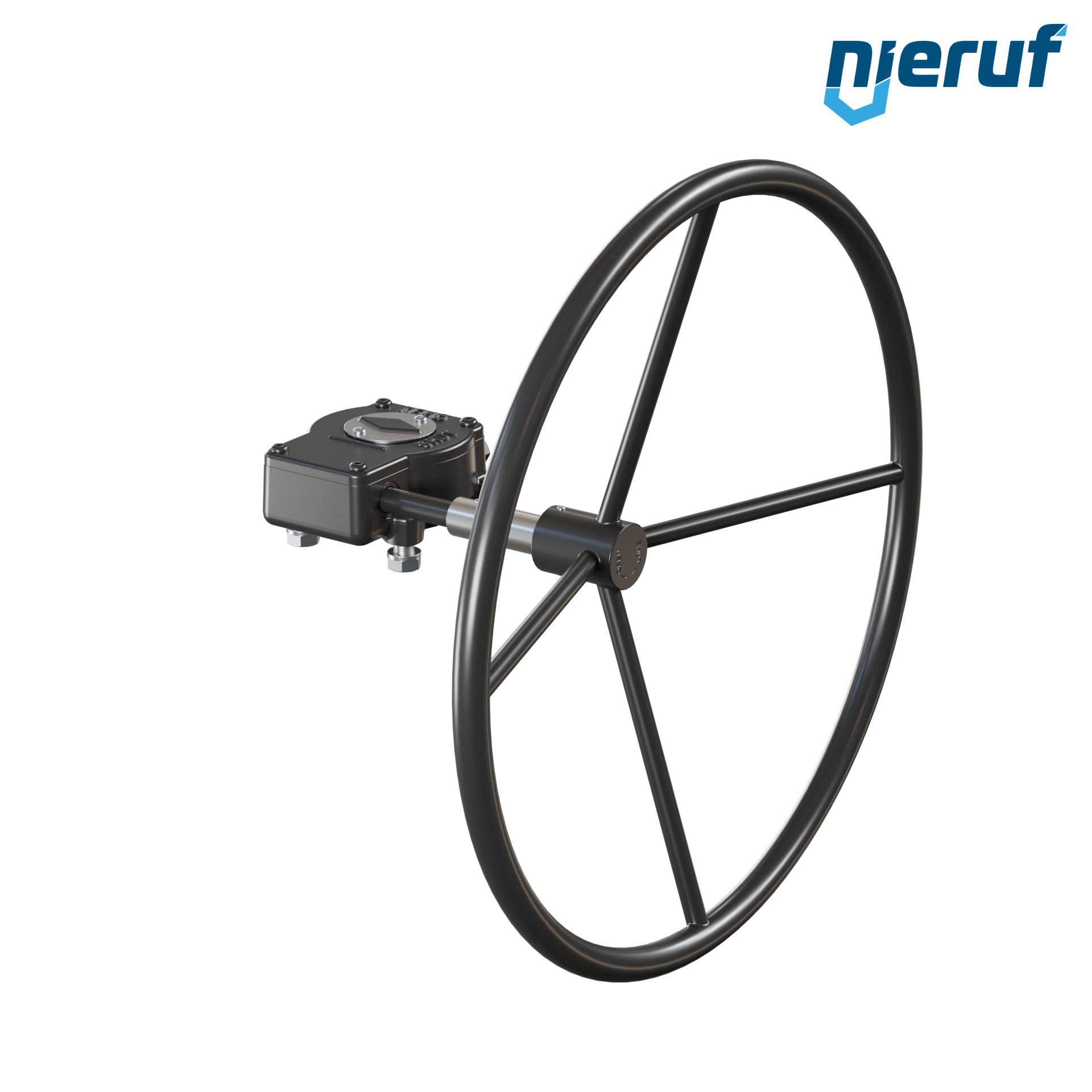

actuation: Worm gear
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
