AK02000118

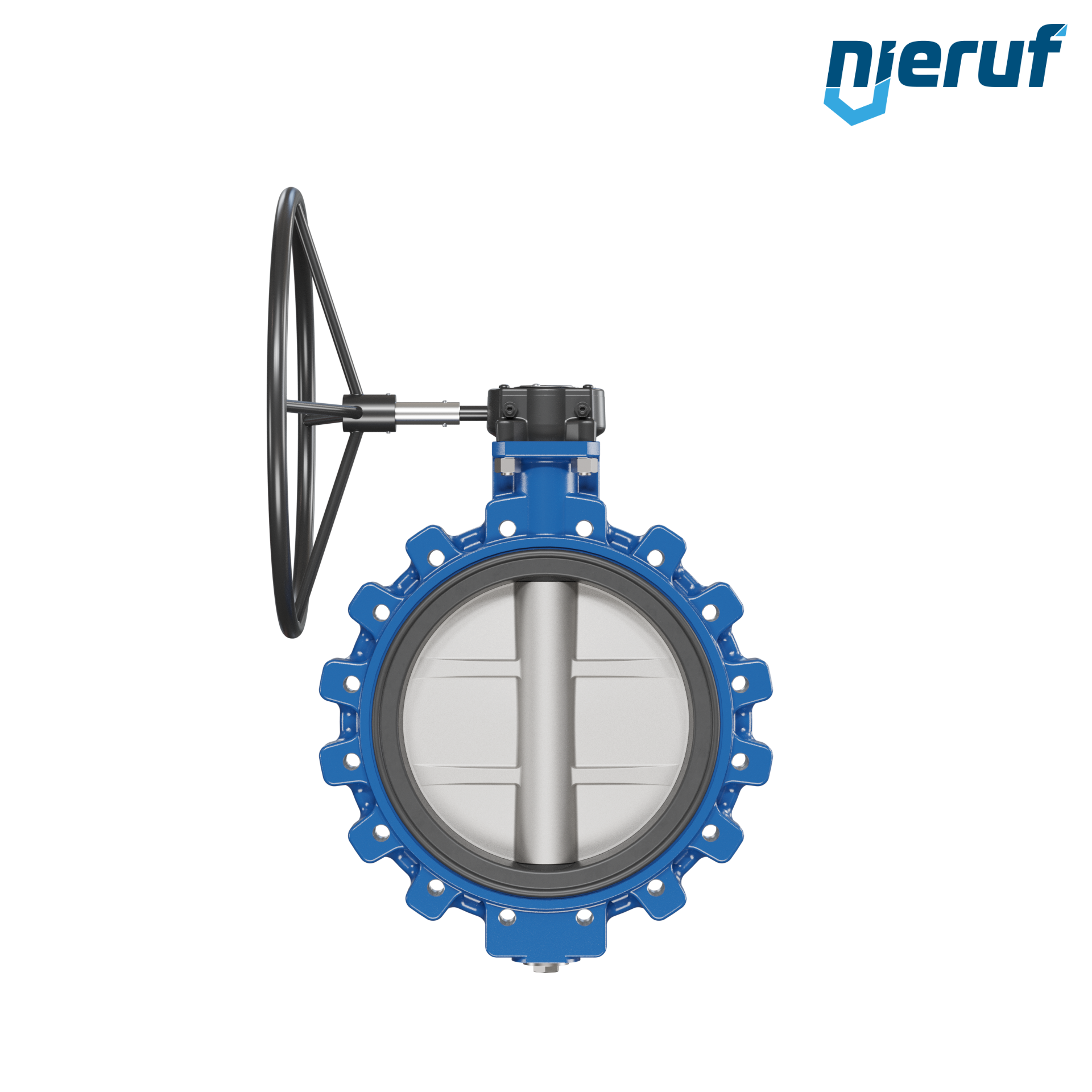

Butterfly valve AK02 DN 400 PN10 DVGW-water Worm gear

€2,489.60*

€2,962.62 VAT included.

Delivery time: 2 - 3 weeks

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02000118
Butterfly valve AK02 DN 400 PN10 DVGW-water Worm gear

Butterfly valve DN 400 PN10 Lug type GGG40 with Worm gear EPDM DVGW drinking water, WRAS, ACS, W270

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 400
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 400 PN10 DVGW-water Worm gear

Article no. : AK02000118
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 400
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: -20°C up to +90°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
