AK02020118

Butterfly valve AK02 DN 400 PN10 FPM Worm gear

€3,899.50*

€4,640.41 VAT included.

Delivery time: 2 - 3 weeks

Delivery information

×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02020118

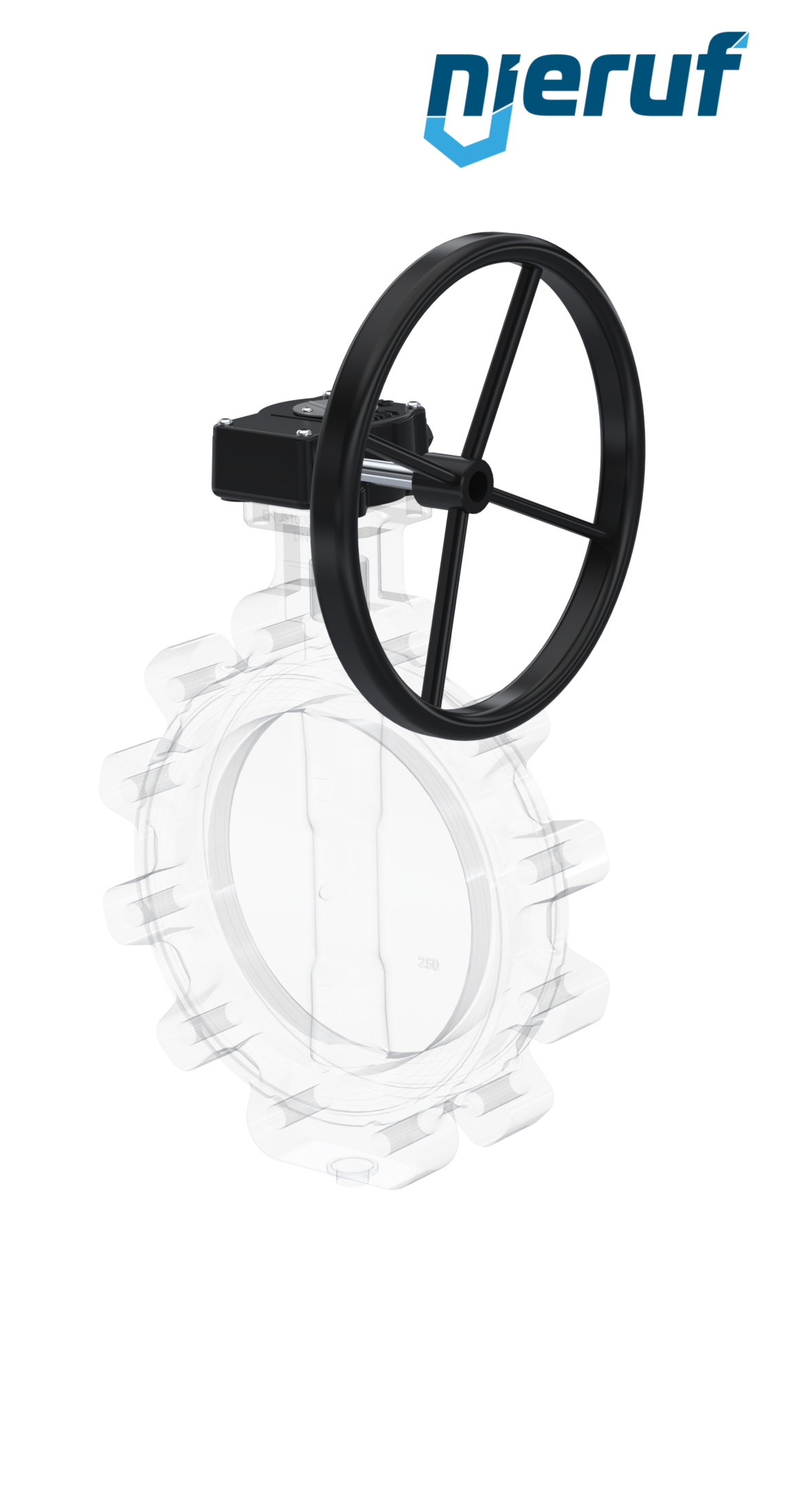

Butterfly valve AK02 DN 400 PN10 FPM Worm gear

Butterfly valve DN 400 PN10 Lug type body made of GGG40 with Worm gear seal FPM for liquid and gaseous media industry design

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 400
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: FPM
media: liquid and gaseous media
temperature: -5°C up to +200°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 400 PN10 FPM Worm gear

Article no. : AK02020118
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 400
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: FPM
media: liquid and gaseous media
temperature: -5°C up to +200°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
