AK02010116

Butterfly valve AK02 DN 300 PN10 DVGW-gas Worm gear

€1,023.10*

€1,217.49 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Thursday, 18. April

Guaranteed delivery until Friday, 19. April, 12 o'clock

Order in within by express delivery


Equipment

FL01020116

Flange DN300 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

€136.40*

€162.32 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02010116

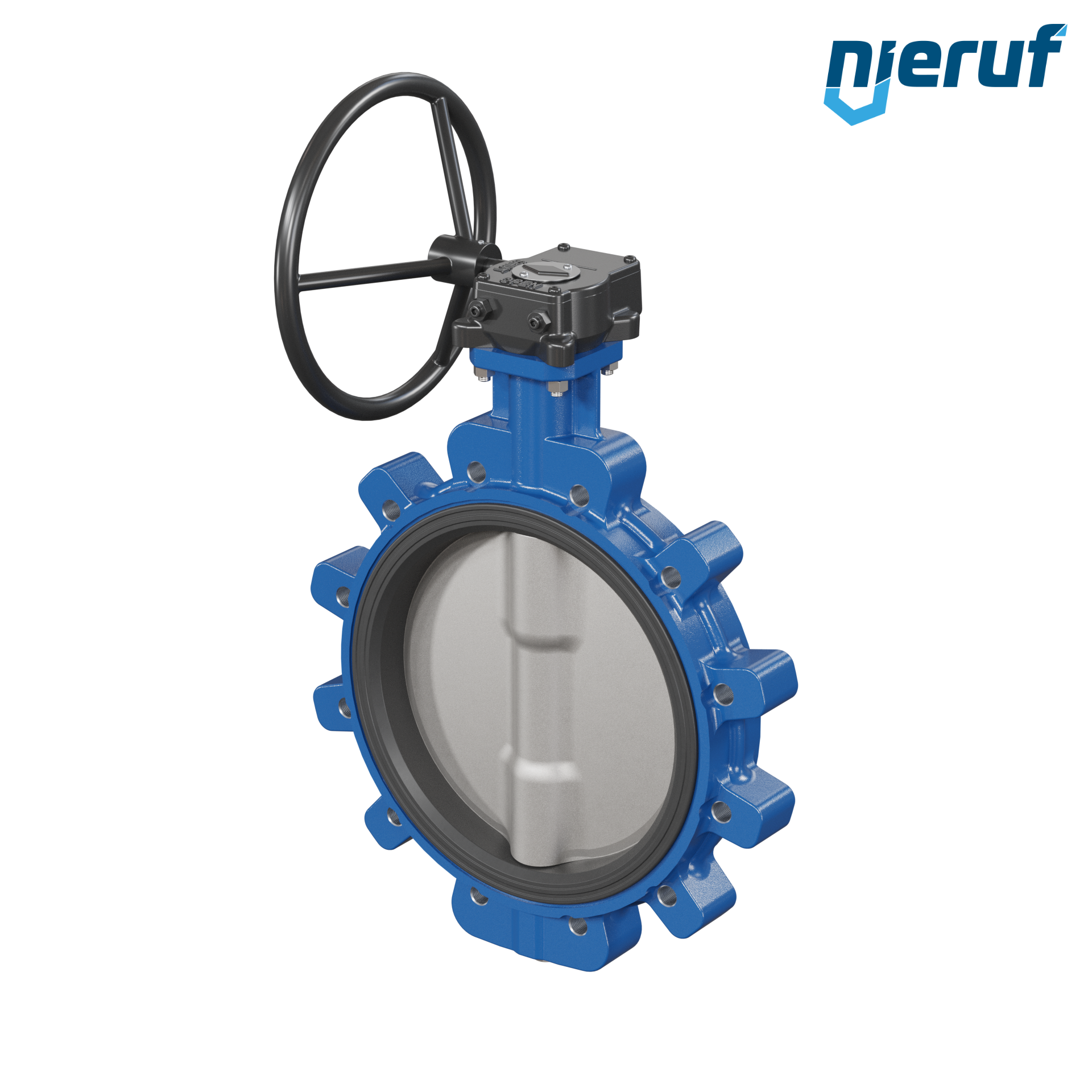

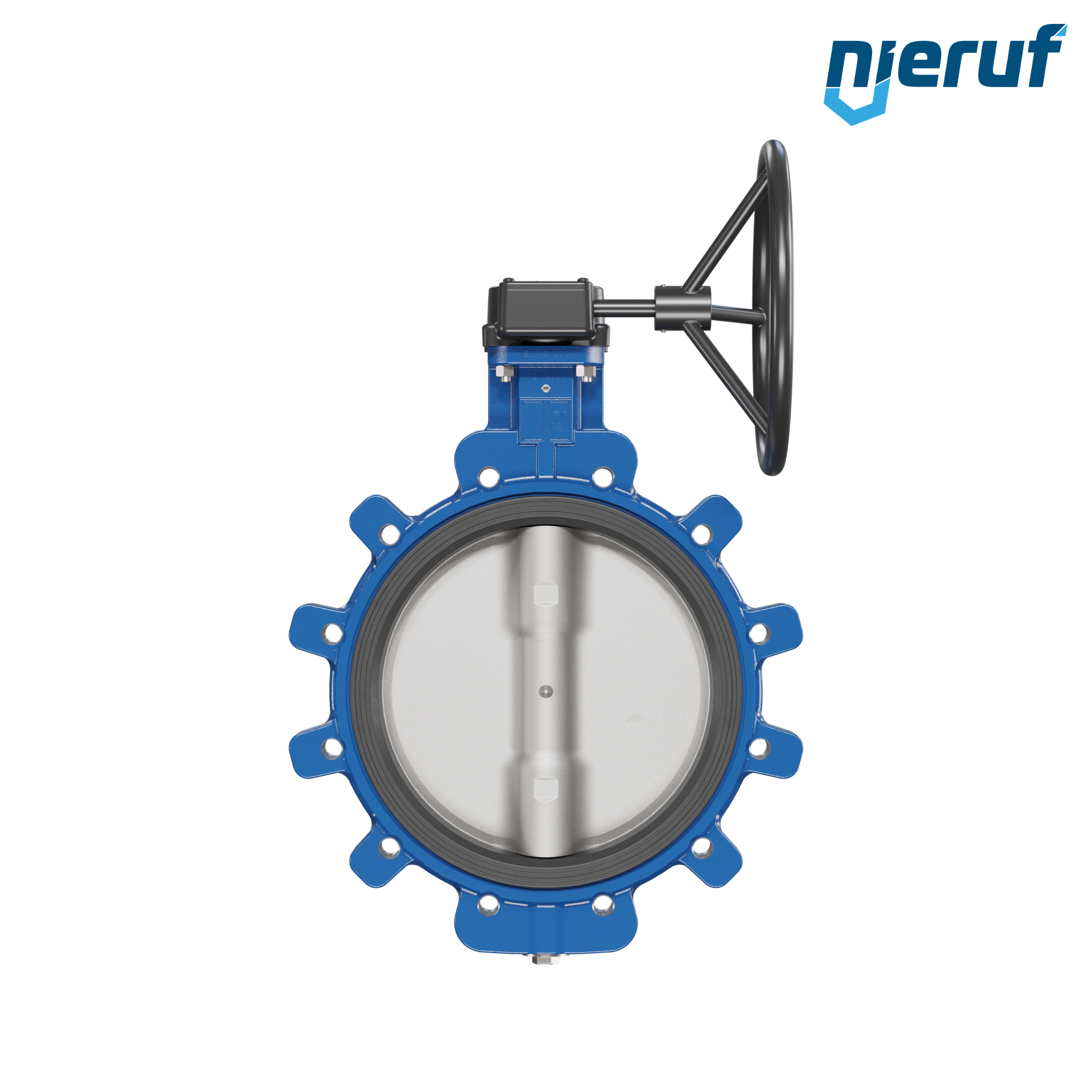

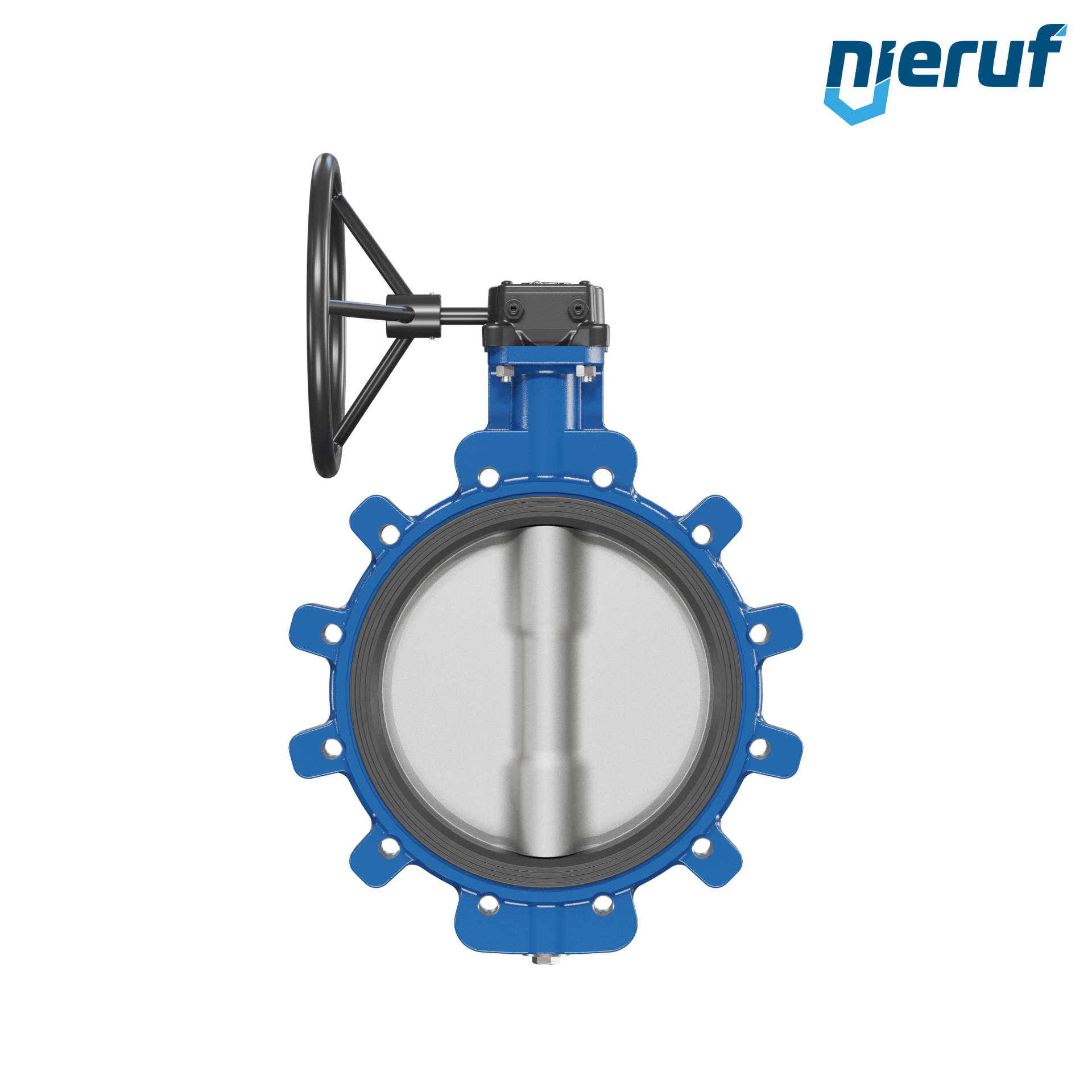

Butterfly valve AK02 DN 300 PN10 DVGW-gas Worm gear

Butterfly valve DN 300 PN10 Lug type GGG40 with Worm gear NBR-70-black DVGW gas

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 300
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 300 PN10 DVGW-gas Worm gear

Article no. : AK02010116
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 300
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: Worm gear
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: shaft preferably horizontal
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
