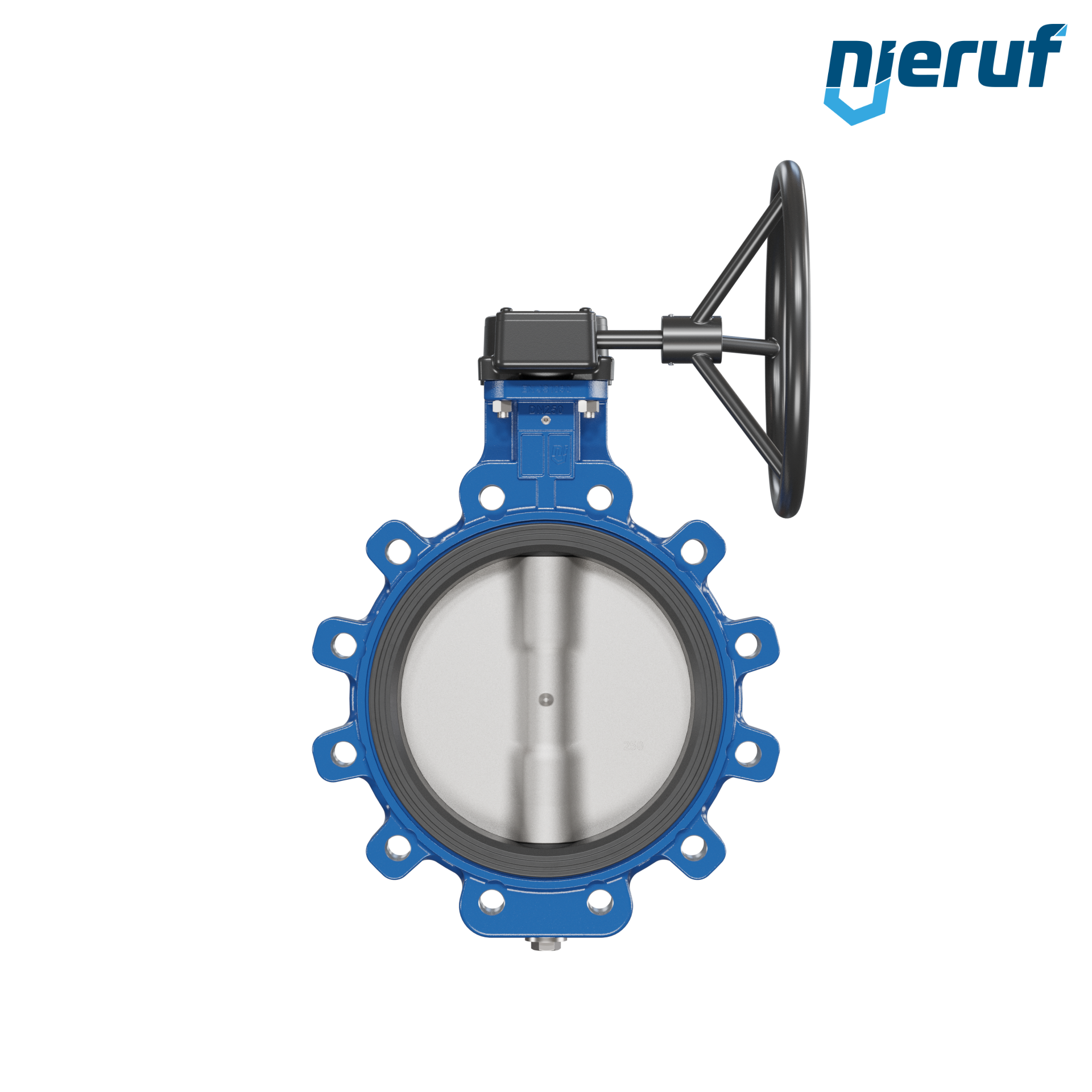

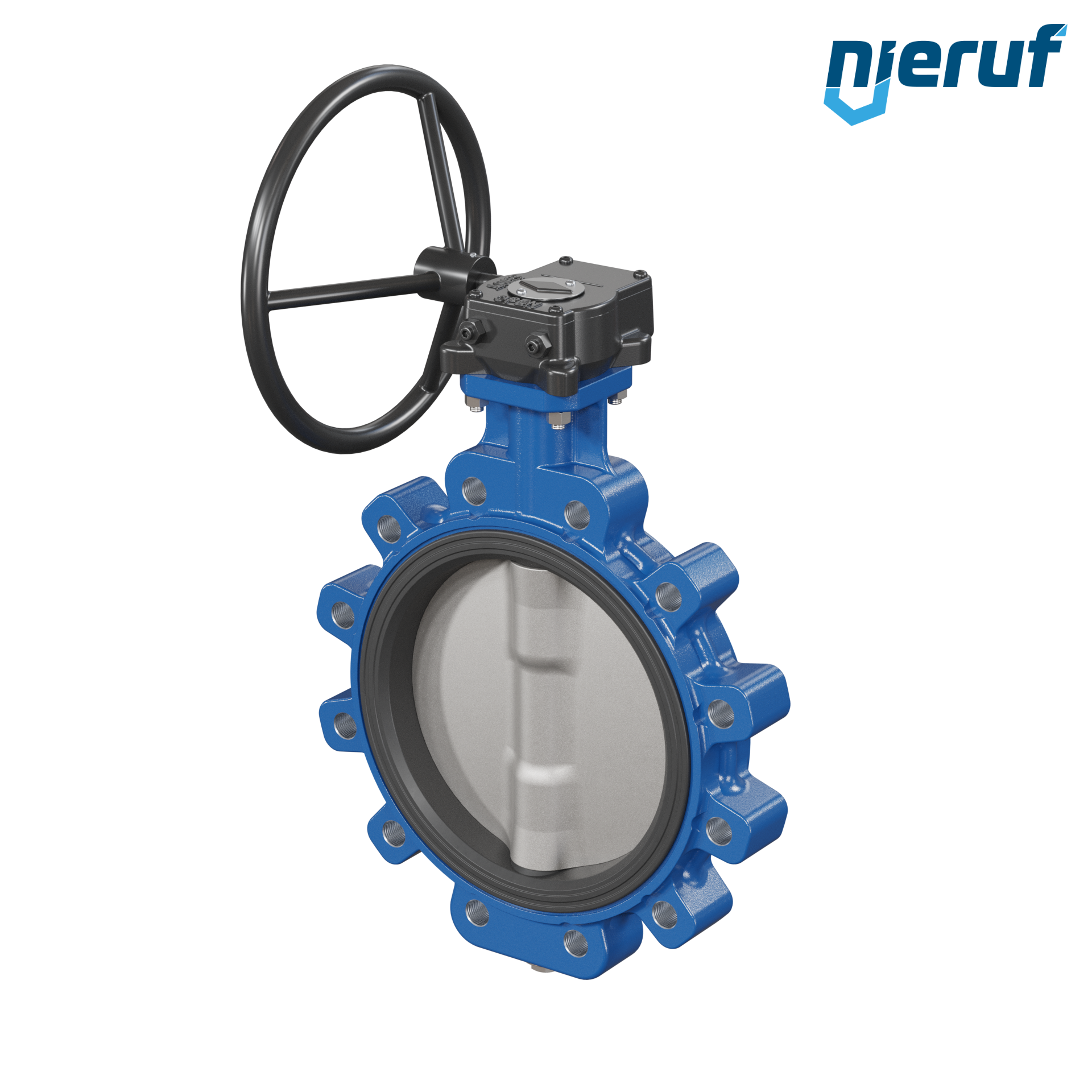

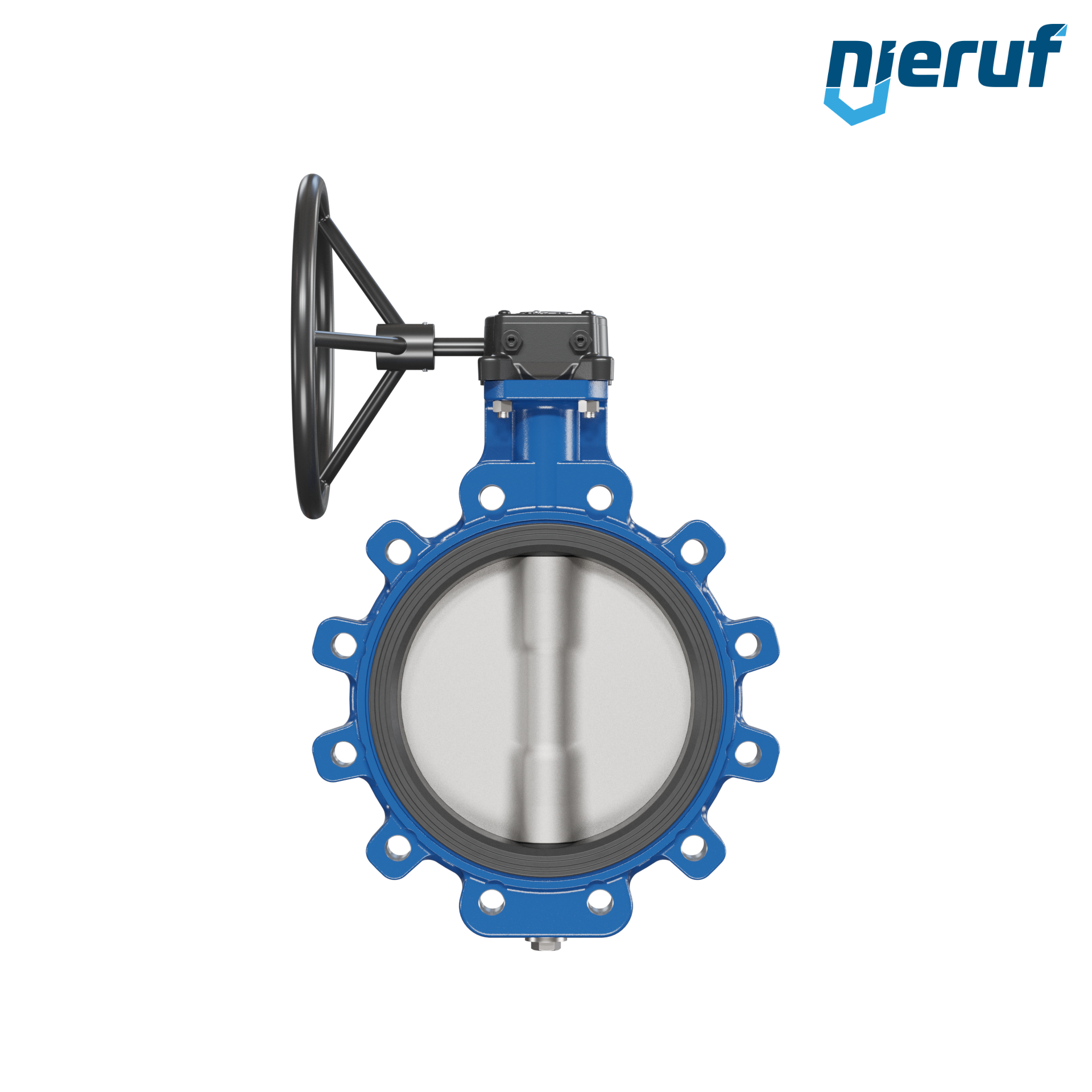

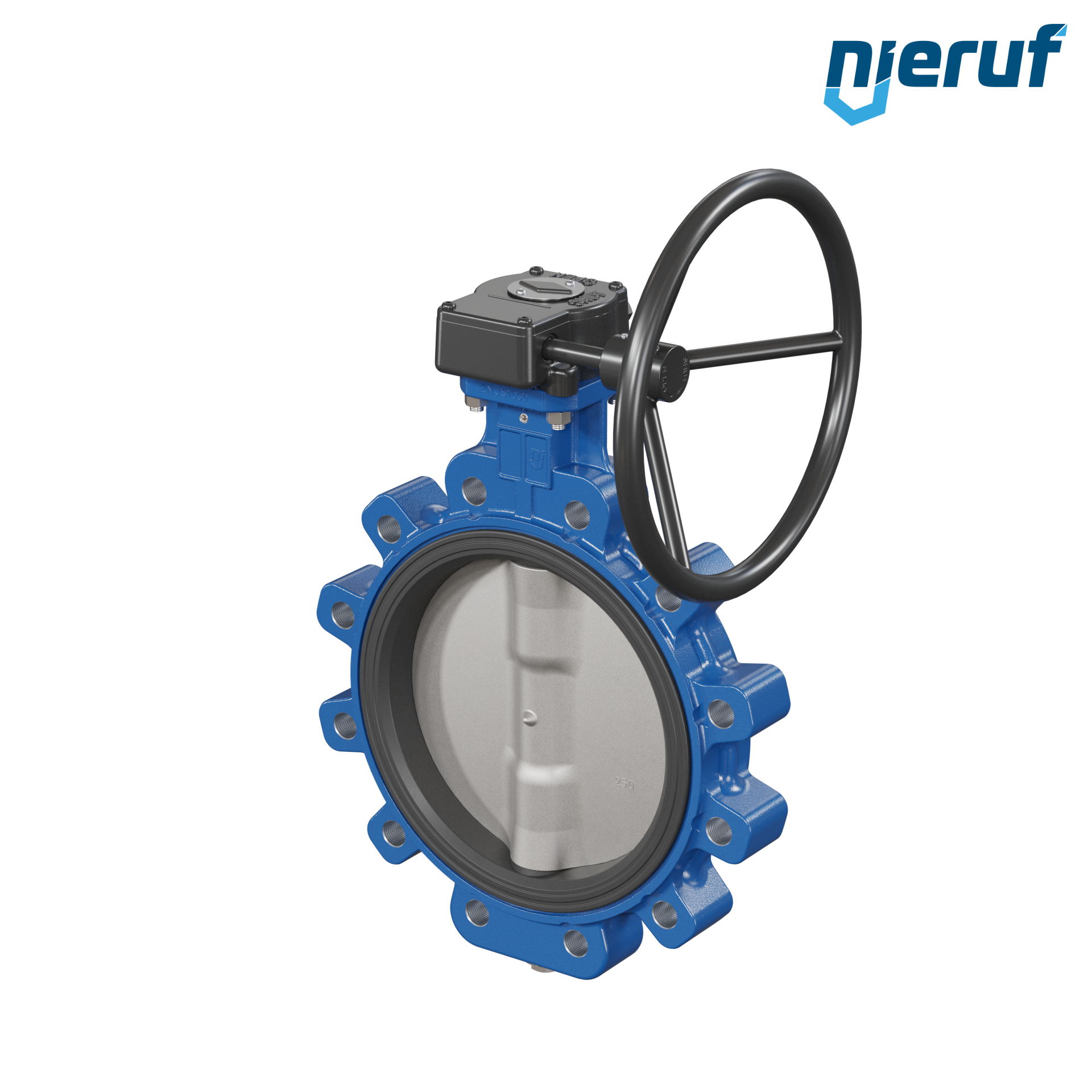

Butterfly valve DN 250 PN16 Lug type body made of GGG40 with Worm gear seal EPDM for liquid and gaseous media industry design
|media:||liquid and gaseous media|
|temperature:||-10°C up to +130°C|
|body material:||SG iron EN-JS1030 (GGG40)|
|disc:||stainless steel 1.4581|
|approval:||EPDM for water NW-6201BQ0460, acc. to DIN EN 1074-1/-2|
|installation position:||any position|
|product feature:||Free of maintenance butterfly valve with high quality epoxyd coating body. Shaft - Disc connection not in contact with the medium. Industry design|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 250 PN16 AK02 EPDM Worm gear
product: Butterfly valve
diameter: DN 250
nominal pressure: PN16
media: liquid and gaseous media
temperature: -10°C up to +130°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40)
disc: stainless steel 1.4581
actuation: Worm gear
approval: EPDM for water NW-6201BQ0460, acc. to DIN EN 1074-1/-2
application: industry design
installation position: any position
product feature: Free of maintenance butterfly valve with high quality epoxyd coating body. Shaft - Disc connection not in contact with the medium. Industry design
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
