AK02110612

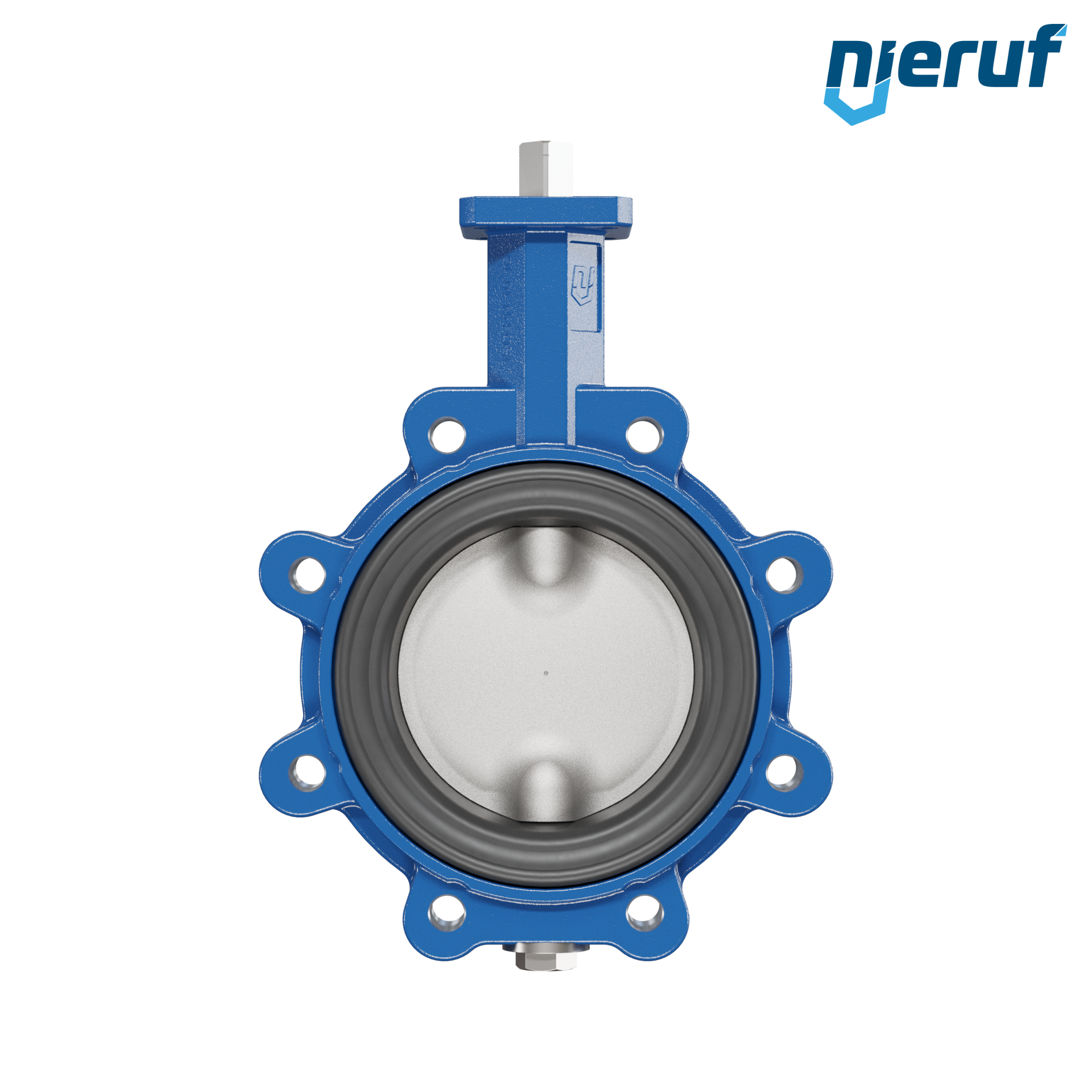

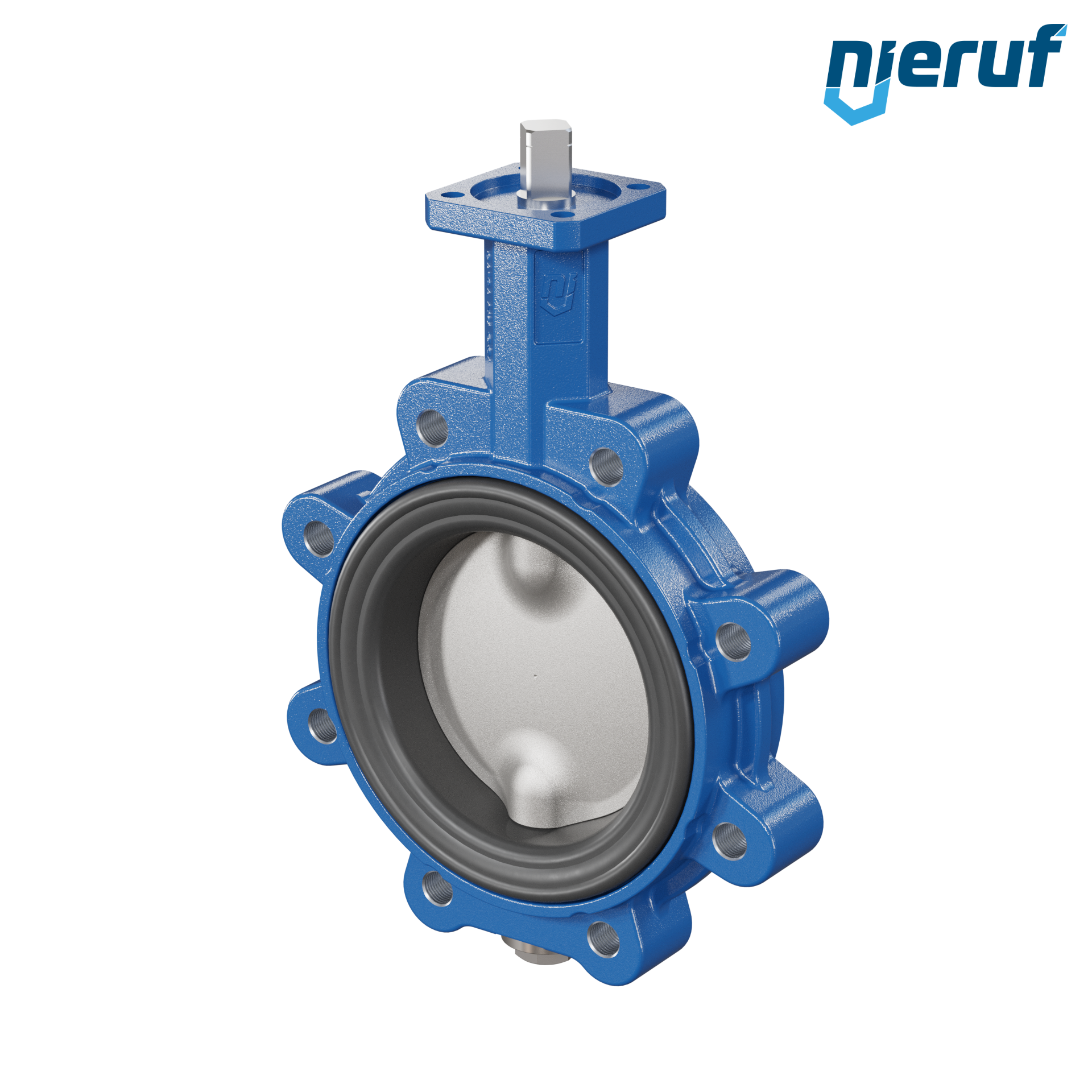

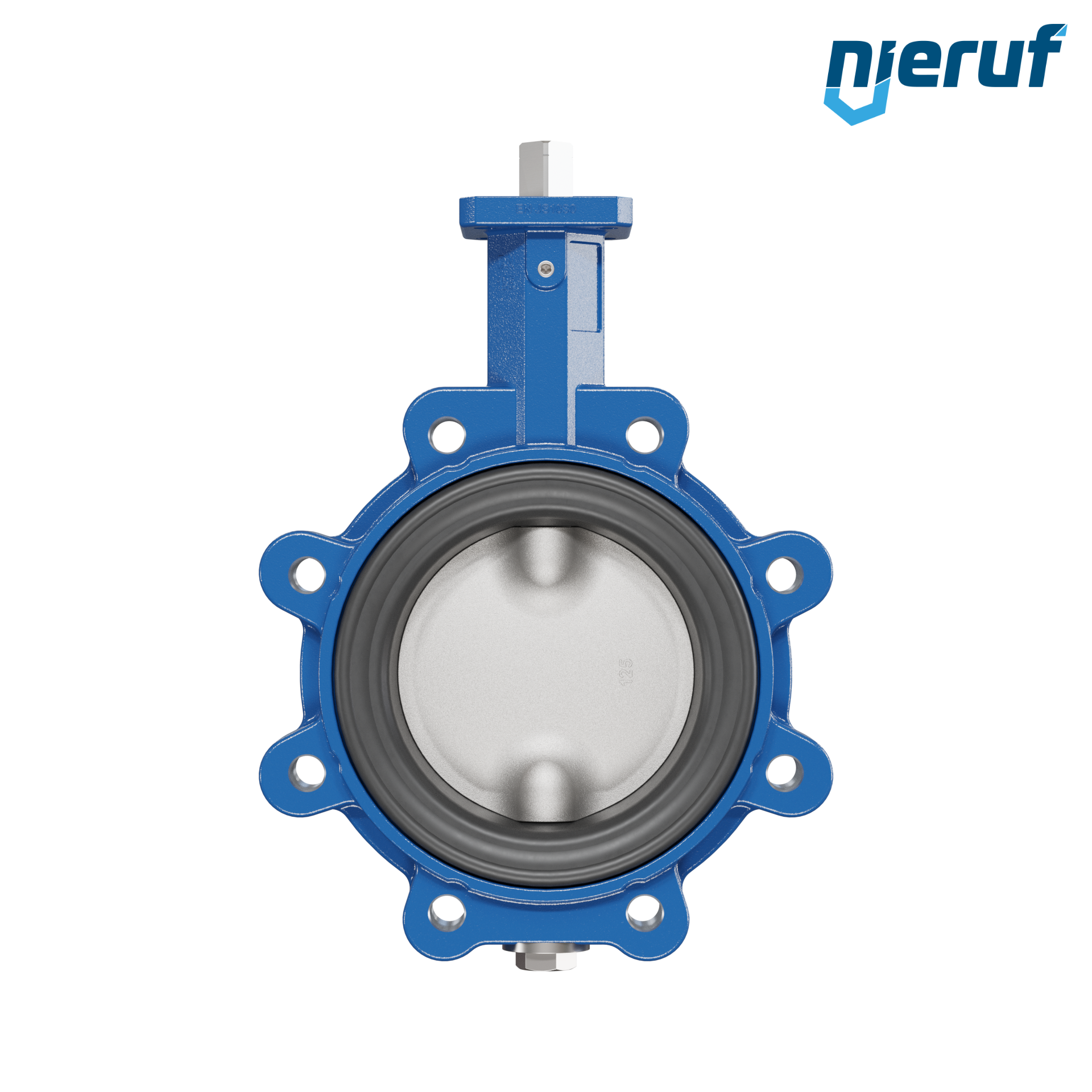

Butterfly valve AK02 DN 125 PN10-PN16 DVGW-gas without lever

€202.50*

€240.98 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 2 - 3 weeks

Equipment

FL01020112

Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€52.60*

€62.59 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

24 months warranty

Certified

Downloads

3D model

Datasheet

Butterfly valve AK02 DN 125 PN10-PN16 DVGW-gas without lever

Butterfly valve DN 125 PN10-PN16 Lug type body made of GGG40 with without lever seal NBR-70-black DVGW gas for liquid and gaseous media industry design

product	Butterfly valve
type	AK02
manufacturer	NieRuf
diameter	DN 125
nominal pressure	PN10-PN16
max. working pressure	10 bar
sleeves	NBR-70-black DVGW gas
media	liquid and gaseous media
temperature	-10°C up to +60°C
design	Lug type
body material	SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc	stainless steel 1.4408
actuation	without lever
approval	NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application	industry design
installation position	any position
product feature	Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 125 PN10-PN16 DVGW-gas without lever

Article no. : AK02110612
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 125
nominal pressure: PN10-PN16
max. working pressure: 10 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: without lever
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
