AK01110010

Butterfly valve AK01 DN 80 PN6-PN10-PN16 & ANSI150 DVGW-gas

€97.80*

€116.38 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Wednesday, 04. October

Guaranteed delivery until Thursday, 05. October, 12 o'clock

Order in within by express delivery



Equipment

FL01020110

Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€29.00*

€34.51 VAT included.


VS03010210

joint set butterfly valve/flange DN80 - 3" Inch for flange PN16 steel

€32.00*

€38.08 VAT included.

Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-02

E-Mail: beck@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK01110010

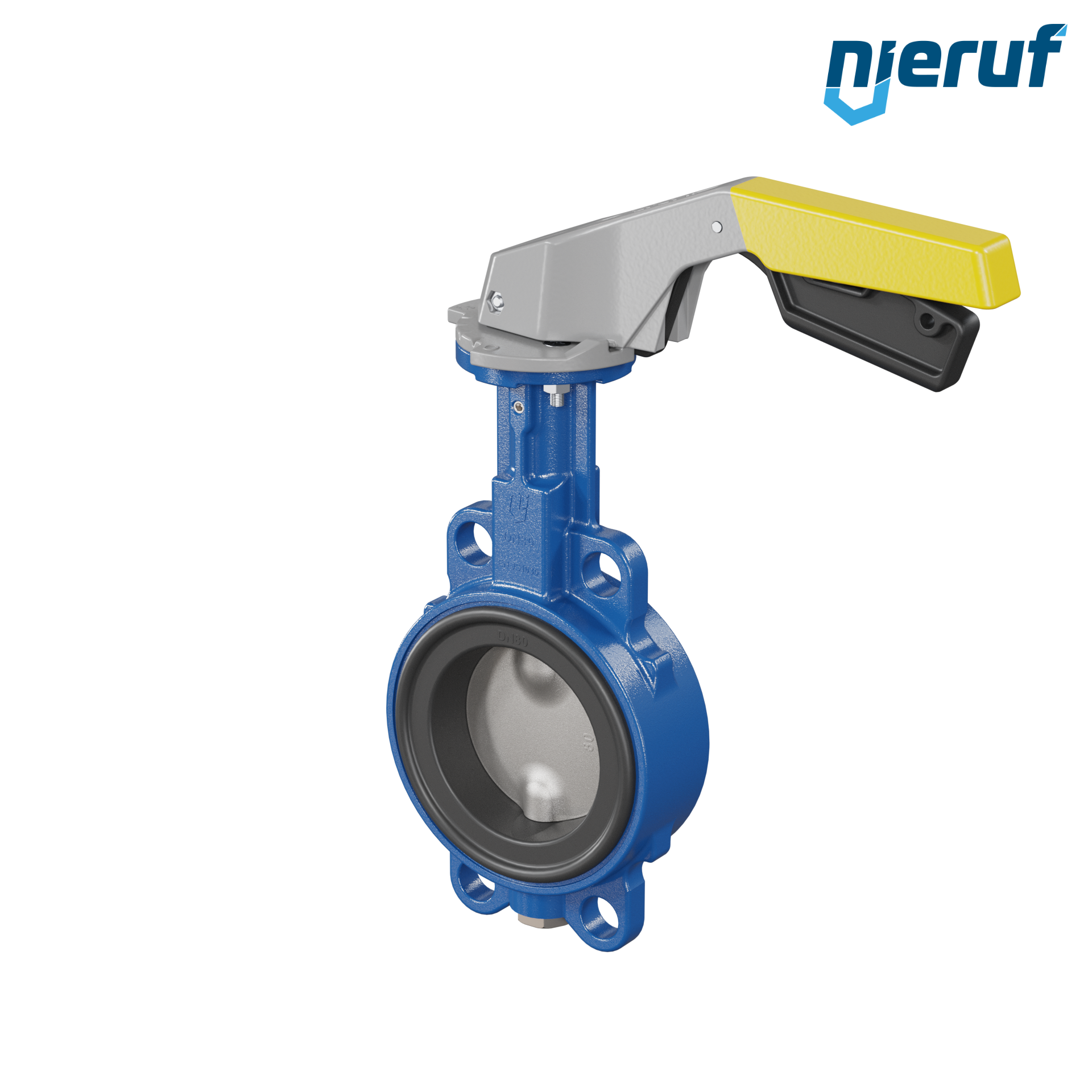

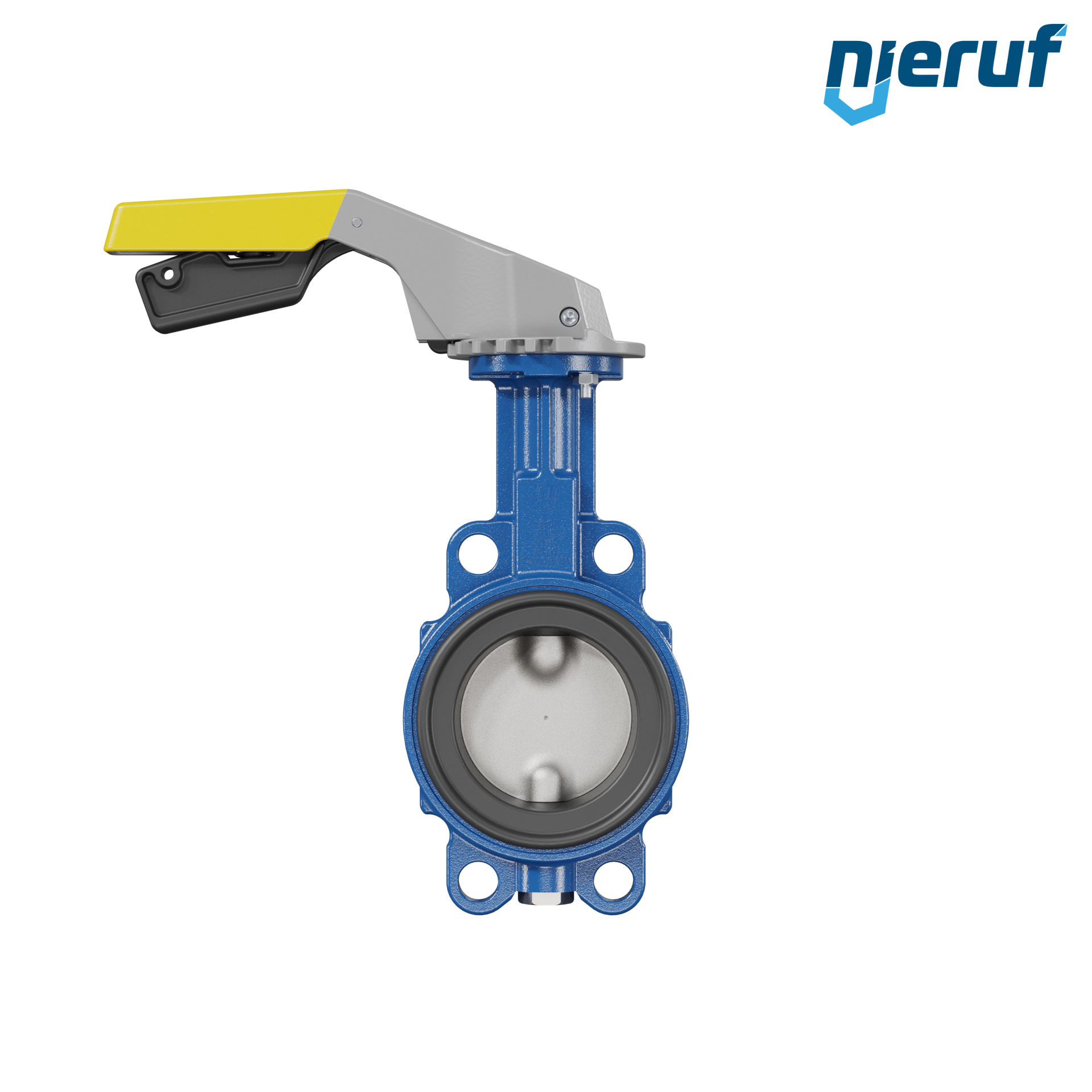

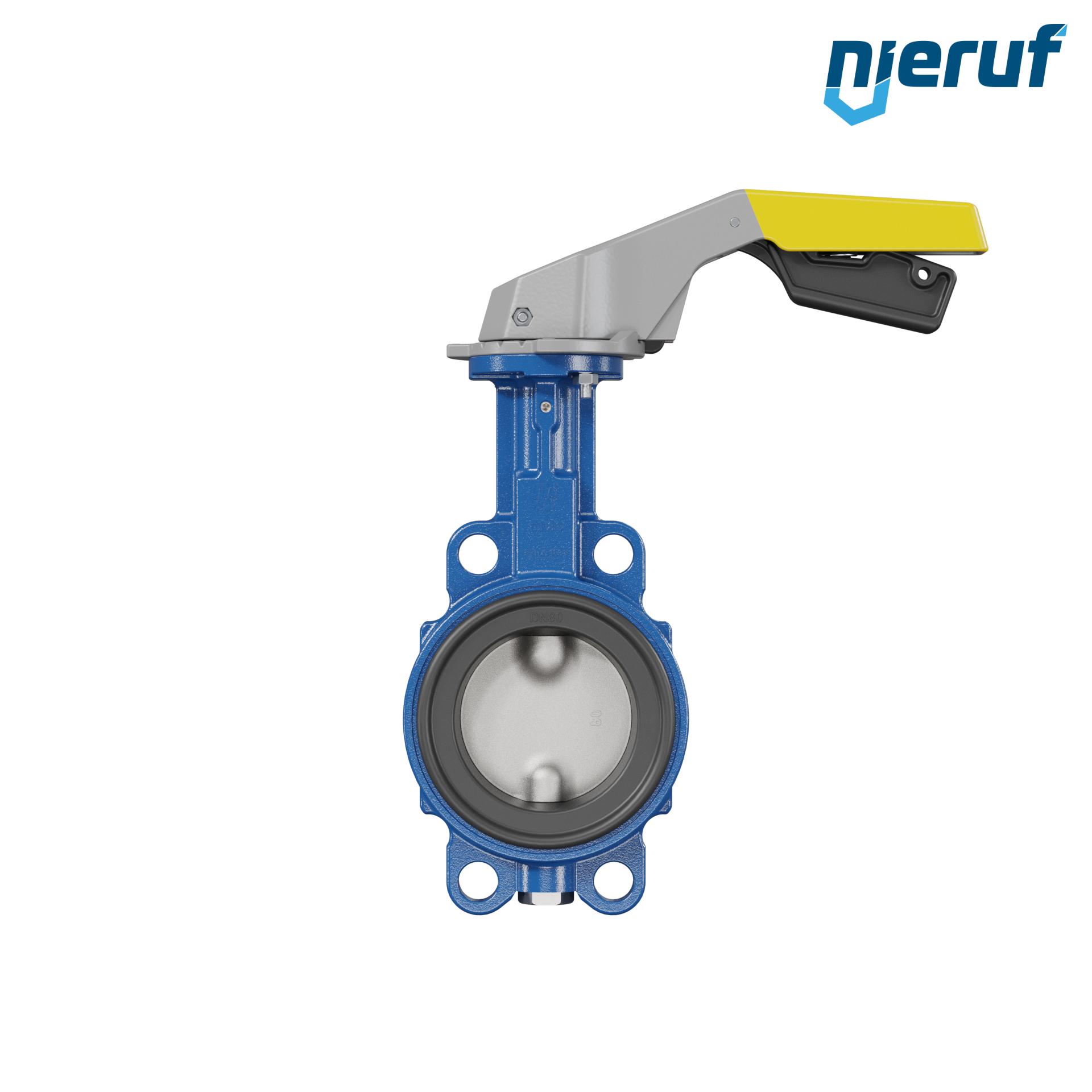

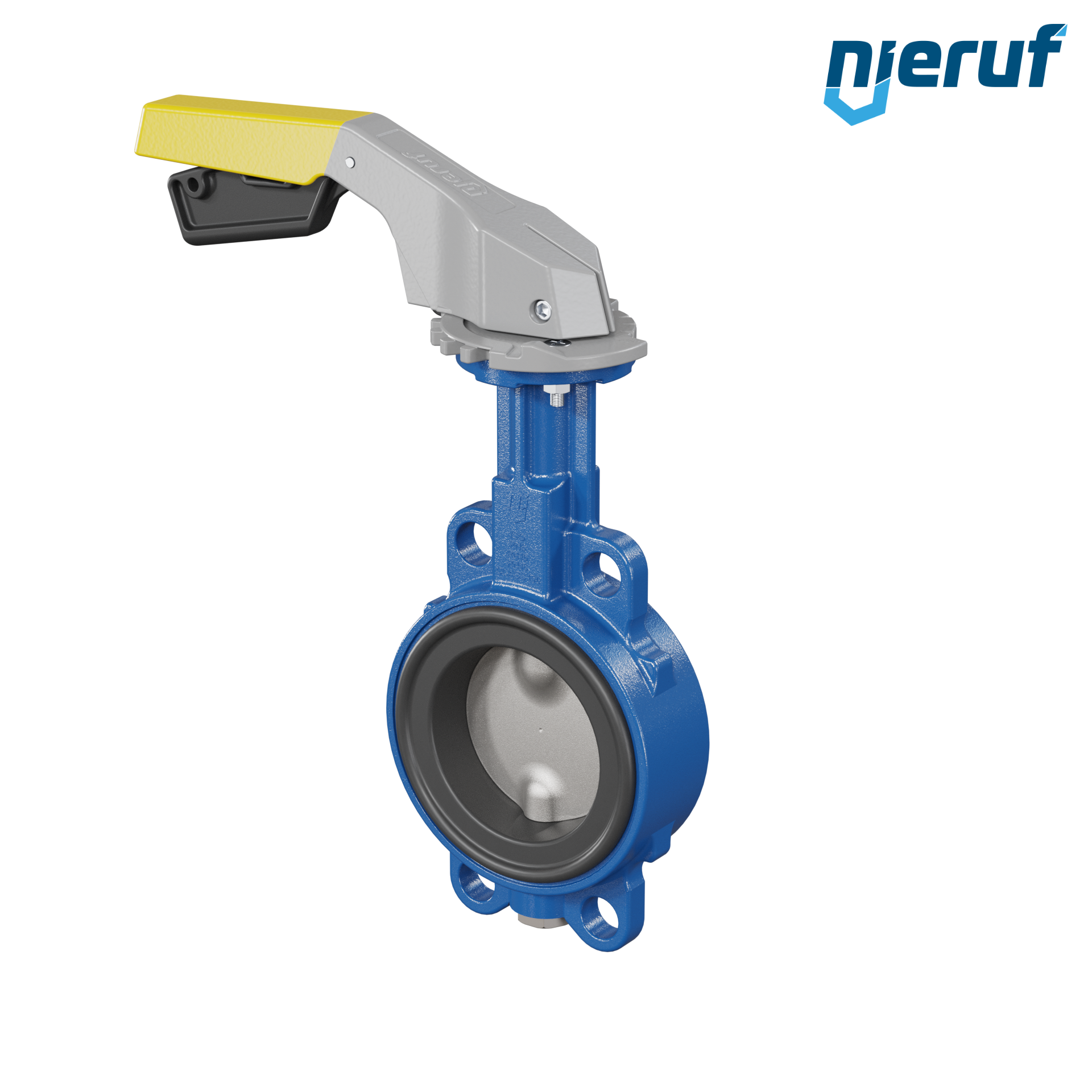

Butterfly valve AK01 DN 80 PN6-PN10-PN16 & ANSI150 DVGW-gas

Butterfly valve DN 80 PN6-PN10-PN16 & ANSI150 Wafer type GGG40 with notch lever yellow NBR-70-black DVGW gas

product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 80
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: notch lever yellow
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK01 DN 80 PN6-PN10-PN16 & ANSI150 DVGW-gas

Article no. : AK01110010
product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 80
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: notch lever yellow
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
