Equipment
joint set butterfly valve/flange DN80 - 3" Inch for flange PN16 steel
€38.08 VAT included.
Questions about the article?

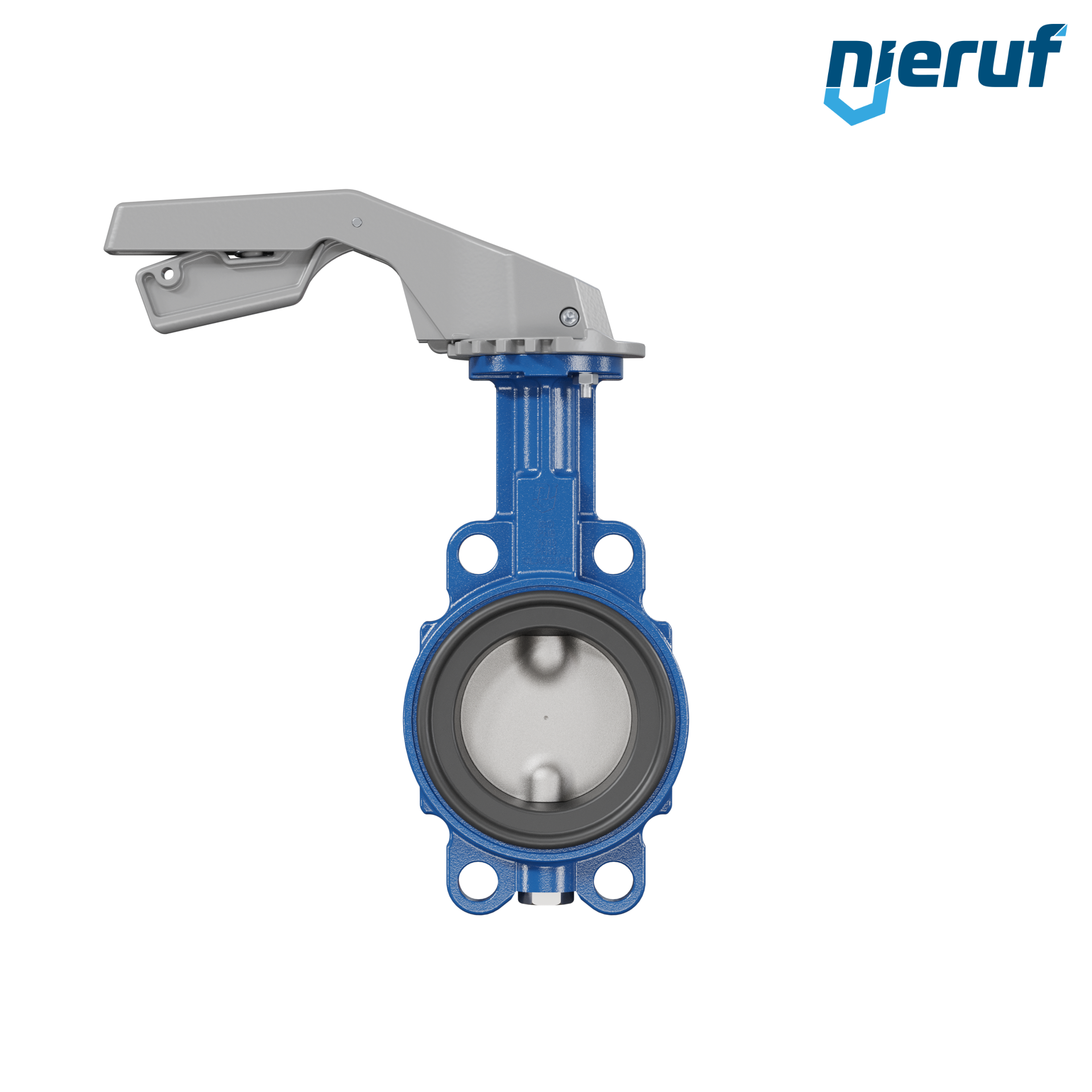

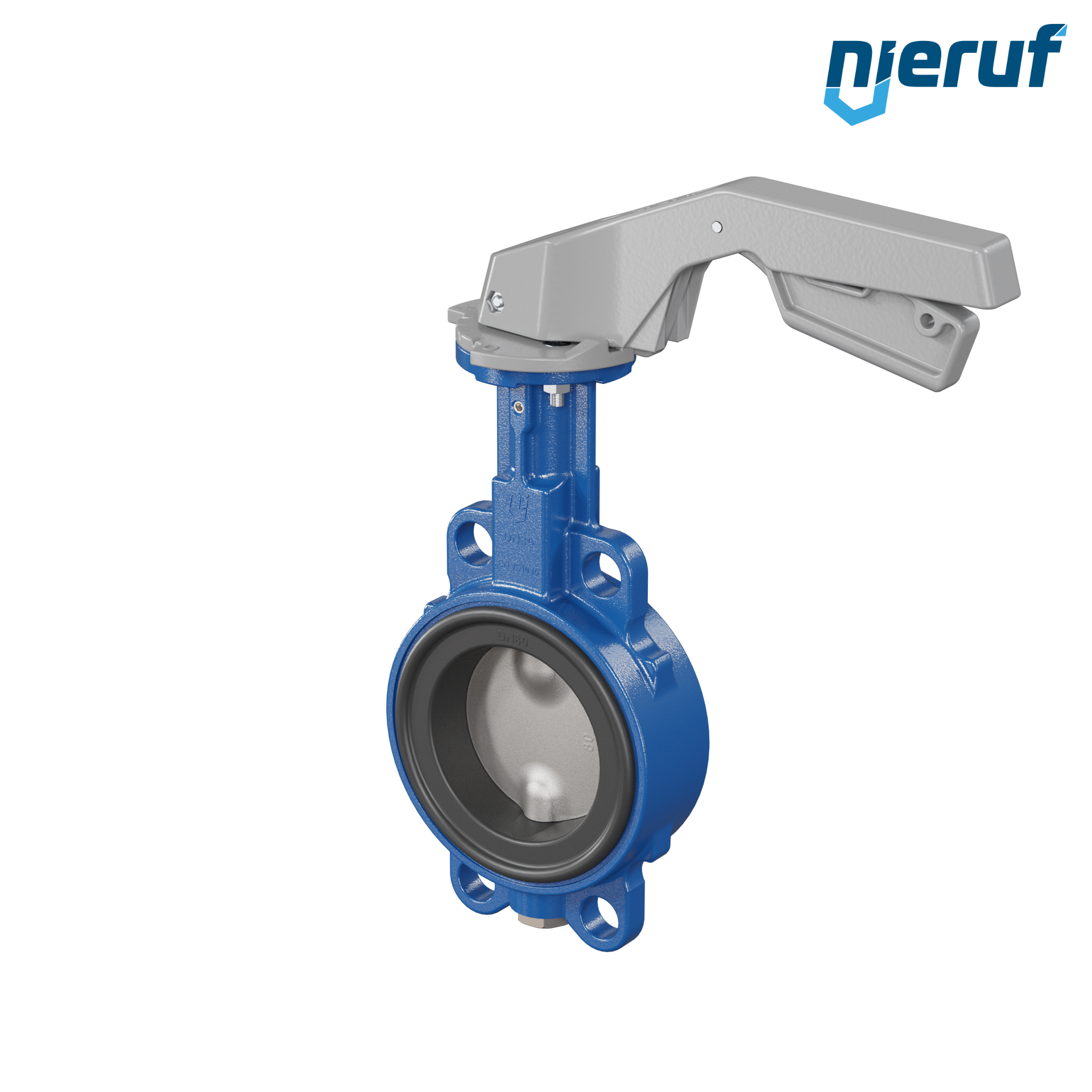

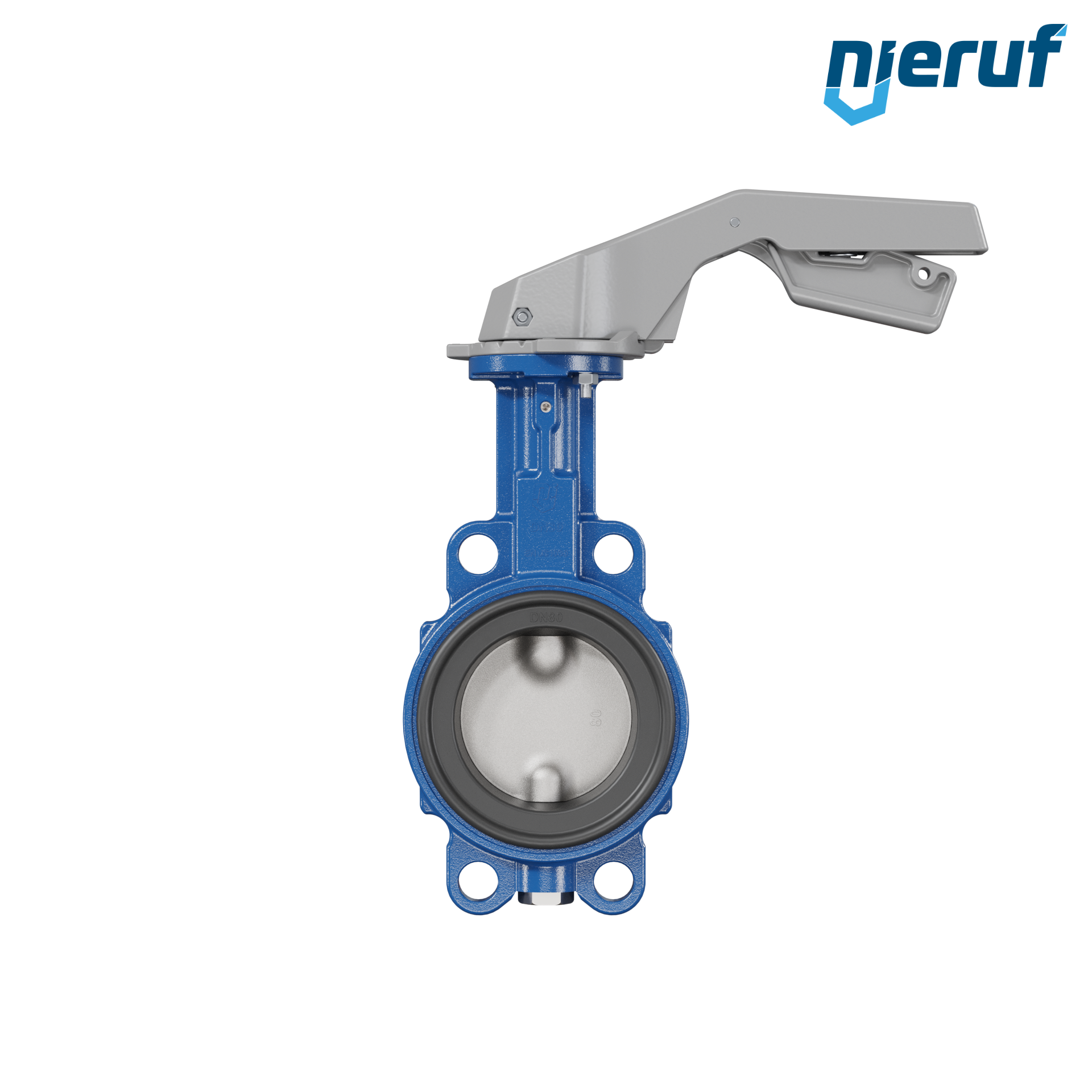

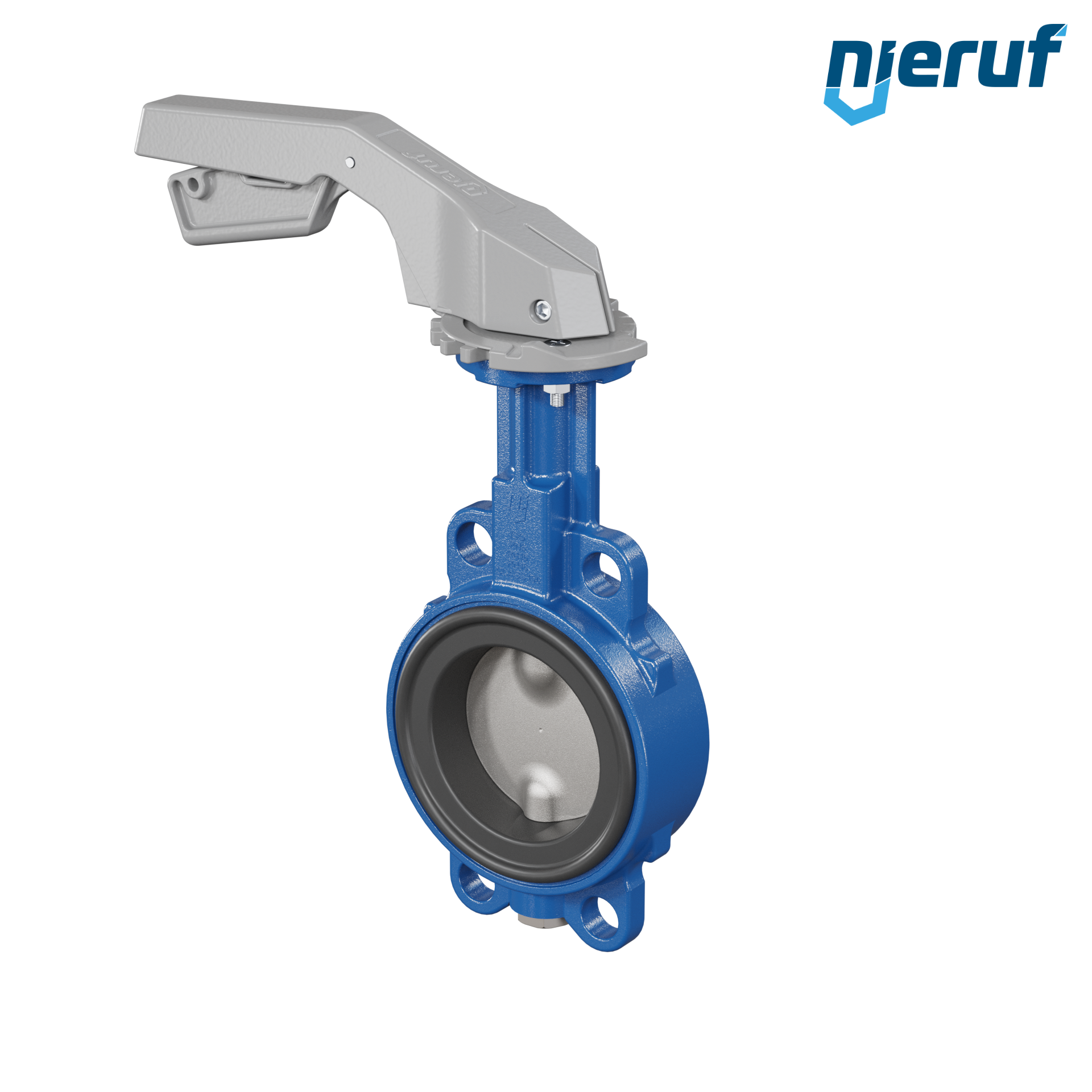

Butterfly valve DN 80 PN6-PN10-PN16 & ANSI150 Wafer type body made of GGG40 with notch lever grey seal FPM
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 80 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | FPM |
| media | liquid and gaseous media |
| temperature | -5°C up to +200°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | notch lever grey |
| approval | DIN EN 12266-1 leckage rate A |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 80 PN6-PN10-PN16 & ANSI150 FPM
Article no.
: AK01120010
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 80
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
-5°C up to +200°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever grey
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
