AK01120009
Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 FPM
Delivery time: in stock
Express delivery:
Shipping on: Monday, 11. December
Guaranteed delivery until Tuesday, 12. December, 12 o'clock
Order in within by express delivery
Equipment
lever with spring return F05-F07 14x14 shaft torque value max. 30Nm
€170.17 VAT included.
joint set butterfly valve/flange DN65 - 2 1/2" Inch for flange PN16 steel
€19.04 VAT included.
Questions about the article?
Our employee Daniel Beck
will be happy to help you

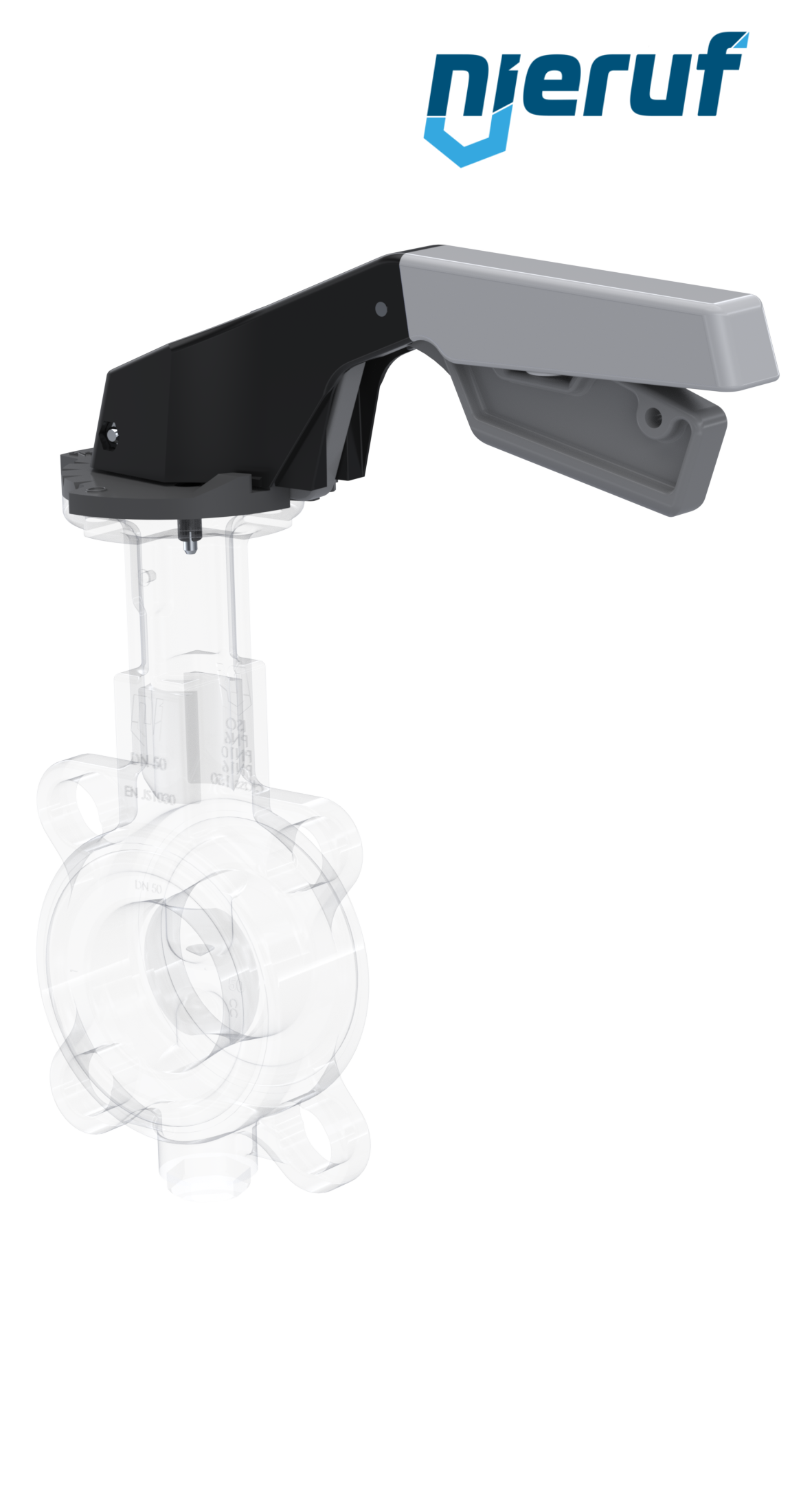

Butterfly valve DN 65 PN6-PN10-PN16 & ANSI150 Wafer type body made of GGG40 with notch lever grey seal FPM
| product: | Butterfly valve |
|---|---|
| type: | AK01 |
| manufacturer: | NieRuf |
| diameter: | DN 65 |
| nominal pressure: | PN6-PN10-PN16 & ANSI150 |
| max. working pressure: | 16 bar |
| sleeves: | FPM |
| media: | liquid and gaseous media |
| temperature: | -5°C up to +150°C |
| design: | Wafer type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | notch lever grey |
| approval: | DIN EN 12266-1 leckage rate A |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 FPM
Article no.
: AK01120009
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
-5°C up to +150°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever grey
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
Equipment
€31.42 VAT included.
€4.28 VAT included.
€32.13 VAT included.
€83.30 VAT included.
€170.17 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
