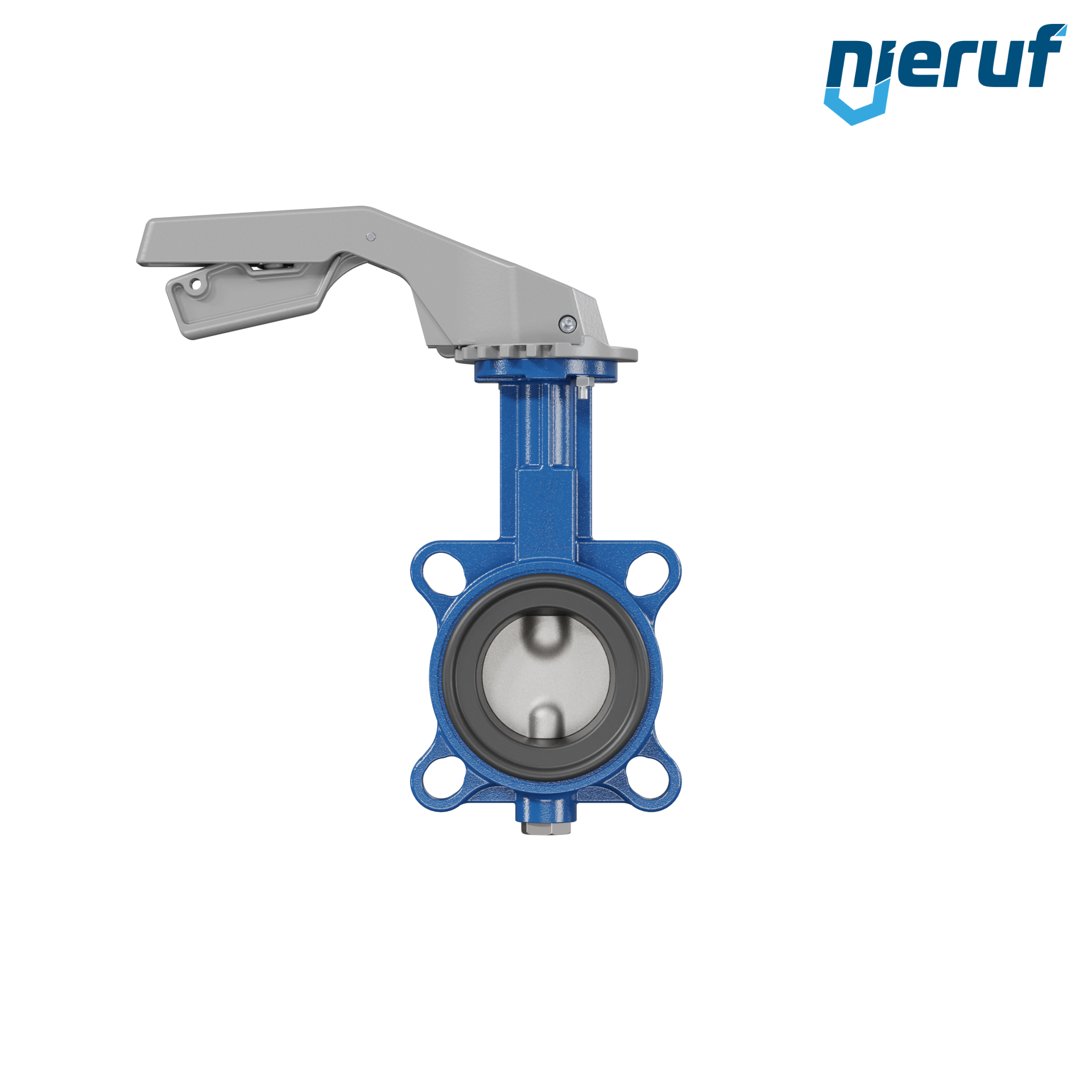

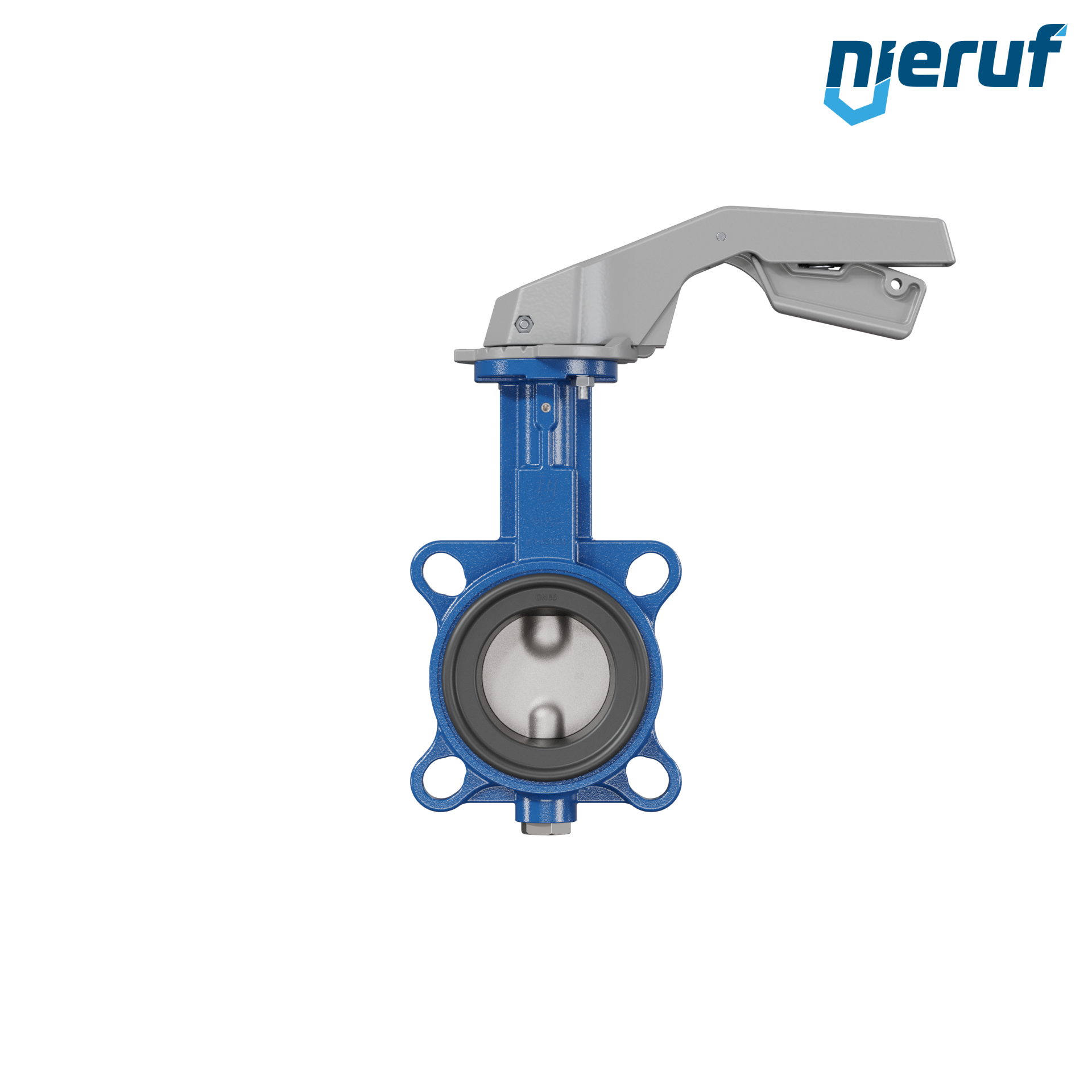

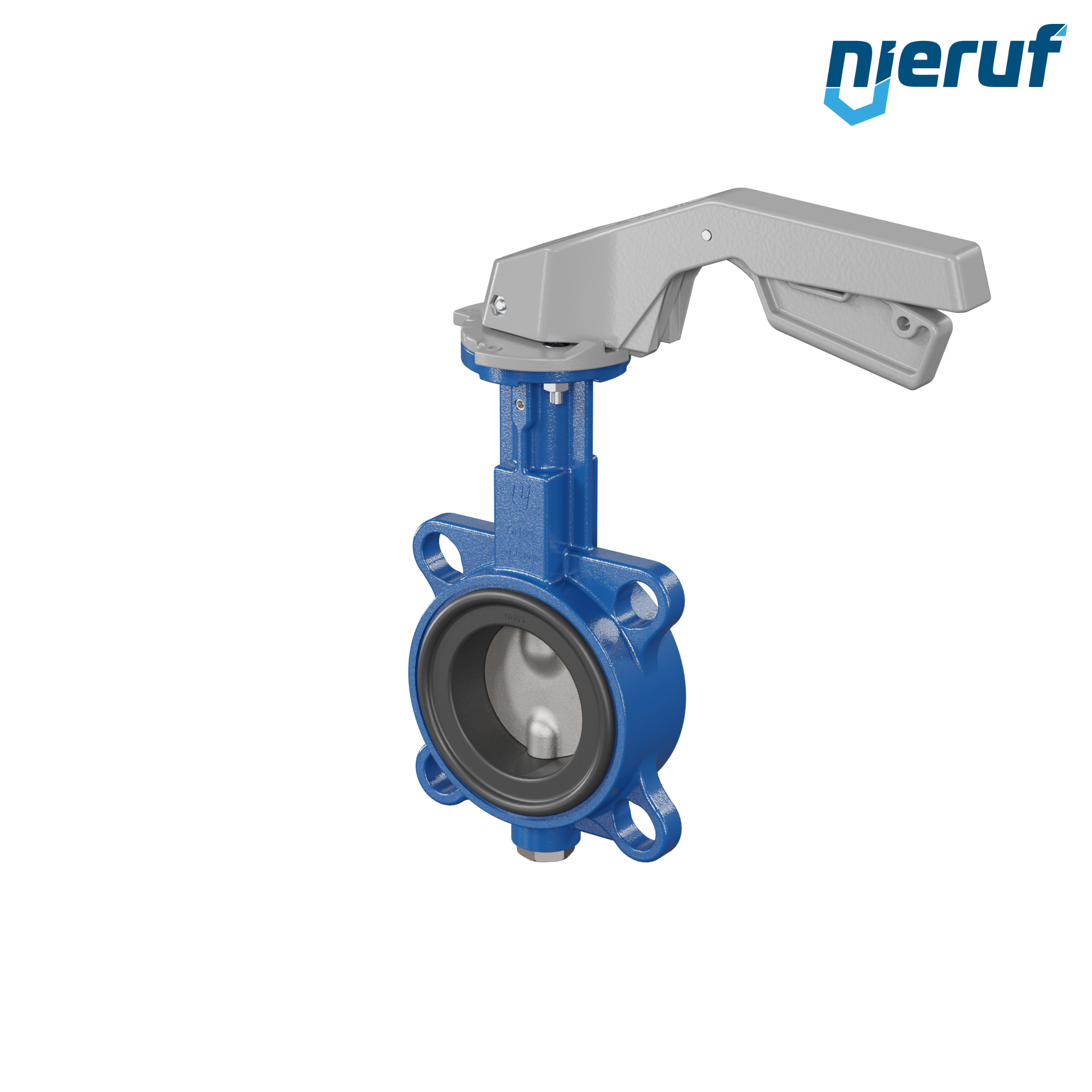

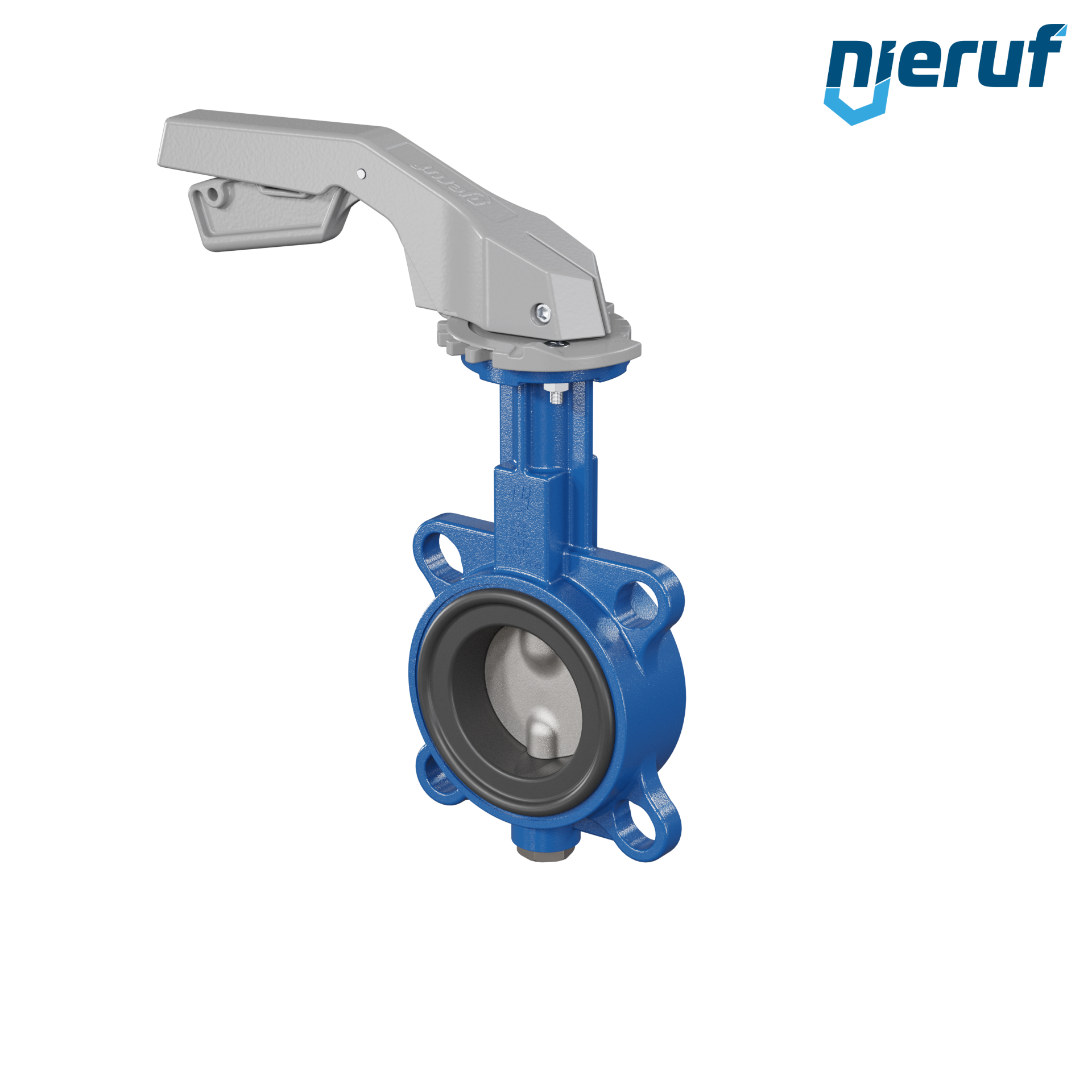

Butterfly valve DN 65 PN6-PN10-PN16 & ANSI150 Wafer type GGG40 with notch lever grey seal EPDM DVGW drinking water, WRAS, ACS, W270
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 65 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | EPDM DVGW drinking water, WRAS, ACS, W270 |
| media | liquid and gaseous media |
| temperature | -20°C up to +90°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | notch lever grey |
| approval | EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 65 PN6-PN10-PN16 & ANSI150 DVGW-water
Article no.
: AK01100009
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
EPDM DVGW drinking water, WRAS, ACS, W270
media:
liquid and gaseous media
temperature:
-20°C up to +90°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever grey
approval:
EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
