AK05100008
Butterfly valve DN 50 PN16 AK05 EPDM lever
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 05. October
Guaranteed delivery until Tuesday, 06. October, 12 o'clock
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
joint set butterfly valve/flange DN50 - 2" Inch for flange PN16 steel
€10.47 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

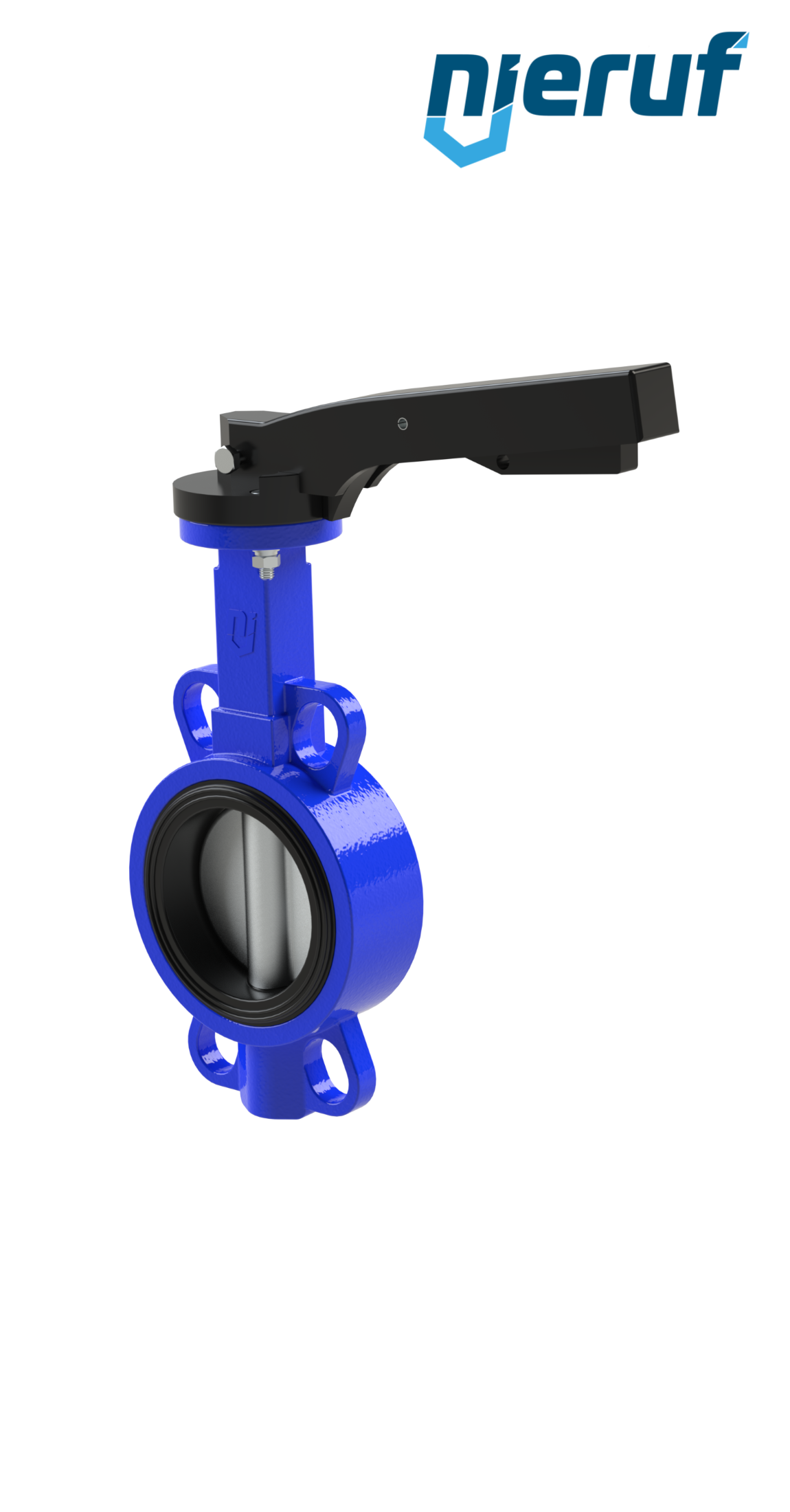

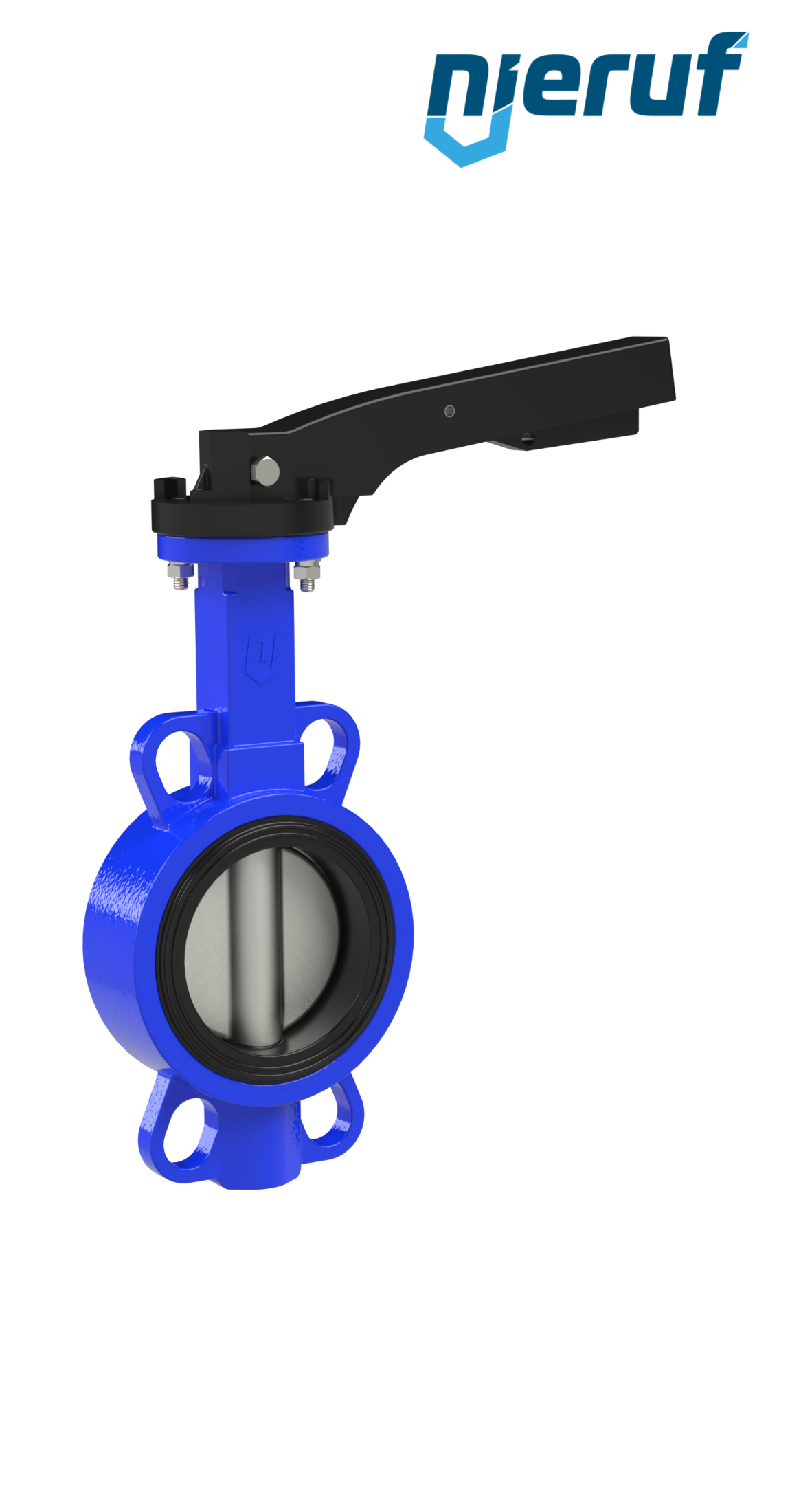

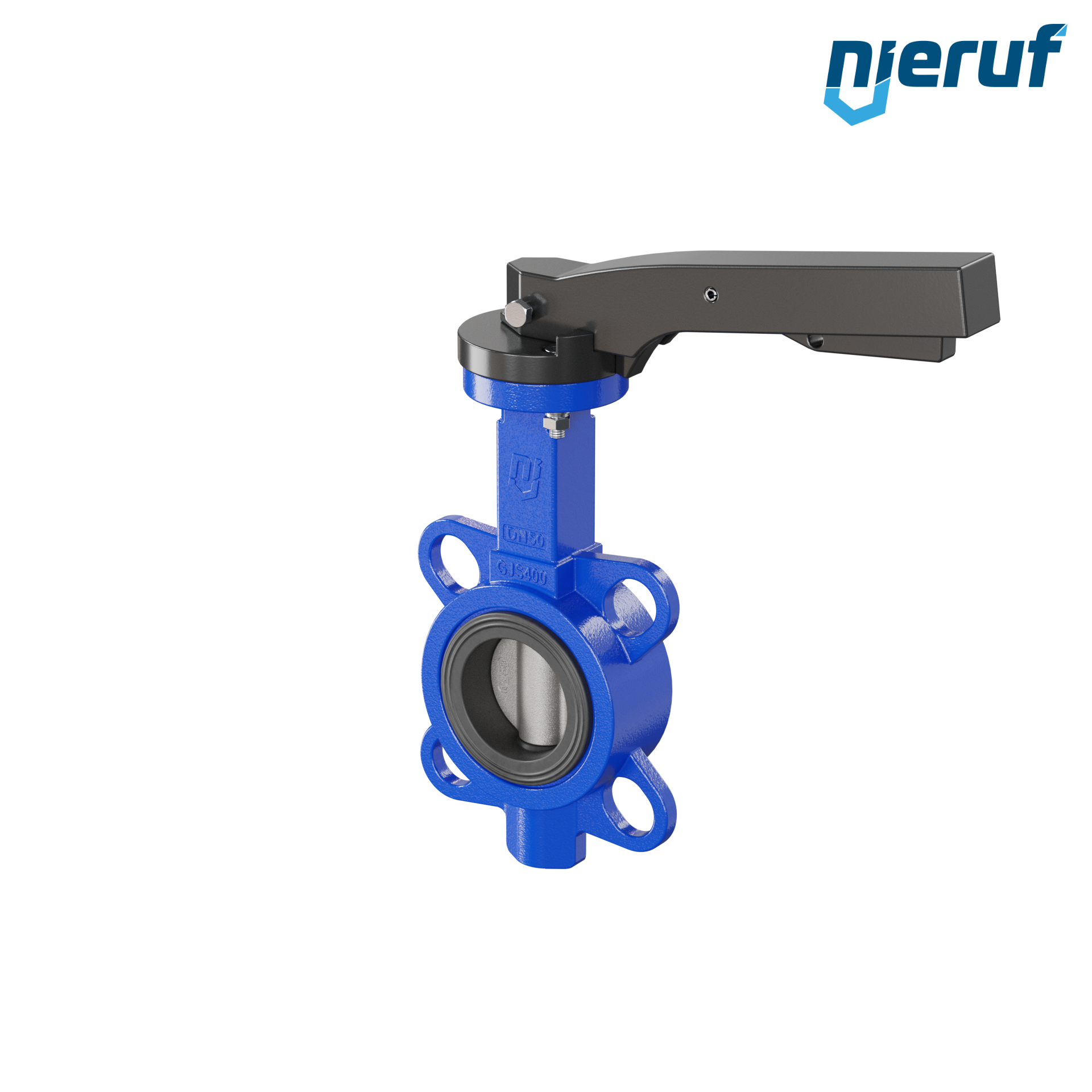

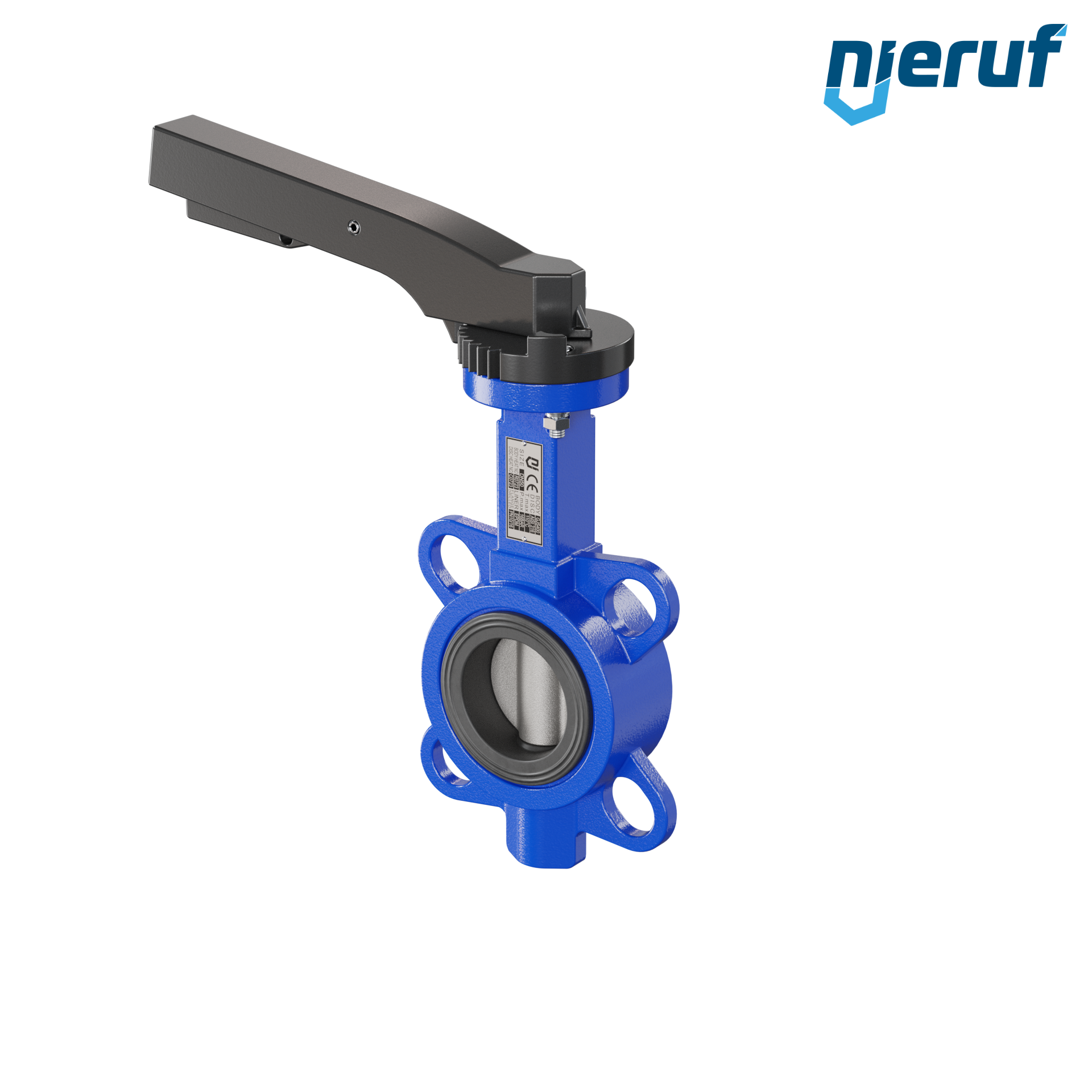

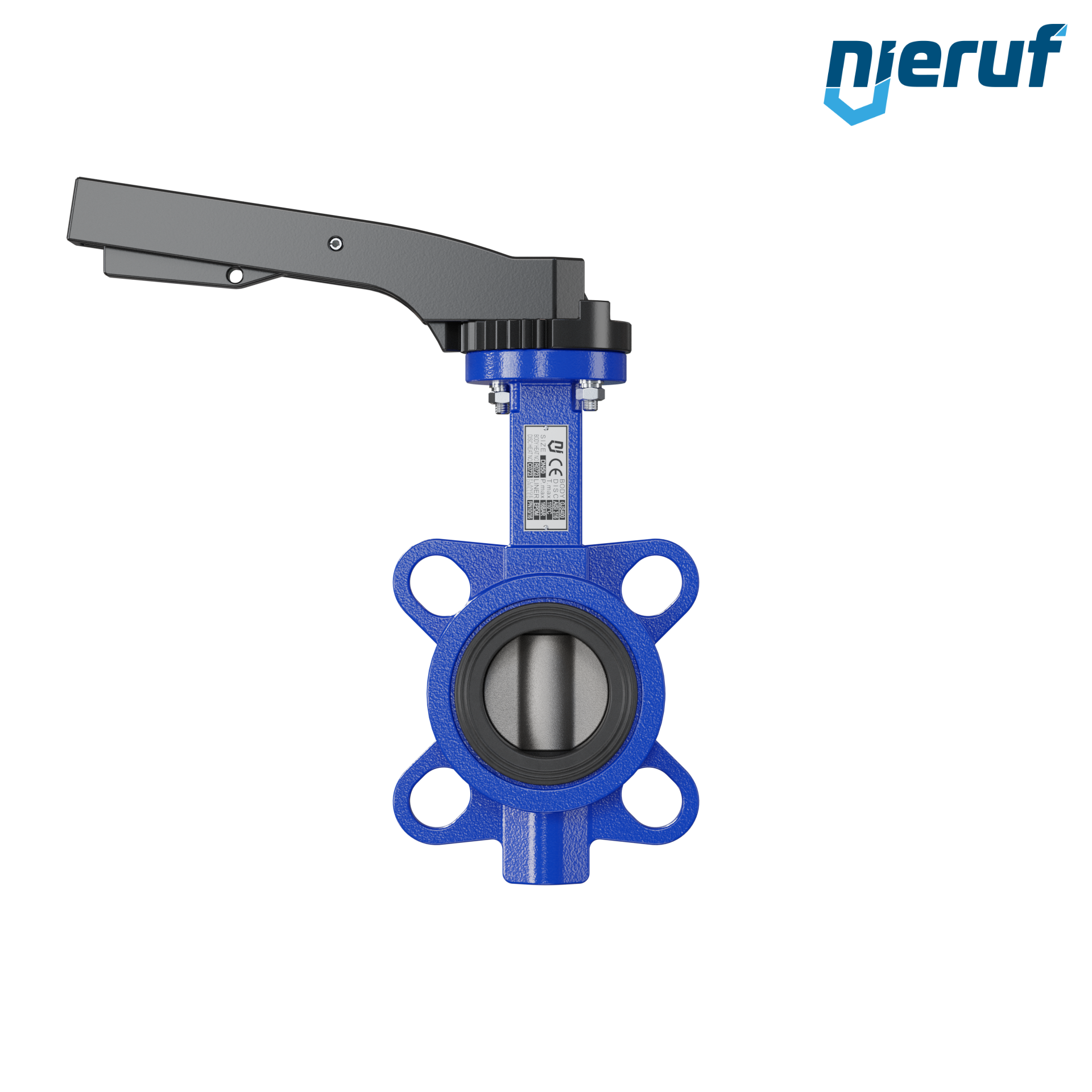

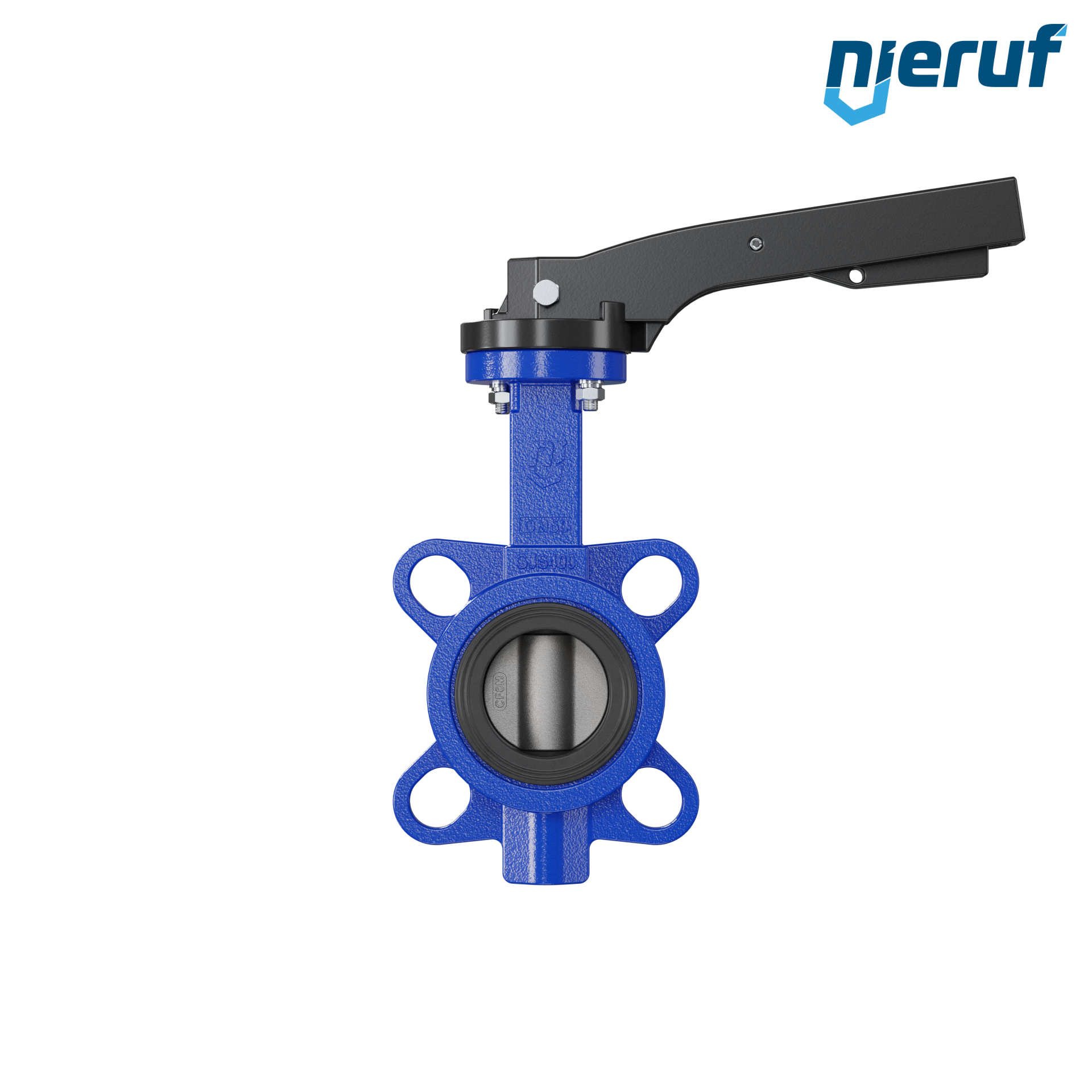

Butterfly valve DN 50 PN16 AK05 EPDM lever
Butterfly valve DN 50 PN16 Wafer type body made of cast iron EN GJL-250 (GG25) with lever EPDM
| product | Butterfly valve |
|---|---|
| type | AK05 |
| manufacturer | NieRuf |
| diameter | DN 50 |
| nominal pressure | PN16 |
| max. working pressure | 16 bar |
| sleeves | EPDM |
| media | liquid and gaseous media |
| temperature | -10°C up to +110°C |
| design | Wafer type |
| body material | grey cast iron EN GJL-250 (GG25) |
| disc | stainless steel 1.4408 |
| actuation | lever |
| application | for ordinary usage |
| product feature | butterfly valve with high quality epoxyd coating body, stainless steel disc, vulcanized EPDM seal, long neck for isolate, direct construction after ISO 5211 for actuator, CE PED 97/23 certified. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 50 PN16 AK05 EPDM lever
Article no.
: AK05100008
product:
Butterfly valve
type:
AK05
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
EPDM
media:
liquid and gaseous media
temperature:
-10°C up to +110°C
design:
Wafer type
body material:
grey cast iron EN GJL-250 (GG25)
disc:
stainless steel 1.4408
actuation:
lever
application:
for ordinary usage
product feature:
butterfly valve with high quality epoxyd coating body, stainless steel disc, vulcanized EPDM seal, long neck for isolate, direct construction after ISO 5211 for actuator, CE PED 97/23 certified.
Equipment
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
