AK01110008
Butterfly valve AK01 DN 50 PN6-PN10-PN16 & ANSI150 DVGW-gas
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 12. October
Guaranteed delivery until Tuesday, 13. October, 12 o'clock
Equipment
lever with spring return F05-F07 14x14 shaft torque value max. 30Nm
€181.48 VAT included.
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€22.37 VAT included.
joint set butterfly valve/flange DN50 - 2" Inch for flange PN16 steel
€10.47 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Butterfly valve AK01 DN 50 PN6-PN10-PN16 & ANSI150 DVGW-gas

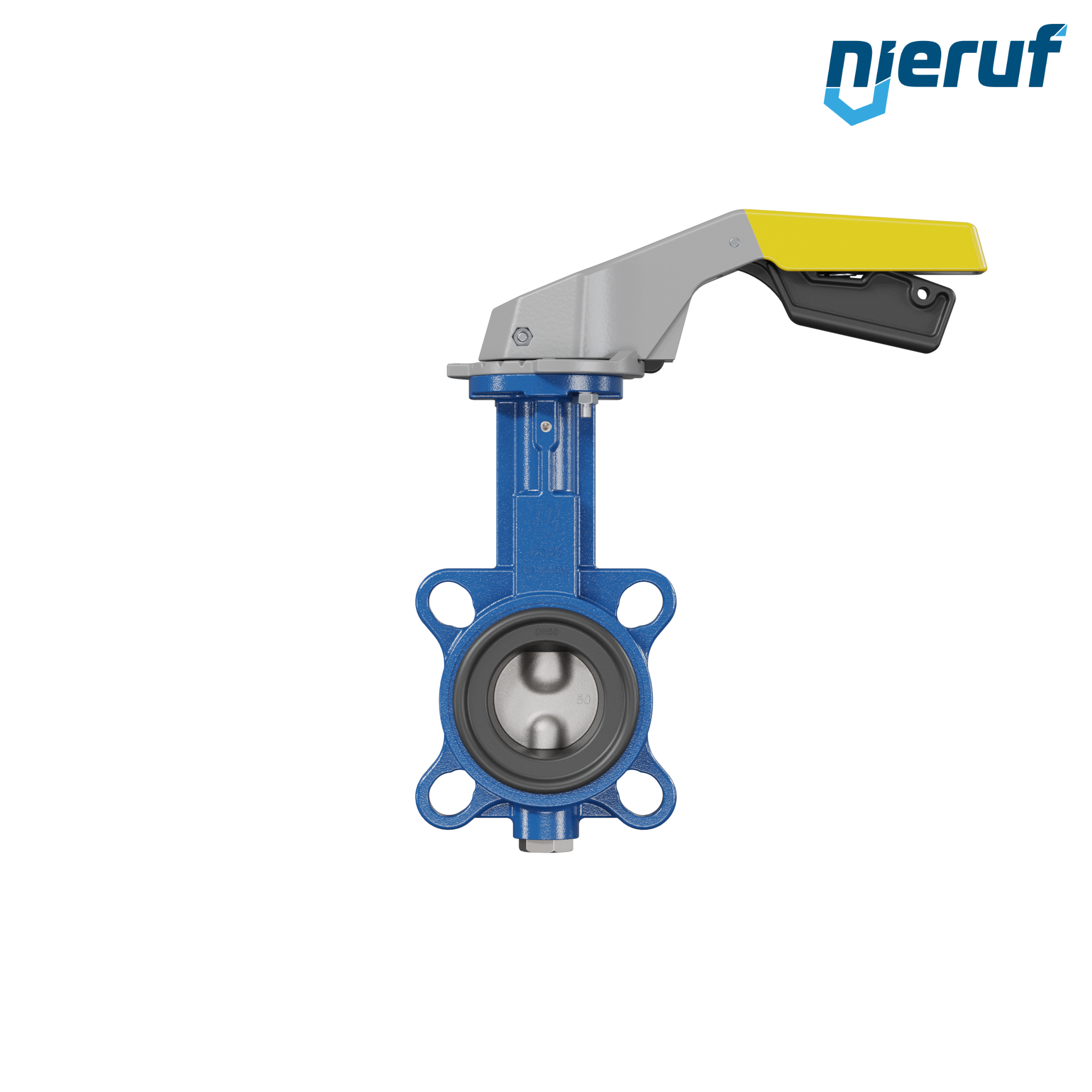

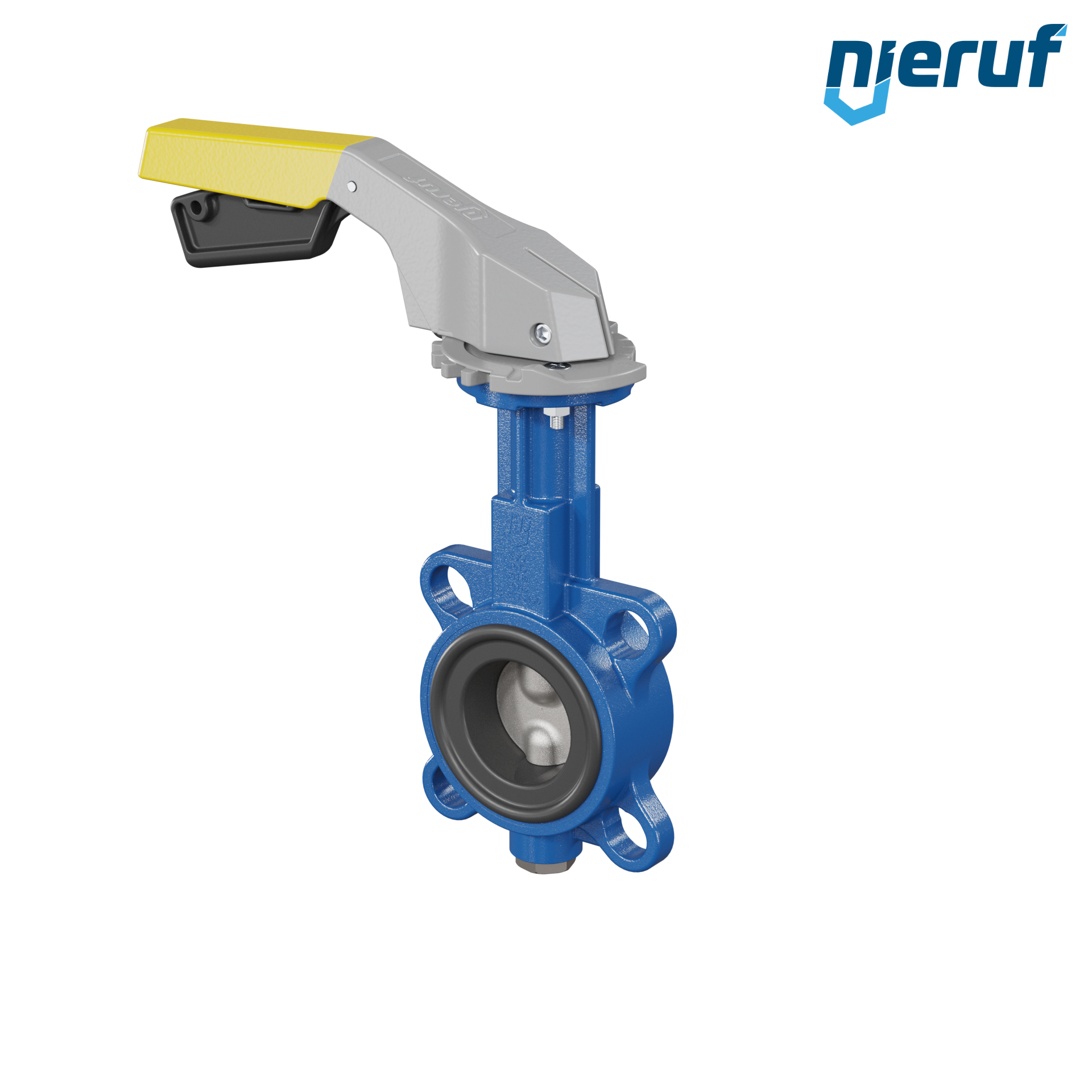

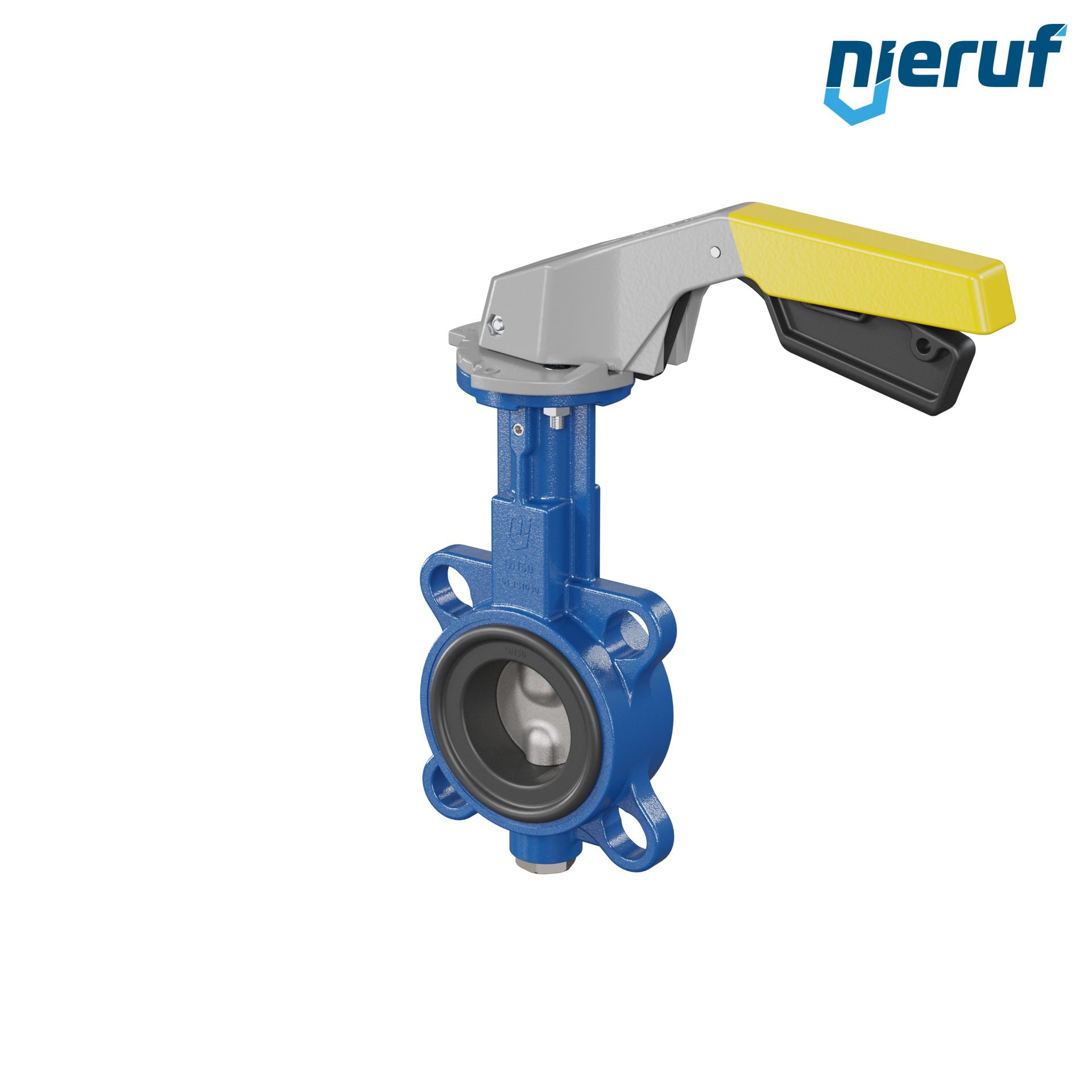

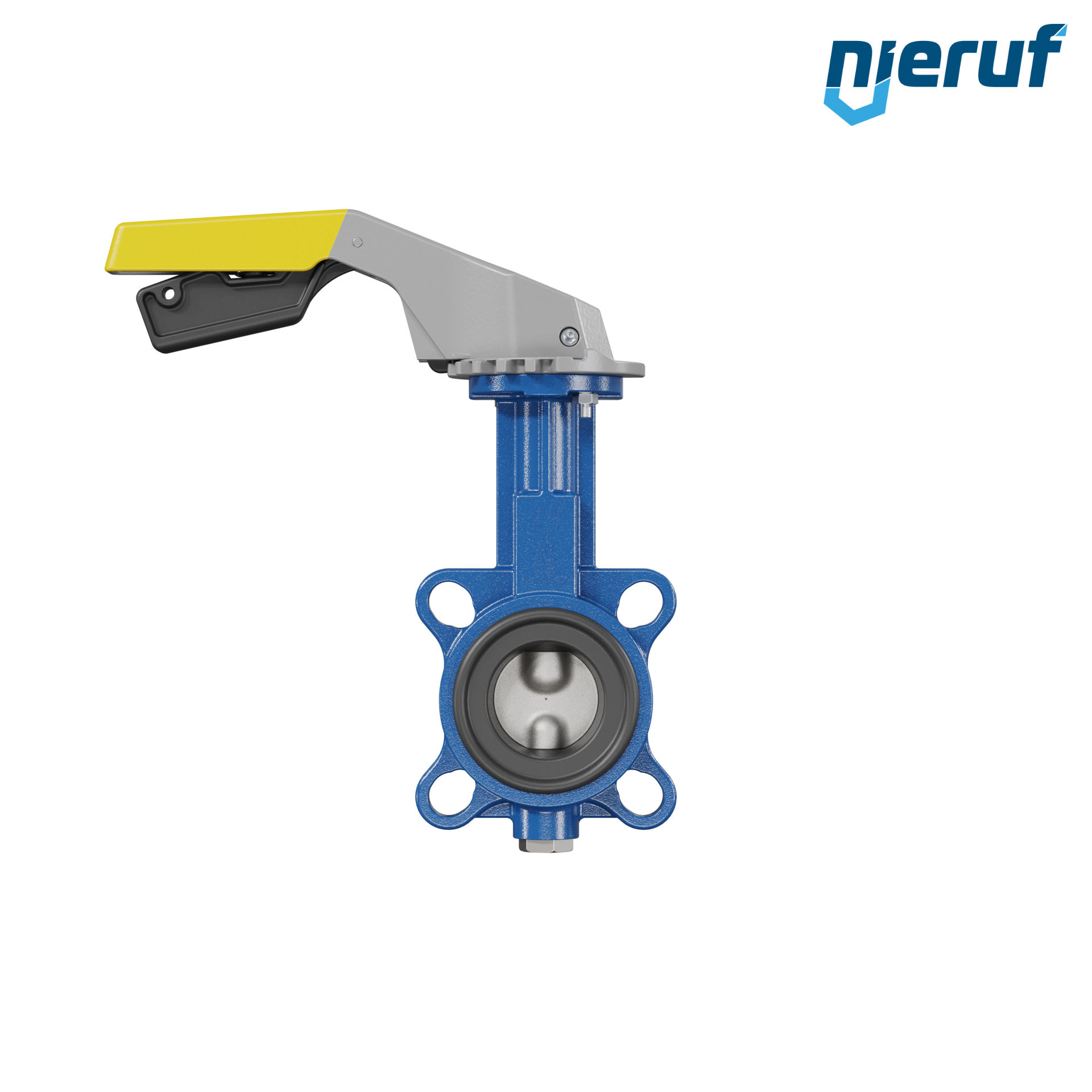

Butterfly valve DN 50 PN6-PN10-PN16 & ANSI150 Wafer type GGG40 with notch lever yellow NBR-70-black DVGW gas
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 50 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 10 bar |
| sleeves | NBR-70-black DVGW gas |
| media | liquid and gaseous media |
| temperature | -10°C up to +60°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | notch lever yellow |
| approval | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 50 PN6-PN10-PN16 & ANSI150 DVGW-gas
Article no.
: AK01110008
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 50
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
10 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
-10°C up to +60°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever yellow
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
Equipment
flange seal DN50 PN10/16/25/40 61x107x2 Klingersil C 4400
Lead time: in stock
Flange DN50 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
pipe bend (welded) 90° 60,3 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 76,1 x 2,3 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
lever with spring return F05-F07 14x14 shaft torque value max. 30Nm
Lead time: 2 - 3 weeks
