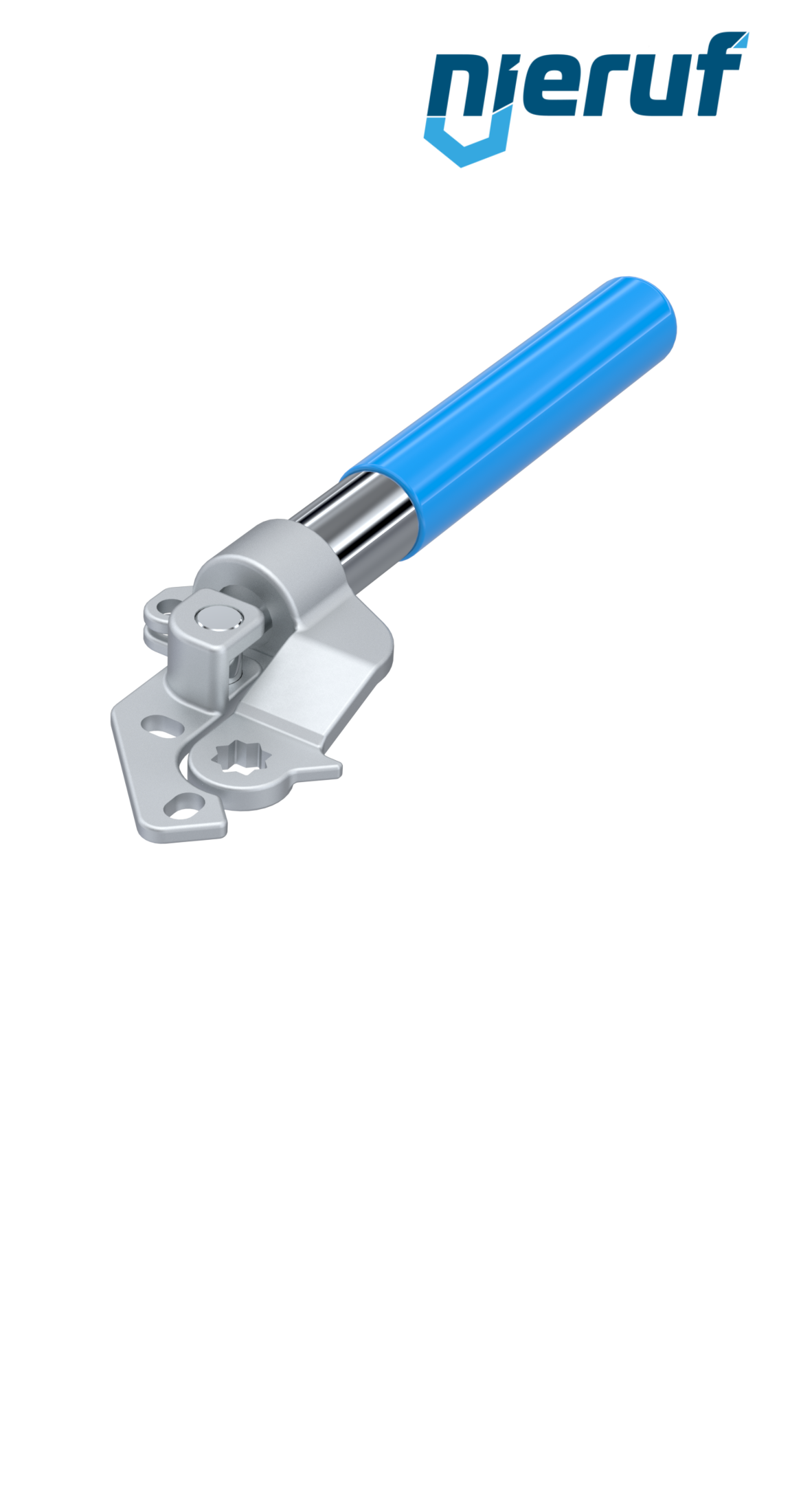

lever with spring return F05-F07 14x14 shaft torque value max. 30Nm
€170.17 VAT included.
joint set butterfly valve/flange DN32 - 1 1/4" Inch for flange PN16 steel
€14.28 VAT included.
Questions about the article?

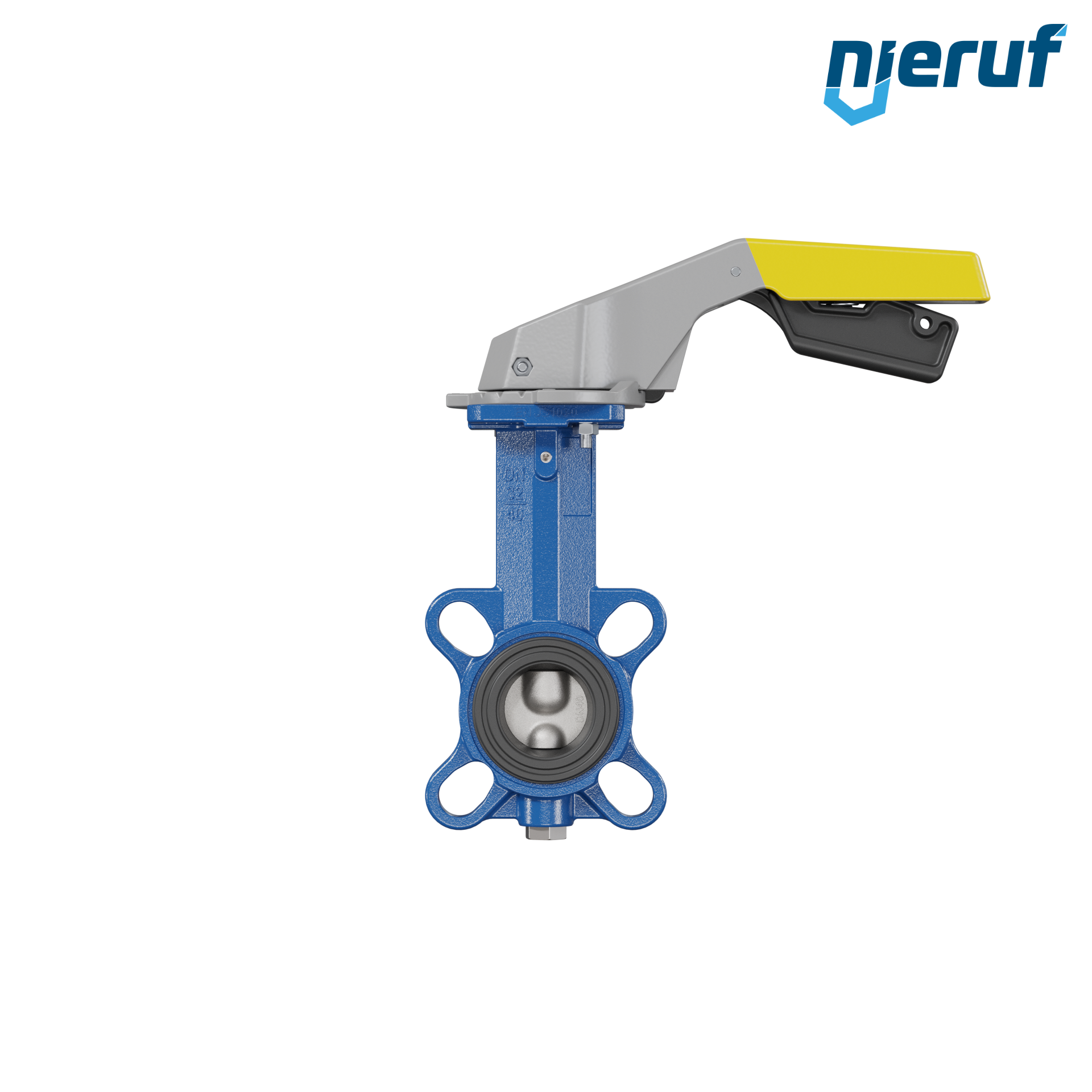

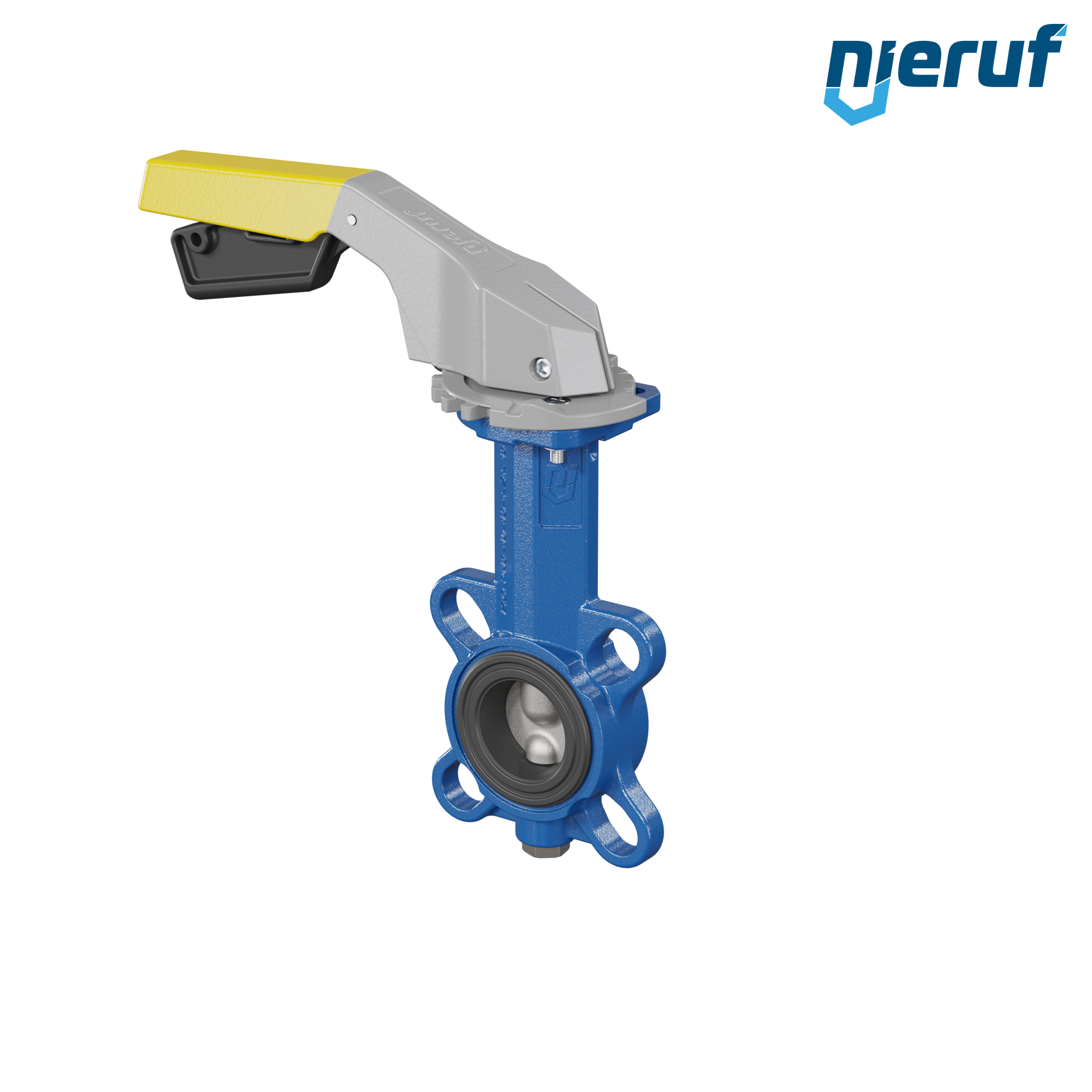

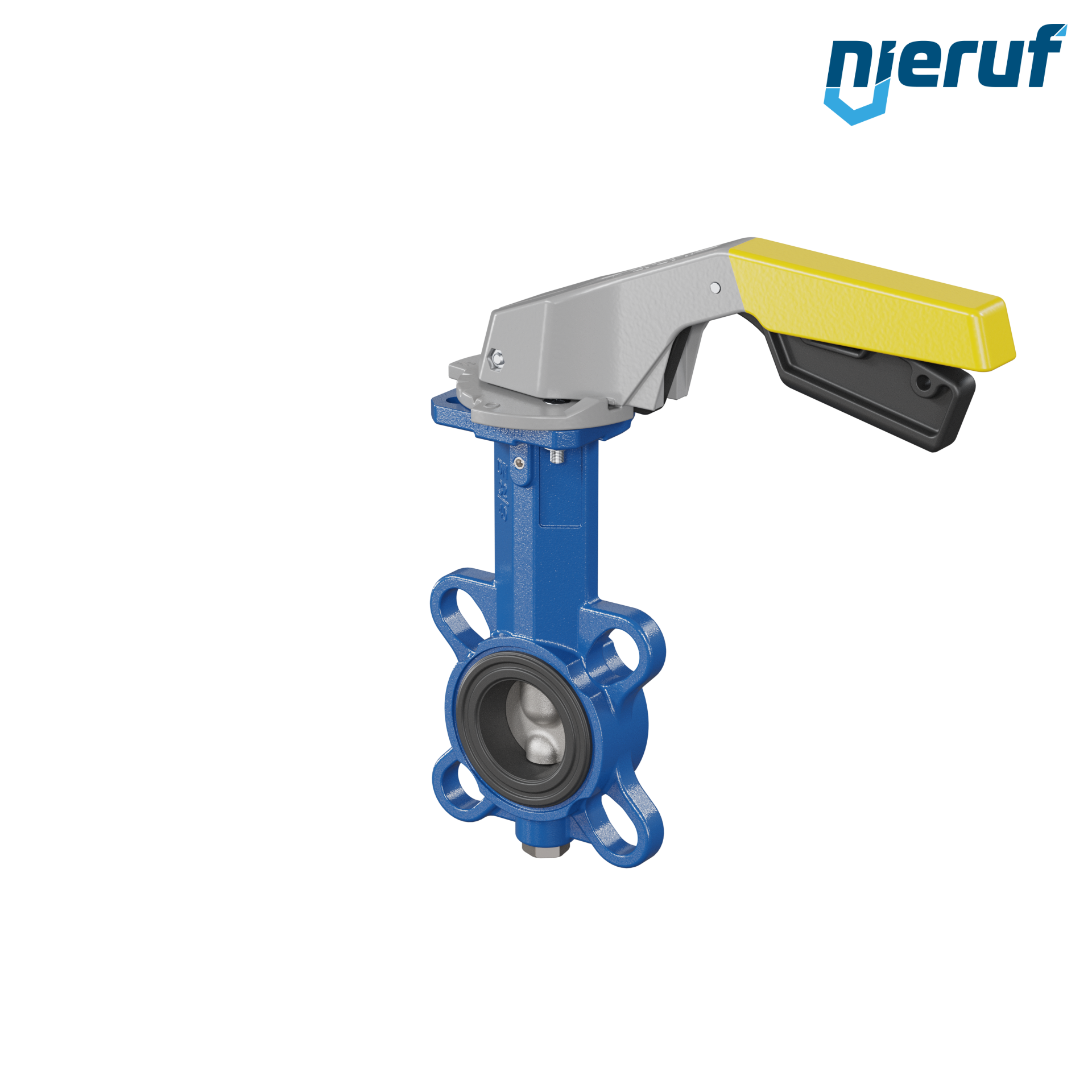

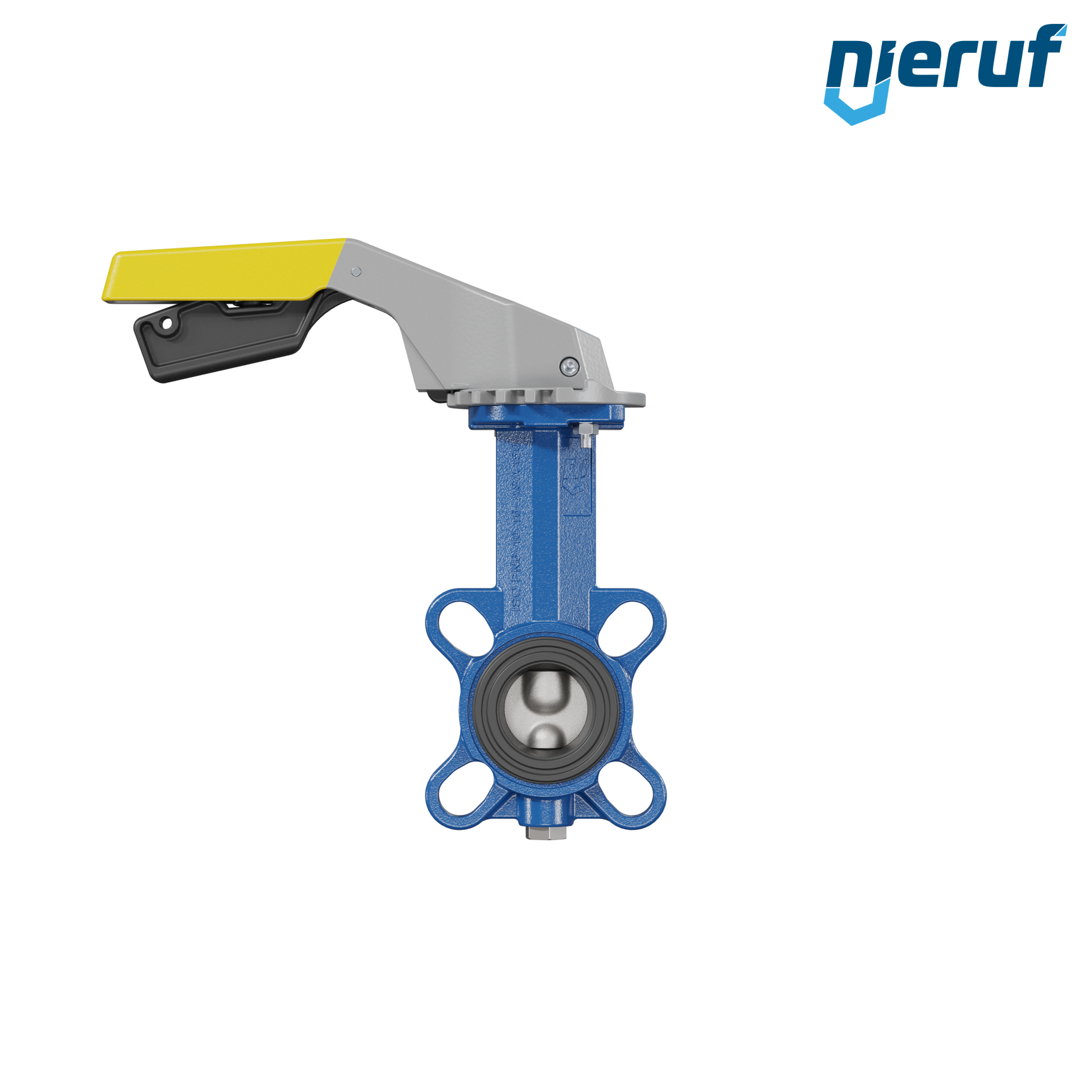

Butterfly valve DN 32 PN6-PN10-PN16 & ANSI150 Wafer type GGG40 with notch lever yellow NBR-70-black DVGW gas
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 32 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | NBR-70-black DVGW gas |
| media | liquid and gaseous media |
| temperature | -10°C up to +60°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | notch lever yellow |
| approval | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK01 DN 32 PN6-PN10-PN16 & ANSI150 DVGW-gas
Article no.
: AK01110006
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 32
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
-10°C up to +60°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever yellow
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
