AK14410112
Triple offset butterfly-valve stainless steel AK14 DN 125 ANSI150 worm gear
- Lead time
- 5 - 6 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads

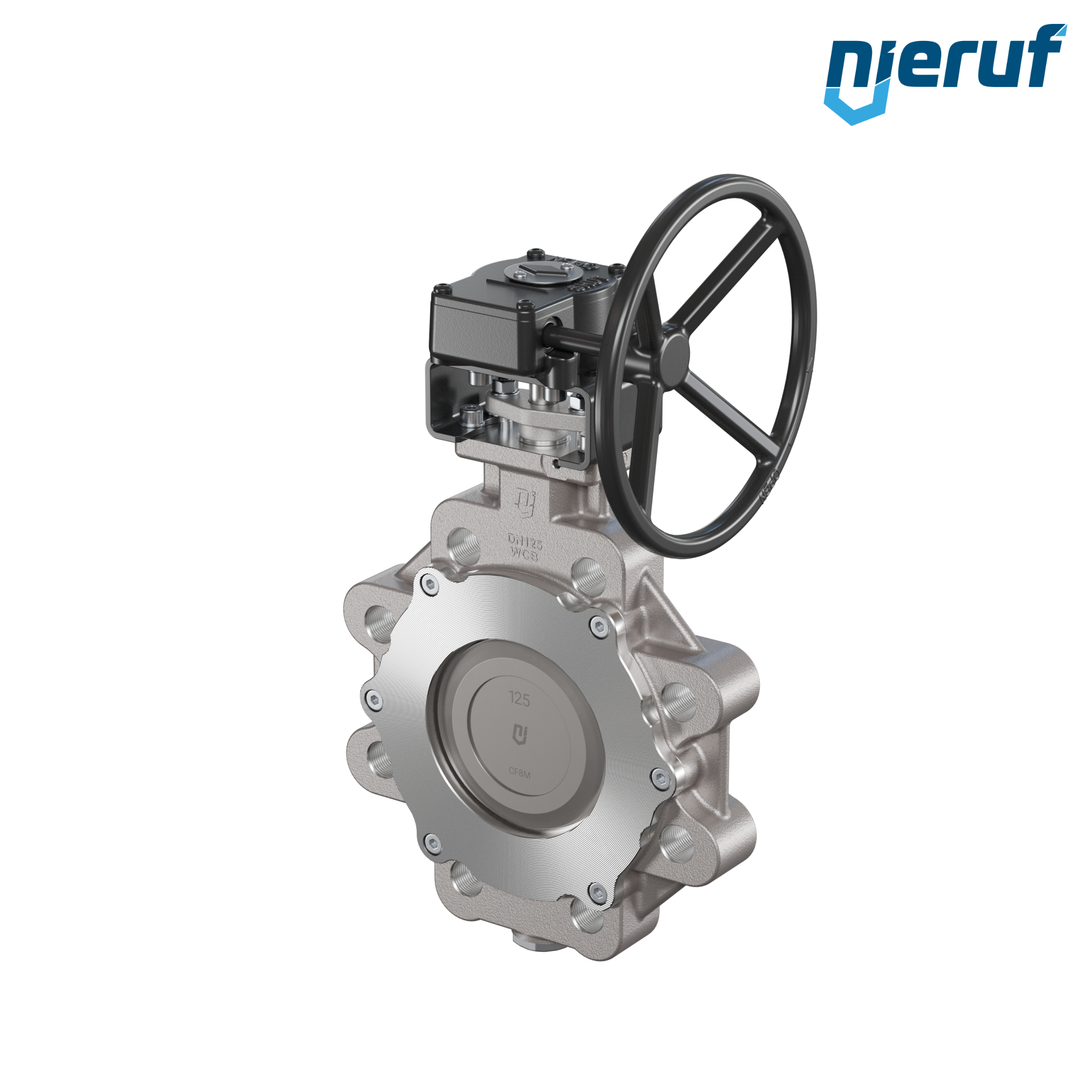

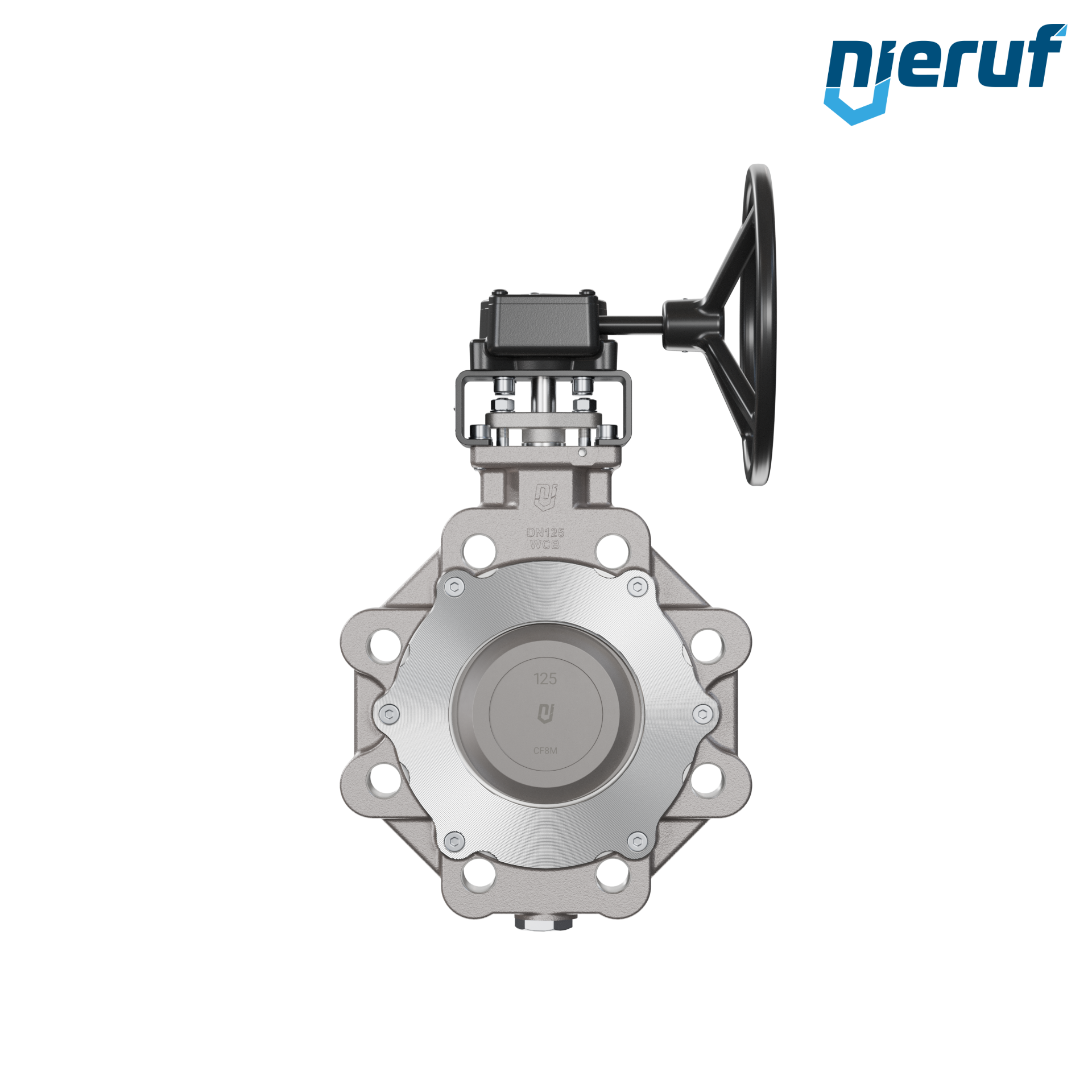

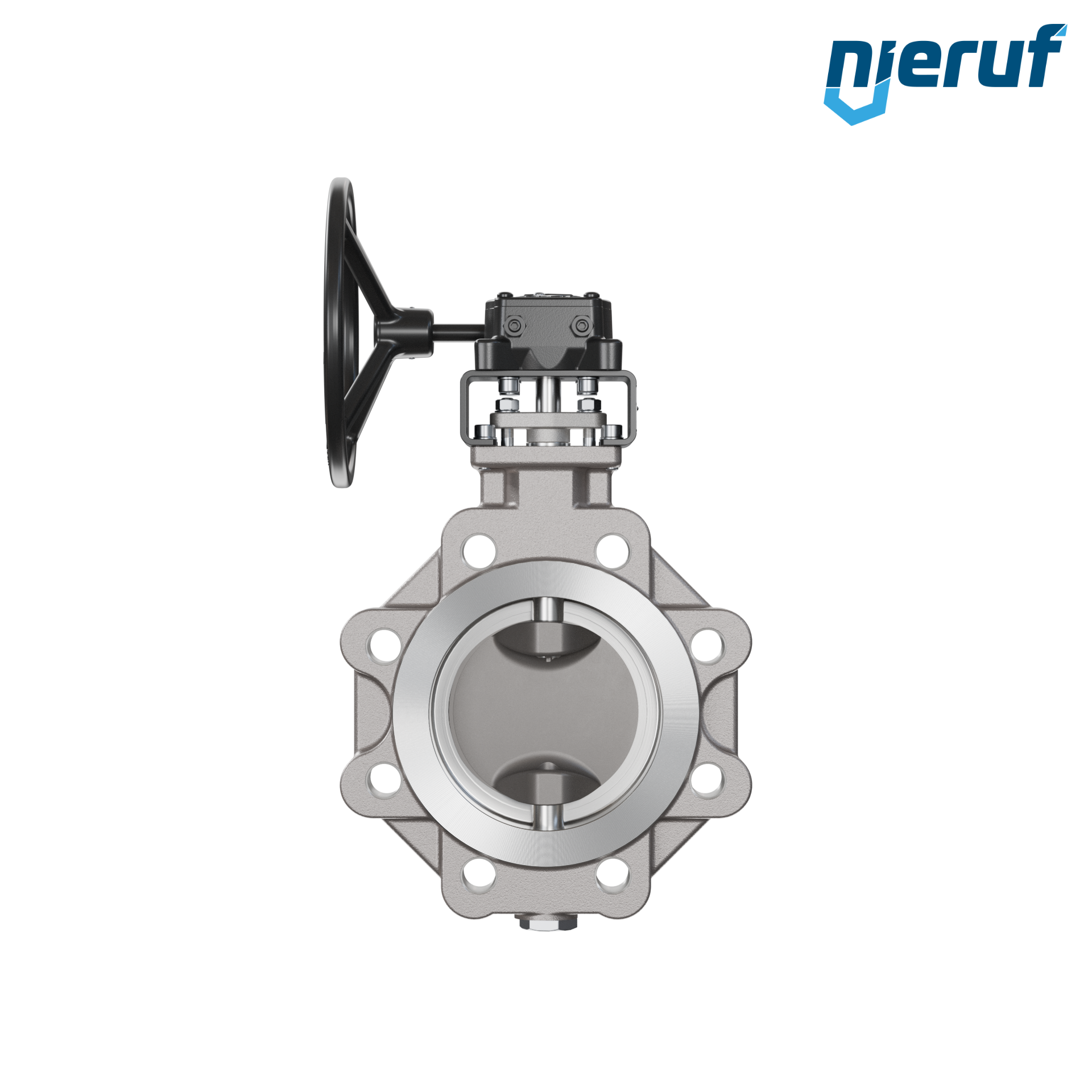

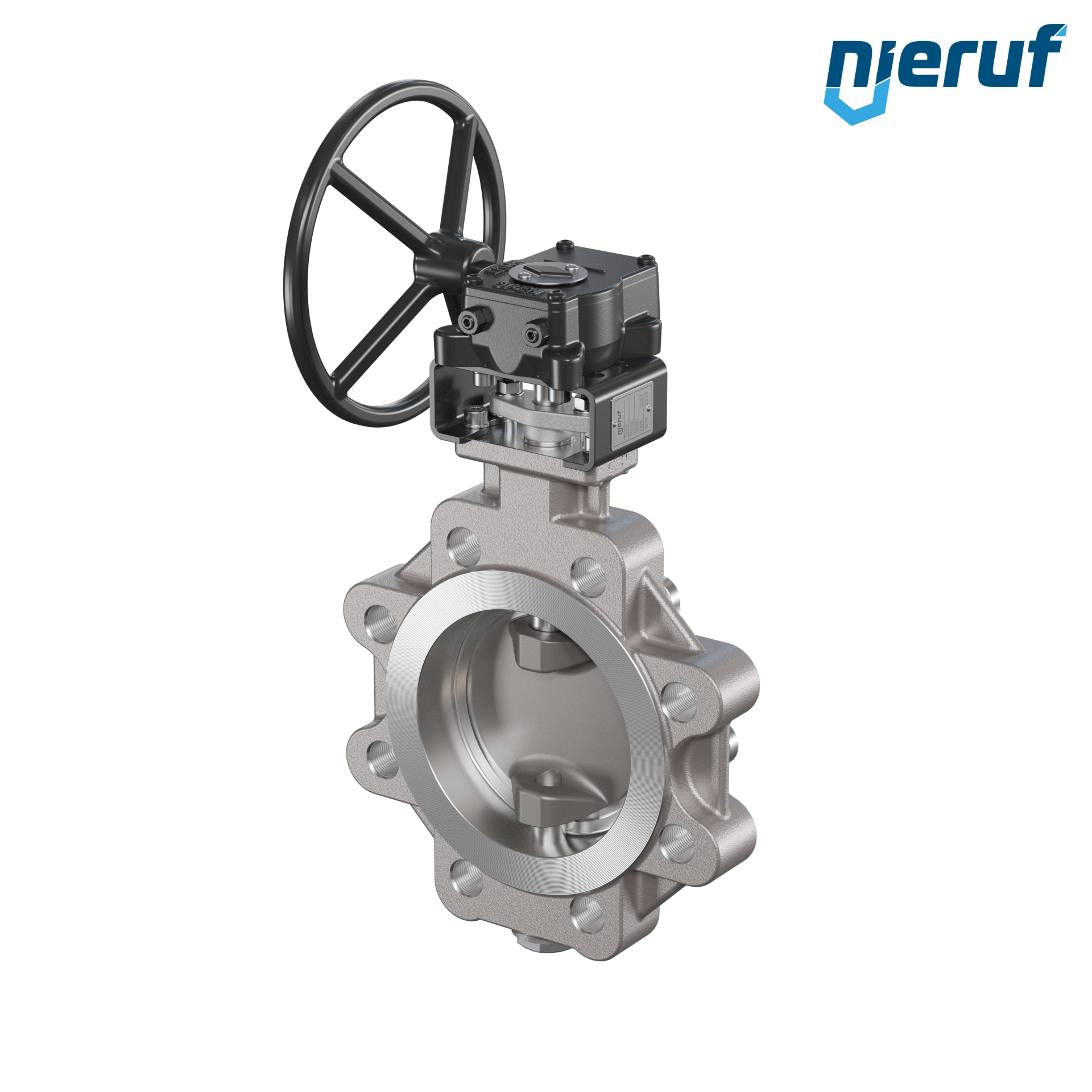

Triple offset butterfly-valve stainless steel AK14 DN 125 ANSI150 worm gear
Triple eccentric butterfly valve LUG type AK14 DN 125 ANSI150 with body made of stainless steel max. 50 bar worm gear
| product | Butterfly valve |
|---|---|
| type | AK14 |
| manufacturer | NieRuf |
| version | Triple offset |
| design | Lug type |
| diameter | DN 125 |
| body material | stainless steel 1.4408 (CF8M) |
| disc | stainless steel 1.4408 (CF8M) |
| Seat material | metal seated (lamellar) - stainless steel + graphite |
| nominal pressure | ANSI150 |
| max. working pressure | 50 bar |
| media | liquid and gaseous media |
| temperature | -50°C up to +320°C |
| actuation | worm gear |
| installation position | Any, stem upwards. Note the direction of flow! |
| product feature | Triple offset butterfly valve for demanding applications and high temperatures. Low maintenance. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Triple offset butterfly-valve stainless steel AK14 DN 125 ANSI150 worm gear
Article no.
: AK14410112
product:
Butterfly valve
type:
AK14
manufacturer:
NieRuf
version:
Triple offset
design:
Lug type
diameter:
DN 125
body material:
stainless steel 1.4408 (CF8M)
disc:
stainless steel 1.4408 (CF8M)
Seat material:
metal seated (lamellar) - stainless steel + graphite
nominal pressure:
ANSI150
max. working pressure:
50 bar
media:
liquid and gaseous media
temperature:
-50°C up to +320°C
actuation:
worm gear
installation position:
Any, stem upwards. Note the direction of flow!
product feature:
Triple offset butterfly valve for demanding applications and high temperatures. Low maintenance.
