AK12000115
Double offset butterfly-valve AK12 DN 250 PN10 worm gear
- Lead time
- 5 - 6 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

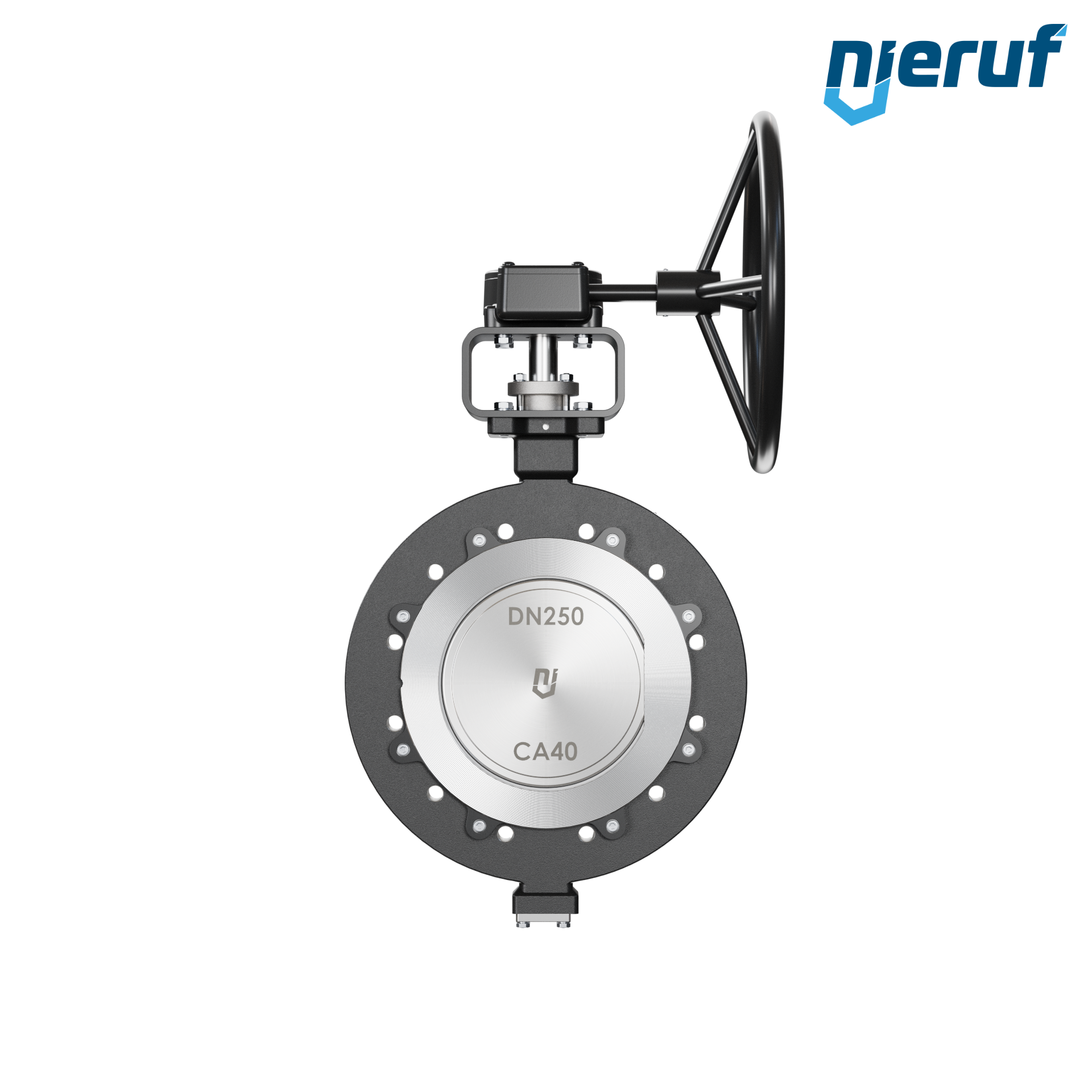

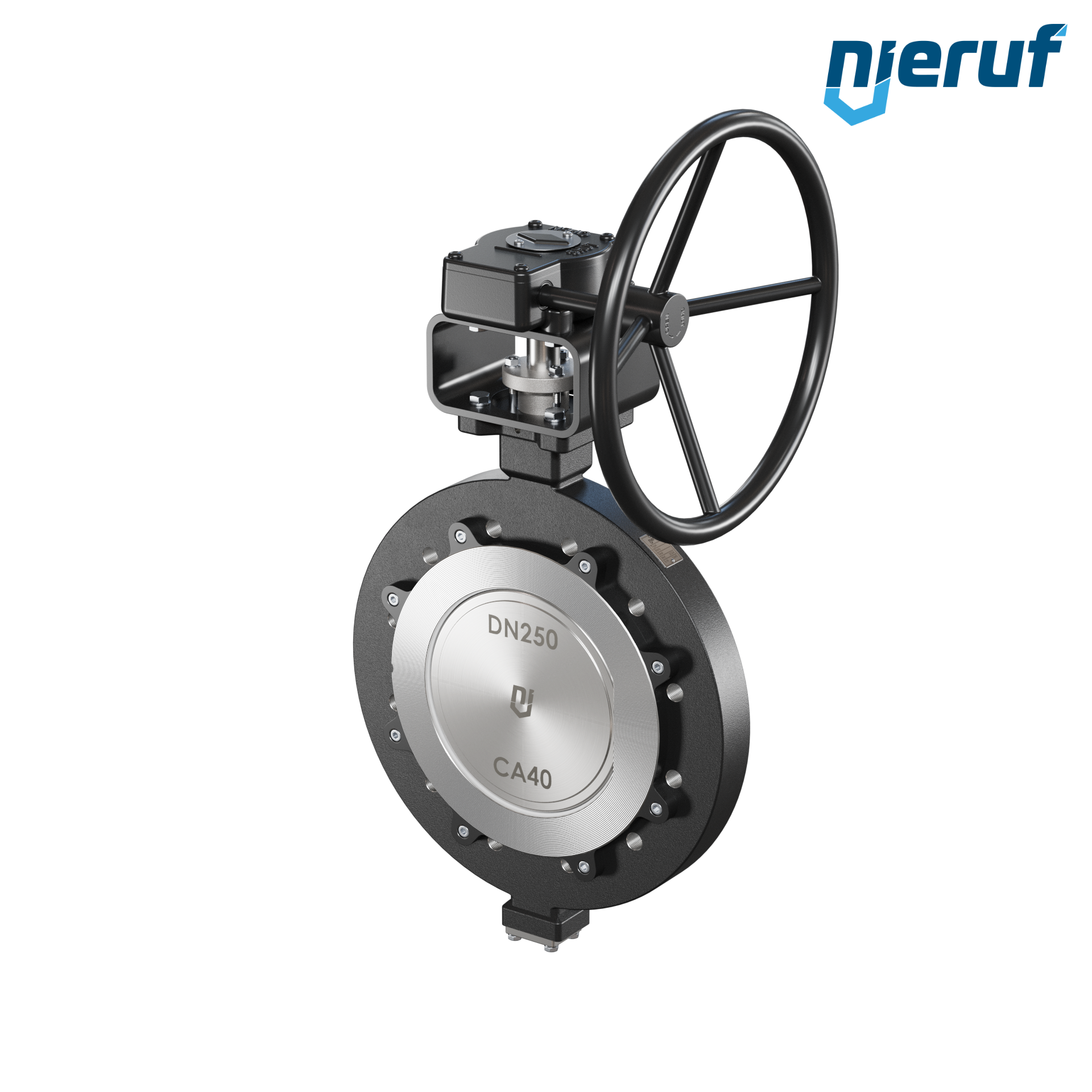

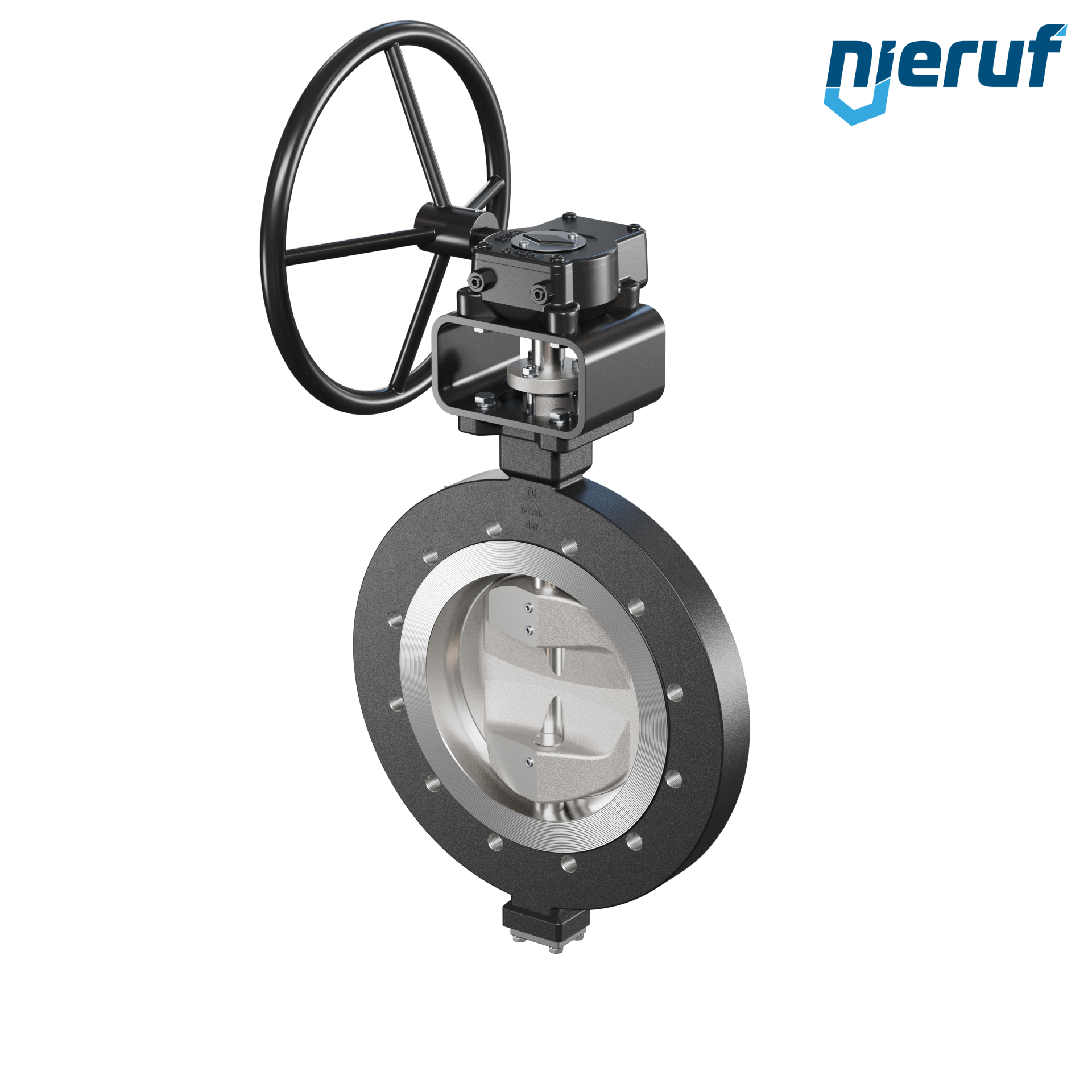

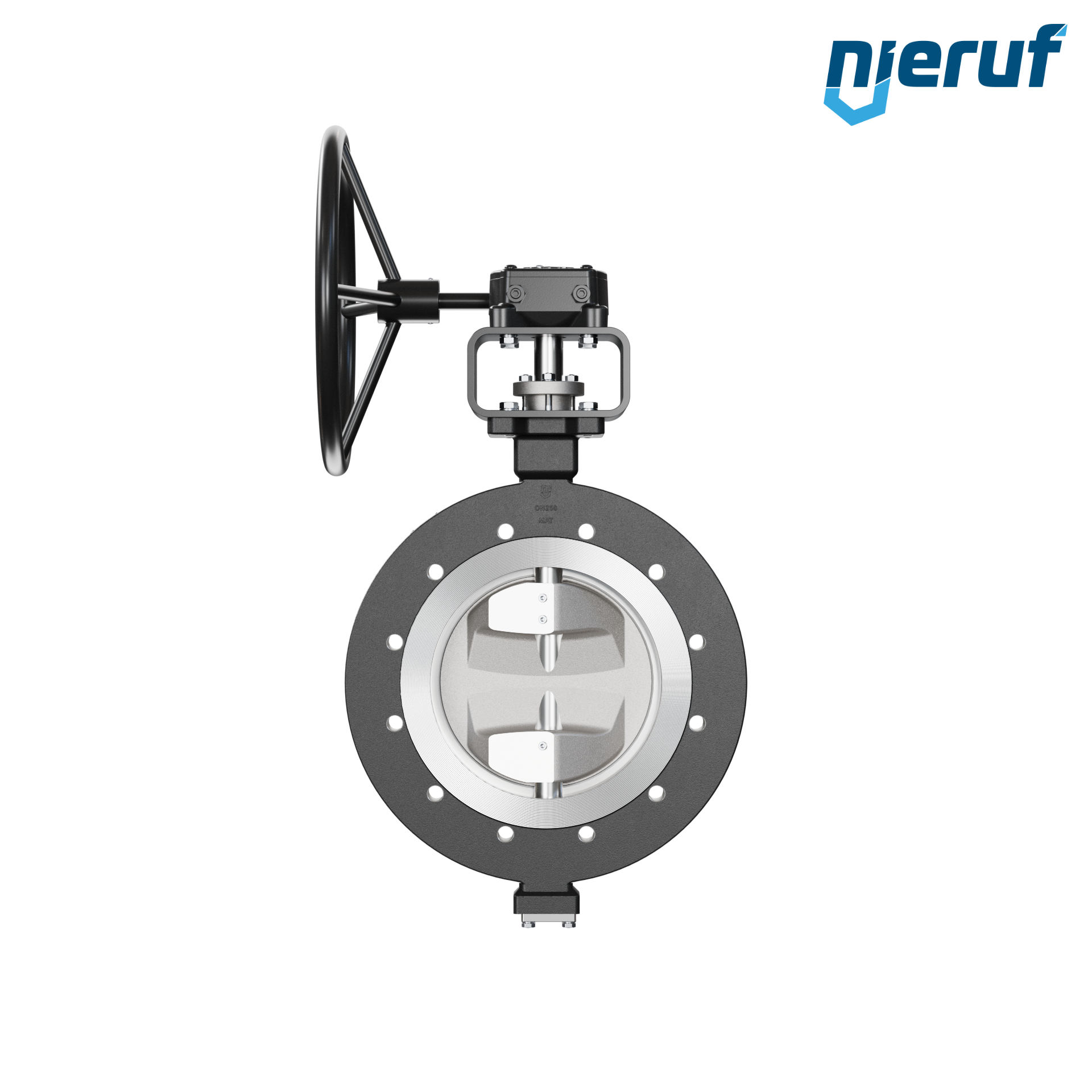

Double offset butterfly-valve AK12 DN 250 PN10 worm gear
Double offset butterfly valve LUG type AK12 DN 250 PN10 with body made of carbon steel max. 25 bar worm gear
| product | Butterfly valve |
|---|---|
| type | AK12 |
| manufacturer | NieRuf |
| version | Double offset |
| design | Lug type |
| diameter | DN 250 |
| body material | carbon steel 1.0625 (A216 WCB) |
| disc | stainless steel 1.4027 (ASTM CA-40) |
| Seat material | R-PTFE (PTFE reinforced by 25% glass fibre) |
| nominal pressure | PN10 |
| max. working pressure | 25 bar |
| media | liquid and gaseous media |
| temperature | -29°C up to +200°C |
| actuation | worm gear |
| installation position | Any, stem upwards. Note the direction of flow! |
| product feature | Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Double offset butterfly-valve AK12 DN 250 PN10 worm gear
Article no.
: AK12000115
product:
Butterfly valve
type:
AK12
manufacturer:
NieRuf
version:
Double offset
design:
Lug type
diameter:
DN 250
body material:
carbon steel 1.0625 (A216 WCB)
disc:
stainless steel 1.4027 (ASTM CA-40)
Seat material:
R-PTFE (PTFE reinforced by 25% glass fibre)
nominal pressure:
PN10
max. working pressure:
25 bar
media:
liquid and gaseous media
temperature:
-29°C up to +200°C
actuation:
worm gear
installation position:
Any, stem upwards. Note the direction of flow!
product feature:
Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance.
