AK12400114

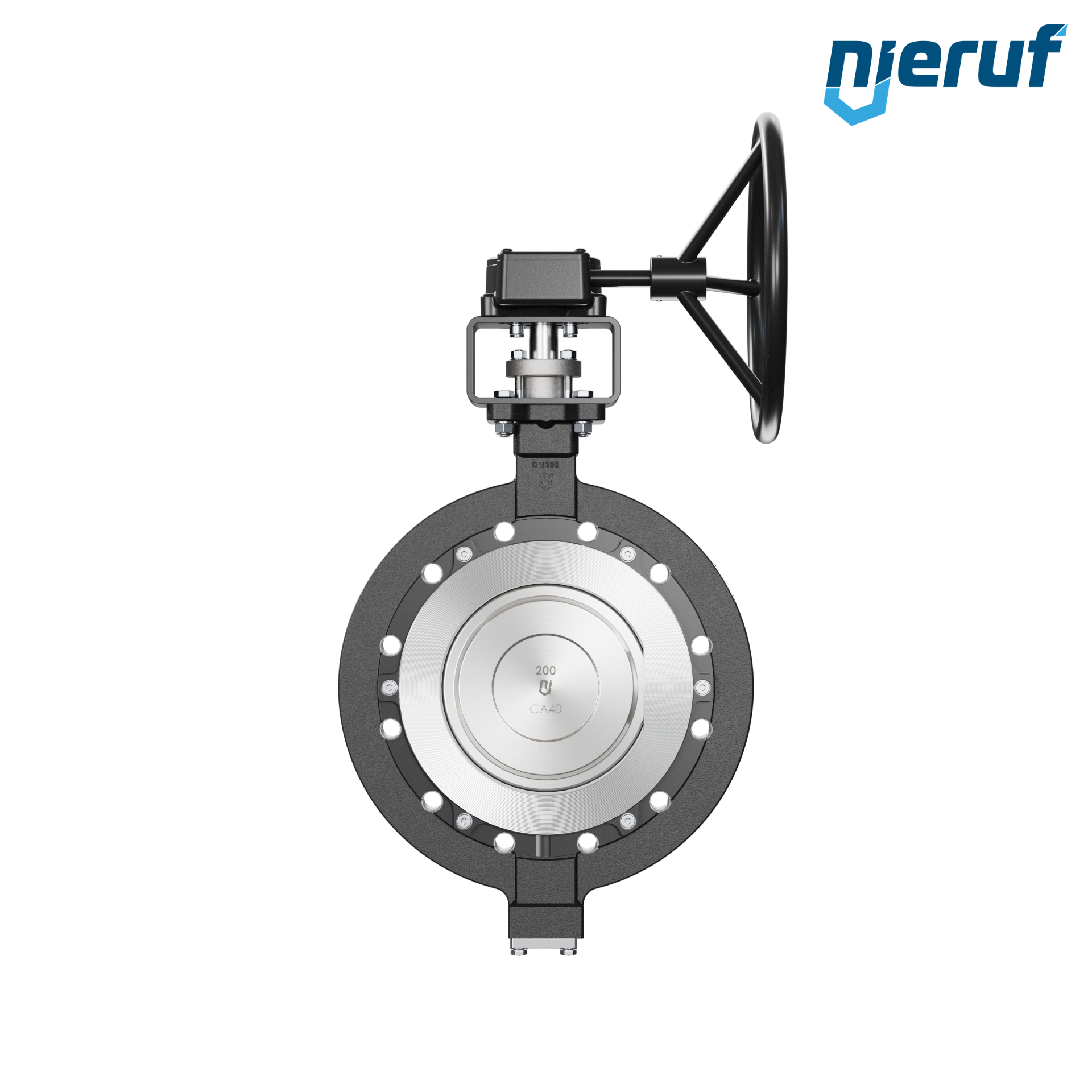

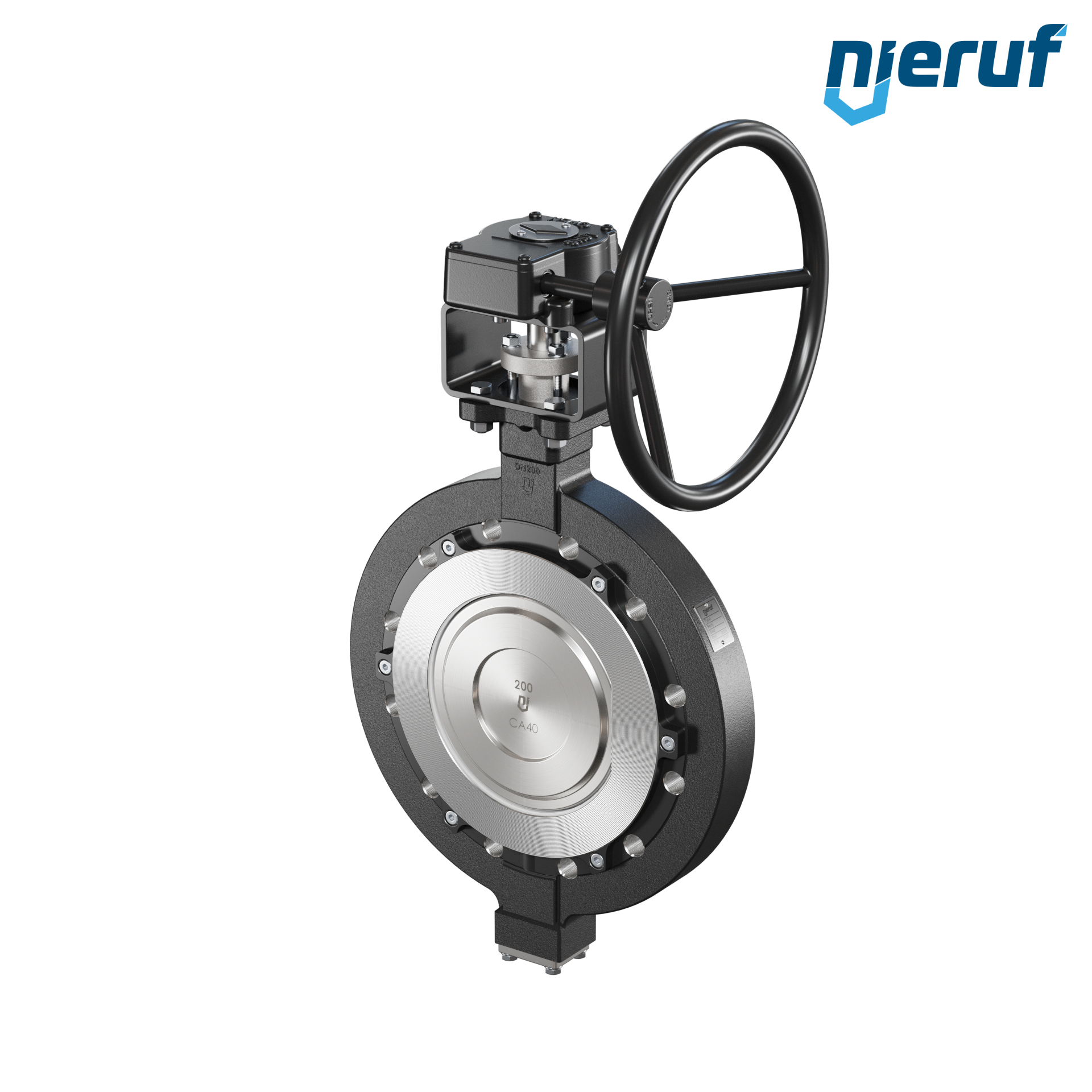

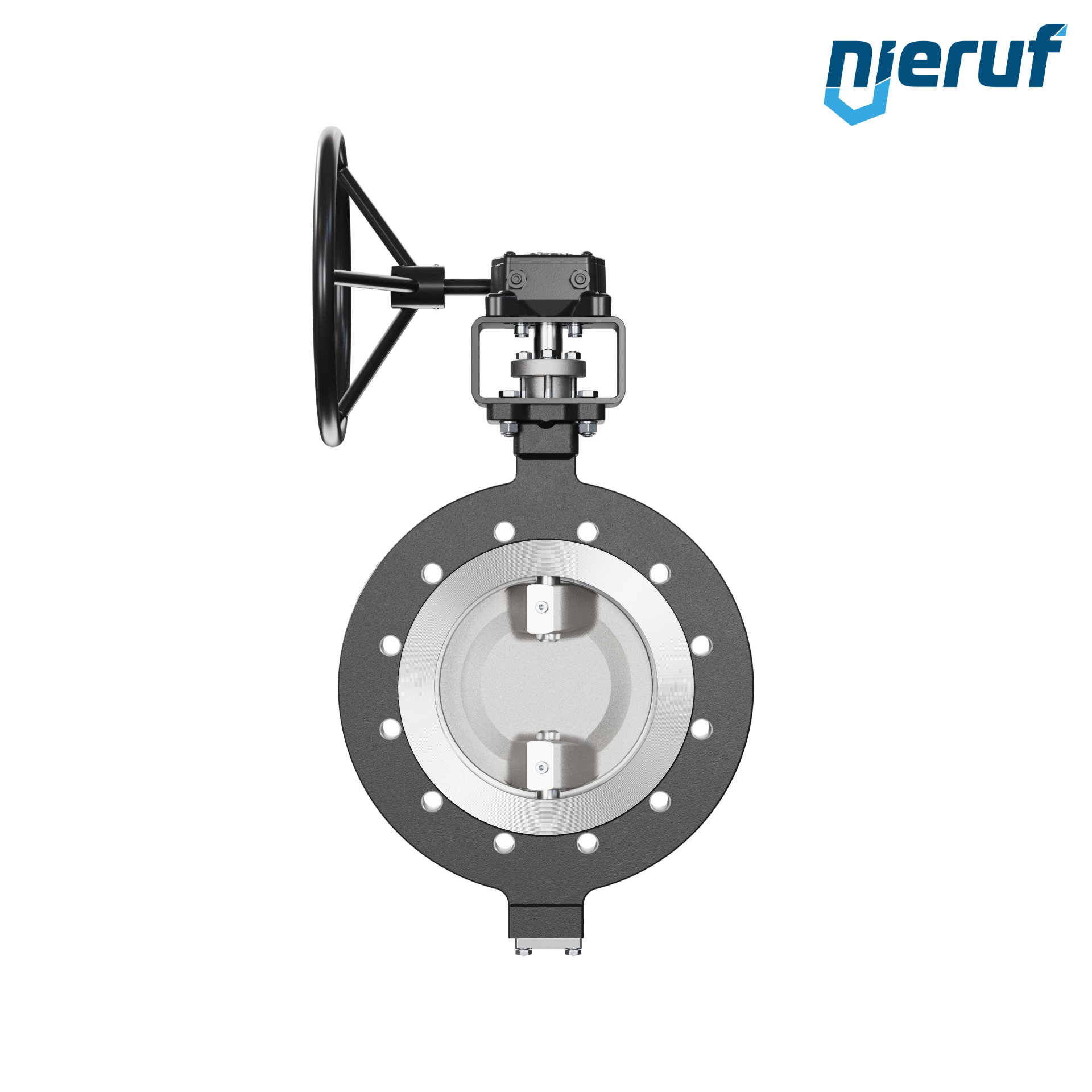

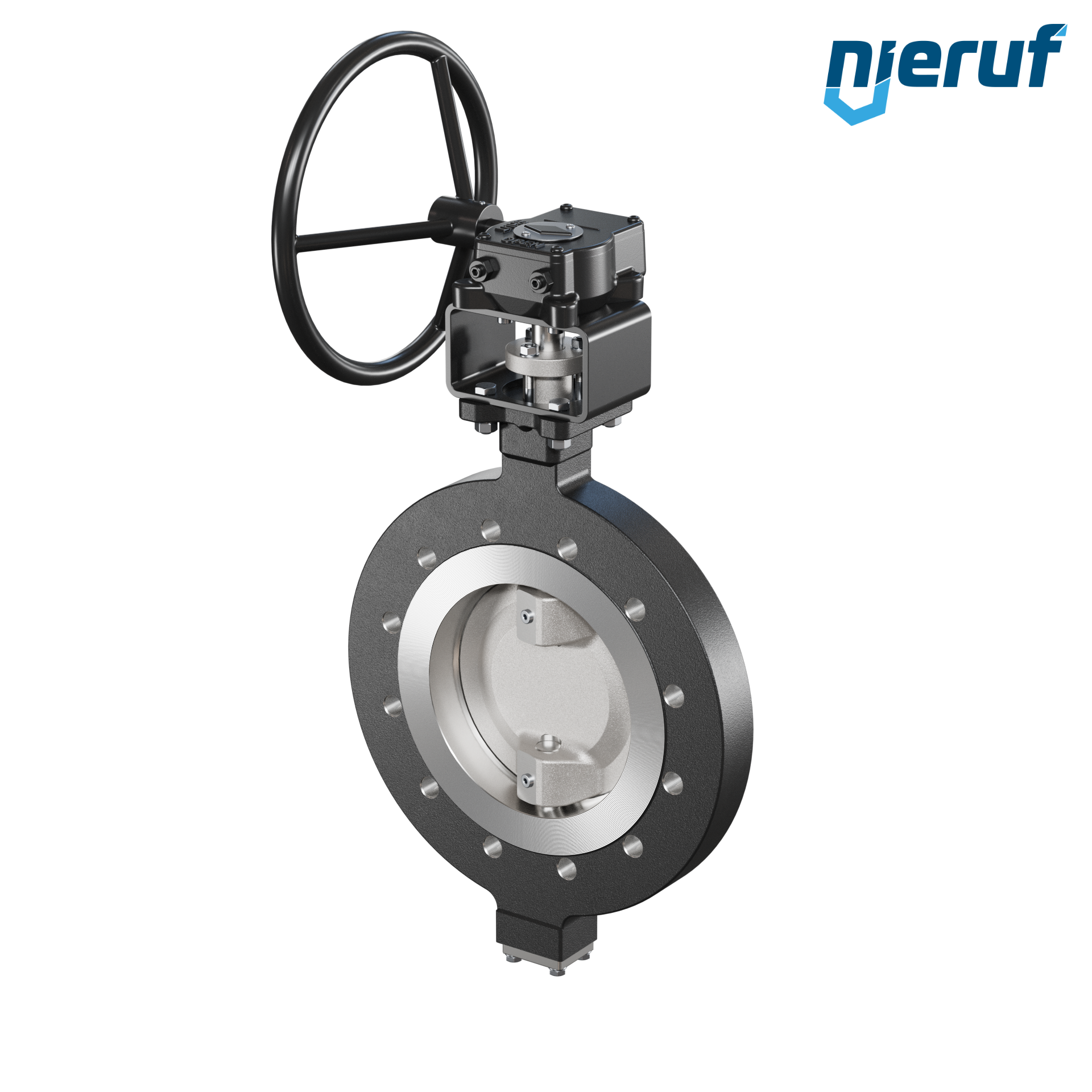

Double offset butterfly-valve AK12 DN 200 ANSI150 worm gear
- Lead time
- 5 - 6 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
Double offset butterfly-valve AK12 DN 200 ANSI150 worm gear
Double offset butterfly valve LUG type AK12 DN 200 ANSI150 with body made of carbon steel max. 40 bar worm gear
| product | Butterfly valve |
|---|---|
| type | AK12 |
| manufacturer | NieRuf |
| version | Double offset |
| design | Lug type |
| diameter | DN 200 |
| body material | carbon steel 1.0625 (A216 WCB) |
| disc | stainless steel 1.4027 (ASTM CA-40) |
| Seat material | R-PTFE (PTFE reinforced by 25% glass fibre) |
| nominal pressure | ANSI150 |
| max. working pressure | 40 bar |
| media | liquid and gaseous media |
| temperature | -29°C up to +200°C |
| actuation | worm gear |
| installation position | Any, stem upwards. Note the direction of flow! |
| product feature | Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Double offset butterfly-valve AK12 DN 200 ANSI150 worm gear
Article no.
: AK12400114
product:
Butterfly valve
type:
AK12
manufacturer:
NieRuf
version:
Double offset
design:
Lug type
diameter:
DN 200
body material:
carbon steel 1.0625 (A216 WCB)
disc:
stainless steel 1.4027 (ASTM CA-40)
Seat material:
R-PTFE (PTFE reinforced by 25% glass fibre)
nominal pressure:
ANSI150
max. working pressure:
40 bar
media:
liquid and gaseous media
temperature:
-29°C up to +200°C
actuation:
worm gear
installation position:
Any, stem upwards. Note the direction of flow!
product feature:
Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance.
