AK09012007
Butterfly-valve PTFE AK09 DN40 PN10-PN16 lever FKM insert
- Lead time
- 2 - 3 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you

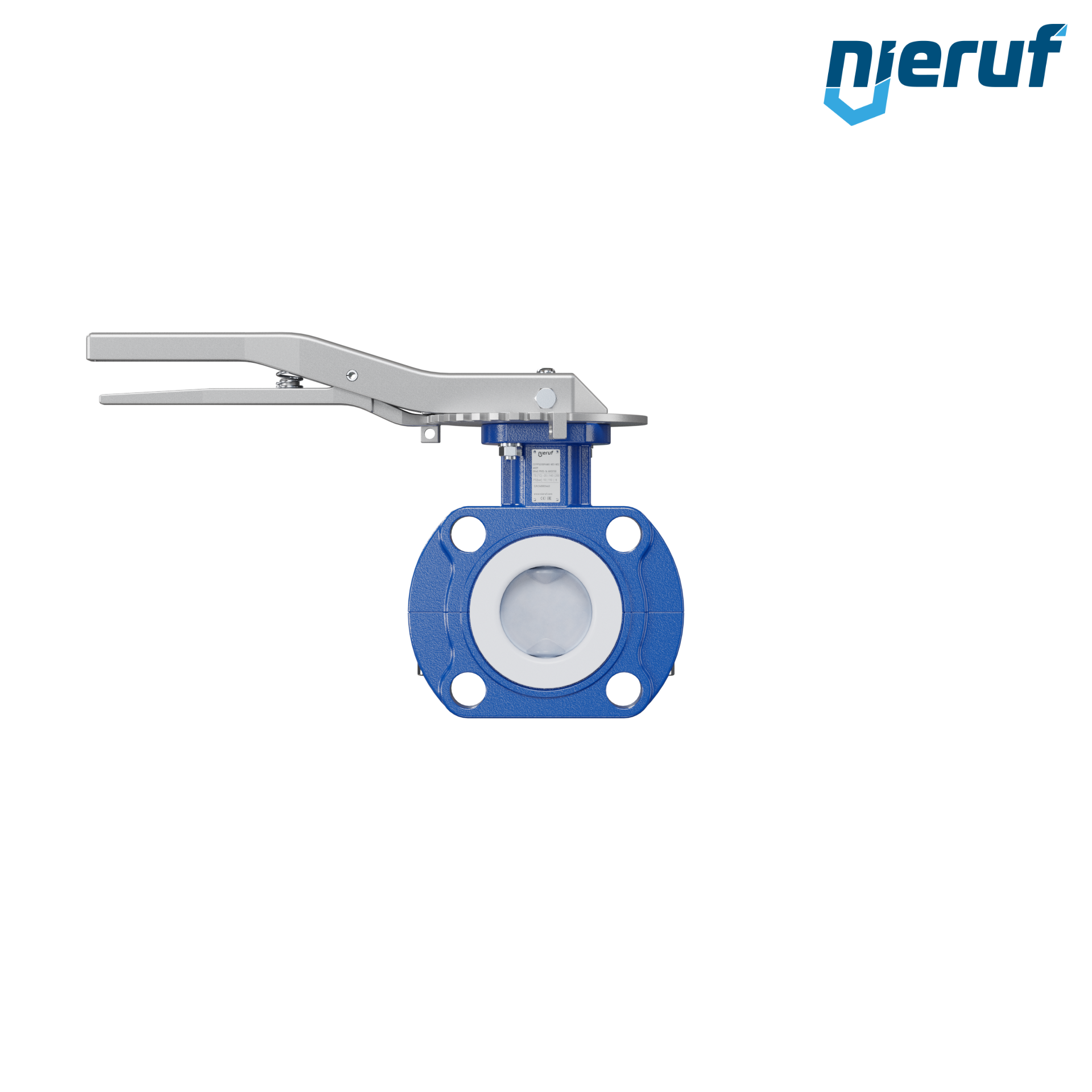

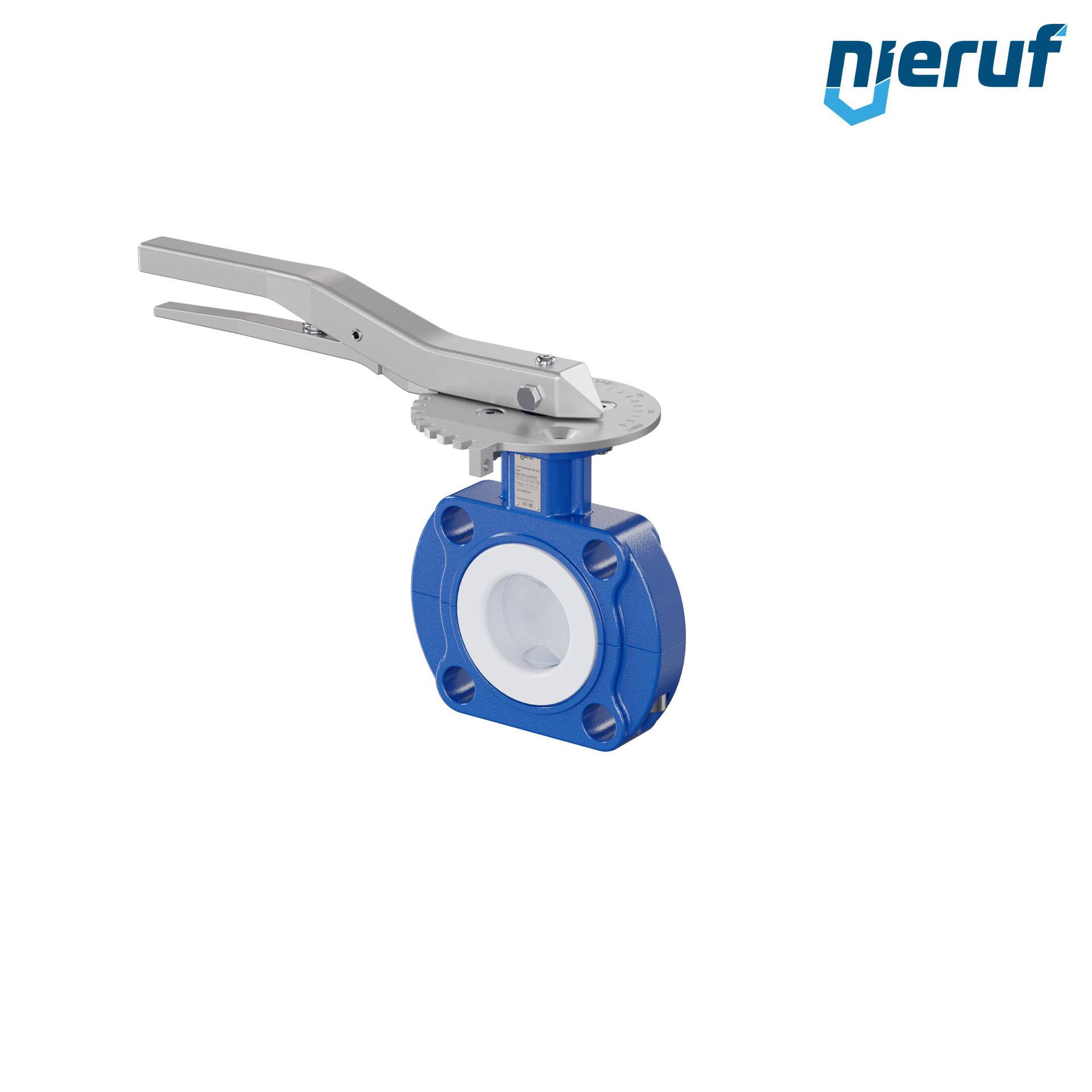

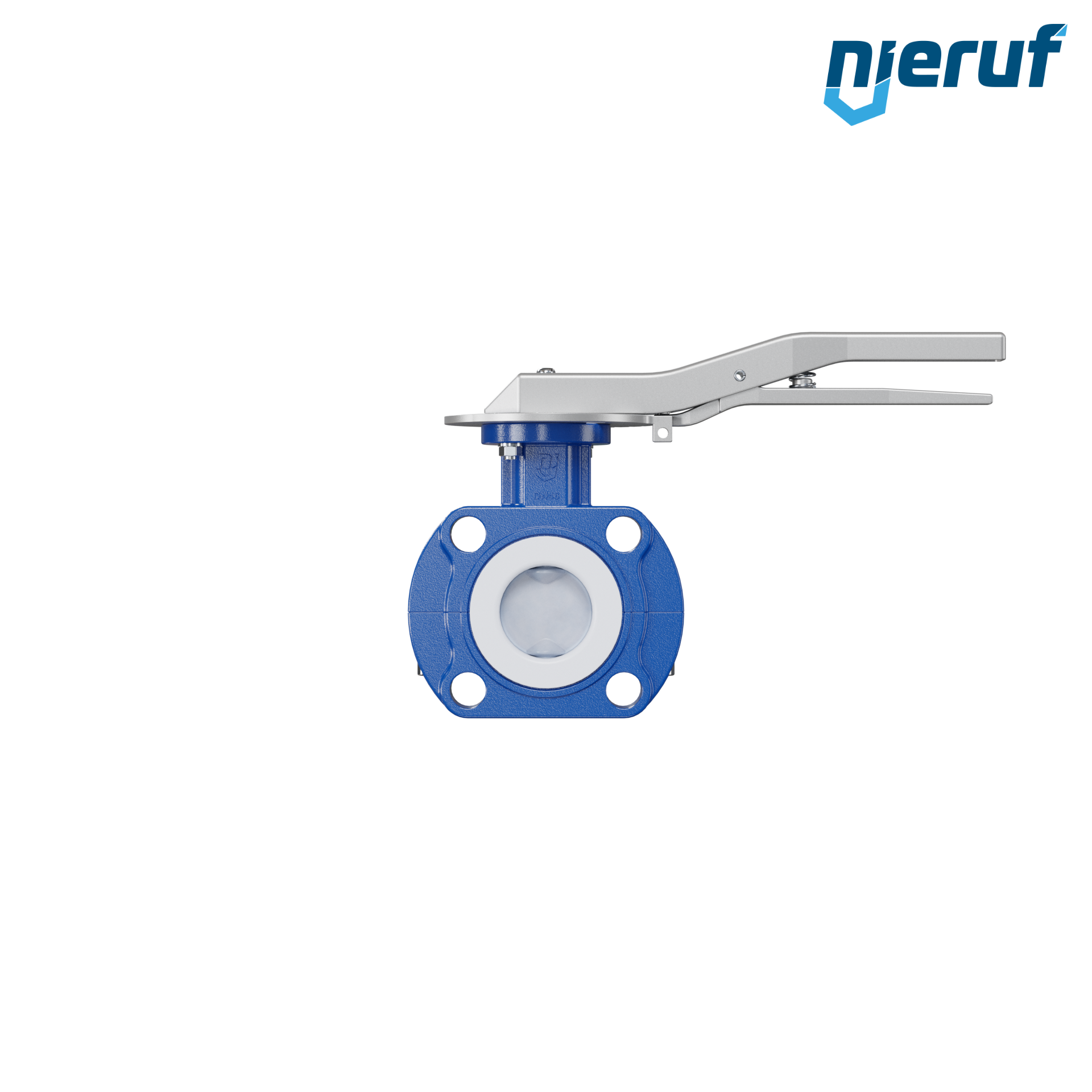

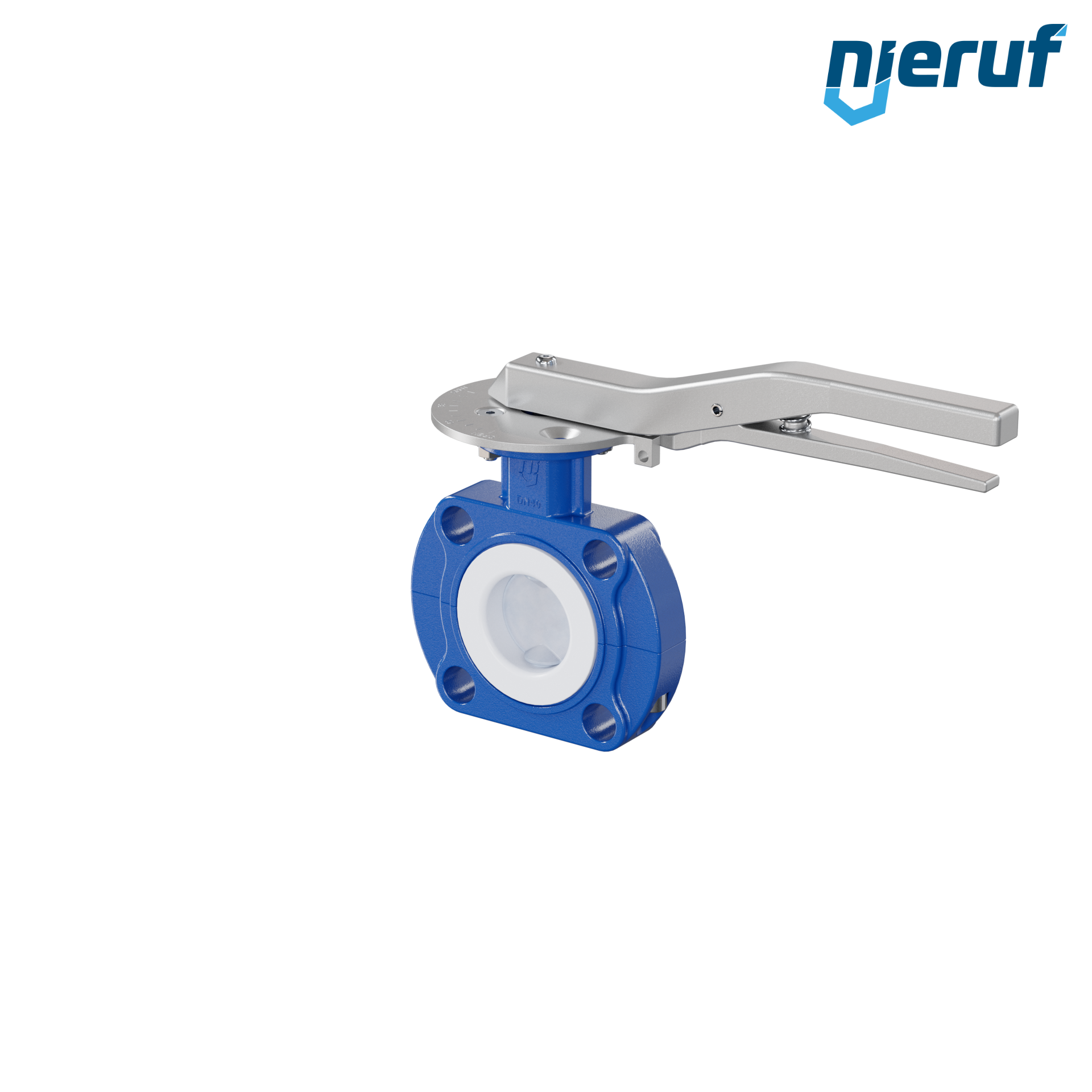

Butterfly-valve PTFE AK09 DN40 PN10-PN16 lever FKM insert
Butterfly-valve DN40 PN10-PN16 Wafer type disc made of stainless steel 1.4469 with lever seal made of PTFE and FKM insert for aggressive media
| product | Butterfly-valve |
|---|---|
| type | AK09 |
| manufacturer | NieRuf |
| diameter | DN40 |
| nominal pressure | PN10-PN16 |
| max. working pressure | 10 bar |
| sleeves | PTFE |
| media | liquid, gaseous and aggressive media |
| temperature | -10°C up to +200°C |
| design | Wafer type |
| body material | ductile iron 5.3103 epoxy-coating 120μm |
| disc | stainless steel 1.4469 |
| Insert | FKM |
| actuation | lever |
| application | for extreme usage |
| installation position | shaft preferably horizontal |
| product feature | butterfly-valve with PTFE sleeve and stainless steel butterfly for aggressive media |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve PTFE AK09 DN40 PN10-PN16 lever FKM insert
Article no.
: AK09012007
product:
Butterfly-valve
type:
AK09
manufacturer:
NieRuf
diameter:
DN40
nominal pressure:
PN10-PN16
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-10°C up to +200°C
design:
Wafer type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
stainless steel 1.4469
Insert:
FKM
actuation:
lever
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
butterfly-valve with PTFE sleeve and stainless steel butterfly for aggressive media
