KP05011016

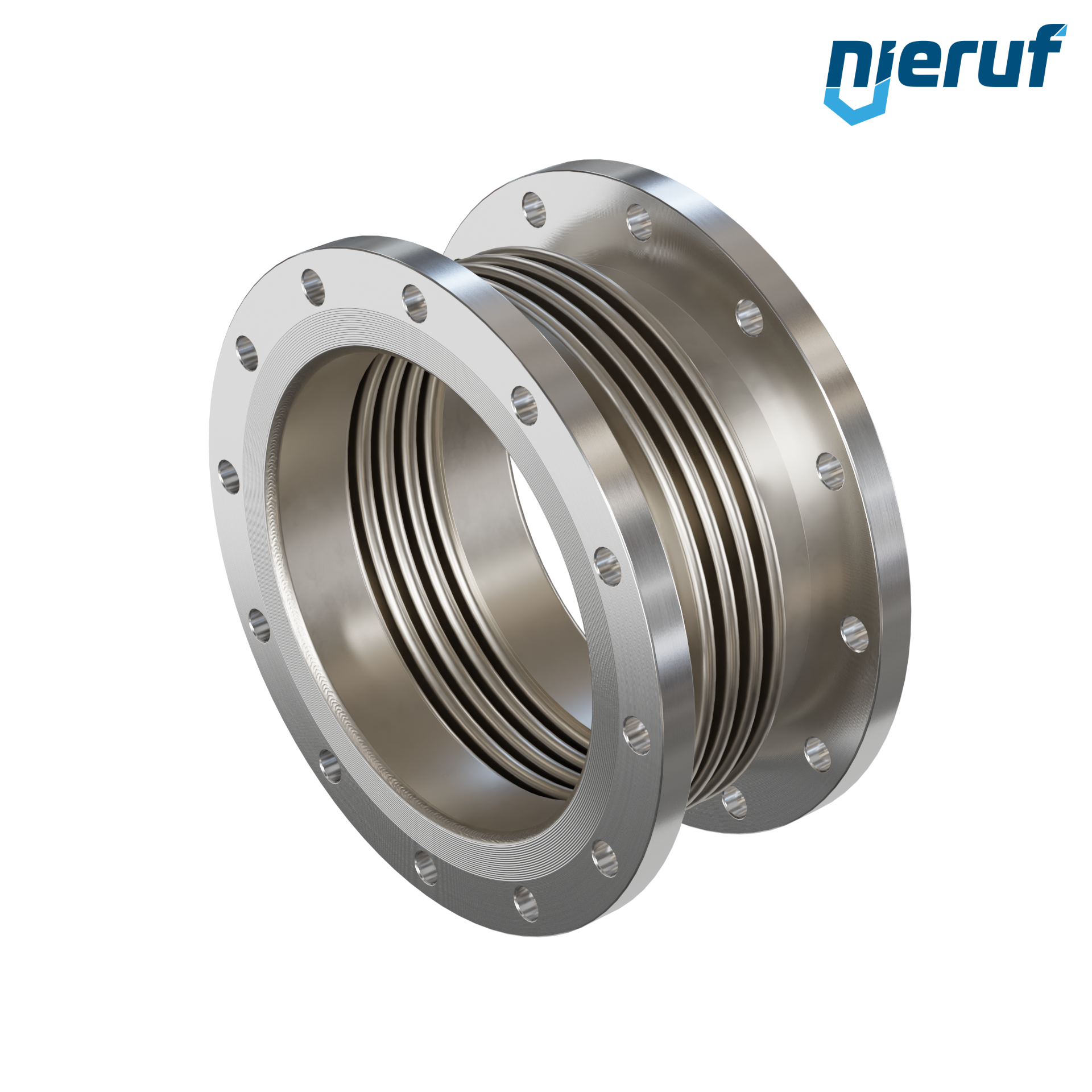

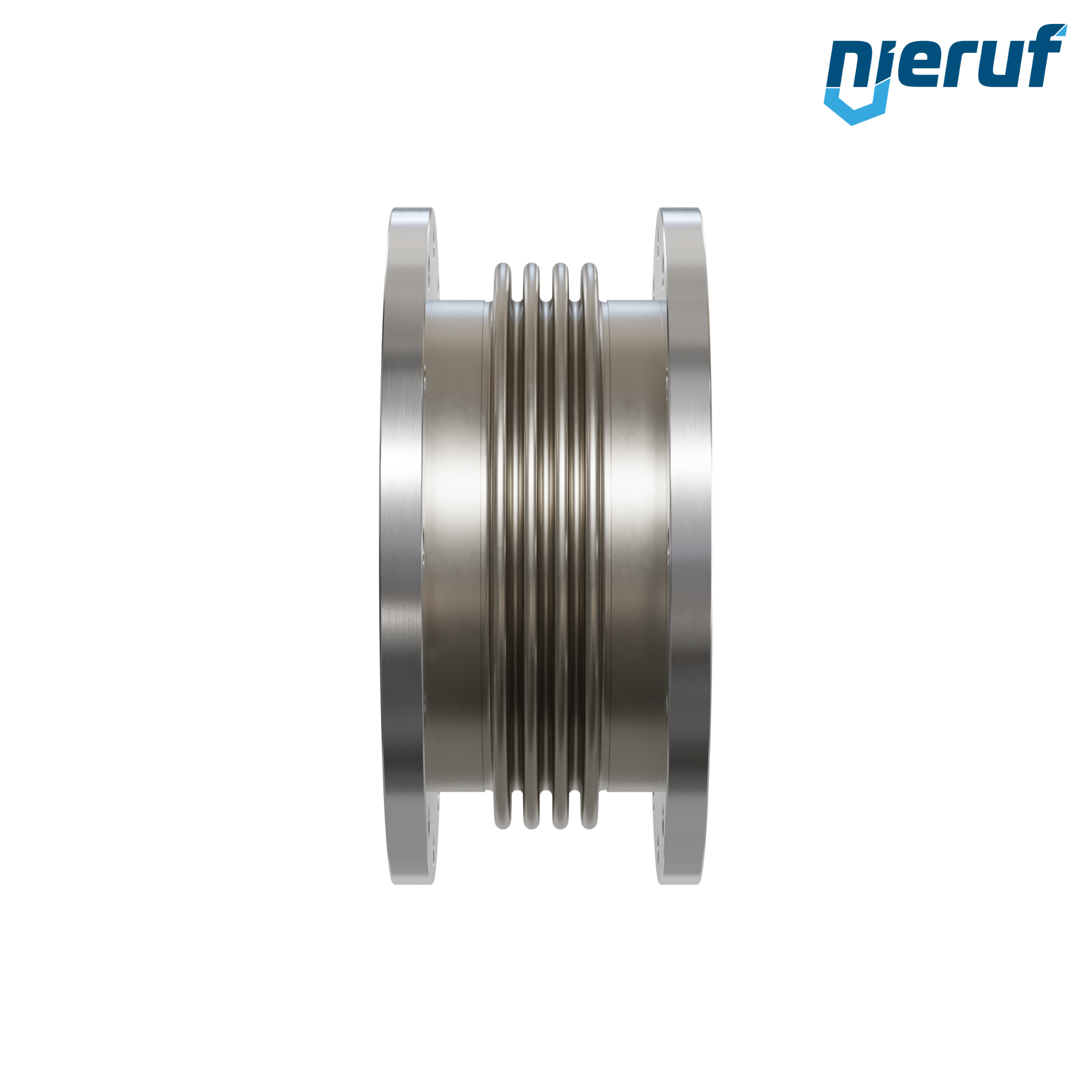

Axial expansion joint DN300 type KP05 stainless steel fixed flanges and stainless steel bellows

Giunto di dilatazione assiale DN300 versione KP05 flangia fissa in acciaio inox e manicotto in acciaio inox

€1,718.00*

€2,044.42 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 7 - 8 weeks

Equipment

VS01000116

joint set flange/flange DN300 - 12" Inch for flange PN10 stainless steel

€32.40*

€38.56 VAT included.

FD01000116

flange seal DN300 PN10 324x378x2 Klingersil C 4400

€31.70*

€37.72 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

Axial expansion joint DN300 type KP05 stainless steel fixed flanges and stainless steel bellows

Axial expansion joint KP05 DN300 with stainless steel-bellows and stainless steel fixed flanges acc. DIN EN 1092-1 PN10 for liquid media, gases media and steam

product	Axial expansion joint
type	KP05
manufacturer	NieRuf
diameter	DN300
connection	fixed flanges acc. DIN EN 1092-1 PN10
max. pressure	max. 10 bar
nominal pressure	PN 10
material	stainless steel 1.4571 / 316 Ti
sleeves	stainless steel 1.4571 / 316 Ti
media	liquid media, gases media and steam
temperature	-196°C up to +550°C - depending on working pressure
design	straightway form
product feature	This high quality axial-compensator joint with stainless steel bellows and fixed made of stainless steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Axial expansion joint DN300 type KP05 stainless steel fixed flanges and stainless steel bellows

Article no. : KP05011016
product: Axial expansion joint
type: KP05
manufacturer: NieRuf
diameter: DN300
connection: fixed flanges acc. DIN EN 1092-1 PN10
max. pressure: max. 10 bar
nominal pressure: PN 10
material: stainless steel 1.4571 / 316 Ti
sleeves: stainless steel 1.4571 / 316 Ti
media: liquid media, gases media and steam
temperature: -196°C up to +550°C - depending on working pressure
design: straightway form
product feature: This high quality axial-compensator joint with stainless steel bellows and fixed made of stainless steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
