KP05021013

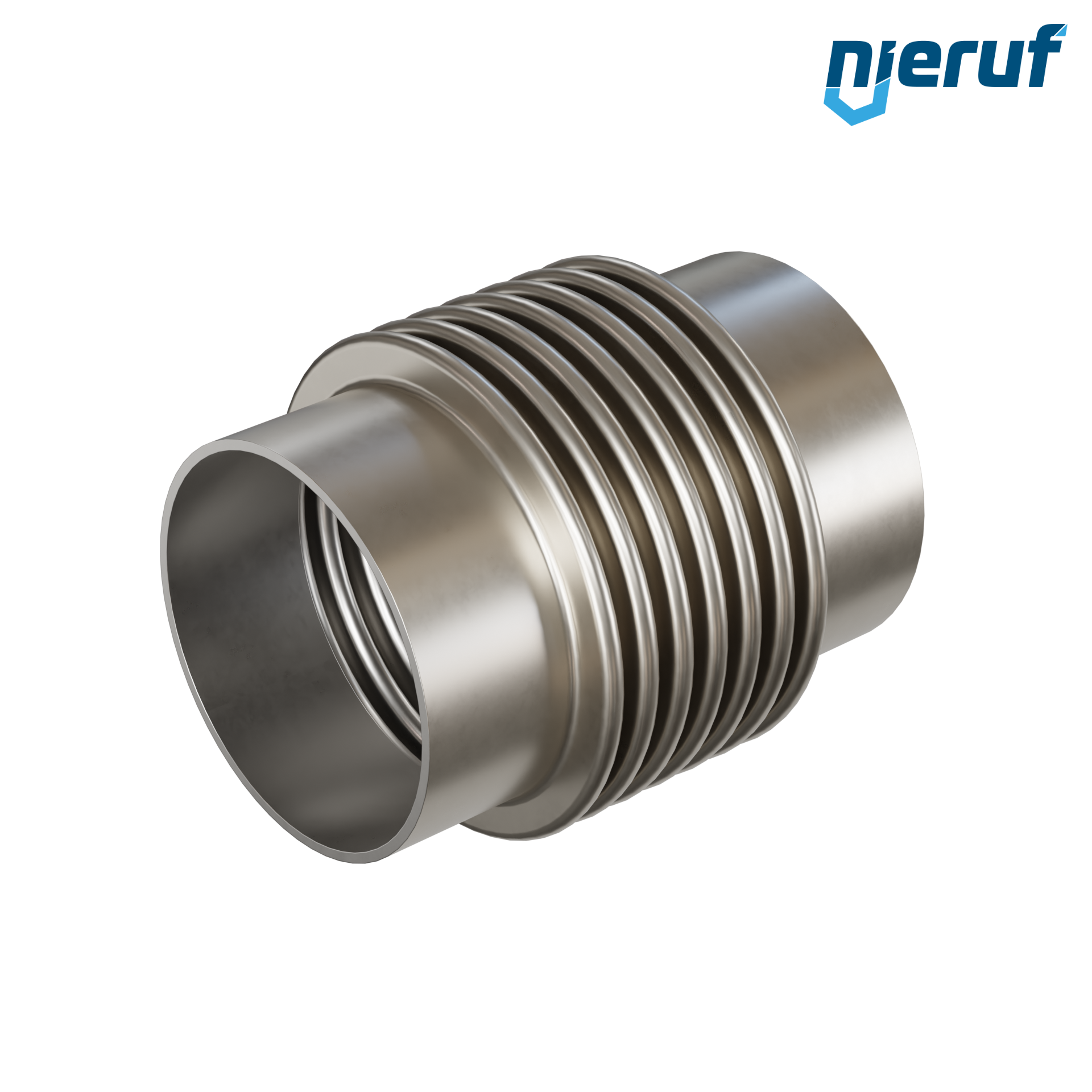

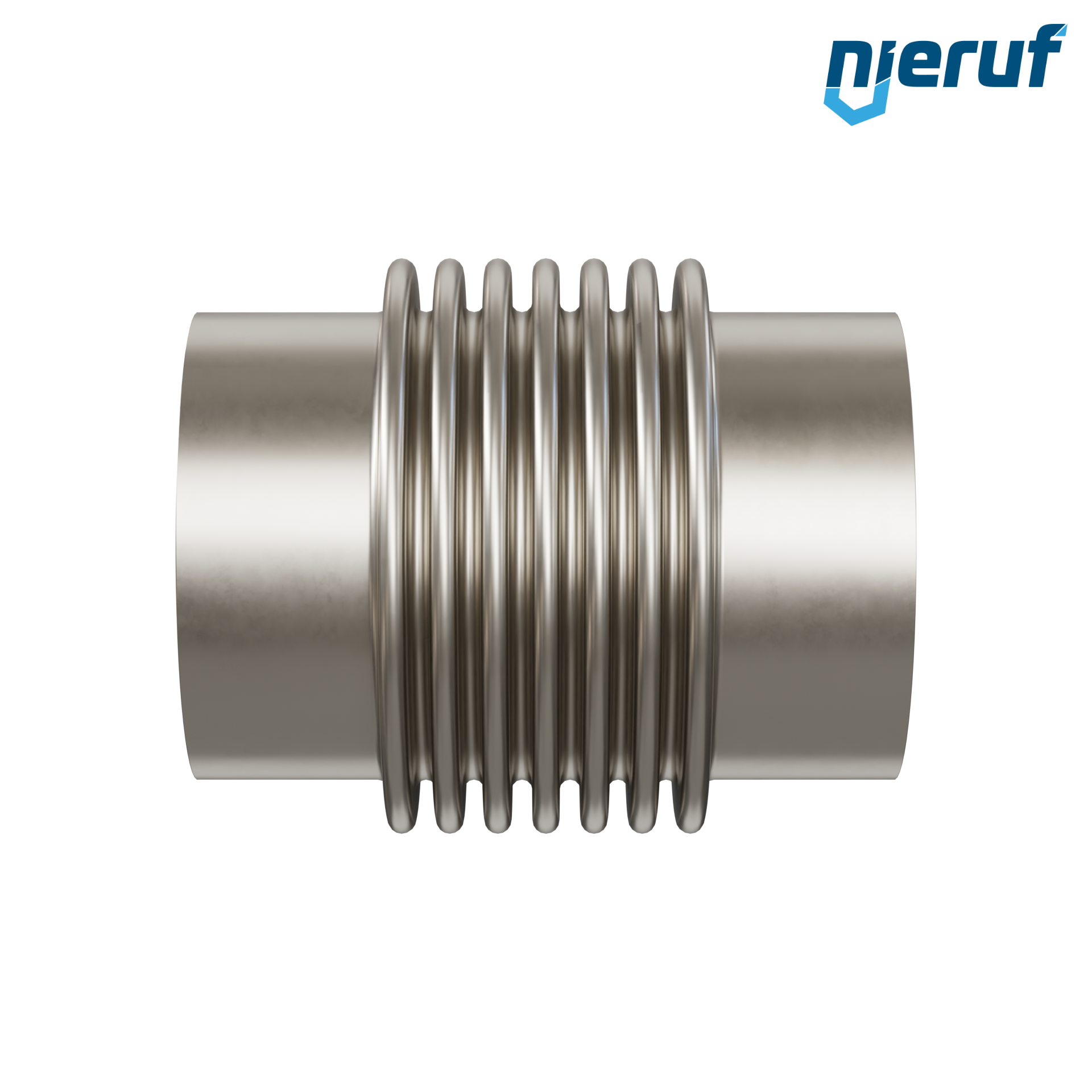

Axial expansion joint DN150 - 168,3mm type KP05 stainless steel welding ends and stainless steel bellows
- Lead time
- 7 - 8 weeks
Questions about the article?
Our employee Richie Rost
will be happy to help you
Axial expansion joint DN150 - 168,3mm type KP05 stainless steel welding ends and stainless steel bellows
Axial expansion joint KP05 DN150 - 168,3mm with stainless steel-bellows and stainless steel welding ends EN 10216/10217 ff or EN 10028 ff for liquid media, gases media and steam
| product | Axial expansion joint |
|---|---|
| type | KP05 |
| manufacturer | NieRuf |
| diameter | DN150 - 168,3mm |
| connection | welding ends EN 10216/10217 ff or EN 10028 ff |
| max. pressure | max. 10 bar |
| nominal pressure | PN 10 |
| material | stainless steel 1.4571 / 316 Ti |
| sleeves | stainless steel 1.4571 / 316 Ti |
| media | liquid media, gases media and steam |
| temperature | -196°C up to +550°C - depending on working pressure |
| design | straightway form |
| product feature | This high quality axial-compensator joint with stainless steel bellows and flared flanges made of stainless steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN150 - 168,3mm type KP05 stainless steel welding ends and stainless steel bellows
Article no.
: KP05021013
product:
Axial expansion joint
type:
KP05
manufacturer:
NieRuf
diameter:
DN150 - 168,3mm
connection:
welding ends EN 10216/10217 ff or EN 10028 ff
max. pressure:
max. 10 bar
nominal pressure:
PN 10
material:
stainless steel 1.4571 / 316 Ti
sleeves:
stainless steel 1.4571 / 316 Ti
media:
liquid media, gases media and steam
temperature:
-196°C up to +550°C - depending on working pressure
design:
straightway form
product feature:
This high quality axial-compensator joint with stainless steel bellows and flared flanges made of stainless steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
