3-way ball valve DN40 - 1 1/2" inch GK09 stainless steel L drilling

GK09010007
quantity (pcs.):
137.80€ * 159.85€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 30. November
Guaranteed delivery until Tuesday, 01. December, 12 Uhr:
order within 2 Tage & 23 hours & 10 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

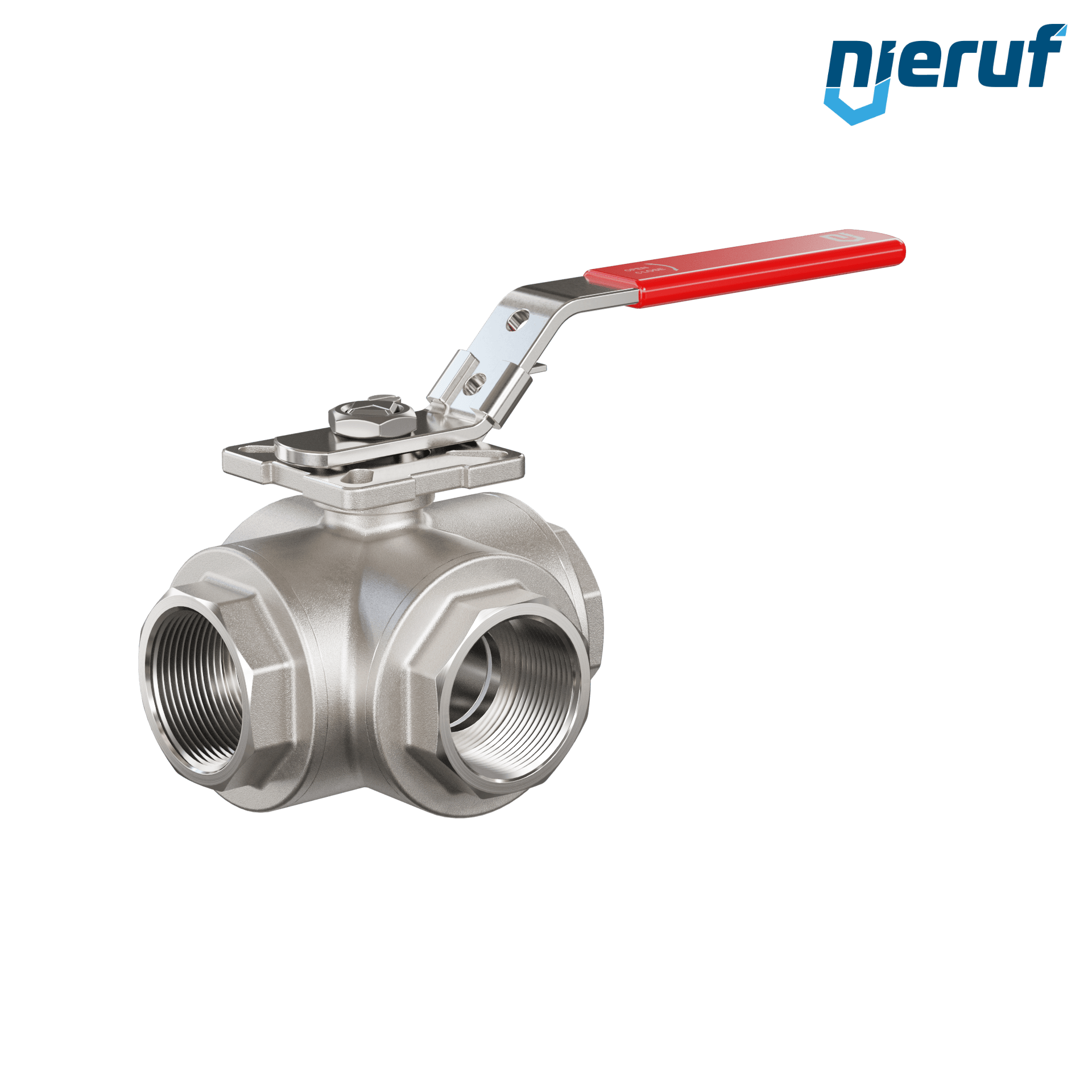

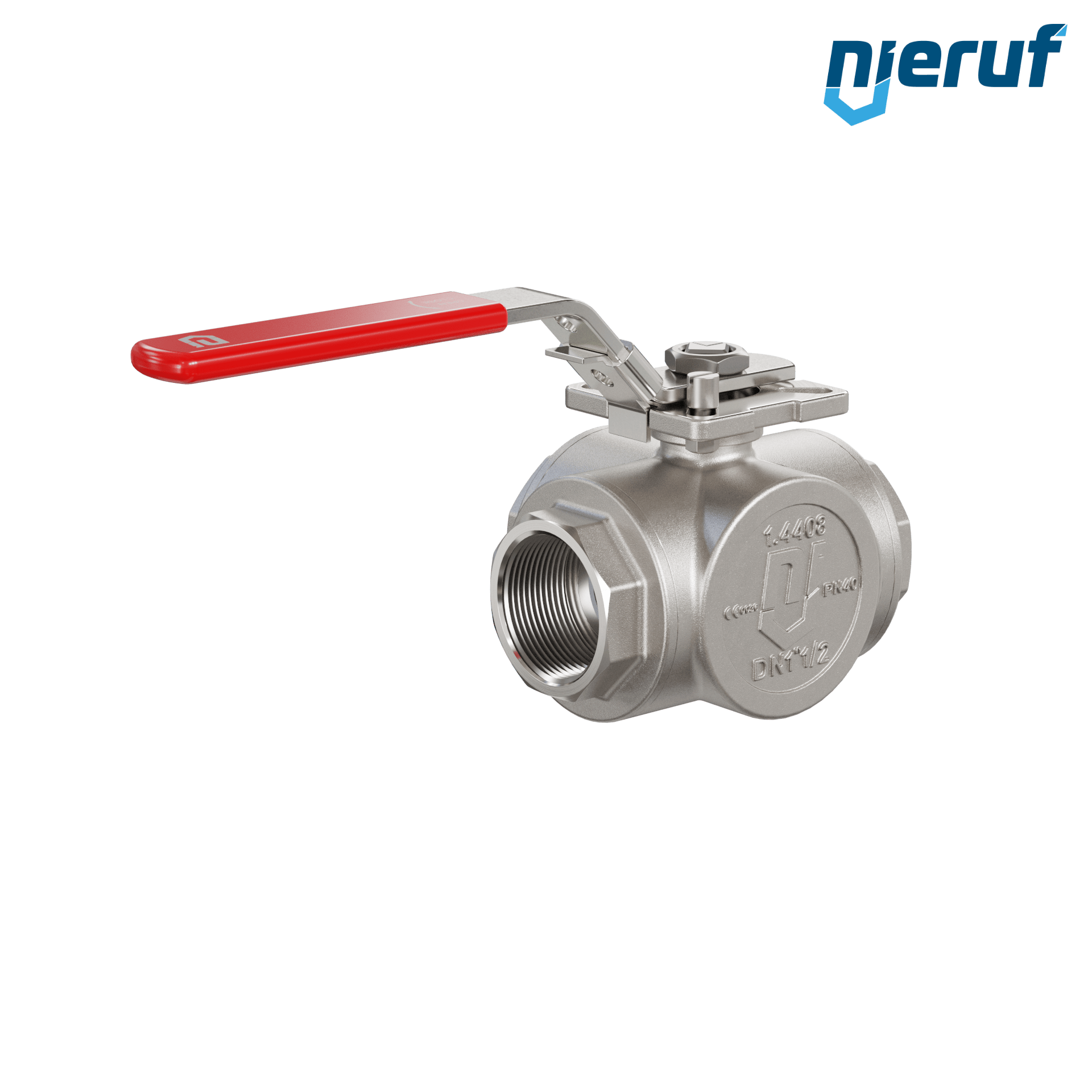

3-way ball valve DN40 - 1 1/2" inch GK09 stainless steel L drilling
3-way ball valve DN40 - 1 1/2" inch L drilling seal made of PTFE in stainless steel for liquid and gaseous media
diameter: DN40 - 1 1/2" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -30°C up to +140°C - depending on working pressure and media
max. pressure: PN40
design: L drilling
body material: stainless steel 1.4408
ball material: stainless steel
ball seal: PTFE
actuator: hand lever made of stainless steel with locking device
installation position: any position
product description: This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling.
3-way ball valve DN40 - 1 1/2" inch GK09 stainless steel L drilling

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

3-way ball valve DN40 - 1 1/2" inch GK09 stainless steel L drilling
