3 way brass ball valve DN10 - 3/8" inch GK08 full port design with L drilling

GK08010002
quantity (pcs.):
46.30€ * 53.71€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1-2 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details

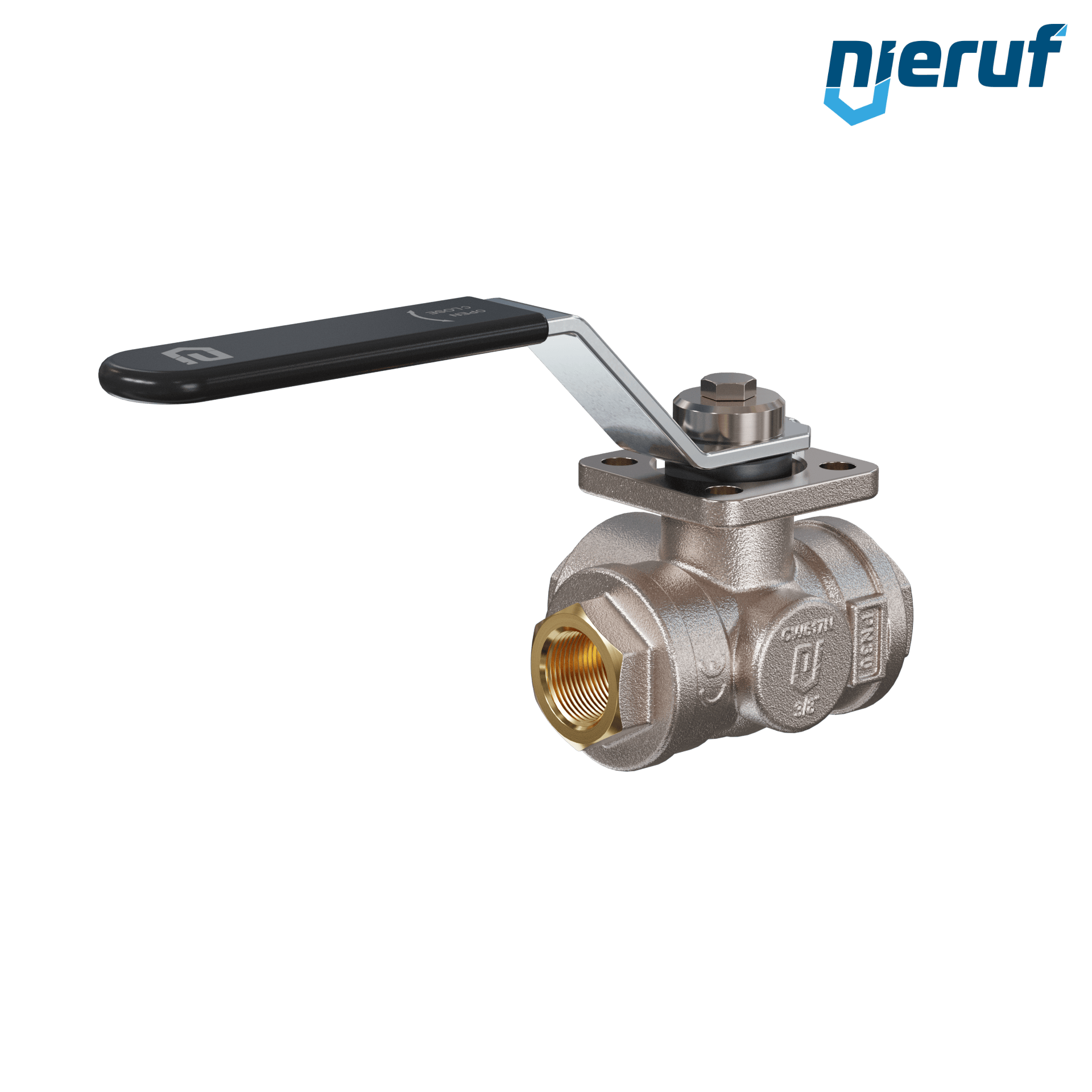

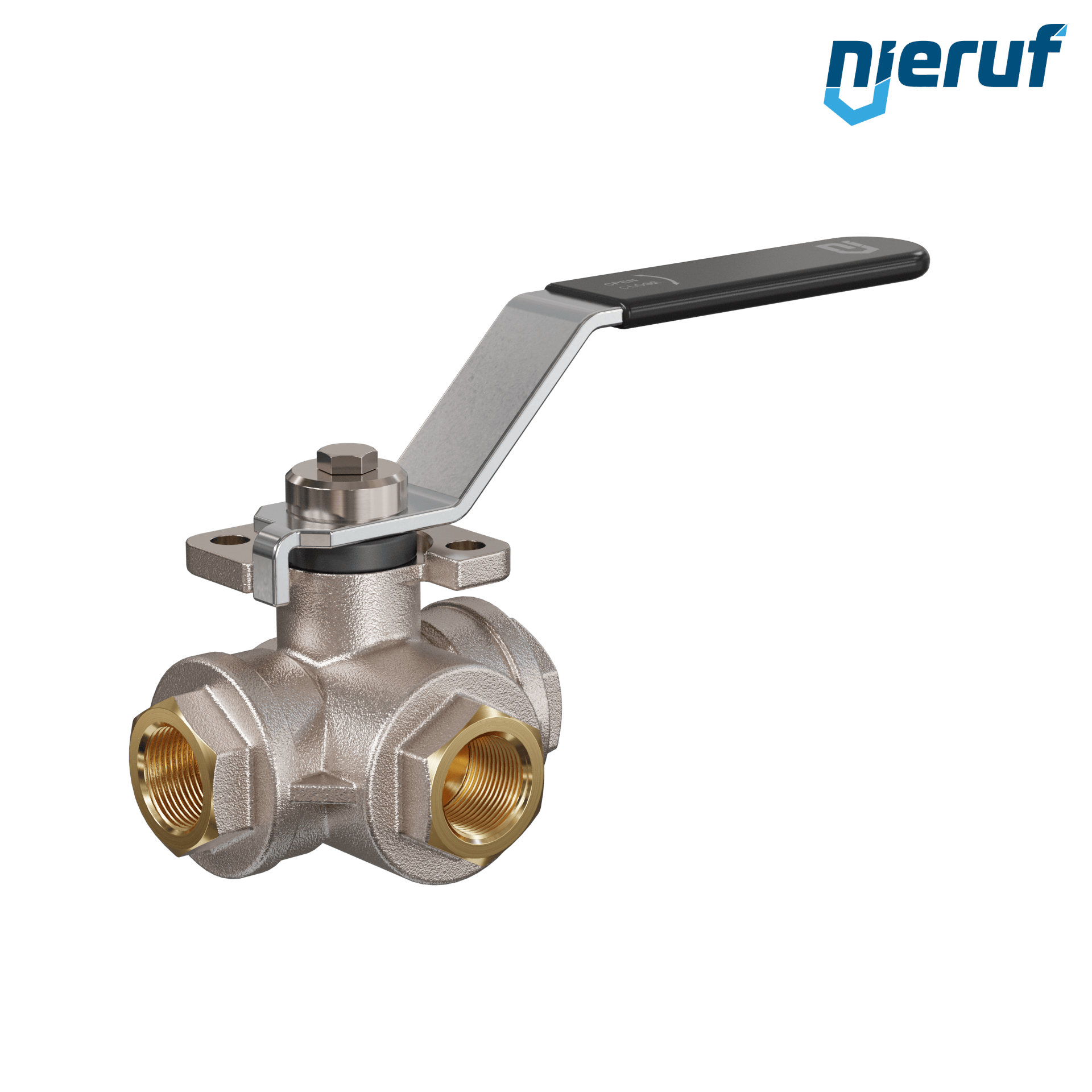

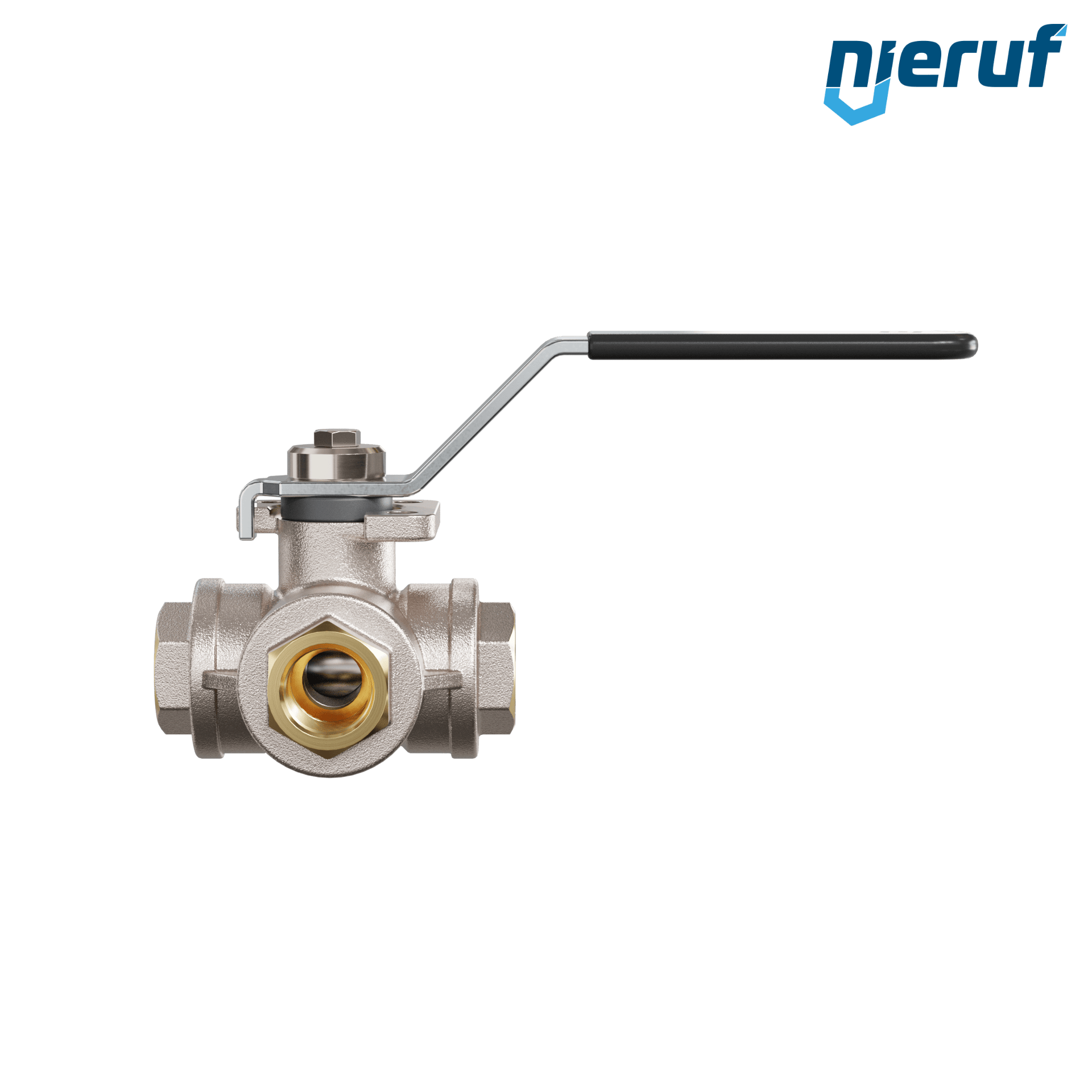

3 way brass ball valve DN10 - 3/8" inch GK08 full port design with L drilling
3 way brass ball valve DN10 - 3/8" inch full port design with L drilling seal made of PTFE for liquid and gaseous media
diameter: DN10 - 3/8" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN30
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
ball seal: PTFE
length: 67mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling
3 way brass ball valve DN10 - 3/8" inch GK08 full port design with L drilling

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

3 way brass ball valve DN10 - 3/8" inch GK08 full port design with L drilling
