GK08000004

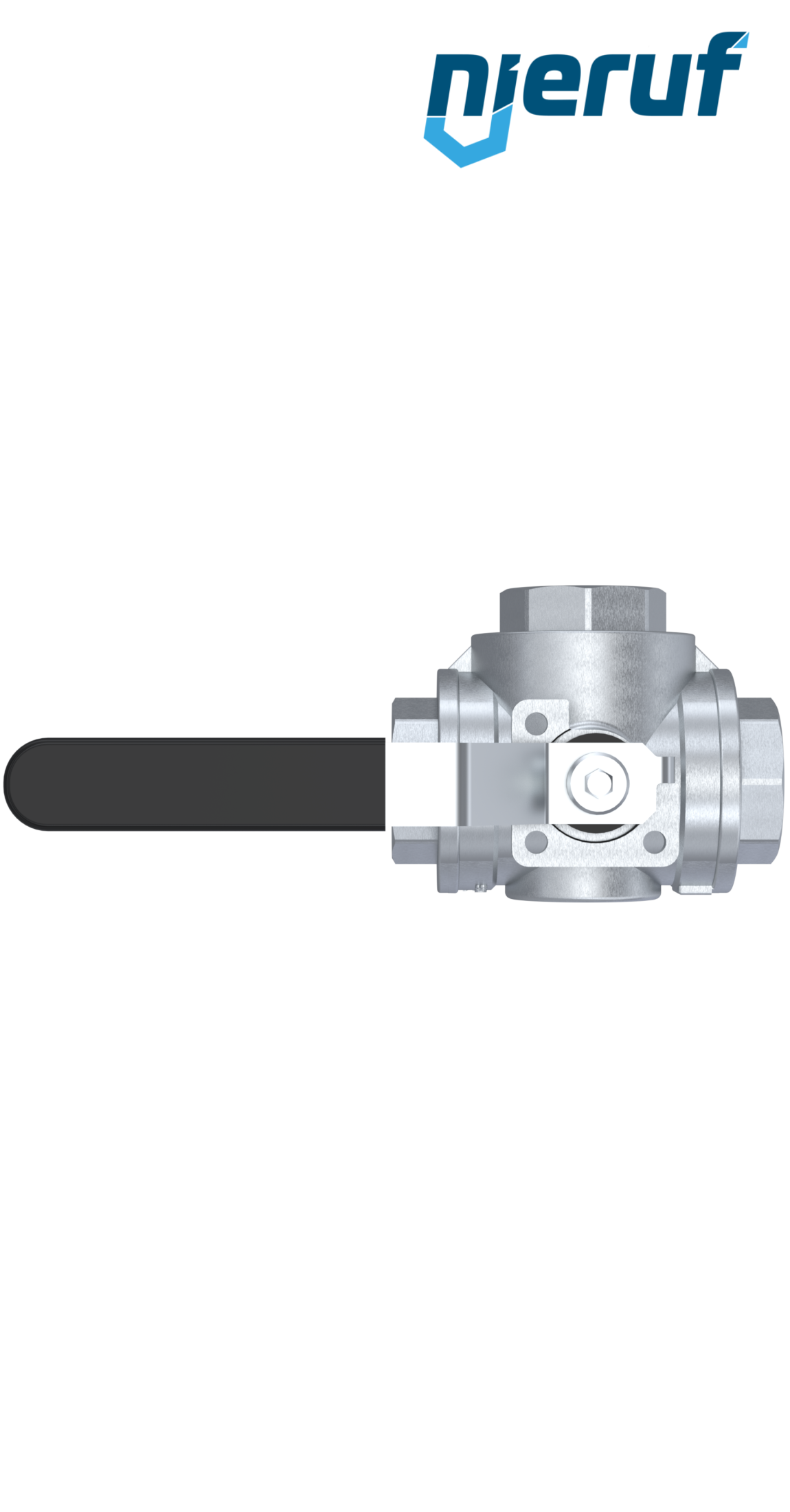

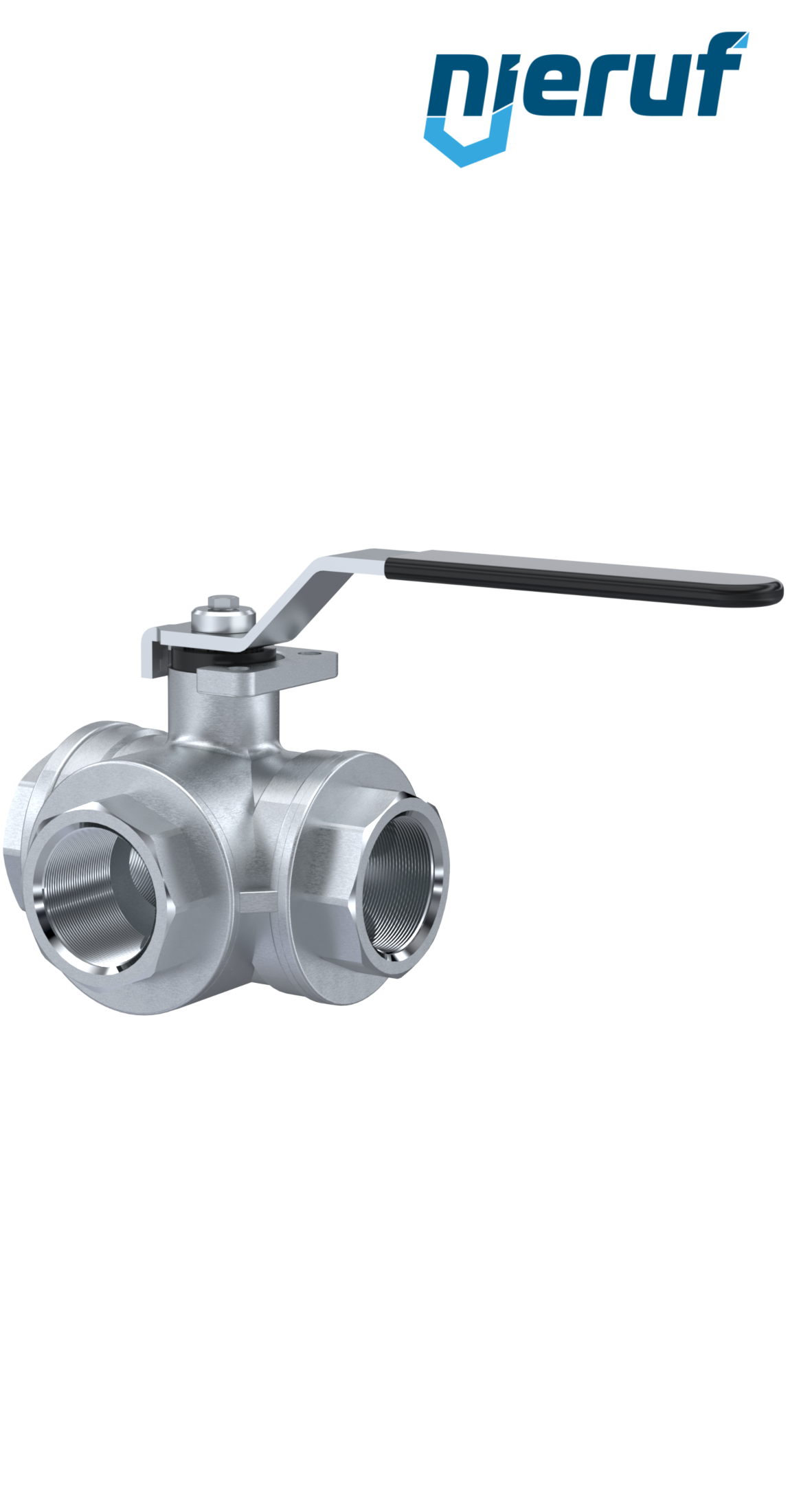

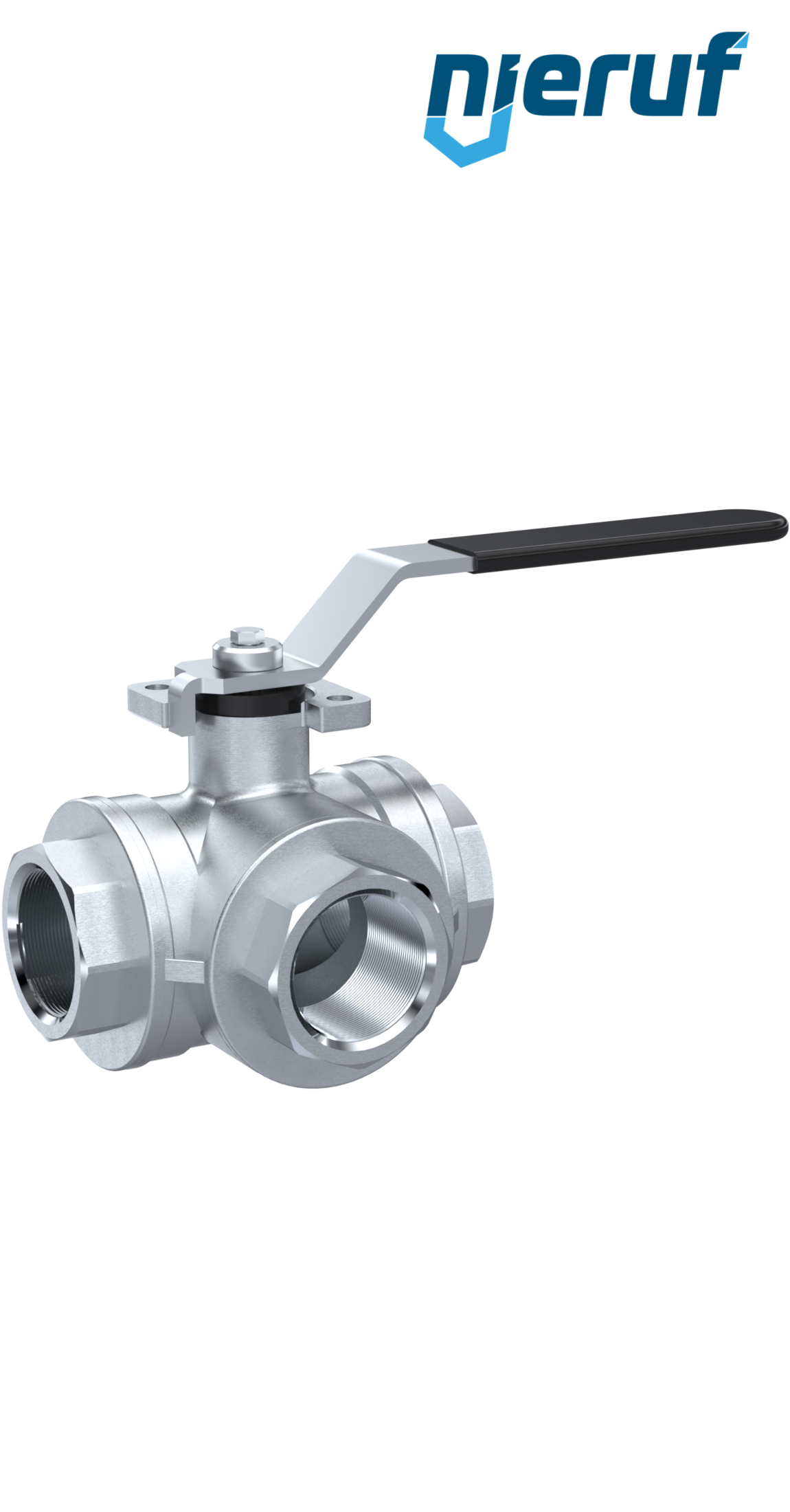

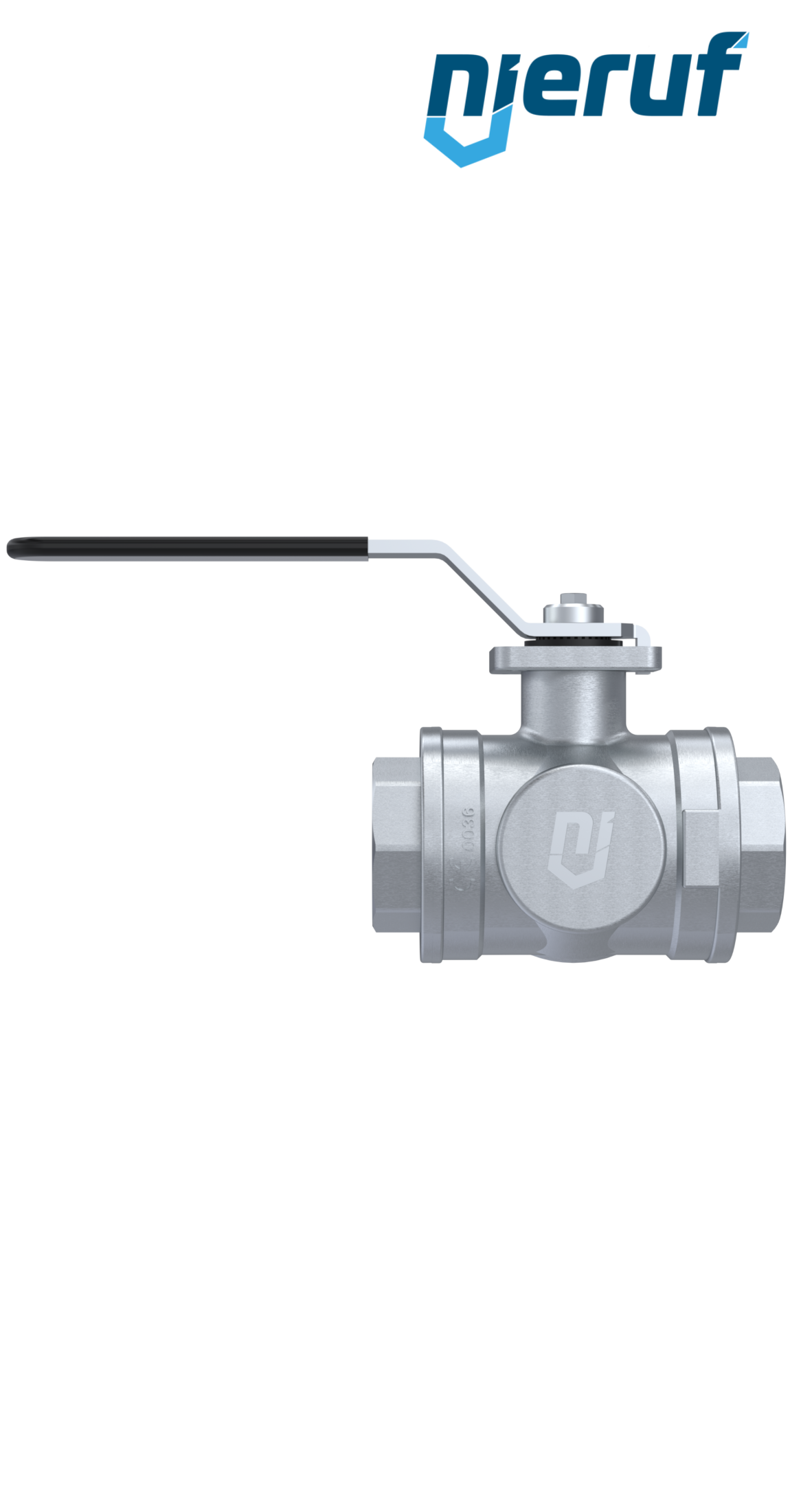

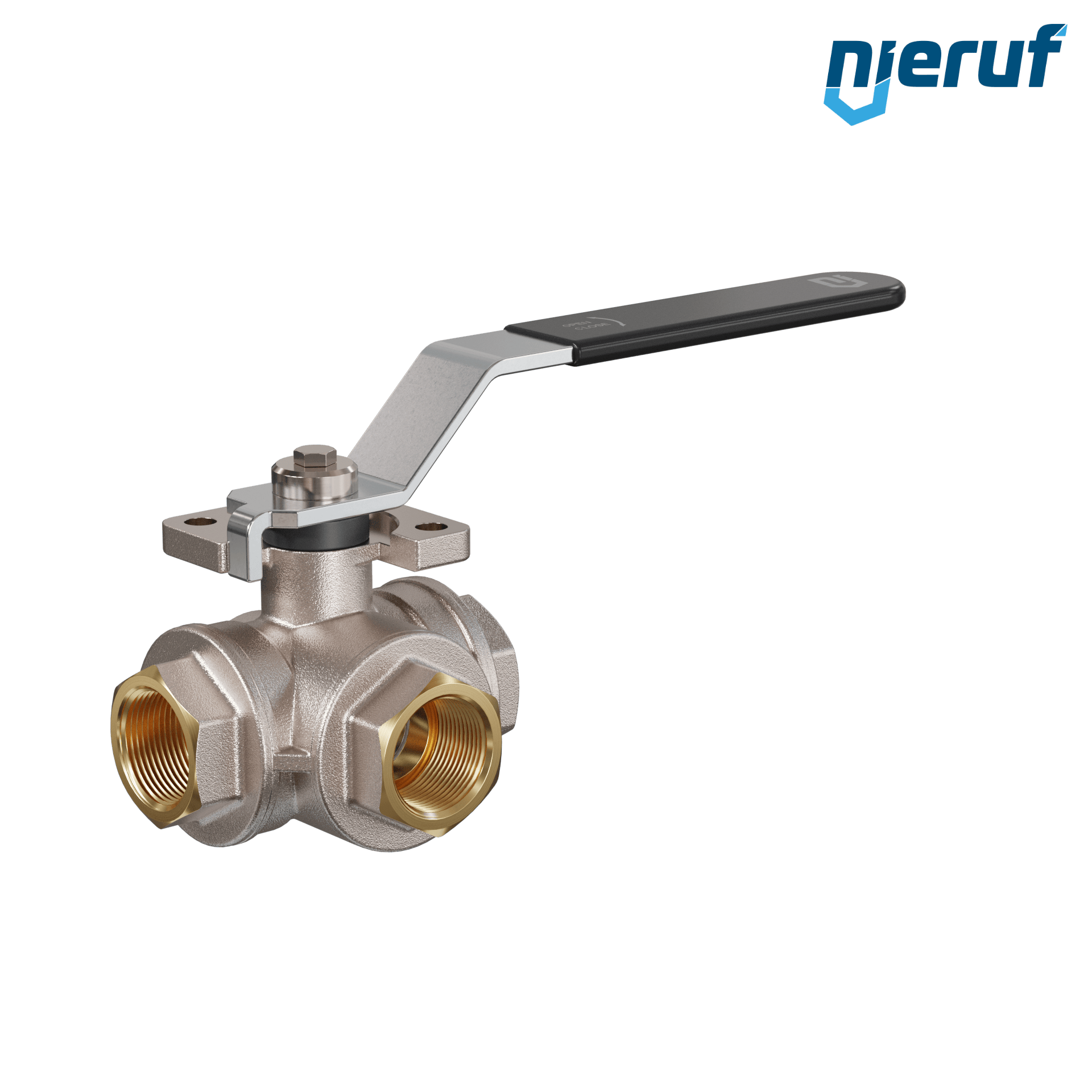

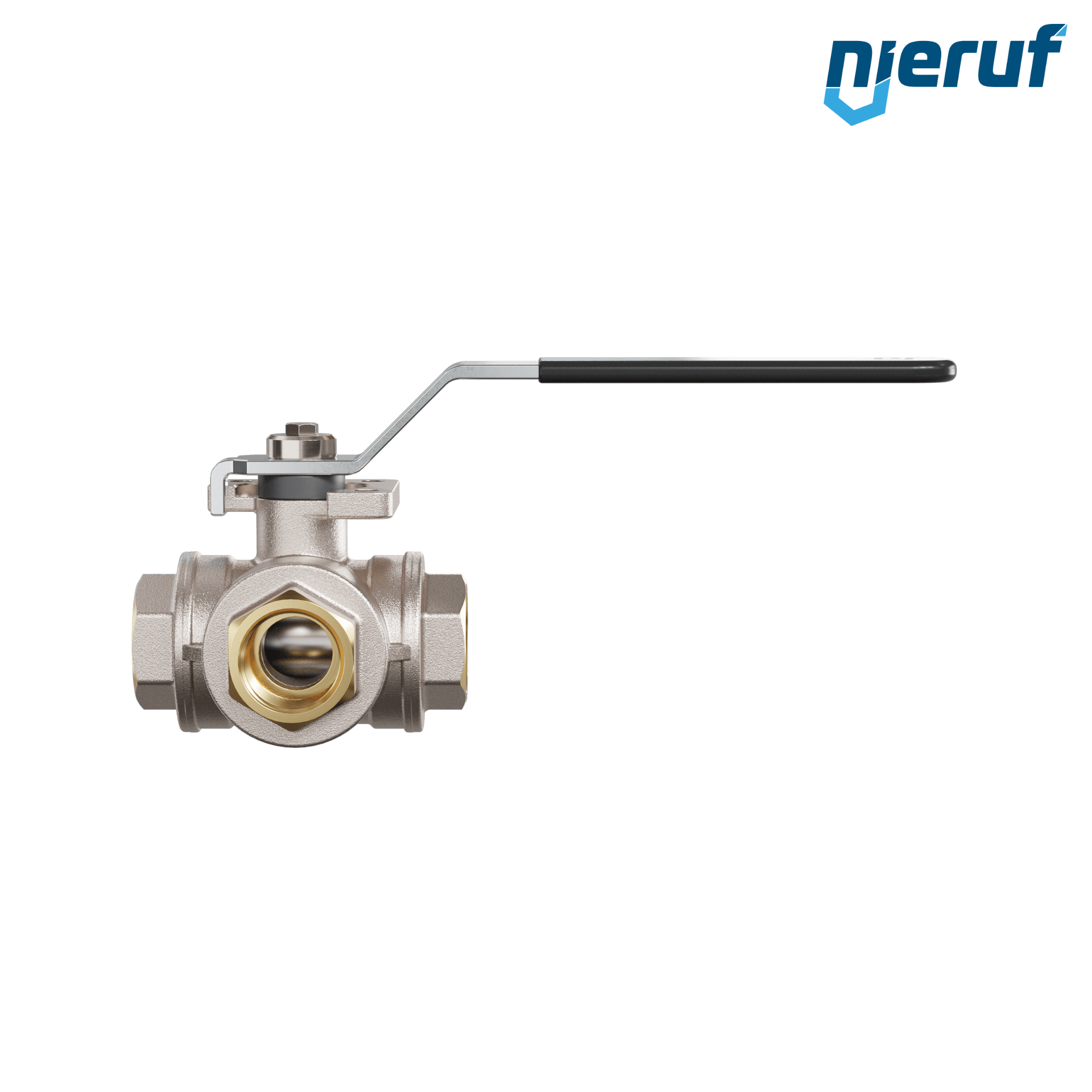

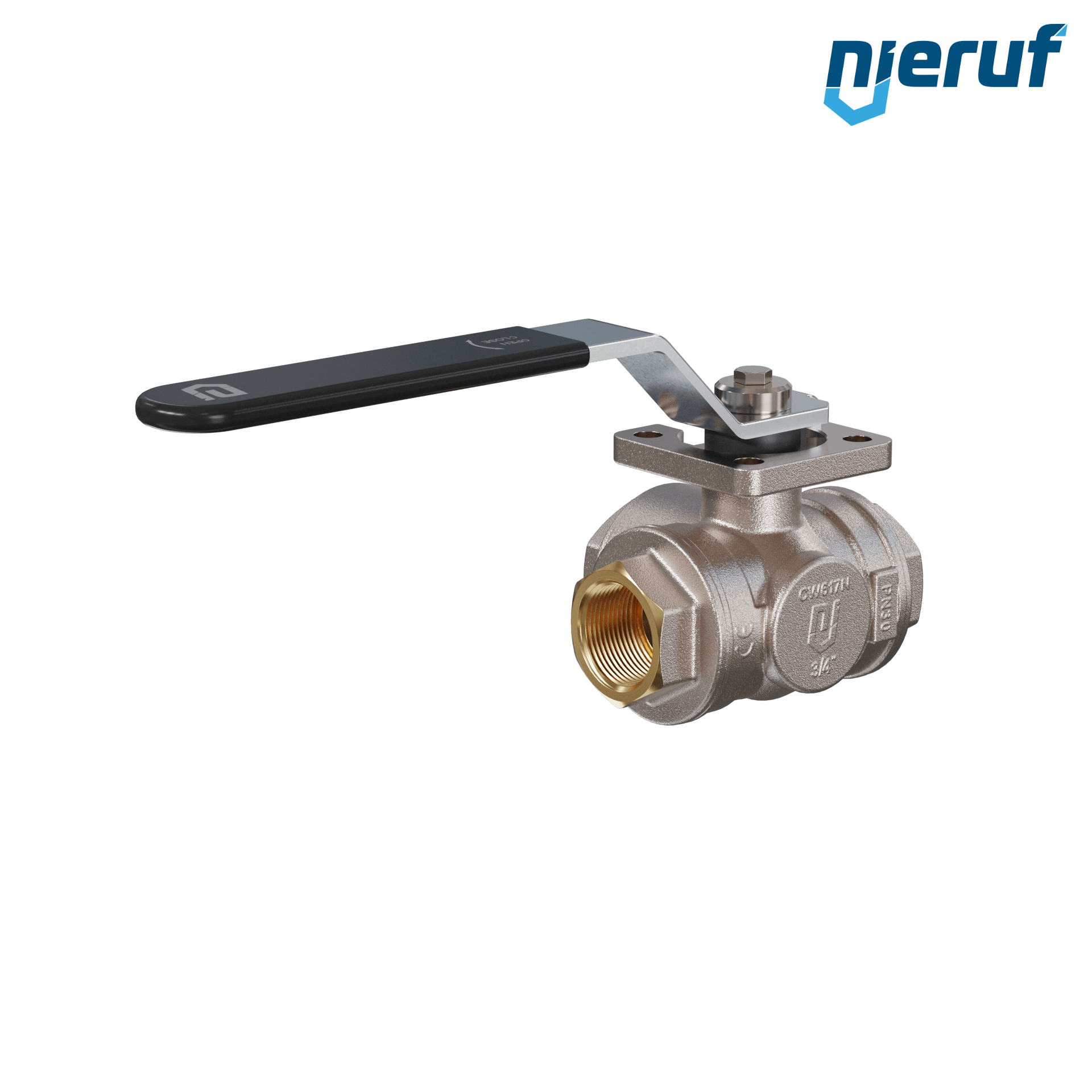

3 way brass ball valve DN20 - 3/4" inch GK08 full port design with T drilling
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
3 way brass ball valve DN20 - 3/4" inch full port design with T drilling seal made of PTFE for liquid and gaseous media
| product: | 3 way brass ball valve |
|---|---|
| type: | GK08 |
| manufacturer: | NieRuf |
| diameter: | DN20 - 3/4" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +150°C - depending on working pressure and media |
| max. pressure: | PN30 |
| design: | full port design with T drilling |
| body material: | brass |
| ball material: | brass chrome plated |
| length: | 87mm |
| actuator: | hand lever made of steel zinc coated with black plastic cover |
| installation position: | any position |
| product description: | This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way brass ball valve DN20 - 3/4" inch GK08 full port design with T drilling
Article no.
: GK08000004
product:
3 way brass ball valve
type:
GK08
manufacturer:
NieRuf
diameter:
DN20 - 3/4" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +150°C - depending on working pressure and media
max. pressure:
PN30
design:
full port design with T drilling
body material:
brass
ball material:
brass chrome plated
length:
87mm
actuator:
hand lever made of steel zinc coated with black plastic cover
installation position:
any position
product description:
This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling
€3.45 VAT included.
€4.28 VAT included.
