GK08010004

3 way brass ball valve DN20 - 3/4" inch GK08 full port design with L drilling

€116.30*

€138.40 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Thursday, 01. December

Guaranteed delivery until Friday, 02. December, 12 o'clock

Order in within by express delivery


Equipment

GF01300004

double nipple 3/4" inch male stainless steel 316

€2.60*

€3.09 VAT included.


ST01000004

hose nozzle 3/4" 19.0 mm stainless steel 1.4408 ST01

€2.90*

€3.45 VAT included.


Our employee <strong>Daniel Beck</strong><br />will be happy to help you

Questions about the article?

Our employee Daniel Beck
will be happy to help you

Tel: +49714396669-04

E-Mail: beck@nieruf.com

Certified

Certified

Product number: GK08010004

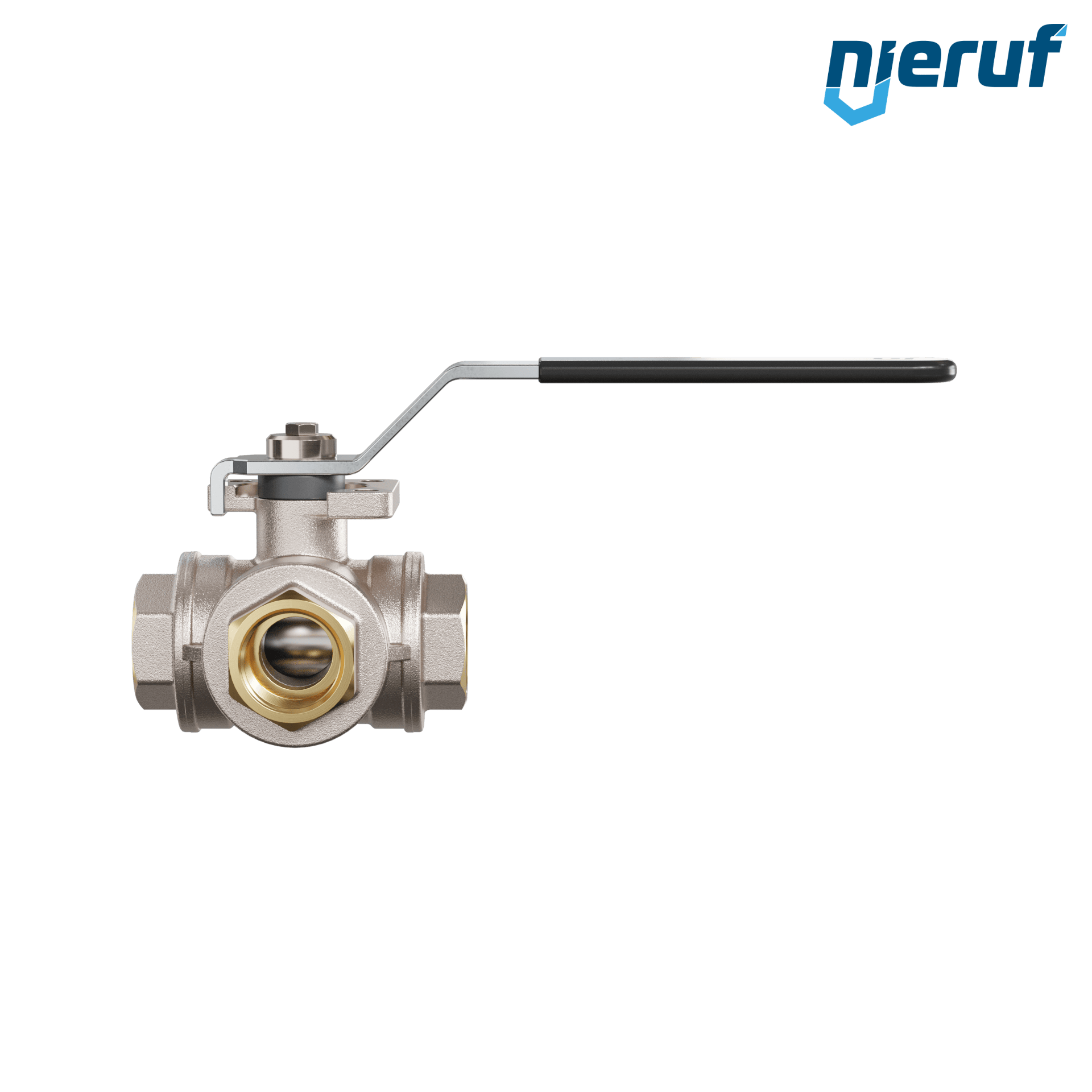

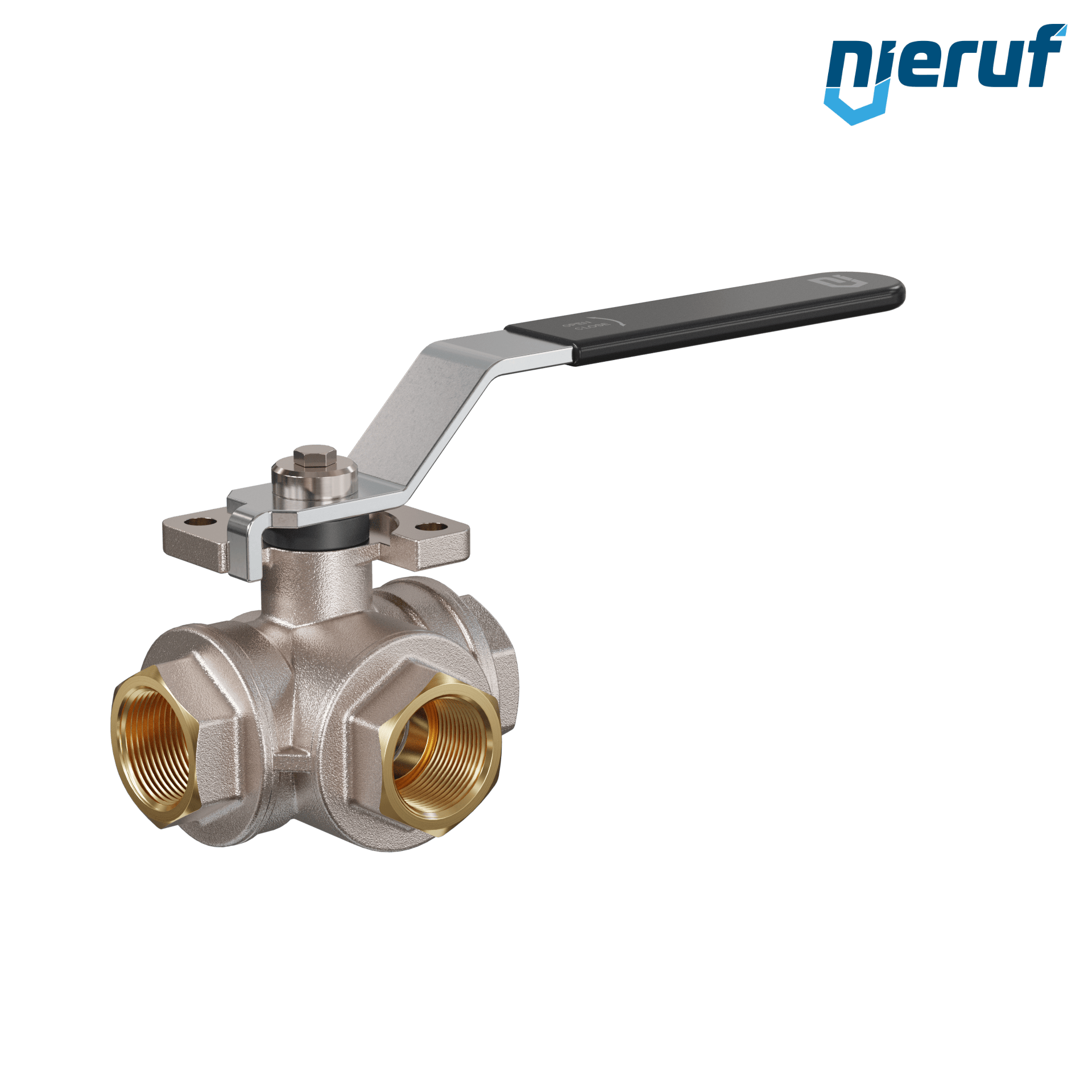

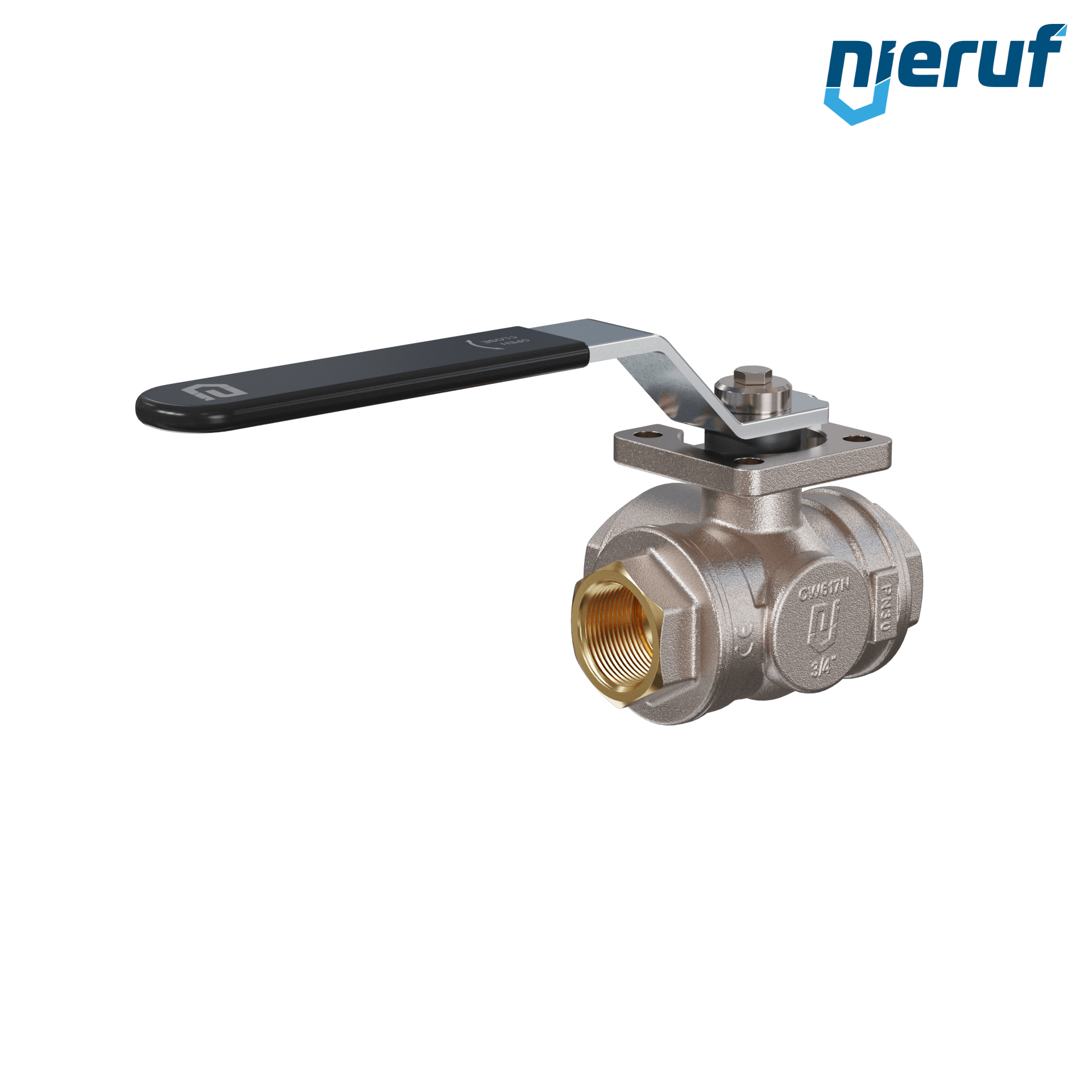

3 way brass ball valve DN20 - 3/4" inch GK08 full port design with L drilling

3 way brass ball valve DN20 - 3/4" inch full port design with L drilling seal made of PTFE for liquid and gaseous media

product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN30
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
ball seal: PTFE
length: 87mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3 way brass ball valve DN20 - 3/4" inch GK08 full port design with L drilling

Article no. : GK08010004
product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN30
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
ball seal: PTFE
length: 87mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling
