GK08010005

3 way brass ball valve DN25 - 1" inch GK08 full port design with L drilling

€186.30*

€221.70 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01300005

hexagon nipple 1" inch male stainless steel 316

€3.90*

€4.64 VAT included.


ST01000005

hose nozzle 1" 25.4 mm stainless steel 1.4408 ST01

€5.20*

€6.19 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: GK08010005

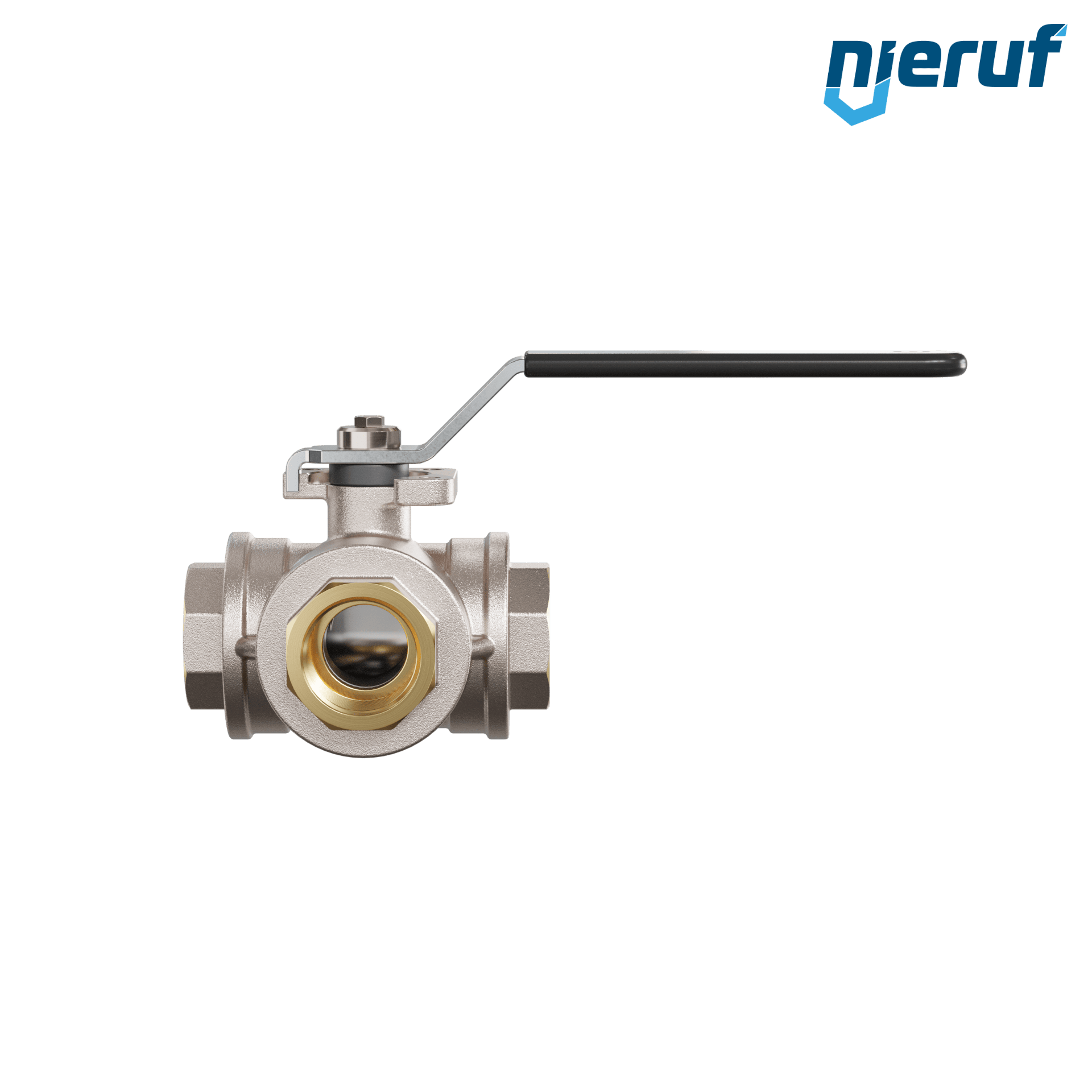

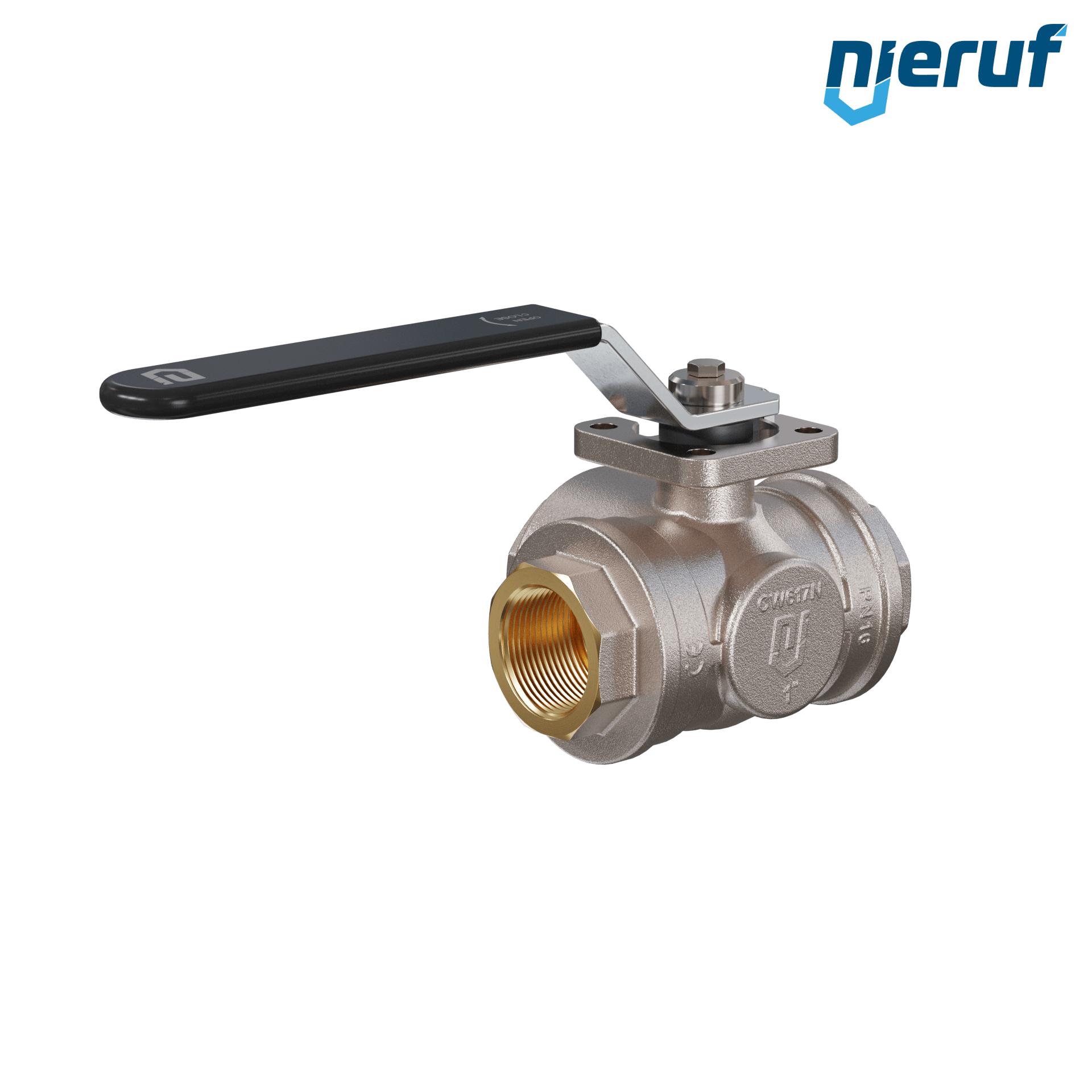

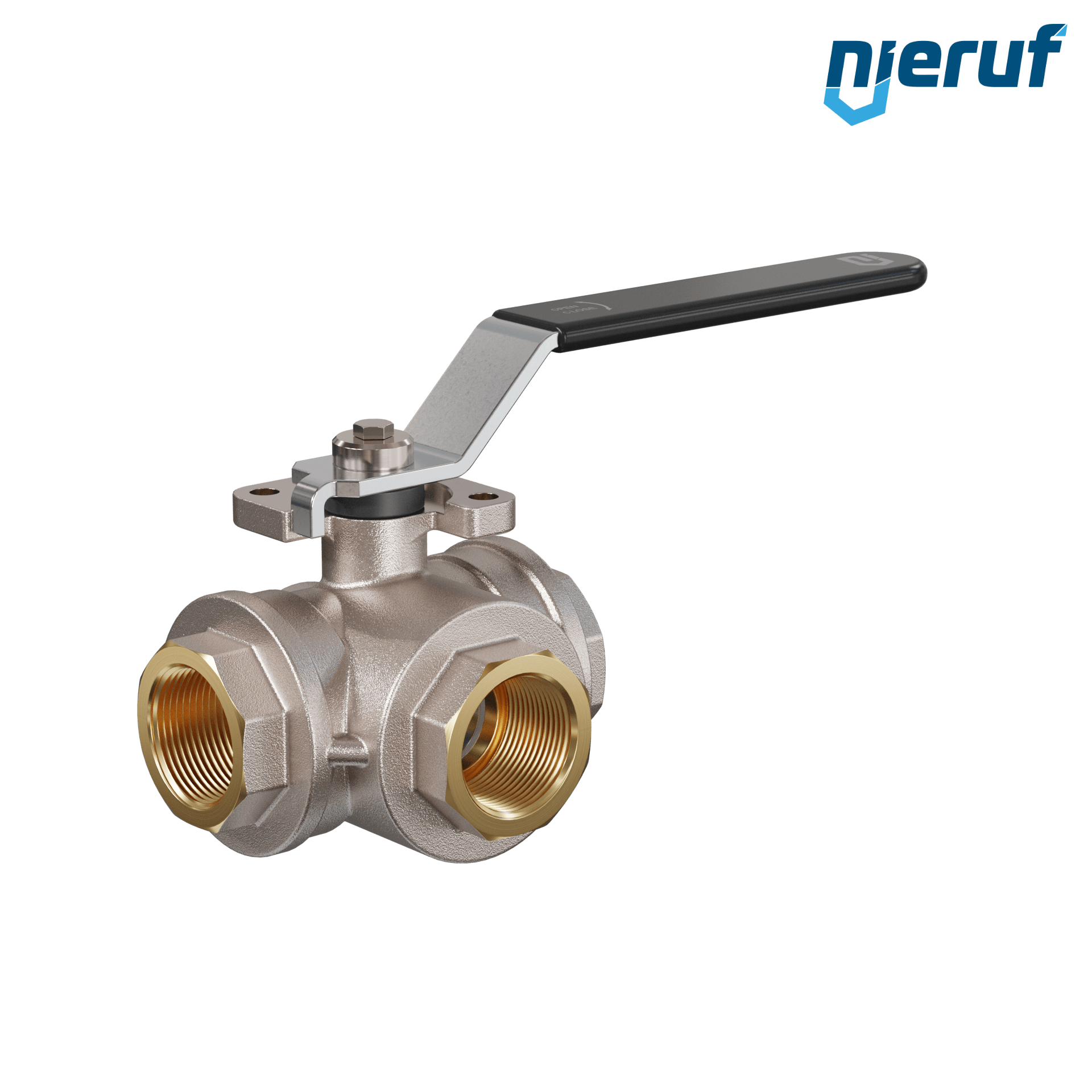

3 way brass ball valve DN25 - 1" inch GK08 full port design with L drilling

3 way brass ball valve DN25 - 1" inch full port design with L drilling seal made of PTFE for liquid and gaseous media

product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN16
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
length: 105mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3 way brass ball valve DN25 - 1" inch GK08 full port design with L drilling

Article no. : GK08010005
product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN16
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
length: 105mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling

No spare parts were found for the item number .
