GK08010006

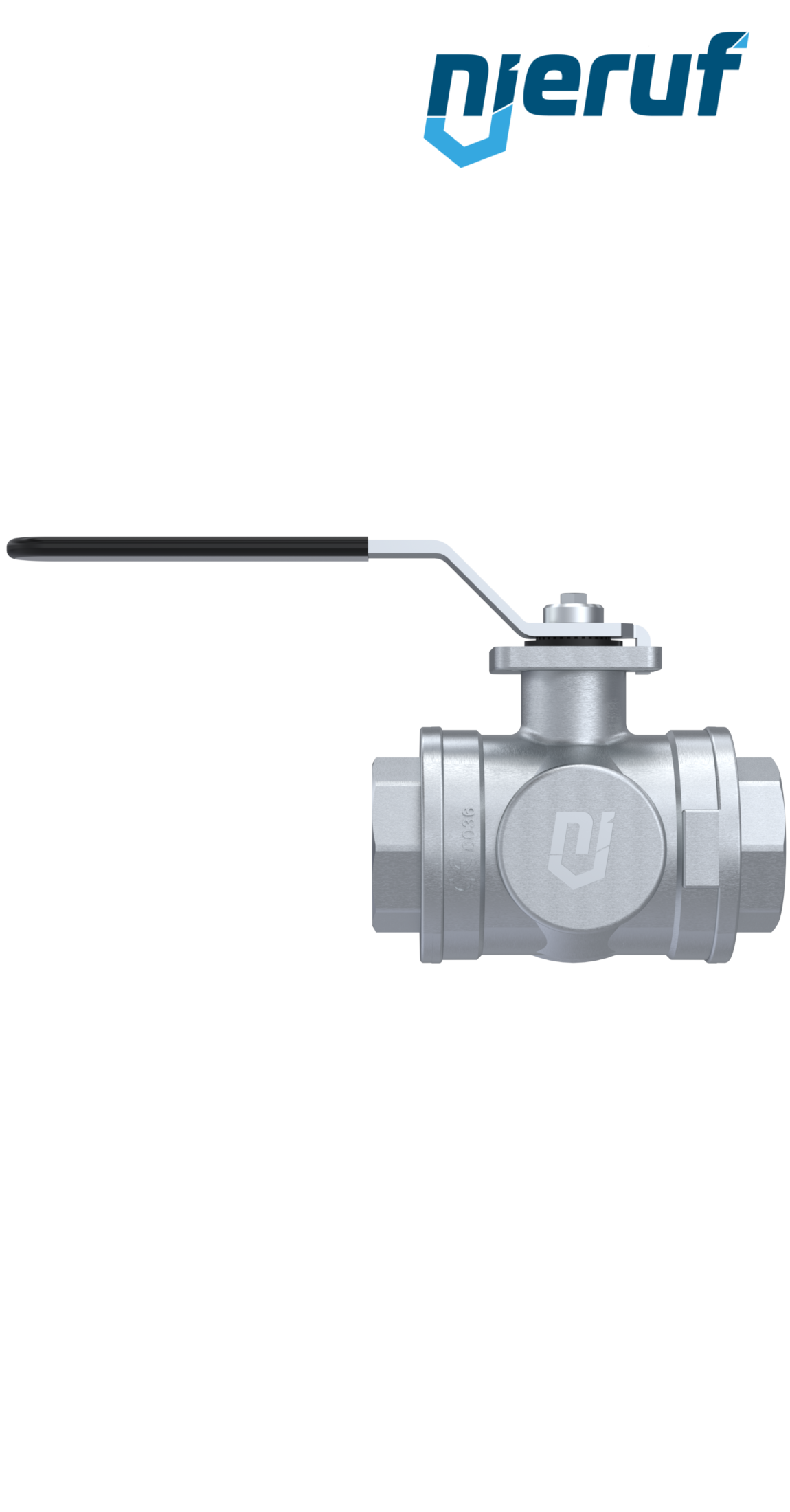

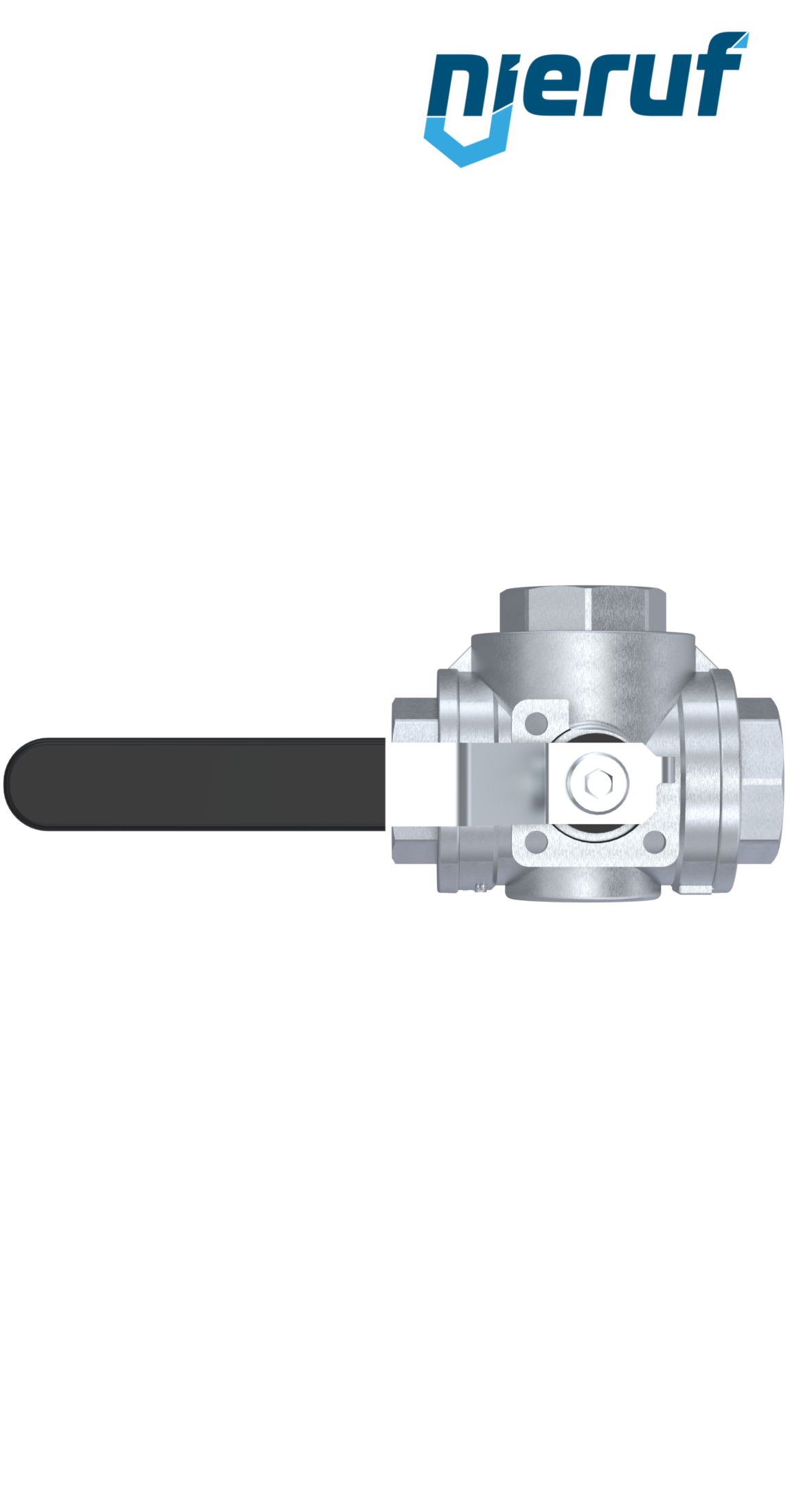

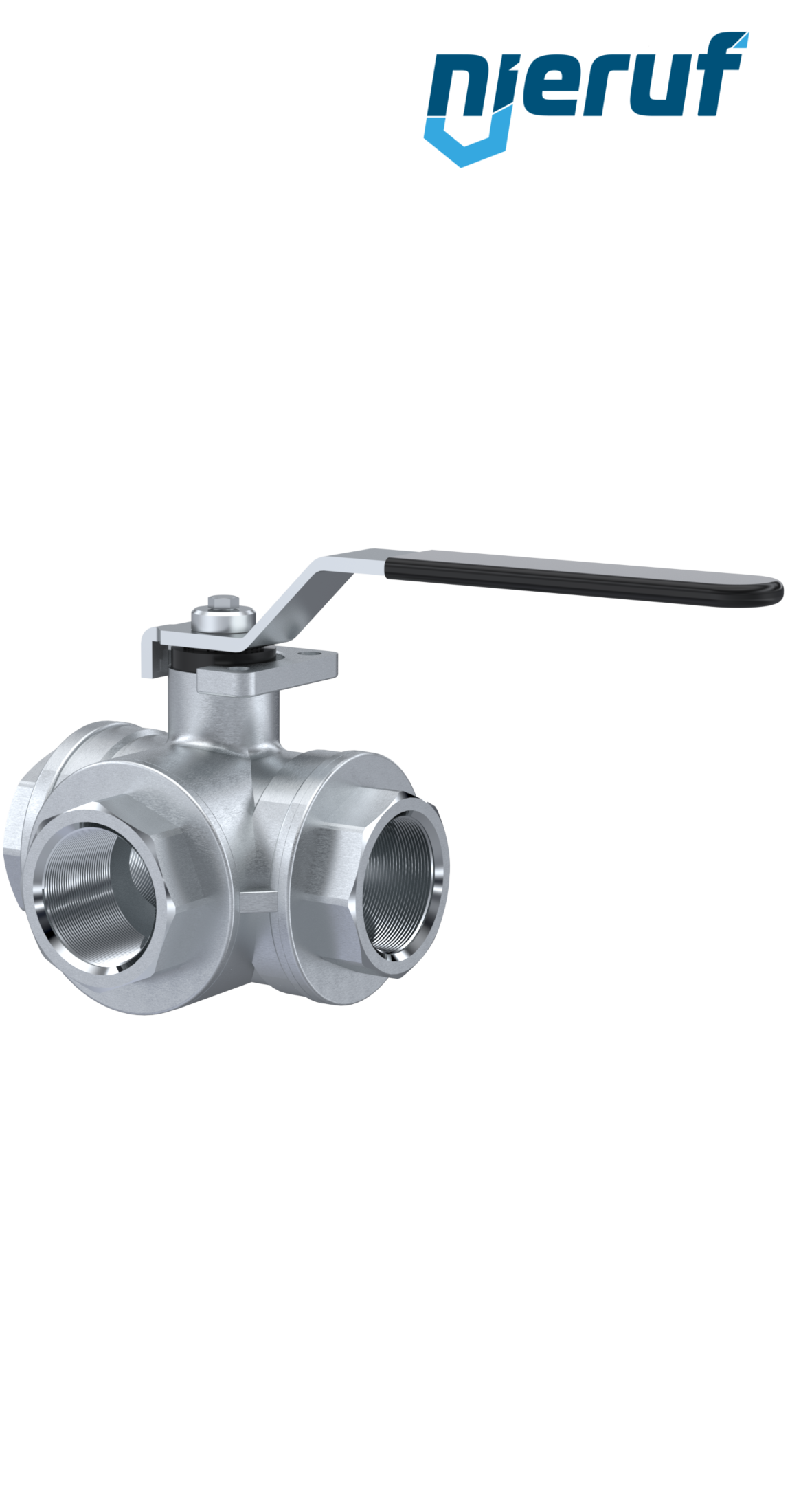

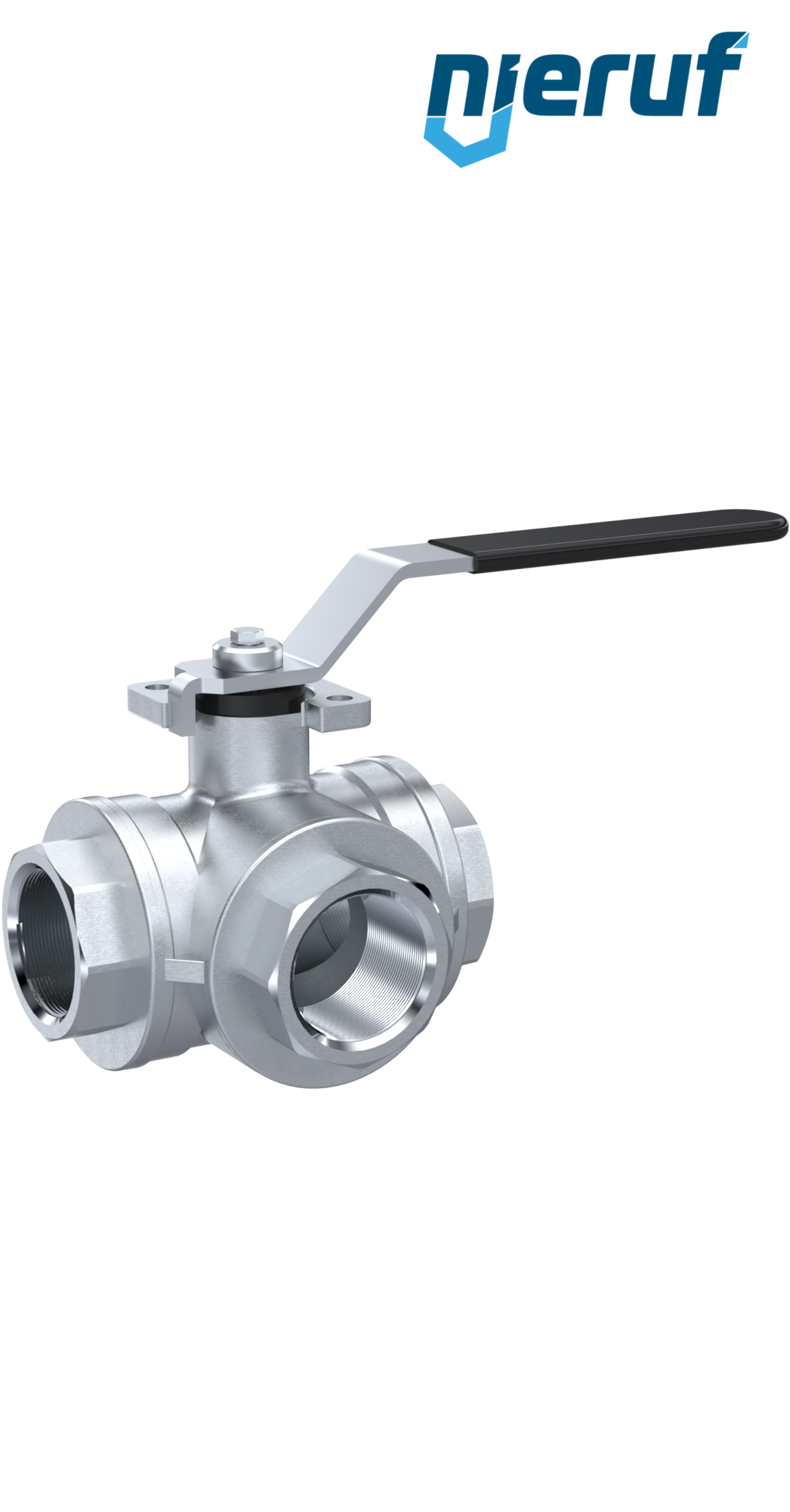

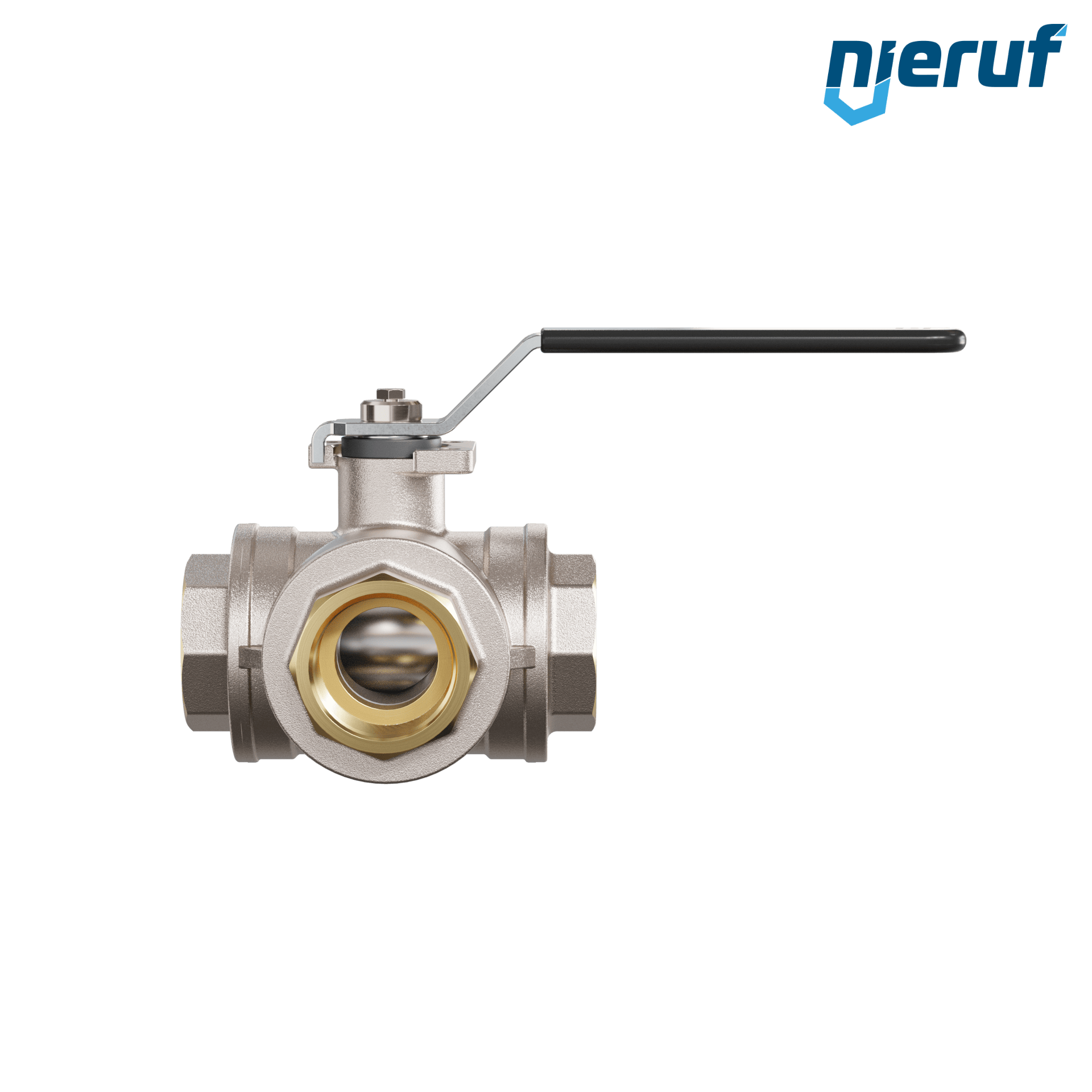

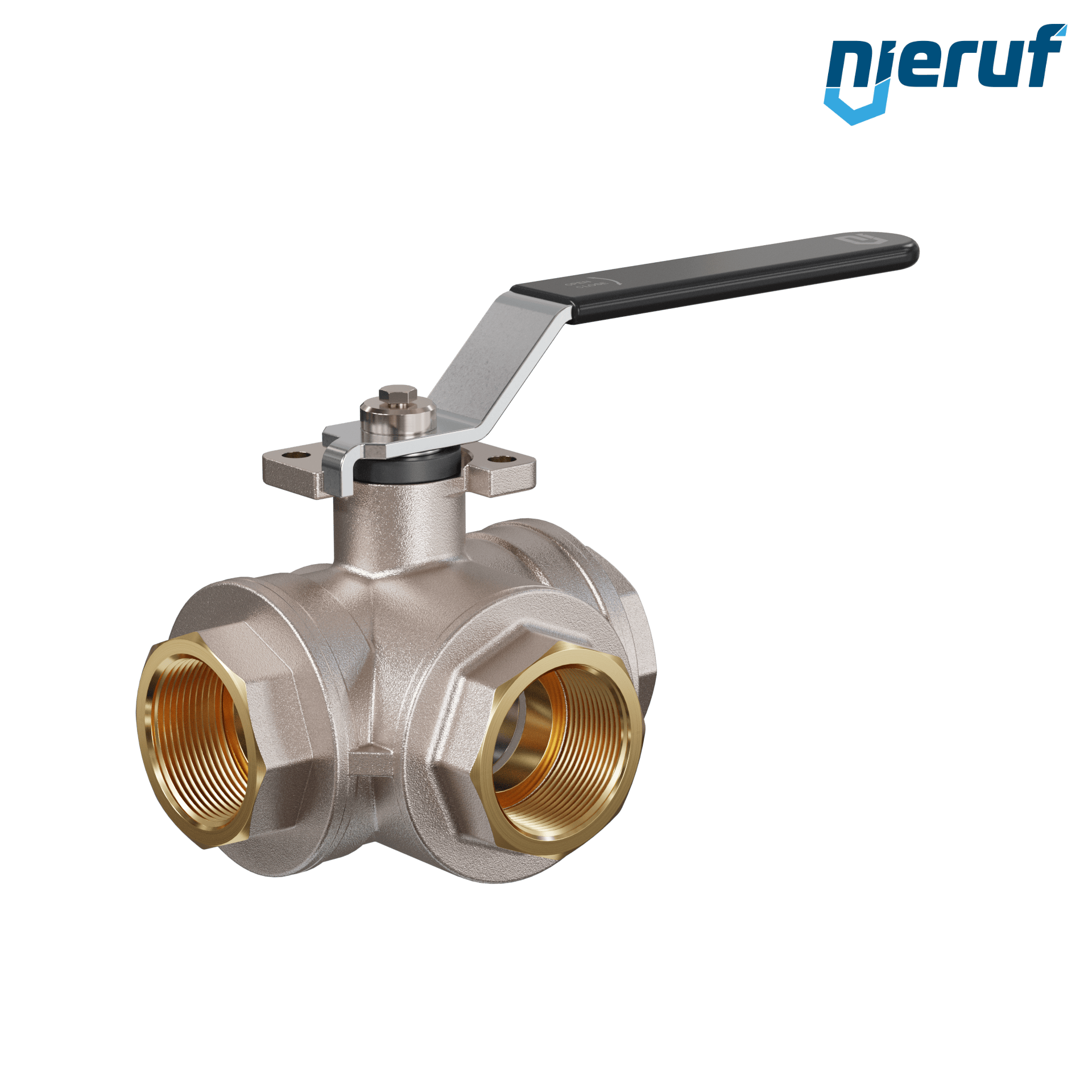

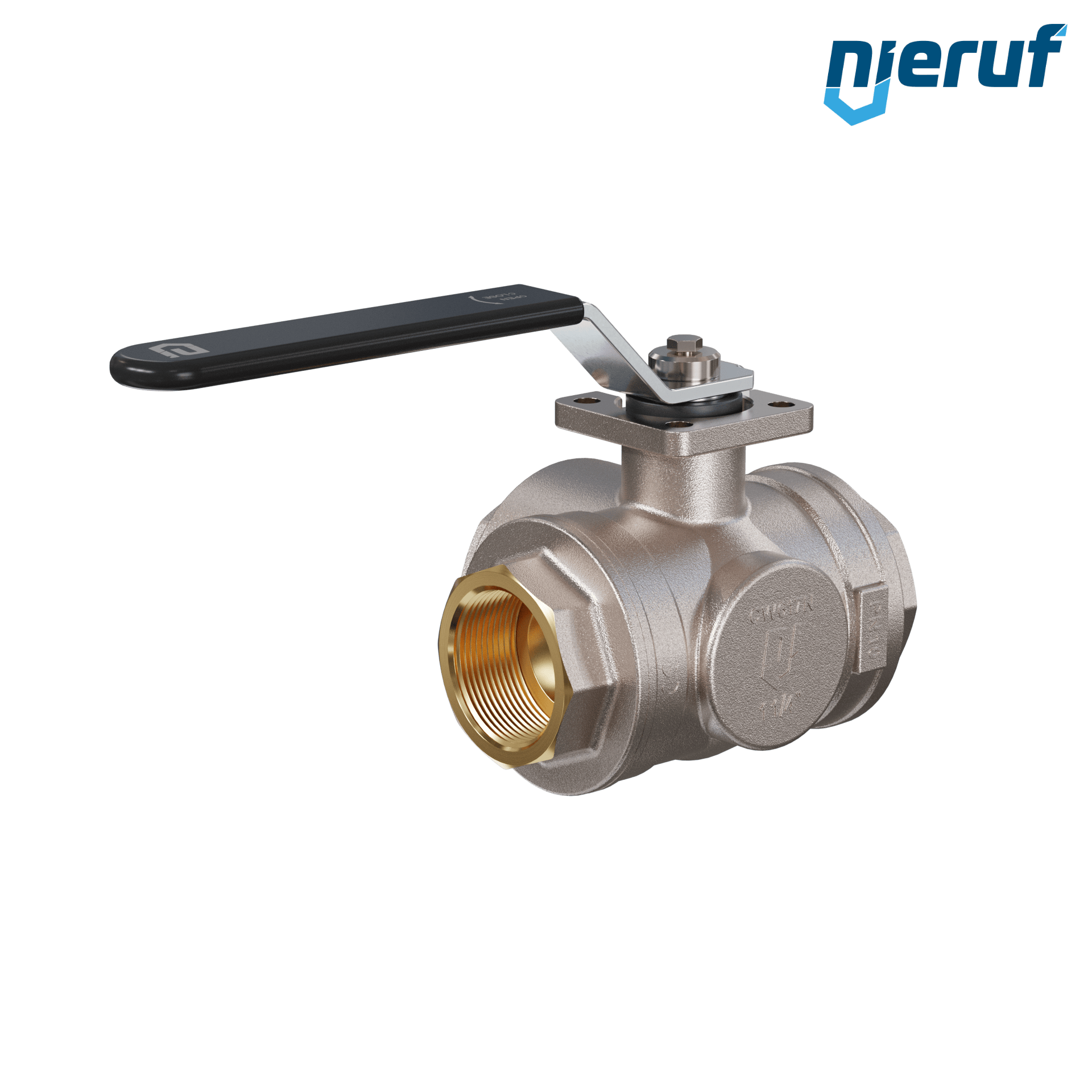

3 way brass ball valve DN32 - 1 1/4" inch GK08 full port design with L drilling

€295.10*

€351.17 VAT included.

Delivery time: in stock

Delivery information

Express delivery*:

Shipping on: Tuesday, 23. July

Guaranteed delivery until Wednesday, 24. July, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

GF01300006

hexagon nipple 1 1/4" inch male stainless steel 316

€5.90*

€7.02 VAT included.


ST01000006

hose nozzle 1 1/4" 31.8 mm stainless steel 1.4408 ST01

€7.80*

€9.28 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: GK08010006
3 way brass ball valve DN32 - 1 1/4" inch GK08 full port design with L drilling

3 way brass ball valve DN32 - 1 1/4" inch full port design with L drilling seal made of PTFE for liquid and gaseous media

product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN10
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
length: 122,5mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3 way brass ball valve DN32 - 1 1/4" inch GK08 full port design with L drilling

Article no. : GK08010006
product: 3 way brass ball valve
type: GK08
manufacturer: NieRuf
diameter: DN32 - 1 1/4" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -20°C up to +150°C - depending on working pressure and media
max. pressure: PN10
design: full port design with L drilling
body material: brass
ball material: brass chrome plated
length: 122,5mm
actuator: hand lever made of steel zinc coated with black plastic cover
installation position: any position
product description: This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling
