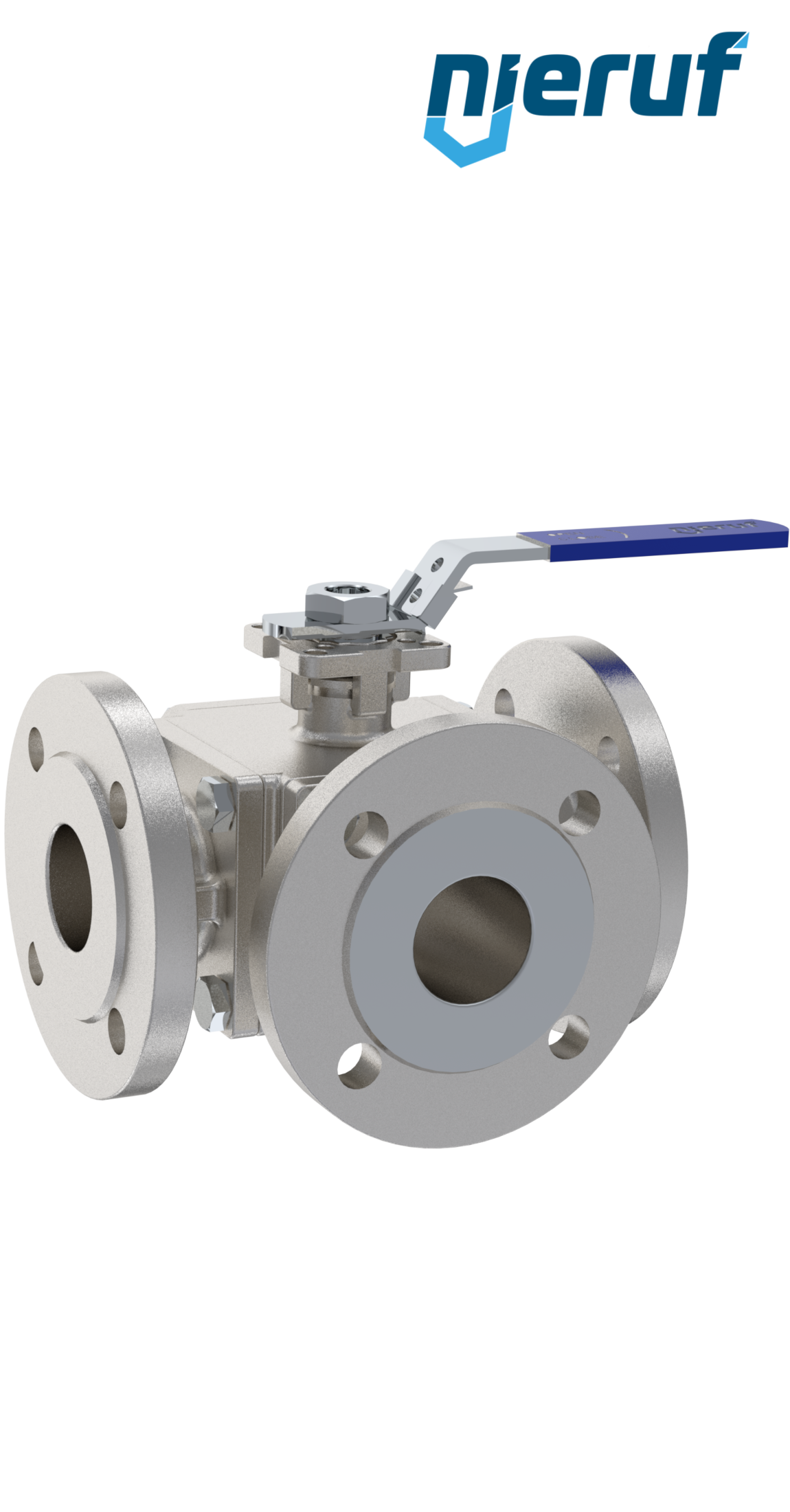

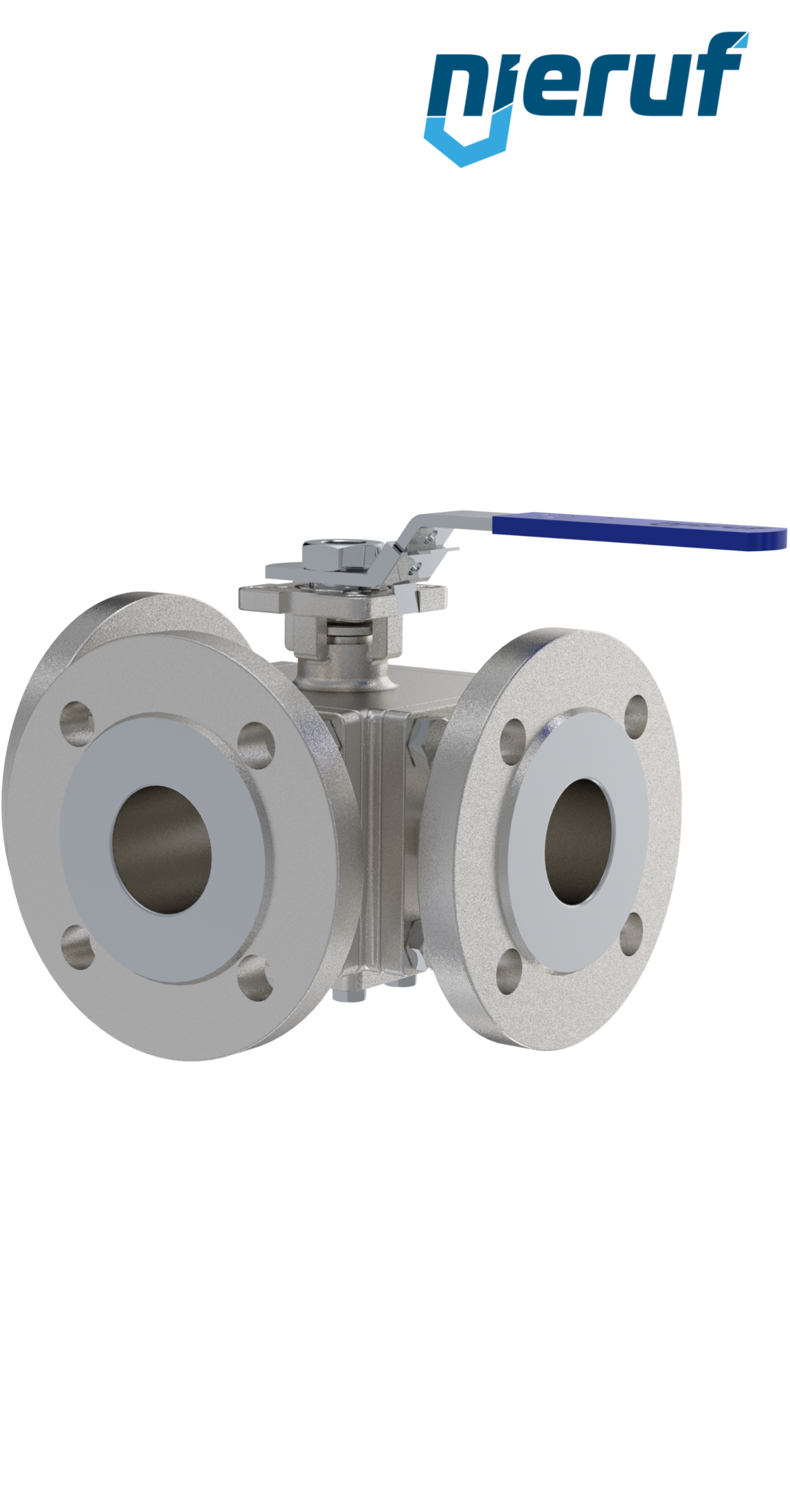

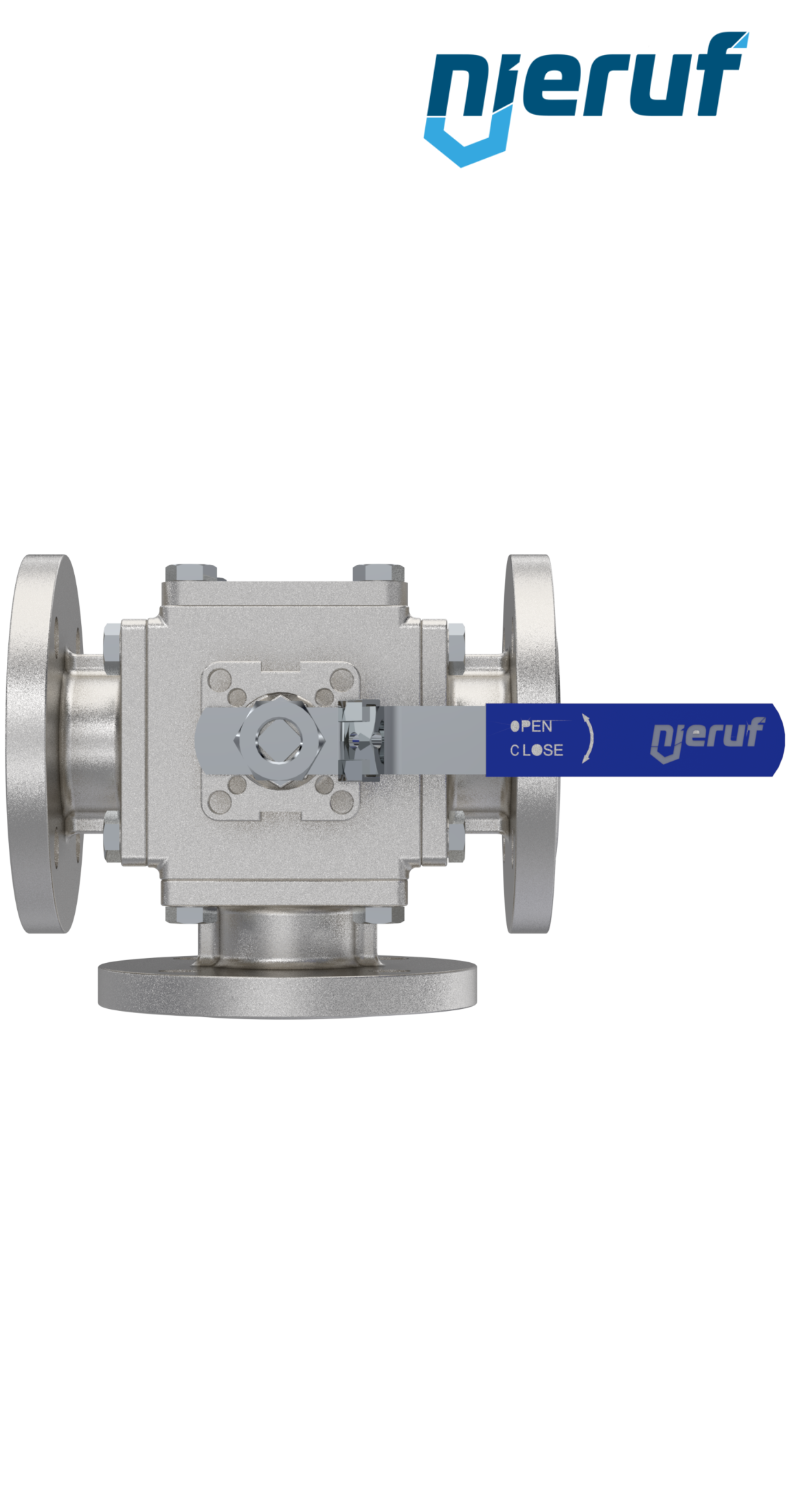

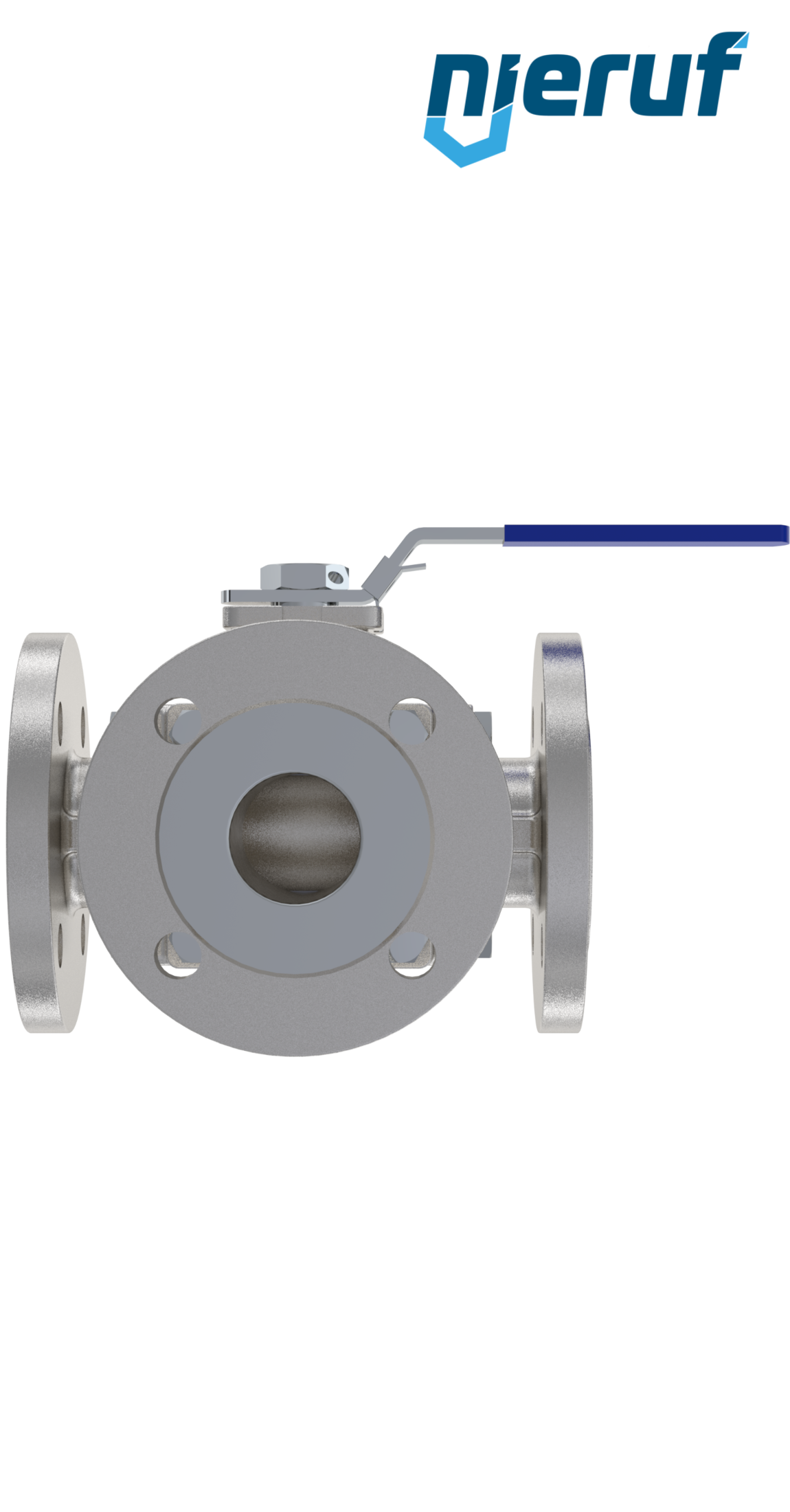

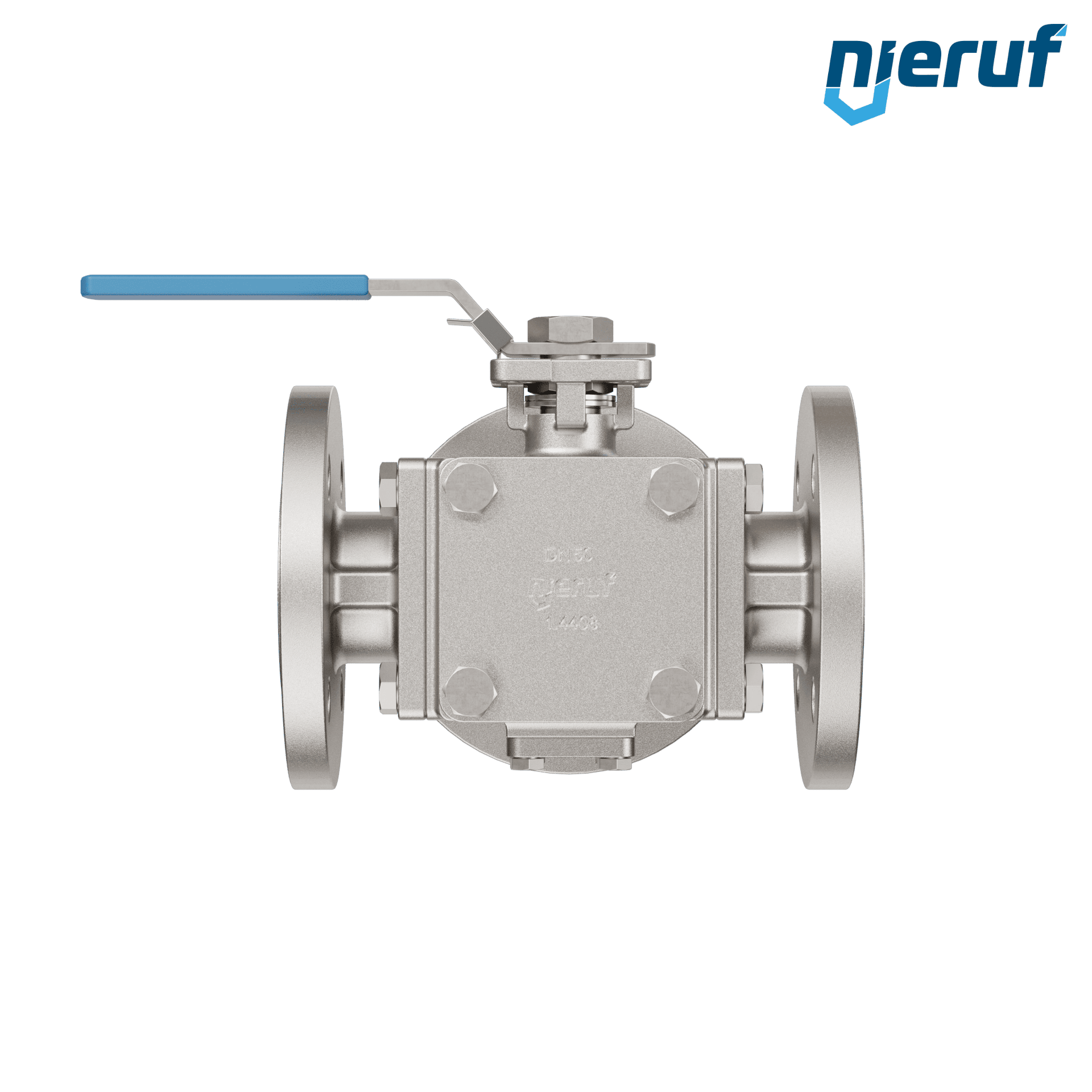

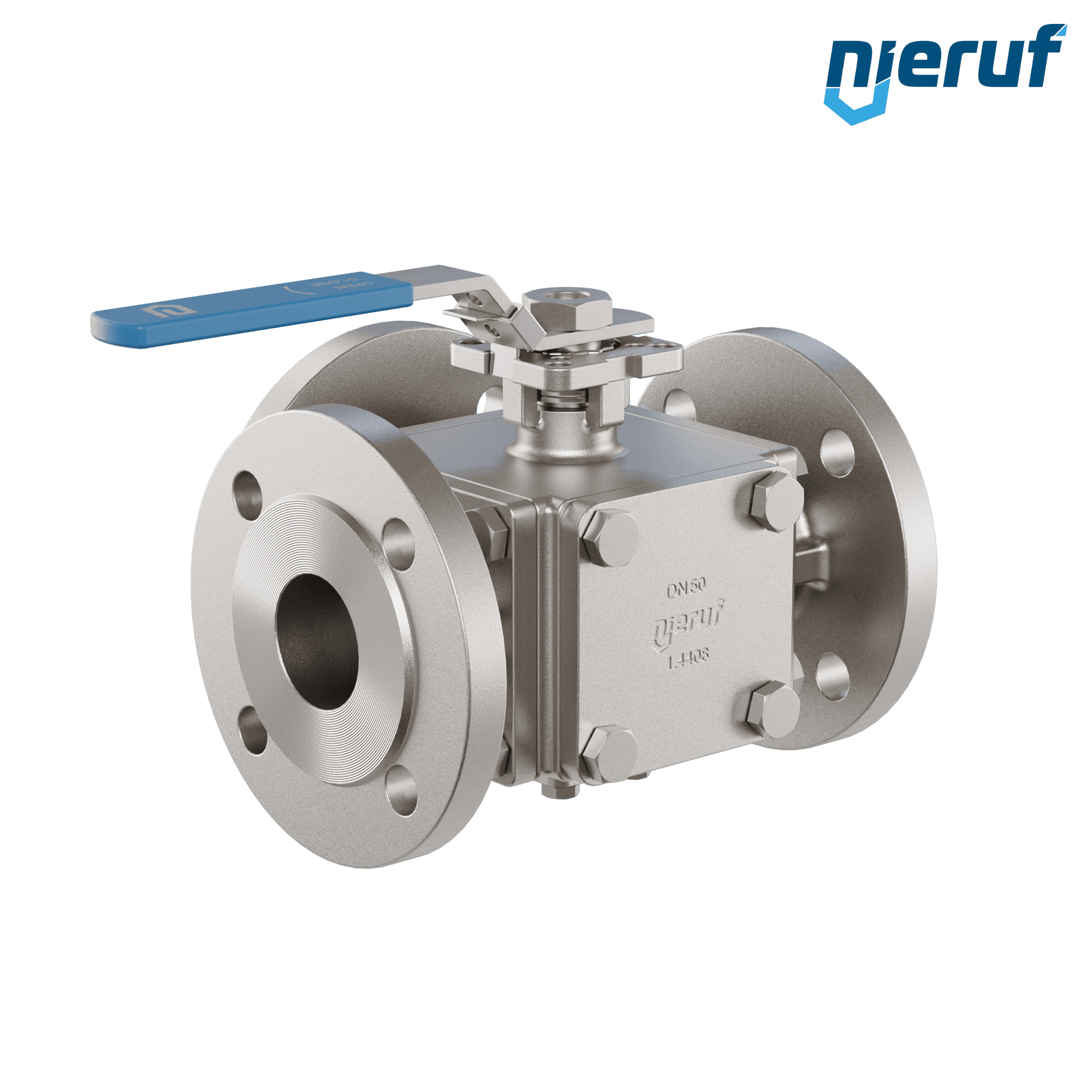

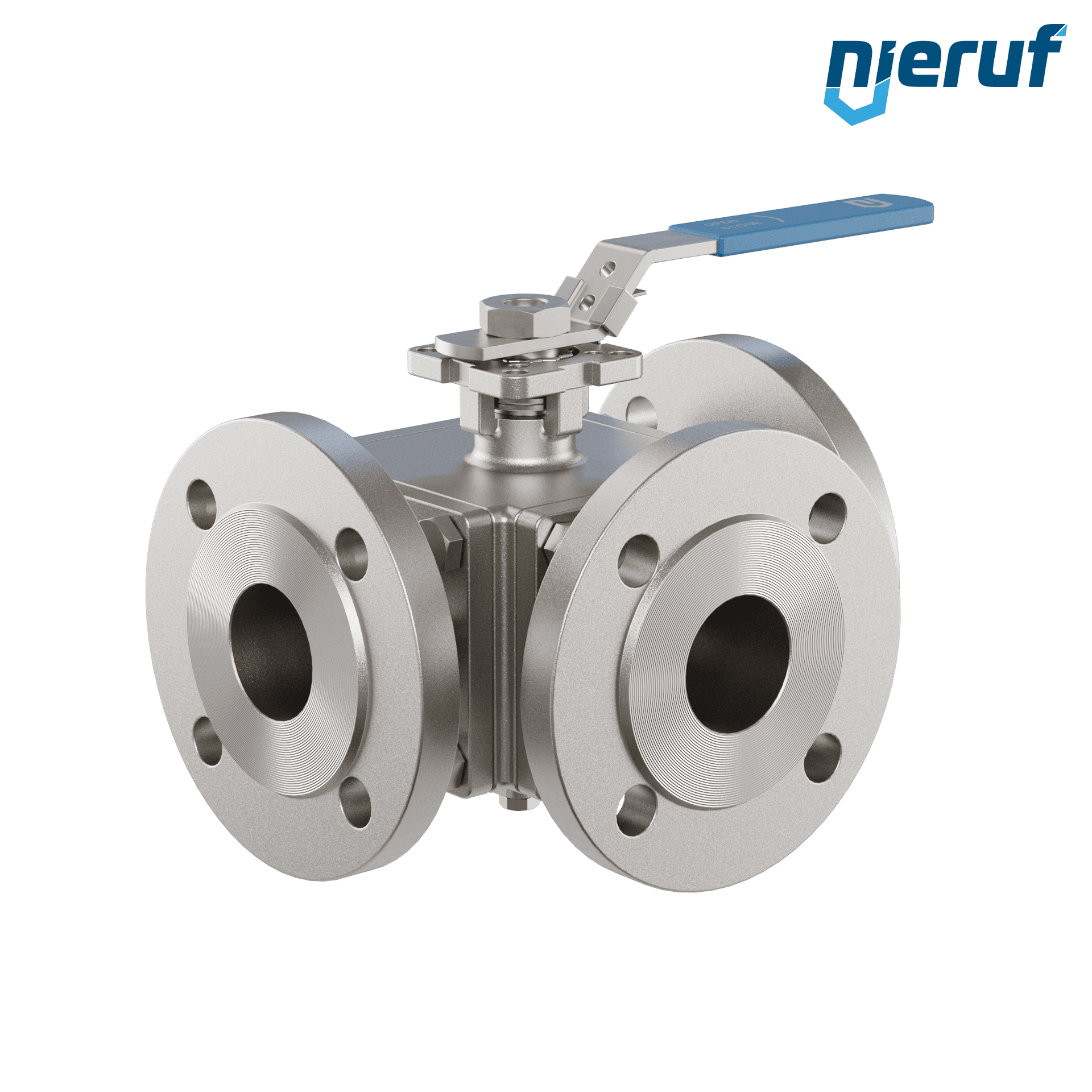

3 way stainless steel flange ball valve DN50 FK09 T drilling stainless steel 1.4408

FK09000008
quantity (pcs.):
792.80€ * 919.65€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 3-5 working days

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
3 way stainless steel flange ball valve DN50 FK09 T drilling stainless steel 1.4408
3 way stainless steel flange ball valve DN50 PN16/40 FK09 body stainless steel 1.4408 ball stainless steel 1.4408 seal TFM 1600 / PTFE T drilling
diameter: DN50
connection: flange dimensions acc. to DIN EN 1092-1
Seal steam: O-ring Viton
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on working pressure and media
max. pressure: PN16/40
design: T drilling
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
ball seal: TFM 1600 / PTFE
length: 232mm
actuator: hand lever with blue plastic cover
installation position: any position
product description: This high quality three-way flange ball valve made of stainless steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3
3 way stainless steel flange ball valve DN50 FK09 T drilling stainless steel 1.4408

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

3 way stainless steel flange ball valve DN50 FK09 T drilling stainless steel 1.4408
