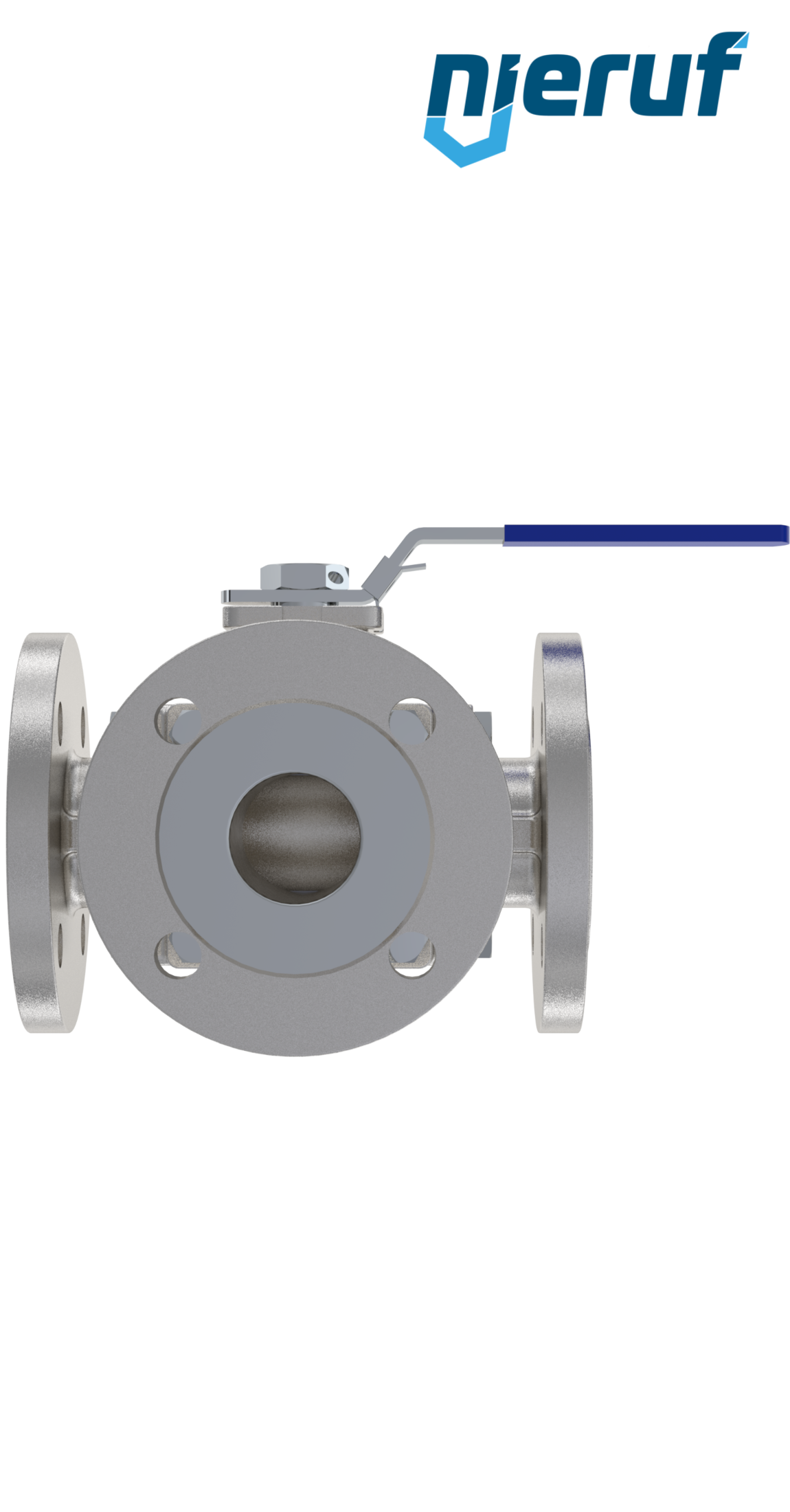

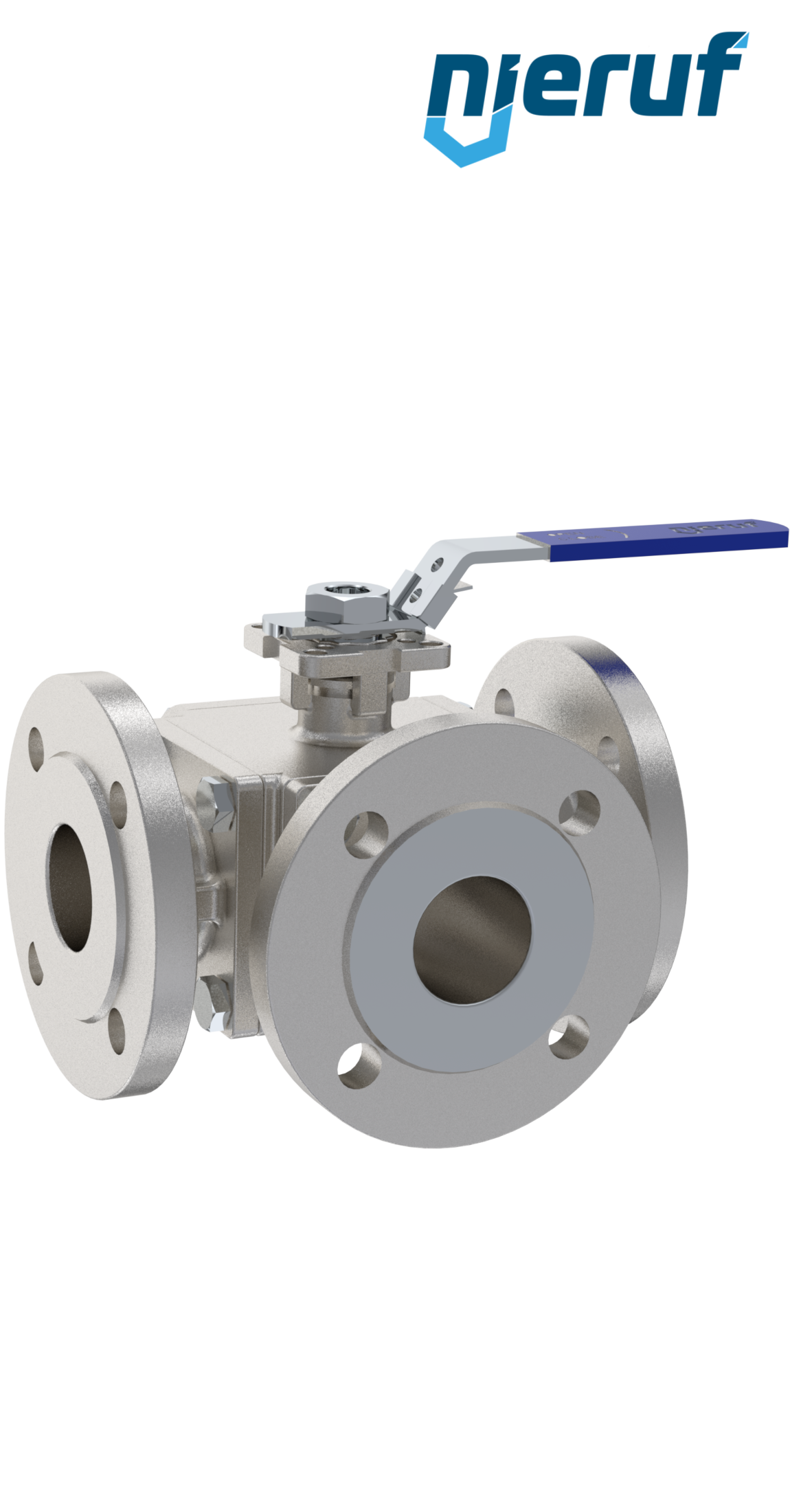

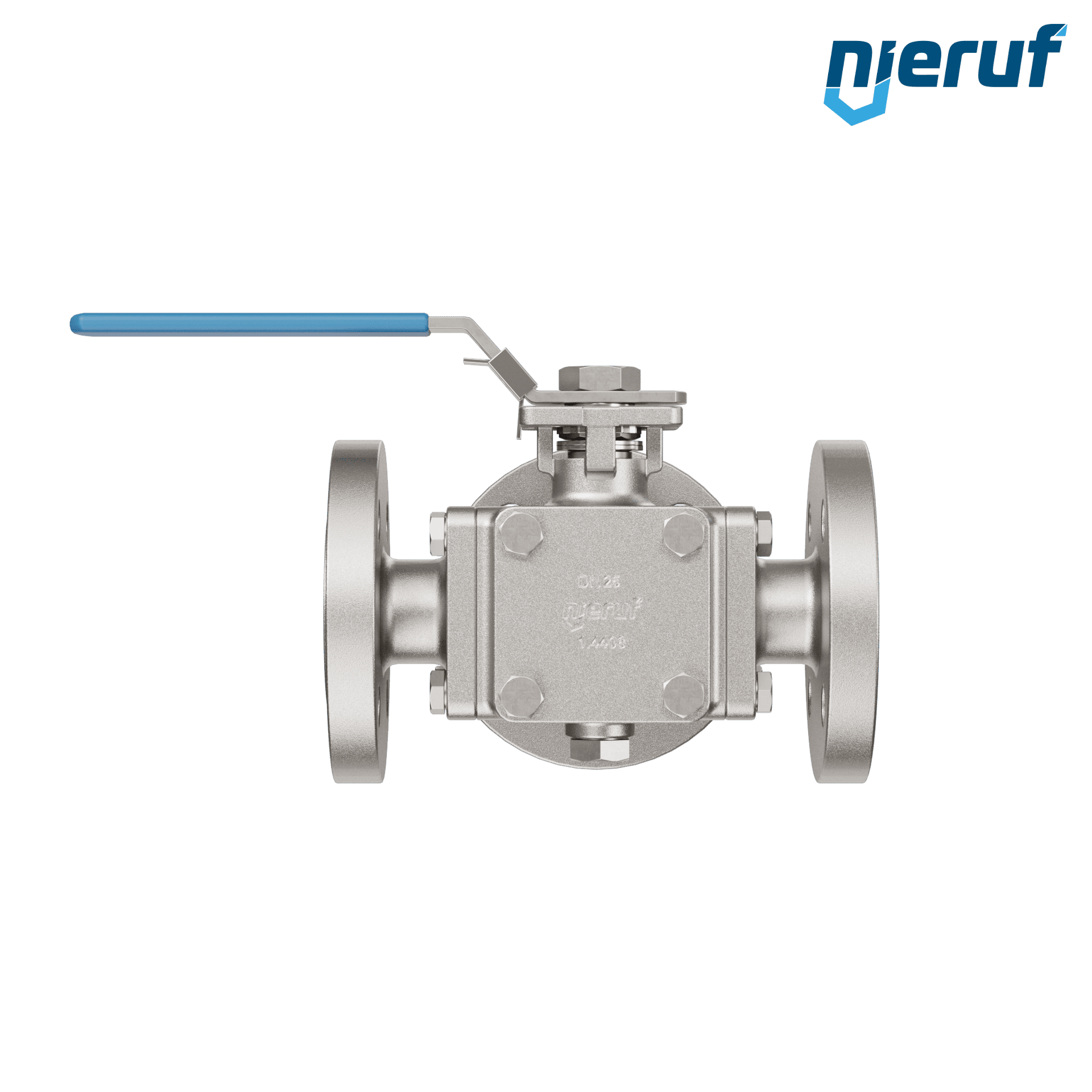

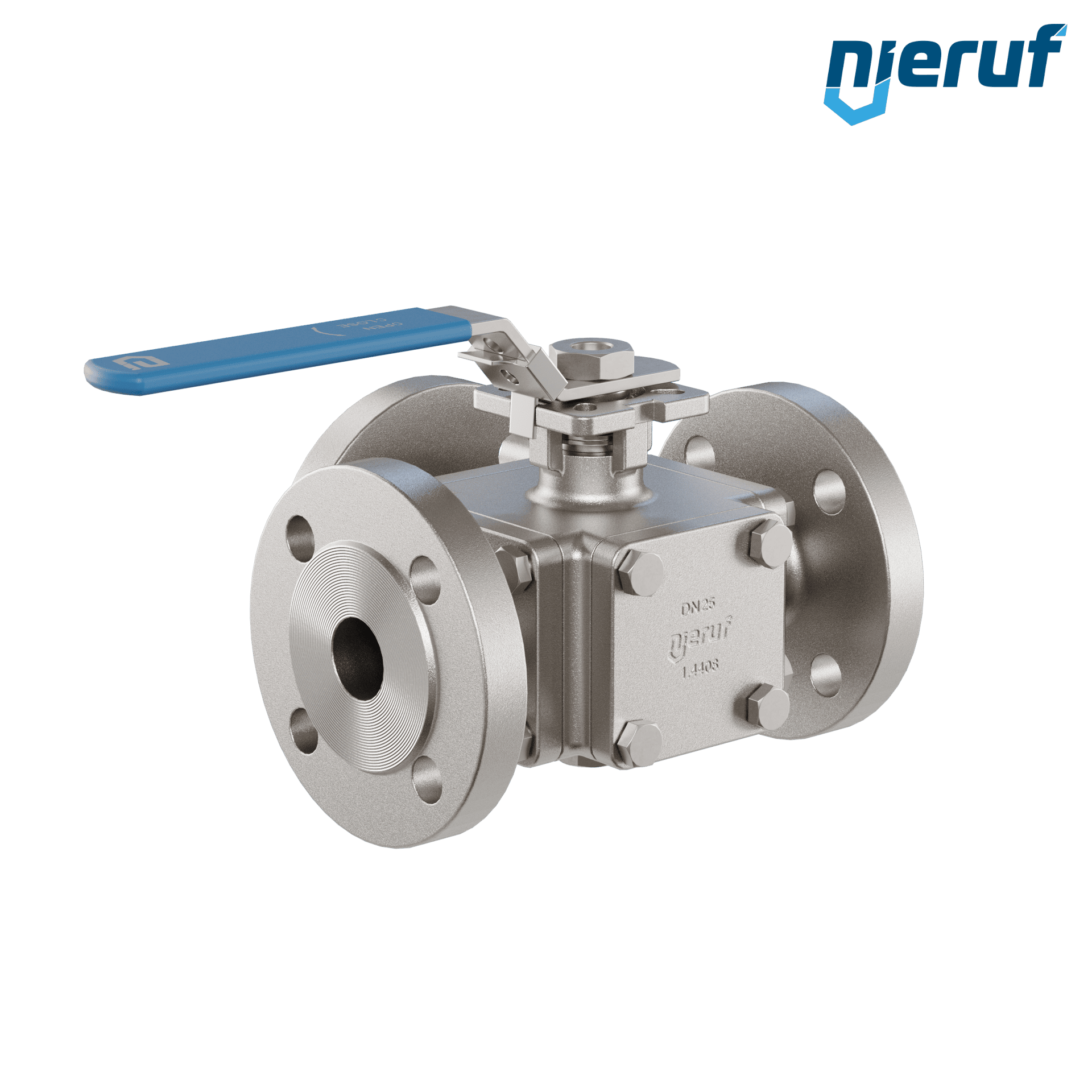

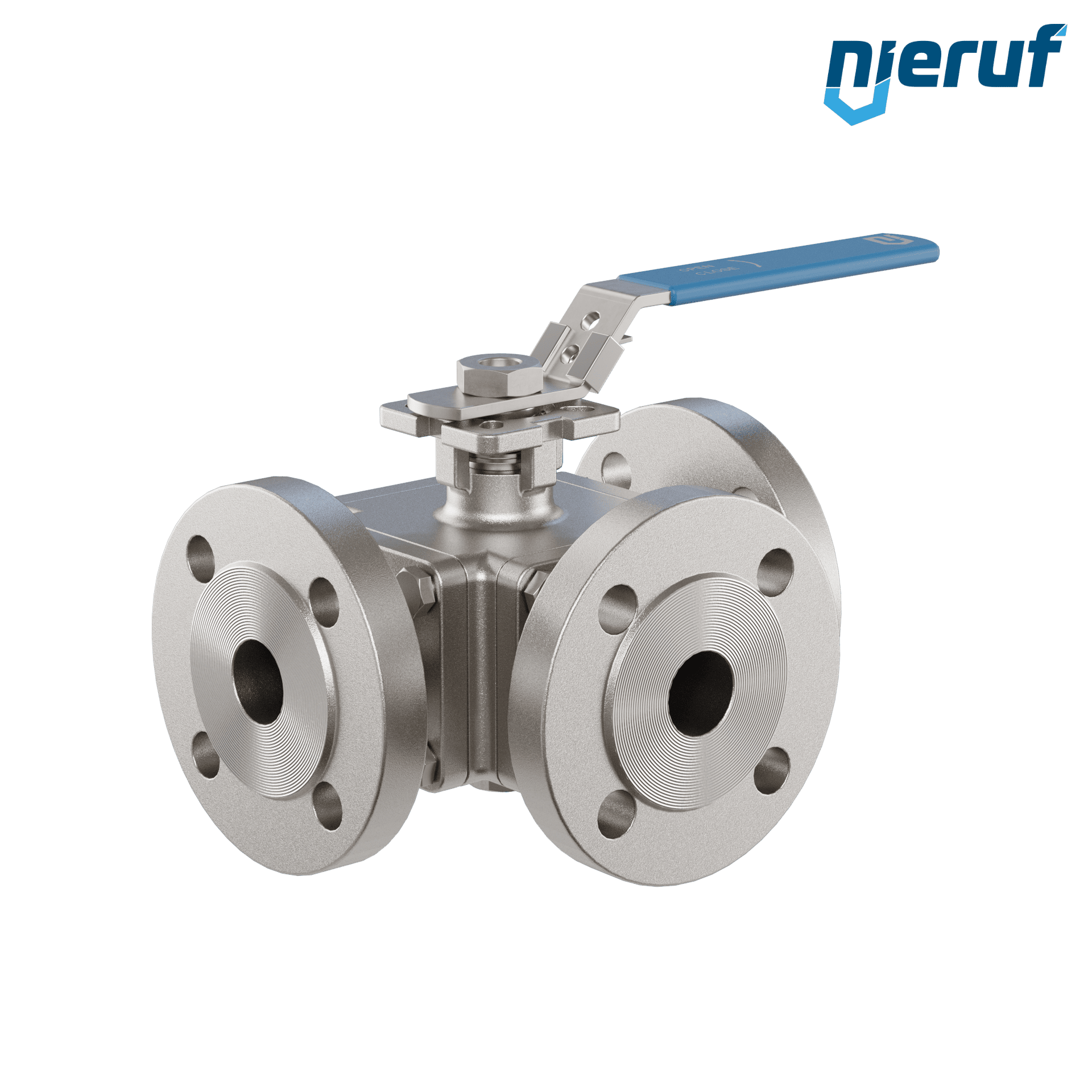

3 way stainless steel flange ball valve DN25 PN16/40 FK09 body stainless steel 1.4408 ball stainless steel 1.4408 seal TFM 1600 / PTFE L Drilling
| product | 3 way stainless steel flange ball valve |
|---|---|
| type | FK09 |
| manufacturer | NieRuf |
| diameter | DN25 |
| connection | flange dimensions acc. to DIN EN 1092-1 |
| Seal steam | O-ring Viton |
| ball seal | TFM 1600 / PTFE |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16/40 |
| design | L Drilling |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | 181mm |
| actuator | hand lever with blue plastic cover |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality three-way flange ball valve made of stainless steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a L-drilling - basic postion L=1 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way stainless steel flange ball valve DN25 FK09 L Drilling stainless steel 1.4408
Article no.
: FK09010005
product:
3 way stainless steel flange ball valve
type:
FK09
manufacturer:
NieRuf
diameter:
DN25
connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
ball seal:
TFM 1600 / PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16/40
design:
L Drilling
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
181mm
actuator:
hand lever with blue plastic cover
installation position:
any position
authorized for:
TA Luft
product description:
This high quality three-way flange ball valve made of stainless steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a L-drilling - basic postion L=1
