EK08000006

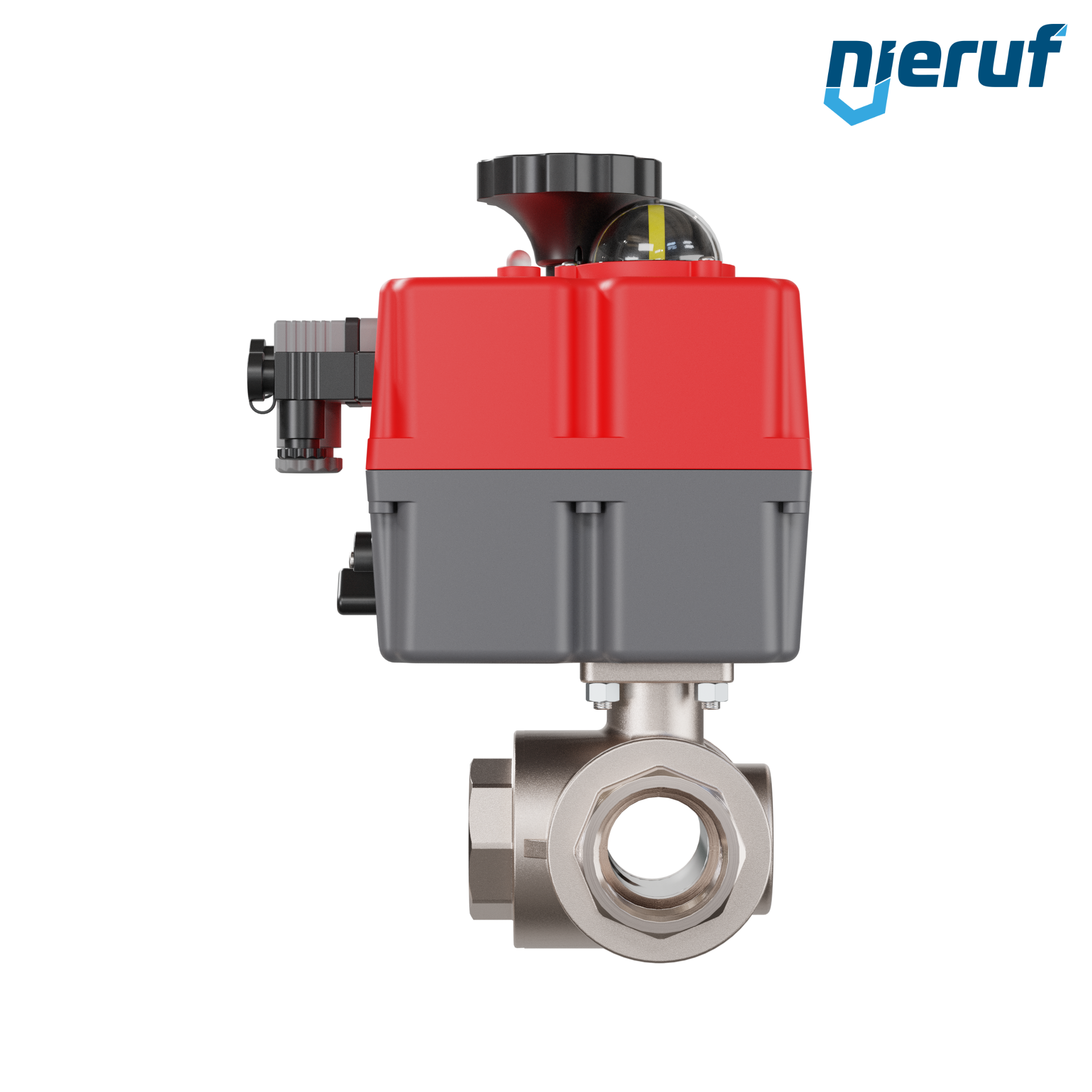

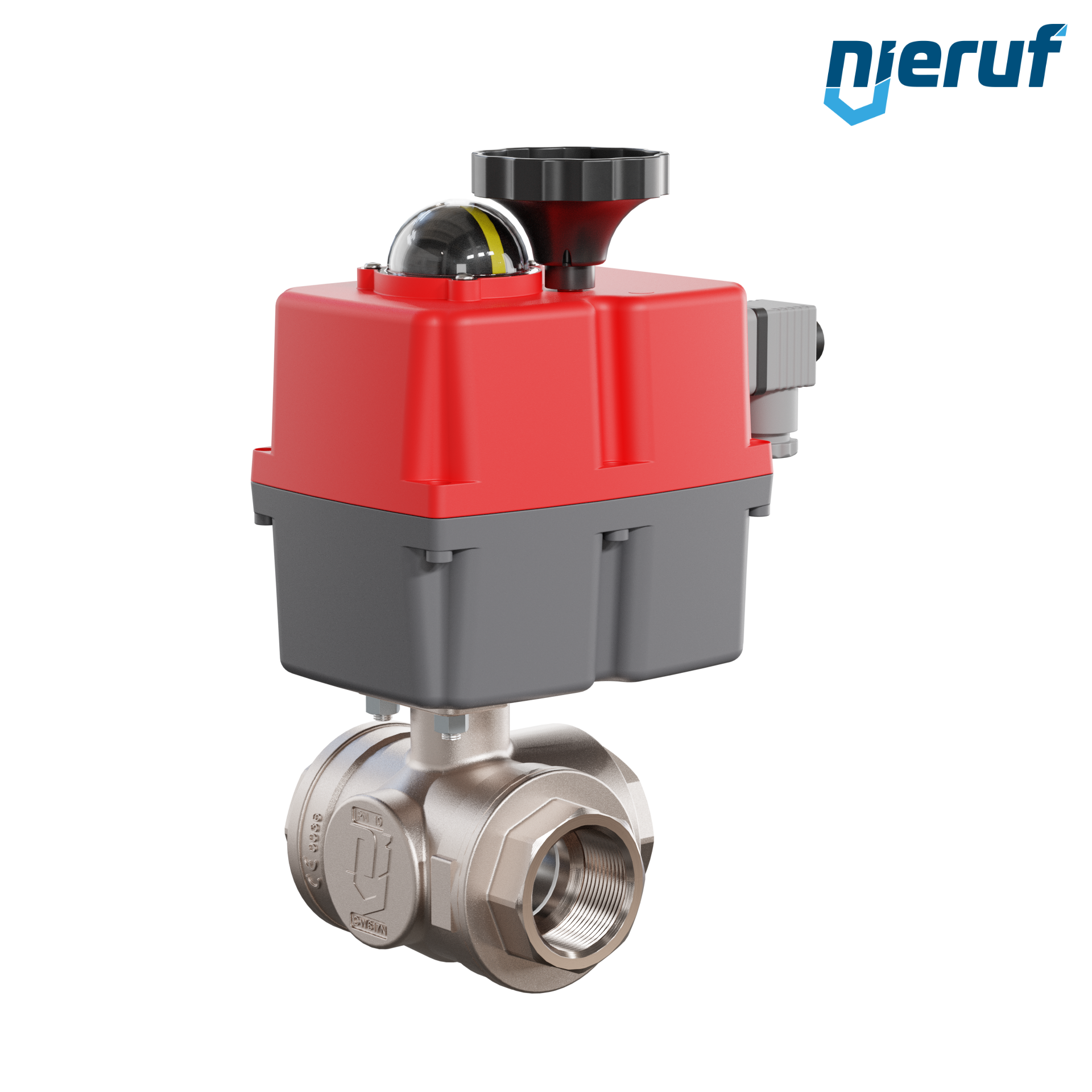

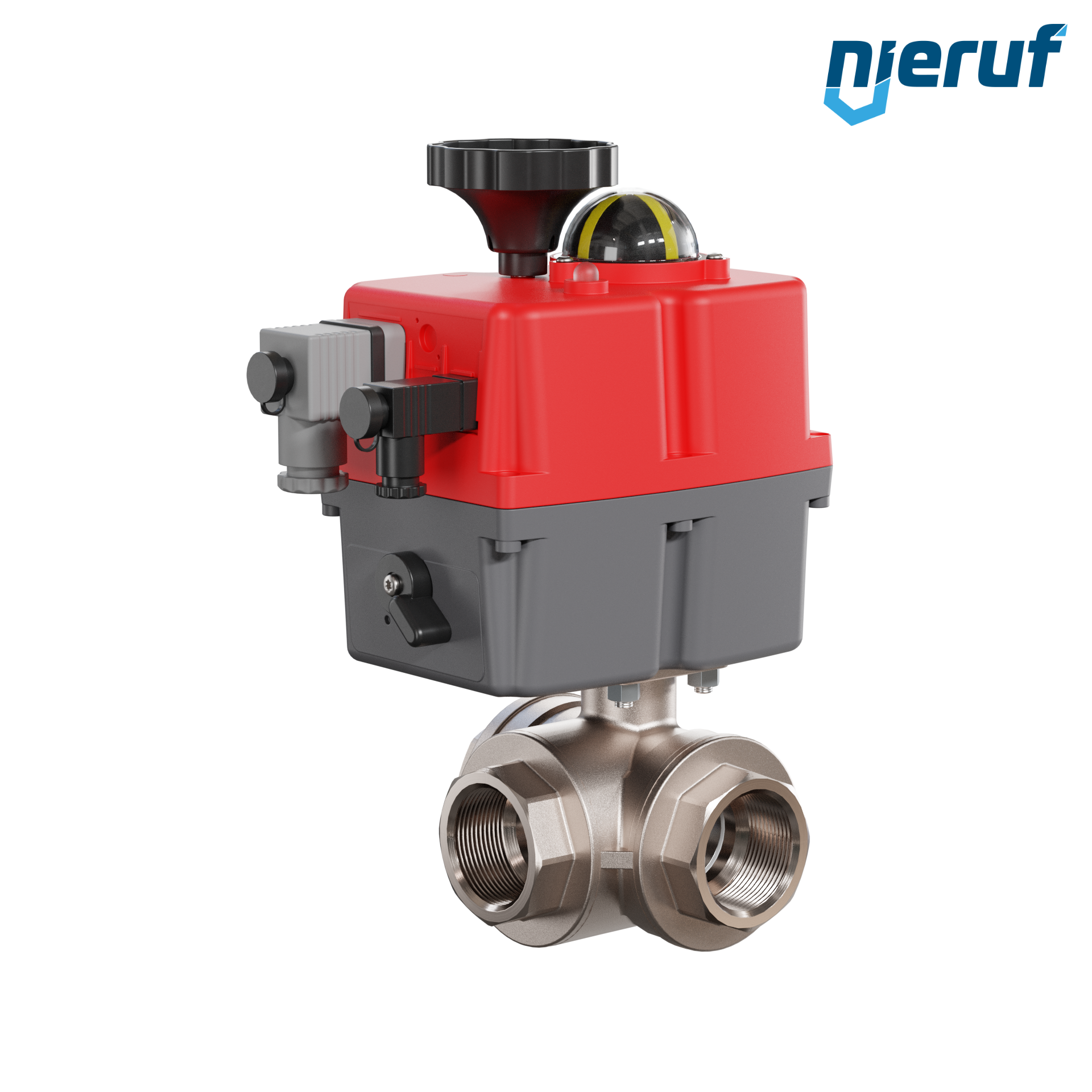

3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch brass full port design with T drilling
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch made of brass CW617N nickel plated with full port design with T drilling for liquid and gaseous media
product: | 3 way automatic-ball valve |
---|---|
type: | EK08 |
manufacturer: | NieRuf |
diameter: | DN32 - 1 1/4" inch |
connection: | female thread |
Seal steam: | PTFE |
media: | liquid and gaseous media |
temperature: | ball valve generally from -20°C up to +150°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
max. pressure: | PN10 |
design: | full port design with T drilling |
body material: | brass CW617N nickel plated |
ball material: | brass |
ball seal: | PTFE |
actuator: | electronic actuator S35 - series S for 24-240V AC/DC |
actuator informations: | corrosion resistant synthetic body |
installation position: | any position, not upside down |
product description: | This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch brass full port design with T drilling
Article no.
: EK08000006
product:
3 way automatic-ball valve
type:
EK08
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +150°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN10
design:
full port design with T drilling
body material:
brass CW617N nickel plated
ball material:
brass
ball seal:
PTFE
actuator:
electronic actuator S35 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
