EK08010006
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch brass full port design with L drilling
- Lead time
- 3 - 5 working days
Equipment
Questions about the article?
Our employee Richie Rost
will be happy to help you

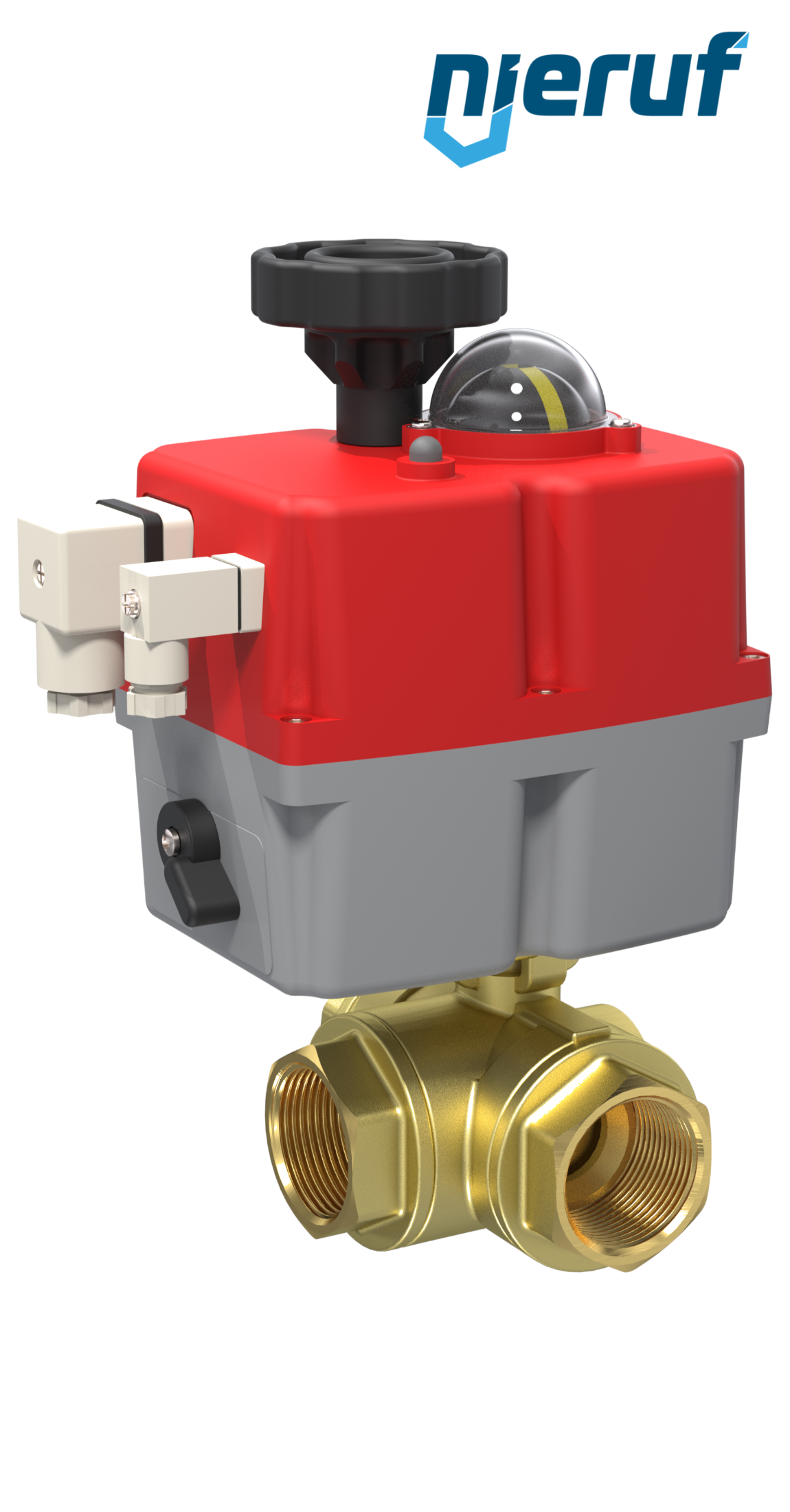

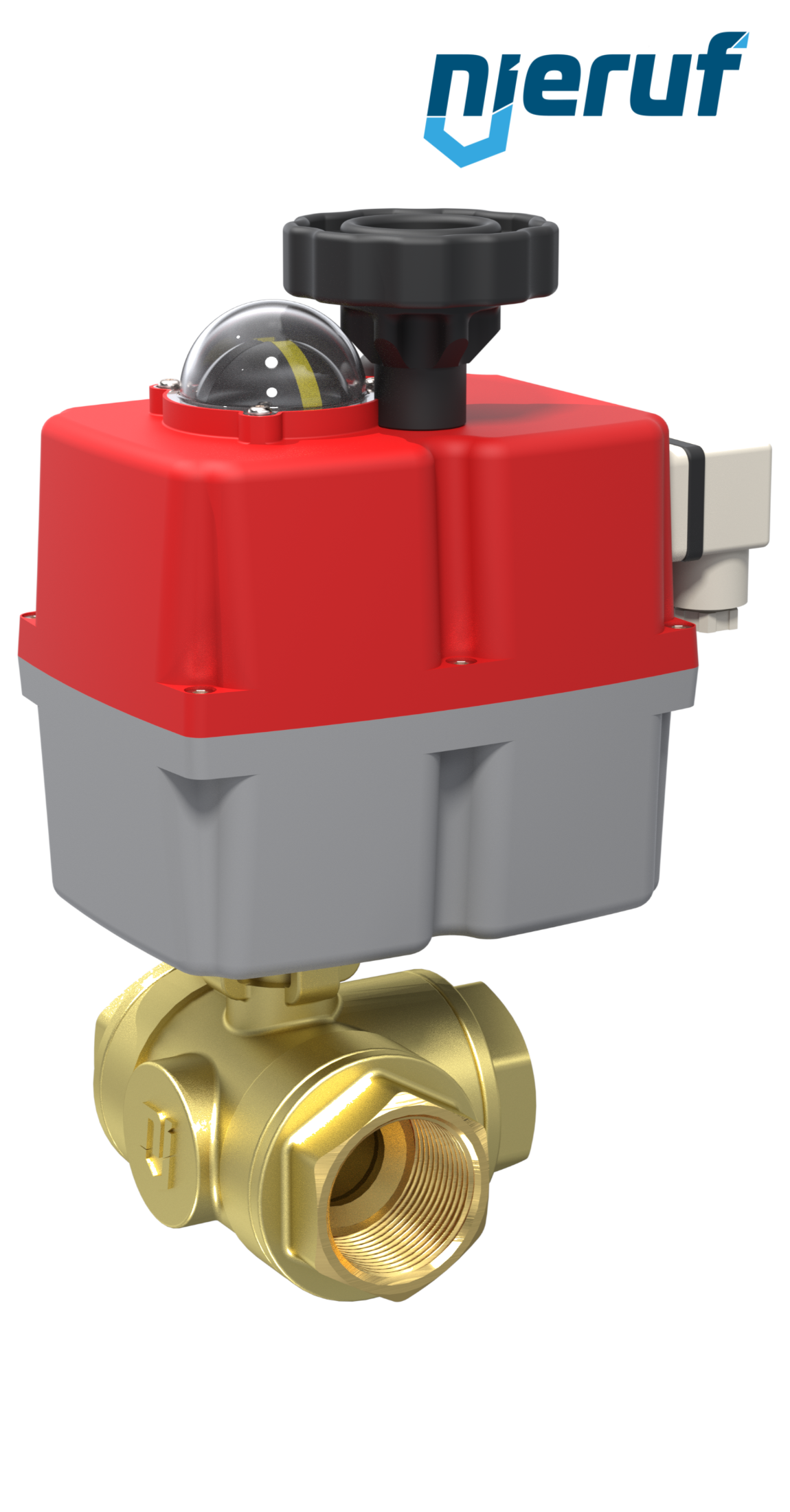

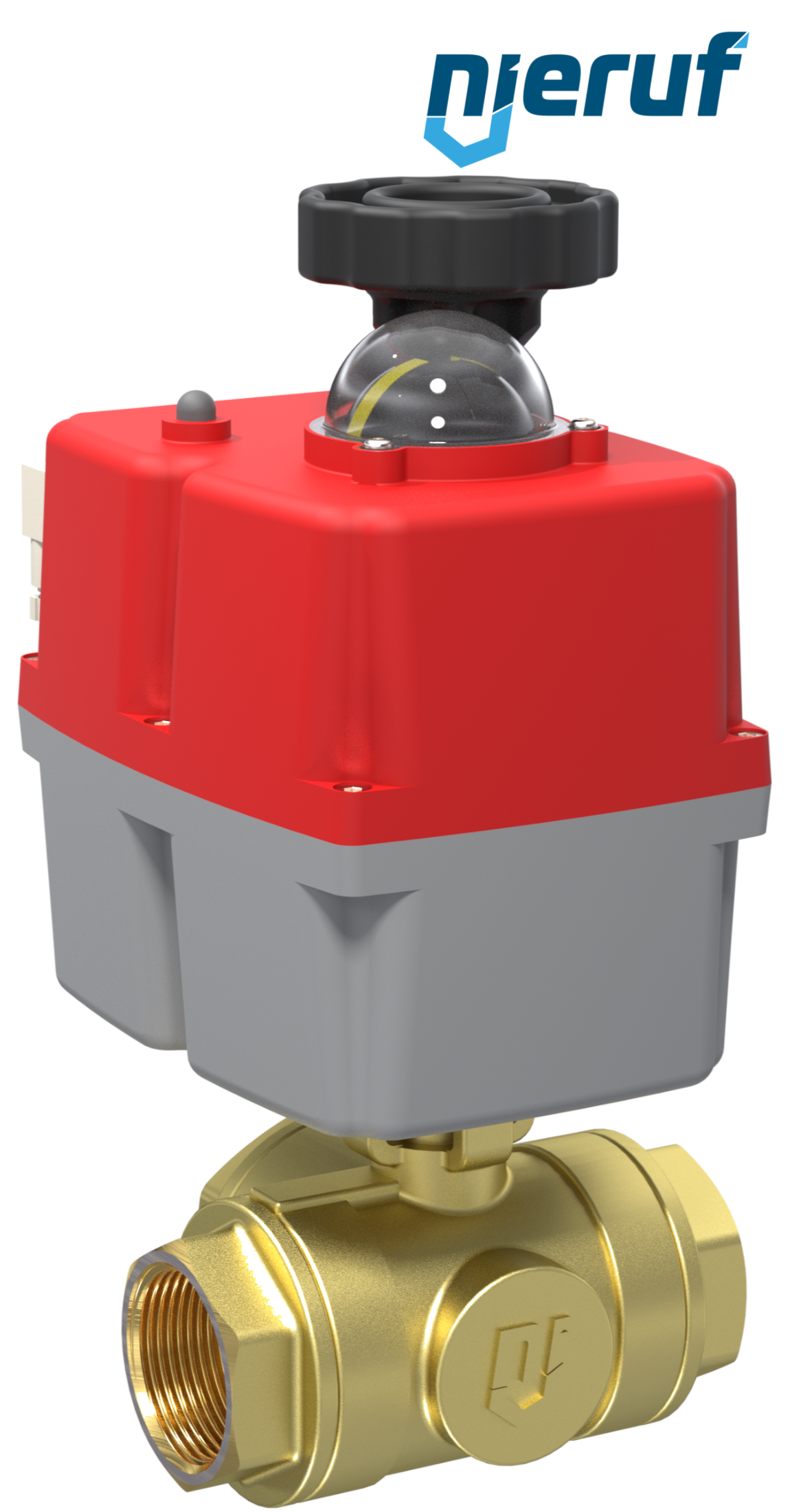

3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch brass full port design with L drilling
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch made of brass CW617N nickel plated with full port design with L drilling for liquid and gaseous media
| product | 3 way automatic-ball valve |
|---|---|
| type | EK08 |
| manufacturer | NieRuf |
| diameter | DN32 - 1 1/4" inch |
| connection | female thread |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve generally from -20°C up to +150°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN10 |
| design | full port design with L drilling |
| body material | brass CW617N nickel plated |
| ball material | brass |
| ball seal | PTFE |
| actuator | electronic actuator S35 - series S for 24-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| product description | This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way automatic-ball valve 24-240V DN32 - 1 1/4" inch brass full port design with L drilling
Article no.
: EK08010006
product:
3 way automatic-ball valve
type:
EK08
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from -20°C up to +150°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN10
design:
full port design with L drilling
body material:
brass CW617N nickel plated
ball material:
brass
ball seal:
PTFE
actuator:
electronic actuator S35 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-brass ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
Equipment
hexagon nipple 1 1/4" inch male stainless steel 316
Lead time: in stock
hose nozzle 1 1/4" 31.8 mm stainless steel 1.4408 ST01
Lead time: in stock
