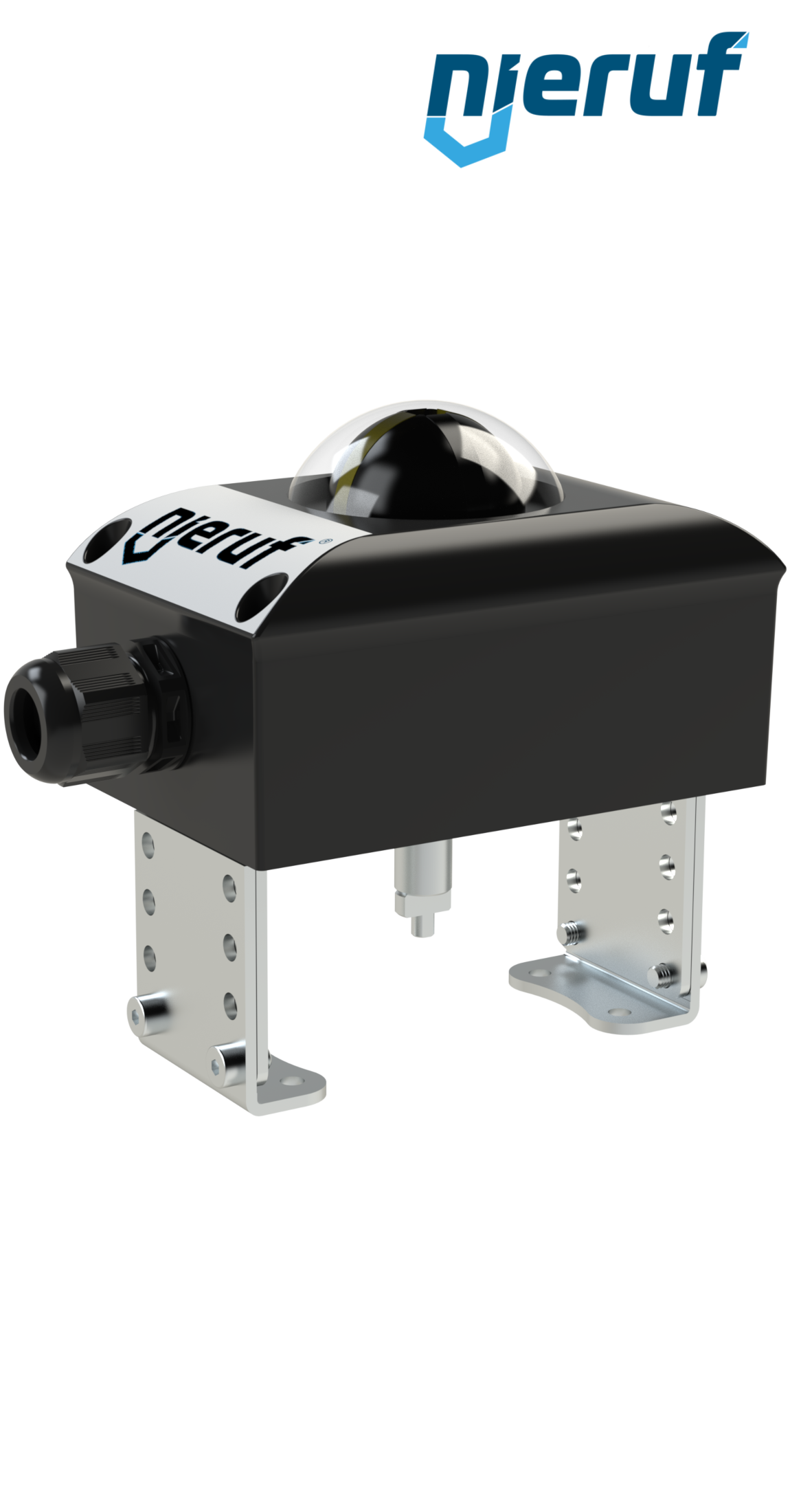

Position indicator PR02 mechanical micro switches ZF, D44X, for open / closed - made of Polyamid PA6 black
signal:
open + closed
indication:
3D position indicator
temperature:
-25°C to +80°C
seal:
EPDM, NBR
voltage:
12 - 250 V AC/DC
ATEX Position indicator made of aluminium with stainless steel bridge mechanical Honeywell Micro switch, for open and closed position signal. Switch points adjustable.
signal:
open + closed
indication:
0...90° pivoting angle, switching precision <1,5°
temperature:
-25°C to +85°C
seal:
EPDM
voltage:
8V / DC <1mA activated, >3mA not activated
Position indicator PR02 inductive proximity switches P+F, NBB2-V3-E2 (PNP, NO), for open / closed - made of Aluminum
signal:
open + closed
indication:
3D position indicator
temperature:
-25°C to +80°C
seal:
EPDM, NBR
voltage:
10 - 30V DC
Position indicator made of Polaymid for ball valves with pneumatic actuator, 2D position indicator 0...90° with signal open + closed
signal:
open + closed
indication:
2D position indicator 0...90°
temperature:
-25°C to +80°C
seal:
TPE+NBR
voltage:
24V / DC max. 2,5A | 250V / AC max. 10A
